NS Precision SK Linear Shaft Supports (8-60 mm)

NS Precision SK Linear Shaft Supports (8-60 mm)

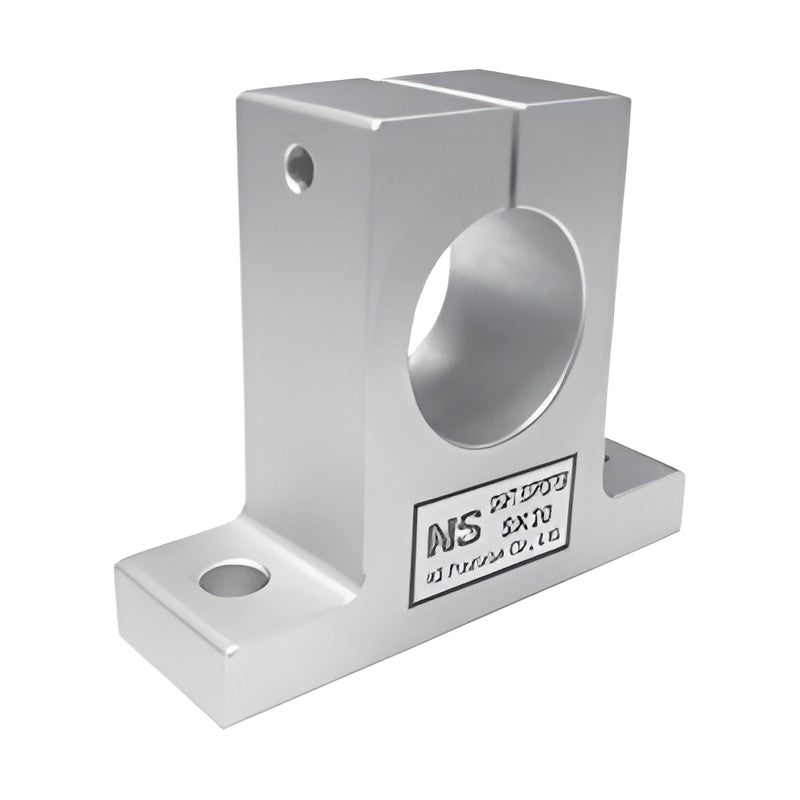

NS SK aluminium shaft support (end support) units for linear shafts 8-60 mm.

Key features

  • Slotted clamp-type shaft support with clamping bolt
  • Aluminium alloy body
  • Two base mounting holes
  • Centre height H1 matched to SC slide units

Specifications

Product Linear shaft support
Series SK
Brand NS
Product type Linear Bushings
Designations listed 12 codes
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 85
SK8 Shaft: 8 mm | Centre height H1: 20 mm | W: 42 mm | H: 32.8 mm | Mass: 24 g
SK10 Shaft: 10 mm | Centre height H1: 20 mm | W: 42 mm | H: 32.8 mm | Mass: 24 g
SK12 Shaft: 12 mm | Centre height H1: 23 mm | W: 42 mm | H: 37.5 mm | Mass: 30 g
SK13 Shaft: 13 mm | Centre height H1: 23 mm | W: 42 mm | H: 37.5 mm | Mass: 30 g
SK16 Shaft: 16 mm | Centre height H1: 27 mm | W: 48 mm | H: 44 mm | Mass: 40 g
SK20 Shaft: 20 mm | Centre height H1: 31 mm | W: 60 mm | H: 51 mm | Mass: 70 g
SK25 Shaft: 25 mm | Centre height H1: 35 mm | W: 70 mm | H: 60 mm | Mass: 130 g
SK30 Shaft: 30 mm | Centre height H1: 42 mm | W: 84 mm | H: 70 mm | Mass: 180 g
SK35 Shaft: 35 mm | Centre height H1: 50 mm | W: 98 mm | H: 82 mm | Mass: 270 g
SK40 Shaft: 40 mm | Centre height H1: 60 mm | W: 114 mm | H: 96 mm | Mass: 420 g
SK50 Shaft: 50 mm | Centre height H1: 70 mm | W: 126 mm | H: 120 mm | Mass: 750 g
SK60 Shaft: 60 mm | Centre height H1: 80 mm | W: 148 mm | H: 136 mm | Mass: 1100 g
Linear BushingsNS Precision
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision SK Linear Shaft Supports (8-60 mm)

Brand NS Precision·Linear Bushings

Available part numbers (12)

SK8, SK10, SK12, SK13, SK16, SK20, SK25, SK30, SK35, SK40 + 2 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SK8Shaft: 8 mm | Centre height H1: 20 mm | W: 42 mm | H: 32.8 mm | Mass: 24 g
SK10Shaft: 10 mm | Centre height H1: 20 mm | W: 42 mm | H: 32.8 mm | Mass: 24 g
SK12Shaft: 12 mm | Centre height H1: 23 mm | W: 42 mm | H: 37.5 mm | Mass: 30 g
SK13Shaft: 13 mm | Centre height H1: 23 mm | W: 42 mm | H: 37.5 mm | Mass: 30 g
SK16Shaft: 16 mm | Centre height H1: 27 mm | W: 48 mm | H: 44 mm | Mass: 40 g
SK20Shaft: 20 mm | Centre height H1: 31 mm | W: 60 mm | H: 51 mm | Mass: 70 g
SK25Shaft: 25 mm | Centre height H1: 35 mm | W: 70 mm | H: 60 mm | Mass: 130 g
SK30Shaft: 30 mm | Centre height H1: 42 mm | W: 84 mm | H: 70 mm | Mass: 180 g
SK35Shaft: 35 mm | Centre height H1: 50 mm | W: 98 mm | H: 82 mm | Mass: 270 g
SK40Shaft: 40 mm | Centre height H1: 60 mm | W: 114 mm | H: 96 mm | Mass: 420 g
SK50Shaft: 50 mm | Centre height H1: 70 mm | W: 126 mm | H: 120 mm | Mass: 750 g
SK60Shaft: 60 mm | Centre height H1: 80 mm | W: 148 mm | H: 136 mm | Mass: 1100 g
