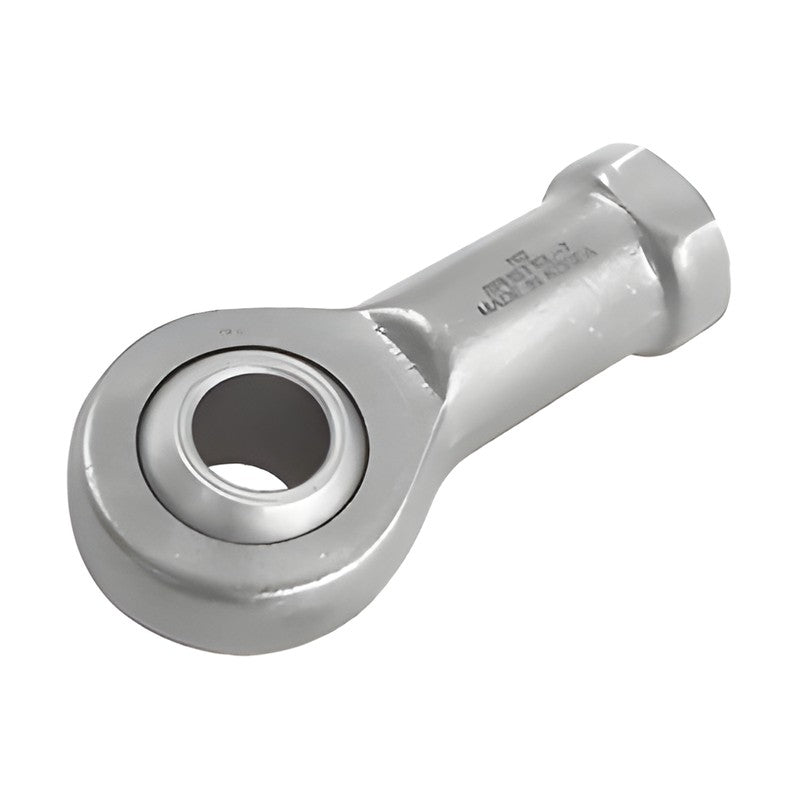

NS Precision SPHST / SPHST-T Stainless Rod Ends (Female Thread)

NS stainless steel maintenance-free rod ends with female thread: SPHST (SUS 4 series) and SPHST-T (SUS 316L one-piece housing).

Key features

Stainless steel housing for corrosive environments
SPHST: SUS 4-series; SPHST-T: SUS 316L one-piece housing
Non-lubrication (maintenance-free) design
Female (internal) shank thread

Specifications

Product	Stainless rod end
Type	Non-lubrication, female thread
Brand	NS
Product type	Rod Ends & Plain Bearings
Designations listed	23 codes
Source	NS NS Precision catalogue (CAT No. NS-2019-01), p. 16-18

SPHST5-T		Bore d: 5 mm \| Thread: M5x0.8 \| C0: 570 kgf \| Mass: 16.5 g
SPHST6-T		Bore d: 6 mm \| Thread: M6x1 \| C0: 700 kgf \| Mass: 25 g
SPHST8-T		Bore d: 8 mm \| Thread: M8x1.25 \| C0: 1000 kgf \| Mass: 43 g
SPHST10-T		Bore d: 10 mm \| Thread: M10x1.5 \| C0: 1350 kgf \| Mass: 72 g
SPHST12-T		Bore d: 12 mm \| Thread: M12x1.75 \| C0: 1700 kgf \| Mass: 107 g
SPHST14-T		Bore d: 14 mm \| Thread: M14x2 \| C0: 2100 kgf \| Mass: 160 g
SPHST16-T		Bore d: 16 mm \| Thread: M16x2 \| C0: 2550 kgf \| Mass: 210 g
SPHST18-T		Bore d: 18 mm \| Thread: M18x1.5 \| C0: 3000 kgf \| Mass: 295 g
SPHST20-T		Bore d: 20 mm \| Thread: M20x1.5 \| C0: 3500 kgf \| Mass: 380 g
SPHST22-T		Bore d: 22 mm \| Thread: M22x1.5 \| C0: 4200 kgf \| Mass: 490 g
SPHST25-T		Bore d: 25 mm \| Thread: M25x1.5 \| C0: 7400 kgf \| Mass: 750 g
SPHST30-T		Bore d: 30 mm \| Thread: M30x2 \| C0: 9100 kgf \| Mass: 900 g
SPHST3		Bore d: 3 mm \| Thread: M3x0.5 \| C0: 300 kgf \| Mass: 6.5 g
SPHST4		Bore d: 4 mm \| Thread: M4x0.7 \| C0: 350 kgf \| Mass: 10 g
SPHST5		Bore d: 5 mm \| Thread: M5x0.8 \| C0: 400 kgf \| Mass: 16.5 g
SPHST6		Bore d: 6 mm \| Thread: M6x1 \| C0: 510 kgf \| Mass: 25 g
SPHST8		Bore d: 8 mm \| Thread: M8x1.25 \| C0: 760 kgf \| Mass: 43 g
SPHST10		Bore d: 10 mm \| Thread: M10x1.25 or M10x1.5 \| C0: 960 kgf \| Mass: 72 g
SPHST12		Bore d: 12 mm \| Thread: M12x1.75 \| C0: 1120 kgf \| Mass: 107 g
SPHST14		Bore d: 14 mm \| Thread: M14x1.5 or M14x2 \| C0: 1550 kgf \| Mass: 160 g
SPHST16		Bore d: 16 mm \| Thread: M16x1.5 or M16x2 \| C0: 2060 kgf \| Mass: 210 g
SPHST18		Bore d: 18 mm \| Thread: M18x1.5 \| C0: 2570 kgf \| Mass: 295 g
SPHST20		Bore d: 20 mm \| Thread: M20x1.5 \| C0: 2840 kgf \| Mass: 380 g
