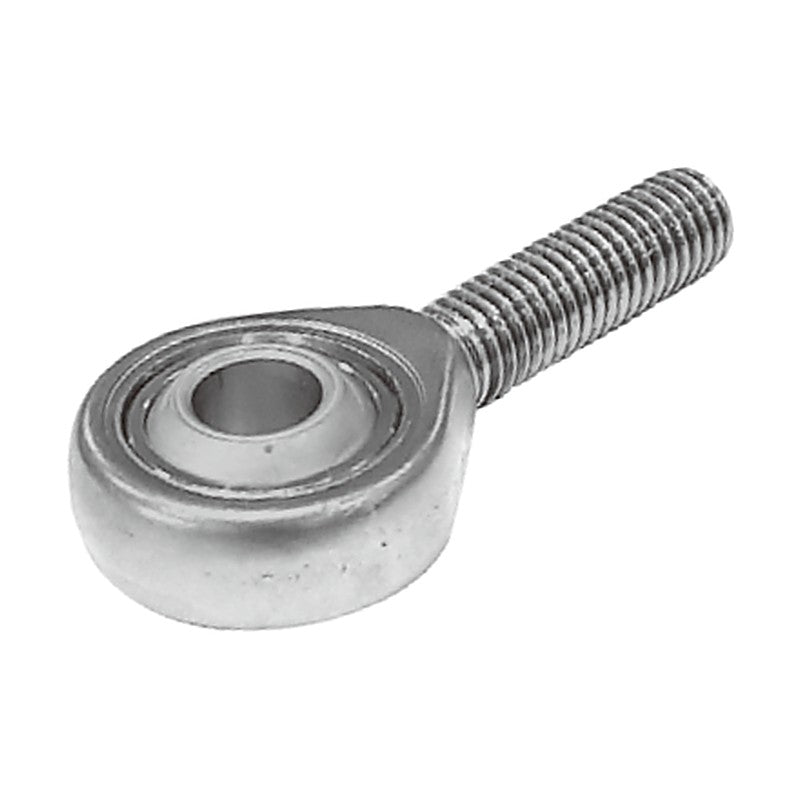

NS Precision SPOST / SPOST-T Stainless Rod Ends (Male Thread)

NS stainless steel maintenance-free rod ends with male thread: SPOST (SUS 4 series) and SPOST-T (SUS 316L one-piece housing).

Key features

Stainless steel housing for corrosive environments
SPOST: SUS 4-series; SPOST-T: SUS 316L one-piece housing
Non-lubrication (maintenance-free) design
Male (external) shank thread

Specifications

Product	Stainless rod end
Type	Non-lubrication, male thread
Brand	NS
Product type	Rod Ends & Plain Bearings
Designations listed	23 codes
Source	NS NS Precision catalogue (CAT No. NS-2019-01), p. 17-19

SPOST5-T		Bore d: 5 mm \| Thread: M5x0.8 \| C0: 350 kgf \| Mass: 12.5 g
SPOST6-T		Bore d: 6 mm \| Thread: M6x1 \| C0: 500 kgf \| Mass: 19 g
SPOST8-T		Bore d: 8 mm \| Thread: M8x1.25 \| C0: 700 kgf \| Mass: 32 g
SPOST10-T		Bore d: 10 mm \| Thread: M10x1.5 \| C0: 1100 kgf \| Mass: 54 g
SPOST12-T		Bore d: 12 mm \| Thread: M12x1.75 \| C0: 1700 kgf \| Mass: 85 g
SPOST14-T		Bore d: 14 mm \| Thread: M14x2 \| C0: 2100 kgf \| Mass: 126 g
SPOST16-T		Bore d: 16 mm \| Thread: M16x2 \| C0: 2550 kgf \| Mass: 185 g
SPOST18-T		Bore d: 18 mm \| Thread: M18x1.5 \| C0: 3000 kgf \| Mass: 260 g
SPOST20-T		Bore d: 20 mm \| Thread: M20x1.5 \| C0: 3500 kgf \| Mass: 340 g
SPOST22-T		Bore d: 22 mm \| Thread: M22x1.5 \| C0: 4200 kgf \| Mass: 435 g
SPOST25-T		Bore d: 25 mm \| Thread: M25x1.5 \| C0: 7400 kgf \| Mass: 650 g
SPOST30-T		Bore d: 30 mm \| Thread: M30x2 \| C0: 9100 kgf \| Mass: 910 g
SPOST3		Bore d: 3 mm \| Thread: M3x0.5 \| C0: 270 kgf \| Mass: 4.5 g
SPOST4		Bore d: 4 mm \| Thread: M4x0.7 \| C0: 310 kgf \| Mass: 7 g
SPOST5		Bore d: 5 mm \| Thread: M5x0.8 \| C0: 350 kgf \| Mass: 12.5 g
SPOST6		Bore d: 6 mm \| Thread: M6x1 \| C0: 510 kgf \| Mass: 19 g
SPOST8		Bore d: 8 mm \| Thread: M8x1.25 \| C0: 700 kgf \| Mass: 32 g
SPOST10		Bore d: 10 mm \| Thread: M10x1.5 \| C0: 960 kgf \| Mass: 54 g
SPOST12		Bore d: 12 mm \| Thread: M12x1.75 \| C0: 1120 kgf \| Mass: 85 g
SPOST14		Bore d: 14 mm \| Thread: M14x2 \| C0: 1550 kgf \| Mass: 126 g
SPOST16		Bore d: 16 mm \| Thread: M16x2 \| C0: 2060 kgf \| Mass: 185 g
SPOST18		Bore d: 18 mm \| Thread: M18x1.5 \| C0: 2570 kgf \| Mass: 260 g
SPOST20		Bore d: 20 mm \| Thread: M20x1.5 \| C0: 2840 kgf \| Mass: 340 g
