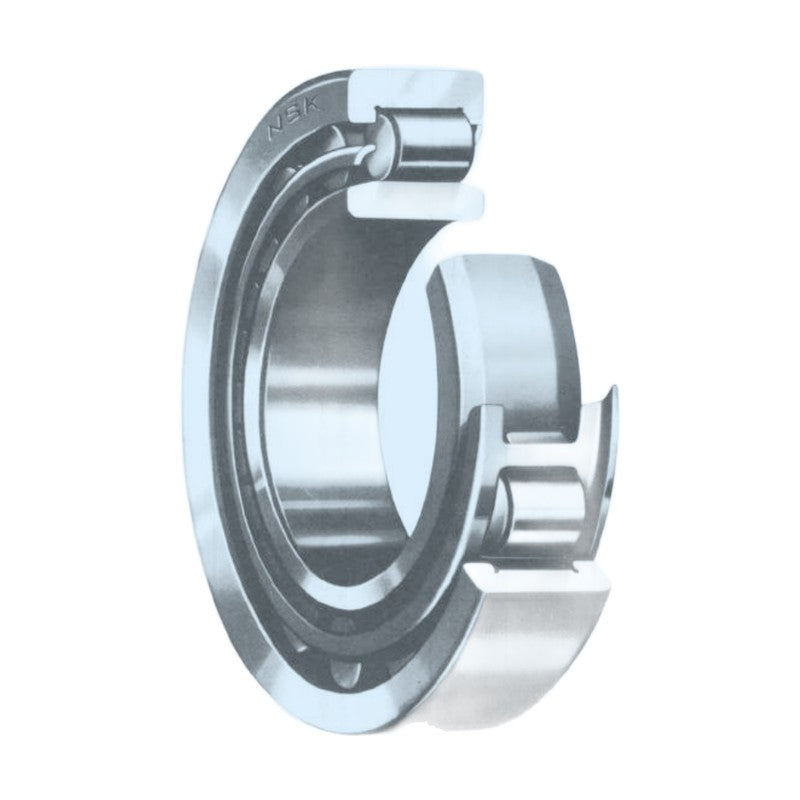

NSK 2 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NSK 2 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NSK single-row cylindrical roller bearings of dimension series 2, bore 20-320 mm, in the rib arrangements (NU, NJ, NUP, N, NF) listed for each size.

Key features

  • High radial load capacity with line contact between rollers and raceways
  • NU / N: separable, allow axial shaft displacement; NJ: locates in one direction; NUP: locates in both directions
  • ET / EM suffix: high-capacity design with polyamide (T) or machined brass (M) cage
  • Separable rings simplify mounting and dismounting
  • Suitable for high speeds

Specifications

Bearing type Single-row cylindrical roller bearing
Dimension series 2
Bore range 20-320 mm
Configurations NU, NJ, NUP, N, NF
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B84-B101
NU204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NJ204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NUP204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
N204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NF204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NU204ET d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Grease speed: 13000 rpm
NJ204ET d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Grease speed: 13000 rpm
NUP204ET d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Grease speed: 13000 rpm
NU205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NJ205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NUP205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
N205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NF205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NU205ET d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Grease speed: 12000 rpm
NJ205ET d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Grease speed: 12000 rpm
NUP205ET d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Grease speed: 12000 rpm
NU206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Grease speed: 11000 rpm
NJ206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Grease speed: 11000 rpm
NUP206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Grease speed: 11000 rpm
NU206ET d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Grease speed: 9500 rpm
NJ206ET d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Grease speed: 9500 rpm
NUP206ET d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Grease speed: 9500 rpm
NU207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.5 kN | C0r: 31.5 kN | Grease speed: 9500 rpm
NJ207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.5 kN | C0r: 31.5 kN | Grease speed: 9500 rpm
NUP207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.5 kN | C0r: 31.5 kN | Grease speed: 9500 rpm
NU207ET d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Grease speed: 8500 rpm
NJ207ET d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Grease speed: 8500 rpm
NUP207ET d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Grease speed: 8500 rpm
NU208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NJ208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NUP208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
N208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NF208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NU208ET d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Grease speed: 7500 rpm
NJ208ET d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Grease speed: 7500 rpm
NUP208ET d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Grease speed: 7500 rpm
NU209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NJ209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NUP209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
N209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NF209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NU209ET d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Grease speed: 6700 rpm
NJ209ET d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Grease speed: 6700 rpm
NUP209ET d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Grease speed: 6700 rpm
NU210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NJ210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NUP210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
N210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NF210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NU210ET d: 50 mm | D: 90 mm | B: 20 mm | Cr: 69 kN | C0r: 76.5 kN | Grease speed: 6300 rpm
NJ210ET d: 50 mm | D: 90 mm | B: 20 mm | Cr: 69 kN | C0r: 76.5 kN | Grease speed: 6300 rpm
NUP210ET d: 50 mm | D: 90 mm | B: 20 mm | Cr: 69 kN | C0r: 76.5 kN | Grease speed: 6300 rpm
NU211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NJ211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NUP211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
N211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NF211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NU211ET d: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.5 kN | C0r: 98.5 kN | Grease speed: 5600 rpm
NJ211ET d: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.5 kN | C0r: 98.5 kN | Grease speed: 5600 rpm
NUP211ET d: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.5 kN | C0r: 98.5 kN | Grease speed: 5600 rpm
NU212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NJ212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NUP212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
N212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NF212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NU212ET d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Grease speed: 5300 rpm
NJ212ET d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Grease speed: 5300 rpm
NUP212ET d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Grease speed: 5300 rpm
NU213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NJ213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NUP213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
N213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NF213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NU213ET d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Grease speed: 4800 rpm
NJ213ET d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Grease speed: 4800 rpm
NUP213ET d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Grease speed: 4800 rpm
NU214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NJ214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NUP214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
N214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NF214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NU214ET d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Grease speed: 4500 rpm
NJ214ET d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Grease speed: 4500 rpm
NUP214ET d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Grease speed: 4500 rpm
NU215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NJ215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NUP215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
N215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NF215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NU215ET d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Grease speed: 4300 rpm
NJ215ET d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Grease speed: 4300 rpm
NUP215ET d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Grease speed: 4300 rpm
NU216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NJ216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NUP216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
N216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NF216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NU216ET d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Grease speed: 4000 rpm
NJ216ET d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Grease speed: 4000 rpm
NUP216ET d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Grease speed: 4000 rpm
NU217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NJ217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NUP217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
N217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NF217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NU217ET d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Grease speed: 3800 rpm
NJ217ET d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Grease speed: 3800 rpm
NUP217ET d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Grease speed: 3800 rpm
NU218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NJ218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NUP218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
N218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NF218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NU218EM d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Grease speed: 3600 rpm
NJ218EM d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Grease speed: 3600 rpm
NUP218EM d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Grease speed: 3600 rpm
NU219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 158 kN | C0r: 183 kN | Grease speed: 3800 rpm
NJ219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 158 kN | C0r: 183 kN | Grease speed: 3800 rpm
NUP219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 158 kN | C0r: 183 kN | Grease speed: 3800 rpm
NU219EM d: 95 mm | D: 170 mm | B: 32 mm | Cr: 211 kN | C0r: 249 kN | Grease speed: 3400 rpm
NJ219EM d: 95 mm | D: 170 mm | B: 32 mm | Cr: 211 kN | C0r: 249 kN | Grease speed: 3400 rpm
NUP219EM d: 95 mm | D: 170 mm | B: 32 mm | Cr: 211 kN | C0r: 249 kN | Grease speed: 3400 rpm
NU220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NJ220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NUP220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
N220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NF220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NU220EM d: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Grease speed: 3200 rpm
NJ220EM d: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Grease speed: 3200 rpm
NUP220EM d: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Grease speed: 3200 rpm
NU221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NJ221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NUP221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
N221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NF221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NU222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NJ222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NUP222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
N222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NF222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NU222EM d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Grease speed: 2800 rpm
NJ222EM d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Grease speed: 2800 rpm
NUP222EM d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Grease speed: 2800 rpm
NU224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NJ224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NUP224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
N224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NF224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NU224EM d: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Grease speed: 2600 rpm
NJ224EM d: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Grease speed: 2600 rpm
NUP224EM d: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Grease speed: 2600 rpm
NU226 d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NJ226 d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NUP226 d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
N226 d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NF226 d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NU226EM d: 130 mm | D: 230 mm | B: 40 mm | Cr: 345 kN | C0r: 425 kN | Grease speed: 2400 rpm
NJ226EM d: 130 mm | D: 230 mm | B: 40 mm | Cr: 345 kN | C0r: 425 kN | Grease speed: 2400 rpm
NUP226EM d: 130 mm | D: 230 mm | B: 40 mm | Cr: 345 kN | C0r: 425 kN | Grease speed: 2400 rpm
NU228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NJ228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NUP228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
N228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NF228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NU228EM d: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Grease speed: 2200 rpm
NJ228EM d: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Grease speed: 2200 rpm
NUP228EM d: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Grease speed: 2200 rpm
NU230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NJ230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NUP230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
N230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NF230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NU230EM d: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Grease speed: 2000 rpm
NJ230EM d: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Grease speed: 2000 rpm
NUP230EM d: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Grease speed: 2000 rpm
NU232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NJ232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NUP232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
N232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NF232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NU232EM d: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Grease speed: 1900 rpm
NJ232EM d: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Grease speed: 1900 rpm
NUP232EM d: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Grease speed: 1900 rpm
NU234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NJ234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NUP234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
N234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NF234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NU234EM d: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Grease speed: 1800 rpm
NJ234EM d: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Grease speed: 1800 rpm
NUP234EM d: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Grease speed: 1800 rpm
NU236 d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NJ236 d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NUP236 d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
N236 d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NF236 d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NU236EM d: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Grease speed: 1700 rpm
NJ236EM d: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Grease speed: 1700 rpm
NUP236EM d: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Grease speed: 1700 rpm
NU238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NJ238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NUP238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
N238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NF238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NU238EM d: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Grease speed: 1600 rpm
NJ238EM d: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Grease speed: 1600 rpm
NUP238EM d: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Grease speed: 1600 rpm
NU240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NJ240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NUP240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
N240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NF240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NU240EM d: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Grease speed: 1500 rpm
NJ240EM d: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Grease speed: 1500 rpm
NUP240EM d: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Grease speed: 1500 rpm
NU244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NJ244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NUP244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
N244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NF244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NU248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NJ248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NUP248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
N248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NF248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NU252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
NJ252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
N252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
NF252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
NU256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
NJ256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
N256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
NF256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
NU260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
NJ260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
N260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
NF260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
NU264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
NJ264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
N264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
NF264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
Cylindrical Roller BearingsNSK
241 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 2 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (241)

NU204, NJ204, NUP204, N204, NF204, NU204ET, NJ204ET, NUP204ET, NU205, NJ205 + 231 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NJ204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NUP204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
N204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NF204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Grease speed: 15000 rpm
NU204ETd: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Grease speed: 13000 rpm
NJ204ETd: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Grease speed: 13000 rpm
NUP204ETd: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Grease speed: 13000 rpm
NU205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NJ205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NUP205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
N205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NF205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Grease speed: 13000 rpm
NU205ETd: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Grease speed: 12000 rpm
NJ205ETd: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Grease speed: 12000 rpm
NUP205ETd: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Grease speed: 12000 rpm
NU206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Grease speed: 11000 rpm
NJ206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Grease speed: 11000 rpm
NUP206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Grease speed: 11000 rpm
NU206ETd: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Grease speed: 9500 rpm
NJ206ETd: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Grease speed: 9500 rpm
NUP206ETd: 30 mm | D: 62 mm | B: 16 mm | Cr: 39 kN | C0r: 37.5 kN | Grease speed: 9500 rpm
NU207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.5 kN | C0r: 31.5 kN | Grease speed: 9500 rpm
NJ207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.5 kN | C0r: 31.5 kN | Grease speed: 9500 rpm
NUP207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.5 kN | C0r: 31.5 kN | Grease speed: 9500 rpm
NU207ETd: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Grease speed: 8500 rpm
NJ207ETd: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Grease speed: 8500 rpm
NUP207ETd: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.5 kN | C0r: 50 kN | Grease speed: 8500 rpm
NU208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NJ208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NUP208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
N208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NF208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.6 kN | C0r: 43 kN | Grease speed: 8500 rpm
NU208ETd: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Grease speed: 7500 rpm
NJ208ETd: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Grease speed: 7500 rpm
NUP208ETd: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.5 kN | C0r: 55.5 kN | Grease speed: 7500 rpm
NU209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NJ209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NUP209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
N209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NF209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46 kN | C0r: 47 kN | Grease speed: 7500 rpm
NU209ETd: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Grease speed: 6700 rpm
NJ209ETd: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Grease speed: 6700 rpm
NUP209ETd: 45 mm | D: 85 mm | B: 19 mm | Cr: 63 kN | C0r: 66.5 kN | Grease speed: 6700 rpm
NU210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NJ210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NUP210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
N210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NF210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48 kN | C0r: 51 kN | Grease speed: 7100 rpm
NU210ETd: 50 mm | D: 90 mm | B: 20 mm | Cr: 69 kN | C0r: 76.5 kN | Grease speed: 6300 rpm
NJ210ETd: 50 mm | D: 90 mm | B: 20 mm | Cr: 69 kN | C0r: 76.5 kN | Grease speed: 6300 rpm
NUP210ETd: 50 mm | D: 90 mm | B: 20 mm | Cr: 69 kN | C0r: 76.5 kN | Grease speed: 6300 rpm
NU211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NJ211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NUP211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
N211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NF211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58 kN | C0r: 62.5 kN | Grease speed: 6300 rpm
NU211ETd: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.5 kN | C0r: 98.5 kN | Grease speed: 5600 rpm
NJ211ETd: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.5 kN | C0r: 98.5 kN | Grease speed: 5600 rpm
NUP211ETd: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.5 kN | C0r: 98.5 kN | Grease speed: 5600 rpm
NU212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NJ212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NUP212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
N212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NF212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 68.5 kN | C0r: 75 kN | Grease speed: 6000 rpm
NU212ETd: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Grease speed: 5300 rpm
NJ212ETd: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Grease speed: 5300 rpm
NUP212ETd: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.5 kN | C0r: 107 kN | Grease speed: 5300 rpm
NU213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NJ213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NUP213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
N213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NF213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 84 kN | C0r: 94.5 kN | Grease speed: 5300 rpm
NU213ETd: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Grease speed: 4800 rpm
NJ213ETd: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Grease speed: 4800 rpm
NUP213ETd: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Grease speed: 4800 rpm
NU214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NJ214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NUP214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
N214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NF214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.5 kN | C0r: 95 kN | Grease speed: 5000 rpm
NU214ETd: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Grease speed: 4500 rpm
NJ214ETd: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Grease speed: 4500 rpm
NUP214ETd: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Grease speed: 4500 rpm
NU215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NJ215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NUP215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
N215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NF215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 96.5 kN | C0r: 111 kN | Grease speed: 4800 rpm
NU215ETd: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Grease speed: 4300 rpm
NJ215ETd: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Grease speed: 4300 rpm
NUP215ETd: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Grease speed: 4300 rpm
NU216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NJ216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NUP216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
N216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NF216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Grease speed: 4500 rpm
NU216ETd: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Grease speed: 4000 rpm
NJ216ETd: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Grease speed: 4000 rpm
NUP216ETd: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Grease speed: 4000 rpm
NU217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NJ217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NUP217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
N217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NF217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 120 kN | C0r: 140 kN | Grease speed: 4300 rpm
NU217ETd: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Grease speed: 3800 rpm
NJ217ETd: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Grease speed: 3800 rpm
NUP217ETd: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Grease speed: 3800 rpm
NU218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NJ218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NUP218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
N218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NF218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Grease speed: 4000 rpm
NU218EMd: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Grease speed: 3600 rpm
NJ218EMd: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Grease speed: 3600 rpm
NUP218EMd: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Grease speed: 3600 rpm
NU219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 158 kN | C0r: 183 kN | Grease speed: 3800 rpm
NJ219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 158 kN | C0r: 183 kN | Grease speed: 3800 rpm
NUP219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 158 kN | C0r: 183 kN | Grease speed: 3800 rpm
NU219EMd: 95 mm | D: 170 mm | B: 32 mm | Cr: 211 kN | C0r: 249 kN | Grease speed: 3400 rpm
NJ219EMd: 95 mm | D: 170 mm | B: 32 mm | Cr: 211 kN | C0r: 249 kN | Grease speed: 3400 rpm
NUP219EMd: 95 mm | D: 170 mm | B: 32 mm | Cr: 211 kN | C0r: 249 kN | Grease speed: 3400 rpm
NU220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NJ220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NUP220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
N220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NF220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Grease speed: 3600 rpm
NU220EMd: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Grease speed: 3200 rpm
NJ220EMd: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Grease speed: 3200 rpm
NUP220EMd: 100 mm | D: 180 mm | B: 34 mm | Cr: 249 kN | C0r: 305 kN | Grease speed: 3200 rpm
NU221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NJ221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NUP221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
N221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NF221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Grease speed: 3400 rpm
NU222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NJ222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NUP222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
N222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NF222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 229 kN | C0r: 272 kN | Grease speed: 3200 rpm
NU222EMd: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Grease speed: 2800 rpm
NJ222EMd: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Grease speed: 2800 rpm
NUP222EMd: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Grease speed: 2800 rpm
NU224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NJ224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NUP224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
N224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NF224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 248 kN | C0r: 299 kN | Grease speed: 3000 rpm
NU224EMd: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Grease speed: 2600 rpm
NJ224EMd: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Grease speed: 2600 rpm
NUP224EMd: 120 mm | D: 215 mm | B: 40 mm | Cr: 335 kN | C0r: 420 kN | Grease speed: 2600 rpm
NU226d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NJ226d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NUP226d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
N226d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NF226d: 130 mm | D: 230 mm | B: 4 mm | Cr: 258 kN | C0r: 320 kN | Grease speed: 2600 rpm
NU226EMd: 130 mm | D: 230 mm | B: 40 mm | Cr: 345 kN | C0r: 425 kN | Grease speed: 2400 rpm
NJ226EMd: 130 mm | D: 230 mm | B: 40 mm | Cr: 345 kN | C0r: 425 kN | Grease speed: 2400 rpm
NUP226EMd: 130 mm | D: 230 mm | B: 40 mm | Cr: 345 kN | C0r: 425 kN | Grease speed: 2400 rpm
NU228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NJ228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NUP228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
N228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NF228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 297 kN | C0r: 375 kN | Grease speed: 2400 rpm
NU228EMd: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Grease speed: 2200 rpm
NJ228EMd: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Grease speed: 2200 rpm
NUP228EMd: 140 mm | D: 250 mm | B: 42 mm | Cr: 395 kN | C0r: 515 kN | Grease speed: 2200 rpm
NU230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NJ230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NUP230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
N230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NF230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 345 kN | C0r: 435 kN | Grease speed: 2200 rpm
NU230EMd: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Grease speed: 2000 rpm
NJ230EMd: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Grease speed: 2000 rpm
NUP230EMd: 150 mm | D: 270 mm | B: 45 mm | Cr: 450 kN | C0r: 595 kN | Grease speed: 2000 rpm
NU232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NJ232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NUP232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
N232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NF232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 430 kN | C0r: 570 kN | Grease speed: 2200 rpm
NU232EMd: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Grease speed: 1900 rpm
NJ232EMd: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Grease speed: 1900 rpm
NUP232EMd: 160 mm | D: 290 mm | B: 48 mm | Cr: 500 kN | C0r: 665 kN | Grease speed: 1900 rpm
NU234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NJ234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NUP234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
N234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NF234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 635 kN | Grease speed: 2000 rpm
NU234EMd: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Grease speed: 1800 rpm
NJ234EMd: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Grease speed: 1800 rpm
NUP234EMd: 170 mm | D: 310 mm | B: 52 mm | Cr: 605 kN | C0r: 800 kN | Grease speed: 1800 rpm
NU236d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NJ236d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NUP236d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
N236d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NF236d: 180 mm | D: 320 mm | B: 62 mm | Cr: 495 kN | C0r: 675 kN | Grease speed: 1500 rpm
NU236EMd: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Grease speed: 1700 rpm
NJ236EMd: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Grease speed: 1700 rpm
NUP236EMd: 180 mm | D: 320 mm | B: 52 mm | Cr: 625 kN | C0r: 850 kN | Grease speed: 1700 rpm
NU238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NJ238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NUP238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
N238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NF238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 555 kN | C0r: 770 kN | Grease speed: 1800 rpm
NU238EMd: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Grease speed: 1600 rpm
NJ238EMd: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Grease speed: 1600 rpm
NUP238EMd: 190 mm | D: 340 mm | B: 55 mm | Cr: 695 kN | C0r: 955 kN | Grease speed: 1600 rpm
NU240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NJ240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NUP240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
N240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NF240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 620 kN | C0r: 865 kN | Grease speed: 1700 rpm
NU240EMd: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Grease speed: 1500 rpm
NJ240EMd: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Grease speed: 1500 rpm
NUP240EMd: 200 mm | D: 360 mm | B: 58 mm | Cr: 765 kN | C0r: 1060 kN | Grease speed: 1500 rpm
NU244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NJ244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NUP244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
N244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NF244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 760 kN | C0r: 1080 kN | Grease speed: 1500 rpm
NU248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NJ248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NUP248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
N248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NF248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 935 kN | C0r: 1340 kN | Grease speed: 1300 rpm
NU252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
NJ252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
N252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
NF252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 110 kN | C0r: 1580 kN | Grease speed: 1200 rpm
NU256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
NJ256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
N256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
NF256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1140 kN | C0r: 1680 kN | Grease speed: 1100 rpm
NU260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
NJ260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
N260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
NF260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1400 kN | C0r: 2070 kN | Grease speed: 1100 rpm
NU264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
NJ264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
N264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm
NF264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1540 kN | C0r: 2270 kN | Grease speed: 950 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
