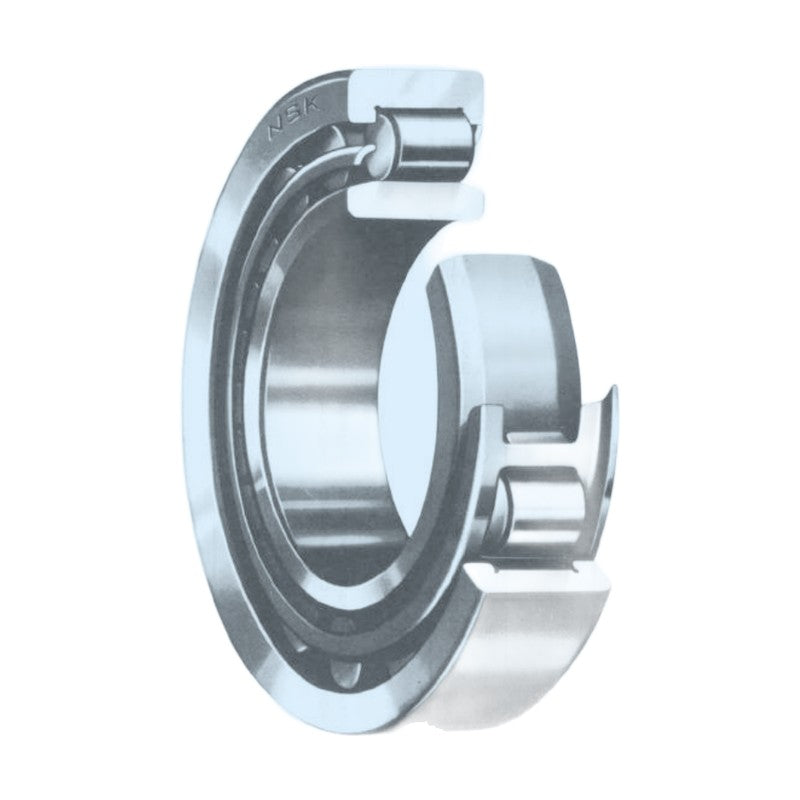

NSK 22 Series Cylindrical Roller Bearings (NU, NJ, NUP)

NSK 22 Series Cylindrical Roller Bearings (NU, NJ, NUP)

NSK single-row cylindrical roller bearings of dimension series 22, bore 20-260 mm, in the rib arrangements (NU, NJ, NUP) listed for each size.

Key features

  • High radial load capacity with line contact between rollers and raceways
  • NU / N: separable, allow axial shaft displacement; NJ: locates in one direction; NUP: locates in both directions
  • ET / EM suffix: high-capacity design with polyamide (T) or machined brass (M) cage
  • Separable rings simplify mounting and dismounting
  • Suitable for high speeds

Specifications

Bearing type Single-row cylindrical roller bearing
Dimension series 22
Bore range 20-260 mm
Configurations NU, NJ, NUP
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B84-B101
NU2204 d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Grease speed: 13000 rpm
NJ2204 d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Grease speed: 13000 rpm
NUP2204 d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Grease speed: 13000 rpm
NU2204ET d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Grease speed: 13000 rpm
NJ2204ET d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Grease speed: 13000 rpm
NUP2204ET d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Grease speed: 13000 rpm
NU2205 d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Grease speed: 12000 rpm
NJ2205 d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Grease speed: 12000 rpm
NUP2205 d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Grease speed: 12000 rpm
NU2205ET d: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Grease speed: 12000 rpm
NJ2205ET d: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Grease speed: 12000 rpm
NUP2205ET d: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Grease speed: 12000 rpm
NU2206 d: 30 mm | D: 62 mm | B: 20 mm | Cr: 33 kN | C0r: 33 kN | Grease speed: 10000 rpm
NJ2206 d: 30 mm | D: 62 mm | B: 20 mm | Cr: 33 kN | C0r: 33 kN | Grease speed: 10000 rpm
NUP2206 d: 30 mm | D: 62 mm | B: 20 mm | Cr: 33 kN | C0r: 33 kN | Grease speed: 10000 rpm
NU2206ET d: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Grease speed: 9500 rpm
NJ2206ET d: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Grease speed: 9500 rpm
NUP2206ET d: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Grease speed: 9500 rpm
NU2207 d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49 kN | C0r: 51 kN | Grease speed: 8500 rpm
NJ2207 d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49 kN | C0r: 51 kN | Grease speed: 8500 rpm
NUP2207 d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49 kN | C0r: 51 kN | Grease speed: 8500 rpm
NU2207ET d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65 kN | Grease speed: 8500 rpm
NJ2207ET d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65 kN | Grease speed: 8500 rpm
NUP2207ET d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65 kN | Grease speed: 8500 rpm
NU2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Grease speed: 7500 rpm
NJ2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Grease speed: 7500 rpm
NUP2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Grease speed: 7500 rpm
NU2208ET d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Grease speed: 7500 rpm
NJ2208ET d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Grease speed: 7500 rpm
NUP2208ET d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Grease speed: 7500 rpm
NU2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Grease speed: 7100 rpm
NJ2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Grease speed: 7100 rpm
NUP2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Grease speed: 7100 rpm
NU2209ET d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Grease speed: 6700 rpm
NJ2209ET d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Grease speed: 6700 rpm
NUP2209ET d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Grease speed: 6700 rpm
NU2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Grease speed: 6300 rpm
NJ2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Grease speed: 6300 rpm
NUP2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Grease speed: 6300 rpm
NU2210ET d: 50 mm | D: 90 mm | B: 23 mm | Cr: 83.5 kN | C0r: 97 kN | Grease speed: 6300 rpm
NJ2210ET d: 50 mm | D: 90 mm | B: 23 mm | Cr: 83.5 kN | C0r: 97 kN | Grease speed: 6300 rpm
NUP2210ET d: 50 mm | D: 90 mm | B: 23 mm | Cr: 83.5 kN | C0r: 97 kN | Grease speed: 6300 rpm
NU2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Grease speed: 6000 rpm
NJ2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Grease speed: 6000 rpm
NUP2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Grease speed: 6000 rpm
NU2211ET d: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Grease speed: 5600 rpm
NJ2211ET d: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Grease speed: 5600 rpm
NUP2211ET d: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Grease speed: 5600 rpm
NU2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Grease speed: 5300 rpm
NJ2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Grease speed: 5300 rpm
NUP2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Grease speed: 5300 rpm
NU2212ET d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Grease speed: 5300 rpm
NJ2212ET d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Grease speed: 5300 rpm
NUP2212ET d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Grease speed: 5300 rpm
NU2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Grease speed: 4800 rpm
NJ2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Grease speed: 4800 rpm
NUP2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Grease speed: 4800 rpm
NU2213ET d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Grease speed: 4800 rpm
NJ2213ET d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Grease speed: 4800 rpm
NUP2213ET d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Grease speed: 4800 rpm
NU2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Grease speed: 4500 rpm
NJ2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Grease speed: 4500 rpm
NUP2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Grease speed: 4500 rpm
NU2214ET d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Grease speed: 4500 rpm
NJ2214ET d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Grease speed: 4500 rpm
NUP2214ET d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Grease speed: 4500 rpm
NU2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Grease speed: 4300 rpm
NJ2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Grease speed: 4300 rpm
NUP2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Grease speed: 4300 rpm
NU2215ET d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Grease speed: 4300 rpm
NJ2215ET d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Grease speed: 4300 rpm
NUP2215ET d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Grease speed: 4300 rpm
NU2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Grease speed: 4000 rpm
NJ2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Grease speed: 4000 rpm
NUP2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Grease speed: 4000 rpm
NU2216ET d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Grease speed: 4000 rpm
NJ2216ET d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Grease speed: 4000 rpm
NUP2216ET d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Grease speed: 4000 rpm
NU2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Grease speed: 3800 rpm
NJ2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Grease speed: 3800 rpm
NUP2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Grease speed: 3800 rpm
NU2217ET d: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Grease speed: 3800 rpm
NJ2217ET d: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Grease speed: 3800 rpm
NUP2217ET d: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Grease speed: 3800 rpm
NU2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Grease speed: 3600 rpm
NJ2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Grease speed: 3600 rpm
NUP2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Grease speed: 3600 rpm
NU2218EM d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Grease speed: 3600 rpm
NJ2218EM d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Grease speed: 3600 rpm
NUP2218EM d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Grease speed: 3600 rpm
NU2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Grease speed: 3400 rpm
NJ2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Grease speed: 3400 rpm
NUP2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Grease speed: 3400 rpm
NU2219EM d: 95 mm | D: 170 mm | B: 43 mm | Cr: 273 kN | C0r: 350 kN | Grease speed: 3400 rpm
NJ2219EM d: 95 mm | D: 170 mm | B: 43 mm | Cr: 273 kN | C0r: 350 kN | Grease speed: 3400 rpm
NUP2219EM d: 95 mm | D: 170 mm | B: 43 mm | Cr: 273 kN | C0r: 350 kN | Grease speed: 3400 rpm
NU2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 246 kN | C0r: 315 kN | Grease speed: 3200 rpm
NJ2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 246 kN | C0r: 315 kN | Grease speed: 3200 rpm
NUP2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 246 kN | C0r: 315 kN | Grease speed: 3200 rpm
NU2220EM d: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Grease speed: 3200 rpm
NJ2220EM d: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Grease speed: 3200 rpm
NUP2220EM d: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Grease speed: 3200 rpm
NU2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Grease speed: 2800 rpm
NJ2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Grease speed: 2800 rpm
NUP2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Grease speed: 2800 rpm
NU2222EM d: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Grease speed: 2800 rpm
NJ2222EM d: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Grease speed: 2800 rpm
NUP2222EM d: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Grease speed: 2800 rpm
NU2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Grease speed: 2600 rpm
NJ2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Grease speed: 2600 rpm
NUP2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Grease speed: 2600 rpm
NU2224EM d: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Grease speed: 2600 rpm
NJ2224EM d: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Grease speed: 2600 rpm
NUP2224EM d: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Grease speed: 2600 rpm
NU2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Grease speed: 2400 rpm
NJ2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Grease speed: 2400 rpm
NUP2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Grease speed: 2400 rpm
NU2226EM d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Grease speed: 2400 rpm
NJ2226EM d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Grease speed: 2400 rpm
NUP2226EM d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Grease speed: 2400 rpm
NU2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Grease speed: 2200 rpm
NJ2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Grease speed: 2200 rpm
NUP2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Grease speed: 2200 rpm
NU2228EM d: 140 mm | D: 250 mm | B: 68 mm | Cr: 550 kN | C0r: 790 kN | Grease speed: 2200 rpm
NJ2228EM d: 140 mm | D: 250 mm | B: 68 mm | Cr: 550 kN | C0r: 790 kN | Grease speed: 2200 rpm
NUP2228EM d: 140 mm | D: 250 mm | B: 68 mm | Cr: 550 kN | C0r: 790 kN | Grease speed: 2200 rpm
NU2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Grease speed: 2000 rpm
NJ2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Grease speed: 2000 rpm
NUP2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Grease speed: 2000 rpm
NU2230EM d: 150 mm | D: 270 mm | B: 73 mm | Cr: 635 kN | C0r: 930 kN | Grease speed: 2000 rpm
NJ2230EM d: 150 mm | D: 270 mm | B: 73 mm | Cr: 635 kN | C0r: 930 kN | Grease speed: 2000 rpm
NUP2230EM d: 150 mm | D: 270 mm | B: 73 mm | Cr: 635 kN | C0r: 930 kN | Grease speed: 2000 rpm
NU2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Grease speed: 1900 rpm
NJ2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Grease speed: 1900 rpm
NUP2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Grease speed: 1900 rpm
NU2232EM d: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Grease speed: 1900 rpm
NJ2232EM d: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Grease speed: 1900 rpm
NUP2232EM d: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Grease speed: 1900 rpm
NU2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Grease speed: 1800 rpm
NJ2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Grease speed: 1800 rpm
NUP2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Grease speed: 1800 rpm
NU2234EM d: 170 mm | D: 310 mm | B: 86 mm | Cr: 925 kN | C0r: 1330 kN | Grease speed: 1800 rpm
NJ2234EM d: 170 mm | D: 310 mm | B: 86 mm | Cr: 925 kN | C0r: 1330 kN | Grease speed: 1800 rpm
NUP2234EM d: 170 mm | D: 310 mm | B: 86 mm | Cr: 925 kN | C0r: 1330 kN | Grease speed: 1800 rpm
NU2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Grease speed: 1700 rpm
NJ2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Grease speed: 1700 rpm
NUP2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Grease speed: 1700 rpm
NU2236EM d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Grease speed: 1700 rpm
NJ2236EM d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Grease speed: 1700 rpm
NUP2236EM d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Grease speed: 1700 rpm
NU2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Grease speed: 1600 rpm
NJ2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Grease speed: 1600 rpm
NUP2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Grease speed: 1600 rpm
NU2238EM d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Grease speed: 1600 rpm
NJ2238EM d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Grease speed: 1600 rpm
NUP2238EM d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Grease speed: 1600 rpm
NU2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Grease speed: 1500 rpm
NJ2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Grease speed: 1500 rpm
NUP2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Grease speed: 1500 rpm
NU2240EM d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Grease speed: 1500 rpm
NJ2240EM d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Grease speed: 1500 rpm
NUP2240EM d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Grease speed: 1500 rpm
NU2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Grease speed: 1300 rpm
NJ2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Grease speed: 1300 rpm
NU2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Grease speed: 1200 rpm
NJ2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Grease speed: 1200 rpm
NU2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1710 kN | C0r: 2770 kN | Grease speed: 1100 rpm
NJ2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1710 kN | C0r: 2770 kN | Grease speed: 1100 rpm
Cylindrical Roller BearingsNSK
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 22 Series Cylindrical Roller Bearings (NU, NJ, NUP)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (168)

NU2204, NJ2204, NUP2204, NU2204ET, NJ2204ET, NUP2204ET, NU2205, NJ2205, NUP2205, NU2205ET + 158 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU2204d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Grease speed: 13000 rpm
NJ2204d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Grease speed: 13000 rpm
NUP2204d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Grease speed: 13000 rpm
NU2204ETd: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Grease speed: 13000 rpm
NJ2204ETd: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Grease speed: 13000 rpm
NUP2204ETd: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Grease speed: 13000 rpm
NU2205d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Grease speed: 12000 rpm
NJ2205d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Grease speed: 12000 rpm
NUP2205d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Grease speed: 12000 rpm
NU2205ETd: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Grease speed: 12000 rpm
NJ2205ETd: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Grease speed: 12000 rpm
NUP2205ETd: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Grease speed: 12000 rpm
NU2206d: 30 mm | D: 62 mm | B: 20 mm | Cr: 33 kN | C0r: 33 kN | Grease speed: 10000 rpm
NJ2206d: 30 mm | D: 62 mm | B: 20 mm | Cr: 33 kN | C0r: 33 kN | Grease speed: 10000 rpm
NUP2206d: 30 mm | D: 62 mm | B: 20 mm | Cr: 33 kN | C0r: 33 kN | Grease speed: 10000 rpm
NU2206ETd: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Grease speed: 9500 rpm
NJ2206ETd: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Grease speed: 9500 rpm
NUP2206ETd: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Grease speed: 9500 rpm
NU2207d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49 kN | C0r: 51 kN | Grease speed: 8500 rpm
NJ2207d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49 kN | C0r: 51 kN | Grease speed: 8500 rpm
NUP2207d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49 kN | C0r: 51 kN | Grease speed: 8500 rpm
NU2207ETd: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65 kN | Grease speed: 8500 rpm
NJ2207ETd: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65 kN | Grease speed: 8500 rpm
NUP2207ETd: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65 kN | Grease speed: 8500 rpm
NU2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Grease speed: 7500 rpm
NJ2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Grease speed: 7500 rpm
NUP2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Grease speed: 7500 rpm
NU2208ETd: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Grease speed: 7500 rpm
NJ2208ETd: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Grease speed: 7500 rpm
NUP2208ETd: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Grease speed: 7500 rpm
NU2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Grease speed: 7100 rpm
NJ2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Grease speed: 7100 rpm
NUP2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Grease speed: 7100 rpm
NU2209ETd: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Grease speed: 6700 rpm
NJ2209ETd: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Grease speed: 6700 rpm
NUP2209ETd: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Grease speed: 6700 rpm
NU2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Grease speed: 6300 rpm
NJ2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Grease speed: 6300 rpm
NUP2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Grease speed: 6300 rpm
NU2210ETd: 50 mm | D: 90 mm | B: 23 mm | Cr: 83.5 kN | C0r: 97 kN | Grease speed: 6300 rpm
NJ2210ETd: 50 mm | D: 90 mm | B: 23 mm | Cr: 83.5 kN | C0r: 97 kN | Grease speed: 6300 rpm
NUP2210ETd: 50 mm | D: 90 mm | B: 23 mm | Cr: 83.5 kN | C0r: 97 kN | Grease speed: 6300 rpm
NU2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Grease speed: 6000 rpm
NJ2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Grease speed: 6000 rpm
NUP2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Grease speed: 6000 rpm
NU2211ETd: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Grease speed: 5600 rpm
NJ2211ETd: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Grease speed: 5600 rpm
NUP2211ETd: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Grease speed: 5600 rpm
NU2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Grease speed: 5300 rpm
NJ2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Grease speed: 5300 rpm
NUP2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Grease speed: 5300 rpm
NU2212ETd: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Grease speed: 5300 rpm
NJ2212ETd: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Grease speed: 5300 rpm
NUP2212ETd: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Grease speed: 5300 rpm
NU2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Grease speed: 4800 rpm
NJ2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Grease speed: 4800 rpm
NUP2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Grease speed: 4800 rpm
NU2213ETd: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Grease speed: 4800 rpm
NJ2213ETd: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Grease speed: 4800 rpm
NUP2213ETd: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Grease speed: 4800 rpm
NU2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Grease speed: 4500 rpm
NJ2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Grease speed: 4500 rpm
NUP2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Grease speed: 4500 rpm
NU2214ETd: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Grease speed: 4500 rpm
NJ2214ETd: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Grease speed: 4500 rpm
NUP2214ETd: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Grease speed: 4500 rpm
NU2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Grease speed: 4300 rpm
NJ2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Grease speed: 4300 rpm
NUP2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Grease speed: 4300 rpm
NU2215ETd: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Grease speed: 4300 rpm
NJ2215ETd: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Grease speed: 4300 rpm
NUP2215ETd: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Grease speed: 4300 rpm
NU2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Grease speed: 4000 rpm
NJ2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Grease speed: 4000 rpm
NUP2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Grease speed: 4000 rpm
NU2216ETd: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Grease speed: 4000 rpm
NJ2216ETd: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Grease speed: 4000 rpm
NUP2216ETd: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Grease speed: 4000 rpm
NU2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Grease speed: 3800 rpm
NJ2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Grease speed: 3800 rpm
NUP2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Grease speed: 3800 rpm
NU2217ETd: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Grease speed: 3800 rpm
NJ2217ETd: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Grease speed: 3800 rpm
NUP2217ETd: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Grease speed: 3800 rpm
NU2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Grease speed: 3600 rpm
NJ2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Grease speed: 3600 rpm
NUP2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Grease speed: 3600 rpm
NU2218EMd: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Grease speed: 3600 rpm
NJ2218EMd: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Grease speed: 3600 rpm
NUP2218EMd: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Grease speed: 3600 rpm
NU2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Grease speed: 3400 rpm
NJ2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Grease speed: 3400 rpm
NUP2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Grease speed: 3400 rpm
NU2219EMd: 95 mm | D: 170 mm | B: 43 mm | Cr: 273 kN | C0r: 350 kN | Grease speed: 3400 rpm
NJ2219EMd: 95 mm | D: 170 mm | B: 43 mm | Cr: 273 kN | C0r: 350 kN | Grease speed: 3400 rpm
NUP2219EMd: 95 mm | D: 170 mm | B: 43 mm | Cr: 273 kN | C0r: 350 kN | Grease speed: 3400 rpm
NU2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 246 kN | C0r: 315 kN | Grease speed: 3200 rpm
NJ2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 246 kN | C0r: 315 kN | Grease speed: 3200 rpm
NUP2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 246 kN | C0r: 315 kN | Grease speed: 3200 rpm
NU2220EMd: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Grease speed: 3200 rpm
NJ2220EMd: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Grease speed: 3200 rpm
NUP2220EMd: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Grease speed: 3200 rpm
NU2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Grease speed: 2800 rpm
NJ2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Grease speed: 2800 rpm
NUP2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Grease speed: 2800 rpm
NU2222EMd: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Grease speed: 2800 rpm
NJ2222EMd: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Grease speed: 2800 rpm
NUP2222EMd: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Grease speed: 2800 rpm
NU2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Grease speed: 2600 rpm
NJ2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Grease speed: 2600 rpm
NUP2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Grease speed: 2600 rpm
NU2224EMd: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Grease speed: 2600 rpm
NJ2224EMd: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Grease speed: 2600 rpm
NUP2224EMd: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Grease speed: 2600 rpm
NU2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Grease speed: 2400 rpm
NJ2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Grease speed: 2400 rpm
NUP2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Grease speed: 2400 rpm
NU2226EMd: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Grease speed: 2400 rpm
NJ2226EMd: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Grease speed: 2400 rpm
NUP2226EMd: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Grease speed: 2400 rpm
NU2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Grease speed: 2200 rpm
NJ2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Grease speed: 2200 rpm
NUP2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Grease speed: 2200 rpm
NU2228EMd: 140 mm | D: 250 mm | B: 68 mm | Cr: 550 kN | C0r: 790 kN | Grease speed: 2200 rpm
NJ2228EMd: 140 mm | D: 250 mm | B: 68 mm | Cr: 550 kN | C0r: 790 kN | Grease speed: 2200 rpm
NUP2228EMd: 140 mm | D: 250 mm | B: 68 mm | Cr: 550 kN | C0r: 790 kN | Grease speed: 2200 rpm
NU2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Grease speed: 2000 rpm
NJ2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Grease speed: 2000 rpm
NUP2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Grease speed: 2000 rpm
NU2230EMd: 150 mm | D: 270 mm | B: 73 mm | Cr: 635 kN | C0r: 930 kN | Grease speed: 2000 rpm
NJ2230EMd: 150 mm | D: 270 mm | B: 73 mm | Cr: 635 kN | C0r: 930 kN | Grease speed: 2000 rpm
NUP2230EMd: 150 mm | D: 270 mm | B: 73 mm | Cr: 635 kN | C0r: 930 kN | Grease speed: 2000 rpm
NU2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Grease speed: 1900 rpm
NJ2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Grease speed: 1900 rpm
NUP2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Grease speed: 1900 rpm
NU2232EMd: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Grease speed: 1900 rpm
NJ2232EMd: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Grease speed: 1900 rpm
NUP2232EMd: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Grease speed: 1900 rpm
NU2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Grease speed: 1800 rpm
NJ2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Grease speed: 1800 rpm
NUP2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Grease speed: 1800 rpm
NU2234EMd: 170 mm | D: 310 mm | B: 86 mm | Cr: 925 kN | C0r: 1330 kN | Grease speed: 1800 rpm
NJ2234EMd: 170 mm | D: 310 mm | B: 86 mm | Cr: 925 kN | C0r: 1330 kN | Grease speed: 1800 rpm
NUP2234EMd: 170 mm | D: 310 mm | B: 86 mm | Cr: 925 kN | C0r: 1330 kN | Grease speed: 1800 rpm
NU2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Grease speed: 1700 rpm
NJ2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Grease speed: 1700 rpm
NUP2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Grease speed: 1700 rpm
NU2236EMd: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Grease speed: 1700 rpm
NJ2236EMd: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Grease speed: 1700 rpm
NUP2236EMd: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Grease speed: 1700 rpm
NU2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Grease speed: 1600 rpm
NJ2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Grease speed: 1600 rpm
NUP2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Grease speed: 1600 rpm
NU2238EMd: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Grease speed: 1600 rpm
NJ2238EMd: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Grease speed: 1600 rpm
NUP2238EMd: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Grease speed: 1600 rpm
NU2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Grease speed: 1500 rpm
NJ2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Grease speed: 1500 rpm
NUP2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Grease speed: 1500 rpm
NU2240EMd: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Grease speed: 1500 rpm
NJ2240EMd: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Grease speed: 1500 rpm
NUP2240EMd: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Grease speed: 1500 rpm
NU2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Grease speed: 1300 rpm
NJ2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Grease speed: 1300 rpm
NU2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Grease speed: 1200 rpm
NJ2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Grease speed: 1200 rpm
NU2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1710 kN | C0r: 2770 kN | Grease speed: 1100 rpm
NJ2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1710 kN | C0r: 2770 kN | Grease speed: 1100 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
