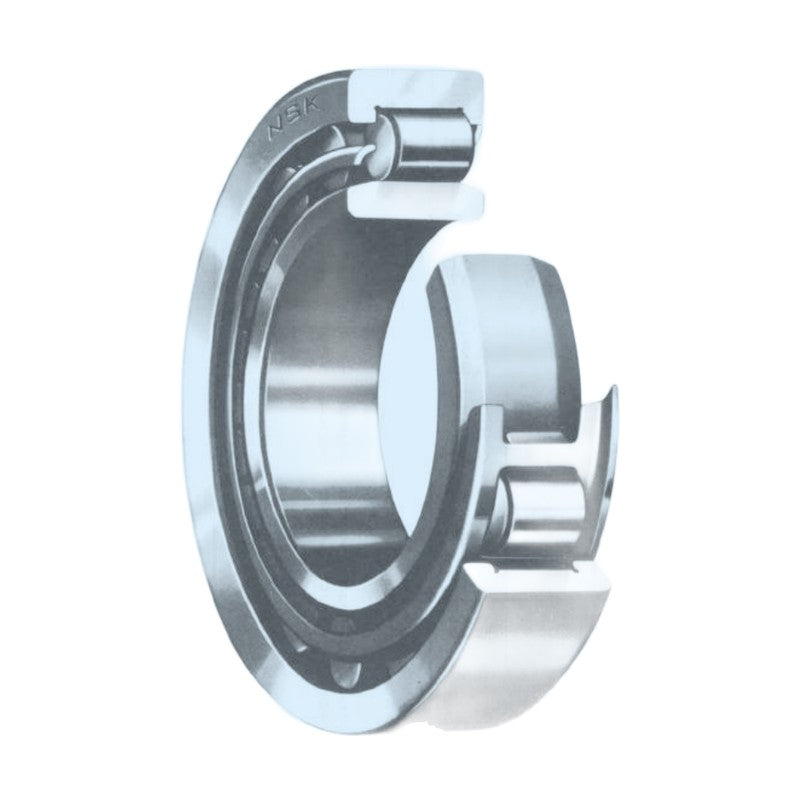

NSK 23 Series Cylindrical Roller Bearings (NU, NJ, NUP)

NSK 23 Series Cylindrical Roller Bearings (NU, NJ, NUP)

NSK single-row cylindrical roller bearings of dimension series 23, bore 20-200 mm, in the rib arrangements (NU, NJ, NUP) listed for each size.

Key features

  • High radial load capacity with line contact between rollers and raceways
  • NU / N: separable, allow axial shaft displacement; NJ: locates in one direction; NUP: locates in both directions
  • ET / EM suffix: high-capacity design with polyamide (T) or machined brass (M) cage
  • Separable rings simplify mounting and dismounting
  • Suitable for high speeds

Specifications

Bearing type Single-row cylindrical roller bearing
Dimension series 23
Bore range 20-200 mm
Configurations NU, NJ, NUP
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B84-B101
NU2304 d: 20 mm | D: 52 mm | B: 21 mm | Cr: 30.5 kN | C0r: 27.2 kN | Grease speed: 11000 rpm
NJ2304 d: 20 mm | D: 52 mm | B: 21 mm | Cr: 30.5 kN | C0r: 27.2 kN | Grease speed: 11000 rpm
NUP2304 d: 20 mm | D: 52 mm | B: 21 mm | Cr: 30.5 kN | C0r: 27.2 kN | Grease speed: 11000 rpm
NU2304EM d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Grease speed: 11000 rpm
NJ2304EM d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Grease speed: 11000 rpm
NUP2304EM d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Grease speed: 11000 rpm
NU2305 d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.5 kN | C0r: 41 kN | Grease speed: 9000 rpm
NJ2305 d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.5 kN | C0r: 41 kN | Grease speed: 9000 rpm
NUP2305 d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.5 kN | C0r: 41 kN | Grease speed: 9000 rpm
NU2305ET d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Grease speed: 9000 rpm
NJ2305ET d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Grease speed: 9000 rpm
NUP2305ET d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Grease speed: 9000 rpm
NU2306 d: 30 mm | D: 72 mm | B: 27 mm | Cr: 61.5 kN | C0r: 51 kN | Grease speed: 7500 rpm
NJ2306 d: 30 mm | D: 72 mm | B: 27 mm | Cr: 61.5 kN | C0r: 51 kN | Grease speed: 7500 rpm
NUP2306 d: 30 mm | D: 72 mm | B: 27 mm | Cr: 61.5 kN | C0r: 51 kN | Grease speed: 7500 rpm
NU2306ET d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Grease speed: 8000 rpm
NJ2306ET d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Grease speed: 8000 rpm
NUP2306ET d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Grease speed: 8000 rpm
NU2307 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 60.5 kN | C0r: 60 kN | Grease speed: 7100 rpm
NJ2307 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 60.5 kN | C0r: 60 kN | Grease speed: 7100 rpm
NUP2307 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 60.5 kN | C0r: 60 kN | Grease speed: 7100 rpm
NU2307ET d: 35 mm | D: 80 mm | B: 31 mm | Cr: 93 kN | C0r: 101 kN | Grease speed: 6700 rpm
NJ2307ET d: 35 mm | D: 80 mm | B: 31 mm | Cr: 93 kN | C0r: 101 kN | Grease speed: 6700 rpm
NUP2307ET d: 35 mm | D: 80 mm | B: 31 mm | Cr: 93 kN | C0r: 101 kN | Grease speed: 6700 rpm
NU2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Grease speed: 6000 rpm
NJ2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Grease speed: 6000 rpm
NUP2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Grease speed: 6000 rpm
NU2308ET d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Grease speed: 6000 rpm
NJ2308ET d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Grease speed: 6000 rpm
NUP2308ET d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Grease speed: 6000 rpm
NU2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Grease speed: 5600 rpm
NJ2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Grease speed: 5600 rpm
NUP2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Grease speed: 5600 rpm
NU2309ET d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Grease speed: 5300 rpm
NJ2309ET d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Grease speed: 5300 rpm
NUP2309ET d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Grease speed: 5300 rpm
NU2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Grease speed: 5000 rpm
NJ2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Grease speed: 5000 rpm
NUP2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Grease speed: 5000 rpm
NU2310ET d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Grease speed: 5000 rpm
NJ2310ET d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Grease speed: 5000 rpm
NUP2310ET d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Grease speed: 5000 rpm
NU2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Grease speed: 4500 rpm
NJ2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Grease speed: 4500 rpm
NUP2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Grease speed: 4500 rpm
NU2311ET d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Grease speed: 4500 rpm
NJ2311ET d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Grease speed: 4500 rpm
NUP2311ET d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Grease speed: 4500 rpm
NU2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Grease speed: 4300 rpm
NJ2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Grease speed: 4300 rpm
NUP2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Grease speed: 4300 rpm
NU2312ET d: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Grease speed: 4300 rpm
NJ2312ET d: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Grease speed: 4300 rpm
NUP2312ET d: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Grease speed: 4300 rpm
NU2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Grease speed: 3800 rpm
NJ2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Grease speed: 3800 rpm
NUP2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Grease speed: 3800 rpm
NU2313ET d: 65 mm | D: 140 mm | B: 48 mm | Cr: 233 kN | C0r: 265 kN | Grease speed: 3800 rpm
NJ2313ET d: 65 mm | D: 140 mm | B: 48 mm | Cr: 233 kN | C0r: 265 kN | Grease speed: 3800 rpm
NUP2313ET d: 65 mm | D: 140 mm | B: 48 mm | Cr: 233 kN | C0r: 265 kN | Grease speed: 3800 rpm
NU2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Grease speed: 3600 rpm
NJ2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Grease speed: 3600 rpm
NUP2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Grease speed: 3600 rpm
NU2314ET d: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Grease speed: 3600 rpm
NJ2314ET d: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Grease speed: 3600 rpm
NUP2314ET d: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Grease speed: 3600 rpm
NU2315 d: 75 mm | D: 160 mm | B: 56 mm | Cr: 258 kN | C0r: 300 kN | Grease speed: 3400 rpm
NJ2315 d: 75 mm | D: 160 mm | B: 56 mm | Cr: 258 kN | C0r: 300 kN | Grease speed: 3400 rpm
NUP2315 d: 75 mm | D: 160 mm | B: 56 mm | Cr: 258 kN | C0r: 300 kN | Grease speed: 3400 rpm
NU2315EM d: 75 mm | D: 160 mm | B: 55 mm | Cr: 310 kN | C0r: 365 kN | Grease speed: 3400 rpm
NJ2315EM d: 75 mm | D: 160 mm | B: 55 mm | Cr: 310 kN | C0r: 365 kN | Grease speed: 3400 rpm
NUP2315EM d: 75 mm | D: 160 mm | B: 55 mm | Cr: 310 kN | C0r: 365 kN | Grease speed: 3400 rpm
NU2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Grease speed: 3200 rpm
NJ2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Grease speed: 3200 rpm
NUP2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Grease speed: 3200 rpm
NU2316EM d: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Grease speed: 3200 rpm
NJ2316EM d: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Grease speed: 3200 rpm
NUP2316EM d: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Grease speed: 3200 rpm
NU2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Grease speed: 3000 rpm
NJ2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Grease speed: 3000 rpm
NUP2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Grease speed: 3000 rpm
NU2317EM d: 85 mm | D: 180 mm | B: 60 mm | Cr: 350 kN | C0r: 415 kN | Grease speed: 3000 rpm
NJ2317EM d: 85 mm | D: 180 mm | B: 60 mm | Cr: 350 kN | C0r: 415 kN | Grease speed: 3000 rpm
NUP2317EM d: 85 mm | D: 180 mm | B: 60 mm | Cr: 350 kN | C0r: 415 kN | Grease speed: 3000 rpm
NU2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Grease speed: 2800 rpm
NJ2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Grease speed: 2800 rpm
NUP2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Grease speed: 2800 rpm
NU2318EM d: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Grease speed: 2800 rpm
NJ2318EM d: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Grease speed: 2800 rpm
NUP2318EM d: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Grease speed: 2800 rpm
NU2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Grease speed: 2600 rpm
NJ2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Grease speed: 2600 rpm
NUP2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Grease speed: 2600 rpm
NU2319EM d: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Grease speed: 2600 rpm
NJ2319EM d: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Grease speed: 2600 rpm
NUP2319EM d: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Grease speed: 2600 rpm
NU2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 606 kN | Grease speed: 2400 rpm
NJ2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 606 kN | Grease speed: 2400 rpm
NUP2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 606 kN | Grease speed: 2400 rpm
NU2320EM d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Grease speed: 2400 rpm
NJ2320EM d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Grease speed: 2400 rpm
NUP2320EM d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Grease speed: 2400 rpm
NU2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 570 kN | C0r: 735 kN | Grease speed: 2200 rpm
NJ2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 570 kN | C0r: 735 kN | Grease speed: 2200 rpm
NUP2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 570 kN | C0r: 735 kN | Grease speed: 2200 rpm
NU2322EM d: 110 mm | D: 240 mm | B: 80 mm | Cr: 640 kN | C0r: 815 kN | Grease speed: 2200 rpm
NJ2322EM d: 110 mm | D: 240 mm | B: 80 mm | Cr: 640 kN | C0r: 815 kN | Grease speed: 2200 rpm
NUP2322EM d: 110 mm | D: 240 mm | B: 80 mm | Cr: 640 kN | C0r: 815 kN | Grease speed: 2200 rpm
NU2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Grease speed: 2000 rpm
NJ2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Grease speed: 2000 rpm
NUP2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Grease speed: 2000 rpm
NU2324EM d: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Grease speed: 2000 rpm
NJ2324EM d: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Grease speed: 2000 rpm
NUP2324EM d: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Grease speed: 2000 rpm
NU2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Grease speed: 1900 rpm
NJ2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Grease speed: 1900 rpm
NUP2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Grease speed: 1900 rpm
NU2326EM d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Grease speed: 1300 rpm
NJ2326EM d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Grease speed: 1300 rpm
NUP2326EM d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Grease speed: 1300 rpm
NU2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Grease speed: 1700 rpm
NJ2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Grease speed: 1700 rpm
NUP2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Grease speed: 1700 rpm
NU2328EM d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Grease speed: 1700 rpm
NJ2328EM d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Grease speed: 1700 rpm
NUP2328EM d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Grease speed: 1700 rpm
NU2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Grease speed: 1600 rpm
NJ2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Grease speed: 1600 rpm
NUP2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Grease speed: 1600 rpm
NU2330EM d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Grease speed: 1600 rpm
NJ2330EM d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Grease speed: 1600 rpm
NUP2330EM d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Grease speed: 1600 rpm
NU2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Grease speed: 1500 rpm
NJ2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Grease speed: 1500 rpm
NUP2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Grease speed: 1500 rpm
NU2332EM d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Grease speed: 1600 rpm
NJ2332EM d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Grease speed: 1600 rpm
NUP2332EM d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Grease speed: 1600 rpm
NU2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Grease speed: 1400 rpm
NJ2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Grease speed: 1400 rpm
NUP2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Grease speed: 1400 rpm
NU2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Grease speed: 1300 rpm
NJ2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Grease speed: 1300 rpm
NU2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Grease speed: 1300 rpm
NJ2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Grease speed: 1300 rpm
NU2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Grease speed: 1200 rpm
NJ2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Grease speed: 1200 rpm
Cylindrical Roller BearingsNSK
147 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 23 Series Cylindrical Roller Bearings (NU, NJ, NUP)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (147)

NU2304, NJ2304, NUP2304, NU2304EM, NJ2304EM, NUP2304EM, NU2305, NJ2305, NUP2305, NU2305ET + 137 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU2304d: 20 mm | D: 52 mm | B: 21 mm | Cr: 30.5 kN | C0r: 27.2 kN | Grease speed: 11000 rpm
NJ2304d: 20 mm | D: 52 mm | B: 21 mm | Cr: 30.5 kN | C0r: 27.2 kN | Grease speed: 11000 rpm
NUP2304d: 20 mm | D: 52 mm | B: 21 mm | Cr: 30.5 kN | C0r: 27.2 kN | Grease speed: 11000 rpm
NU2304EMd: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Grease speed: 11000 rpm
NJ2304EMd: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Grease speed: 11000 rpm
NUP2304EMd: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Grease speed: 11000 rpm
NU2305d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.5 kN | C0r: 41 kN | Grease speed: 9000 rpm
NJ2305d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.5 kN | C0r: 41 kN | Grease speed: 9000 rpm
NUP2305d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.5 kN | C0r: 41 kN | Grease speed: 9000 rpm
NU2305ETd: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Grease speed: 9000 rpm
NJ2305ETd: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Grease speed: 9000 rpm
NUP2305ETd: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Grease speed: 9000 rpm
NU2306d: 30 mm | D: 72 mm | B: 27 mm | Cr: 61.5 kN | C0r: 51 kN | Grease speed: 7500 rpm
NJ2306d: 30 mm | D: 72 mm | B: 27 mm | Cr: 61.5 kN | C0r: 51 kN | Grease speed: 7500 rpm
NUP2306d: 30 mm | D: 72 mm | B: 27 mm | Cr: 61.5 kN | C0r: 51 kN | Grease speed: 7500 rpm
NU2306ETd: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Grease speed: 8000 rpm
NJ2306ETd: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Grease speed: 8000 rpm
NUP2306ETd: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Grease speed: 8000 rpm
NU2307d: 35 mm | D: 80 mm | B: 31 mm | Cr: 60.5 kN | C0r: 60 kN | Grease speed: 7100 rpm
NJ2307d: 35 mm | D: 80 mm | B: 31 mm | Cr: 60.5 kN | C0r: 60 kN | Grease speed: 7100 rpm
NUP2307d: 35 mm | D: 80 mm | B: 31 mm | Cr: 60.5 kN | C0r: 60 kN | Grease speed: 7100 rpm
NU2307ETd: 35 mm | D: 80 mm | B: 31 mm | Cr: 93 kN | C0r: 101 kN | Grease speed: 6700 rpm
NJ2307ETd: 35 mm | D: 80 mm | B: 31 mm | Cr: 93 kN | C0r: 101 kN | Grease speed: 6700 rpm
NUP2307ETd: 35 mm | D: 80 mm | B: 31 mm | Cr: 93 kN | C0r: 101 kN | Grease speed: 6700 rpm
NU2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Grease speed: 6000 rpm
NJ2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Grease speed: 6000 rpm
NUP2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Grease speed: 6000 rpm
NU2308ETd: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Grease speed: 6000 rpm
NJ2308ETd: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Grease speed: 6000 rpm
NUP2308ETd: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Grease speed: 6000 rpm
NU2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Grease speed: 5600 rpm
NJ2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Grease speed: 5600 rpm
NUP2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Grease speed: 5600 rpm
NU2309ETd: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Grease speed: 5300 rpm
NJ2309ETd: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Grease speed: 5300 rpm
NUP2309ETd: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Grease speed: 5300 rpm
NU2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Grease speed: 5000 rpm
NJ2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Grease speed: 5000 rpm
NUP2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Grease speed: 5000 rpm
NU2310ETd: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Grease speed: 5000 rpm
NJ2310ETd: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Grease speed: 5000 rpm
NUP2310ETd: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Grease speed: 5000 rpm
NU2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Grease speed: 4500 rpm
NJ2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Grease speed: 4500 rpm
NUP2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Grease speed: 4500 rpm
NU2311ETd: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Grease speed: 4500 rpm
NJ2311ETd: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Grease speed: 4500 rpm
NUP2311ETd: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Grease speed: 4500 rpm
NU2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Grease speed: 4300 rpm
NJ2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Grease speed: 4300 rpm
NUP2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Grease speed: 4300 rpm
NU2312ETd: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Grease speed: 4300 rpm
NJ2312ETd: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Grease speed: 4300 rpm
NUP2312ETd: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Grease speed: 4300 rpm
NU2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Grease speed: 3800 rpm
NJ2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Grease speed: 3800 rpm
NUP2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Grease speed: 3800 rpm
NU2313ETd: 65 mm | D: 140 mm | B: 48 mm | Cr: 233 kN | C0r: 265 kN | Grease speed: 3800 rpm
NJ2313ETd: 65 mm | D: 140 mm | B: 48 mm | Cr: 233 kN | C0r: 265 kN | Grease speed: 3800 rpm
NUP2313ETd: 65 mm | D: 140 mm | B: 48 mm | Cr: 233 kN | C0r: 265 kN | Grease speed: 3800 rpm
NU2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Grease speed: 3600 rpm
NJ2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Grease speed: 3600 rpm
NUP2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Grease speed: 3600 rpm
NU2314ETd: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Grease speed: 3600 rpm
NJ2314ETd: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Grease speed: 3600 rpm
NUP2314ETd: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Grease speed: 3600 rpm
NU2315d: 75 mm | D: 160 mm | B: 56 mm | Cr: 258 kN | C0r: 300 kN | Grease speed: 3400 rpm
NJ2315d: 75 mm | D: 160 mm | B: 56 mm | Cr: 258 kN | C0r: 300 kN | Grease speed: 3400 rpm
NUP2315d: 75 mm | D: 160 mm | B: 56 mm | Cr: 258 kN | C0r: 300 kN | Grease speed: 3400 rpm
NU2315EMd: 75 mm | D: 160 mm | B: 55 mm | Cr: 310 kN | C0r: 365 kN | Grease speed: 3400 rpm
NJ2315EMd: 75 mm | D: 160 mm | B: 55 mm | Cr: 310 kN | C0r: 365 kN | Grease speed: 3400 rpm
NUP2315EMd: 75 mm | D: 160 mm | B: 55 mm | Cr: 310 kN | C0r: 365 kN | Grease speed: 3400 rpm
NU2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Grease speed: 3200 rpm
NJ2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Grease speed: 3200 rpm
NUP2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Grease speed: 3200 rpm
NU2316EMd: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Grease speed: 3200 rpm
NJ2316EMd: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Grease speed: 3200 rpm
NUP2316EMd: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Grease speed: 3200 rpm
NU2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Grease speed: 3000 rpm
NJ2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Grease speed: 3000 rpm
NUP2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Grease speed: 3000 rpm
NU2317EMd: 85 mm | D: 180 mm | B: 60 mm | Cr: 350 kN | C0r: 415 kN | Grease speed: 3000 rpm
NJ2317EMd: 85 mm | D: 180 mm | B: 60 mm | Cr: 350 kN | C0r: 415 kN | Grease speed: 3000 rpm
NUP2317EMd: 85 mm | D: 180 mm | B: 60 mm | Cr: 350 kN | C0r: 415 kN | Grease speed: 3000 rpm
NU2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Grease speed: 2800 rpm
NJ2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Grease speed: 2800 rpm
NUP2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Grease speed: 2800 rpm
NU2318EMd: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Grease speed: 2800 rpm
NJ2318EMd: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Grease speed: 2800 rpm
NUP2318EMd: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Grease speed: 2800 rpm
NU2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Grease speed: 2600 rpm
NJ2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Grease speed: 2600 rpm
NUP2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Grease speed: 2600 rpm
NU2319EMd: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Grease speed: 2600 rpm
NJ2319EMd: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Grease speed: 2600 rpm
NUP2319EMd: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Grease speed: 2600 rpm
NU2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 606 kN | Grease speed: 2400 rpm
NJ2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 606 kN | Grease speed: 2400 rpm
NUP2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 606 kN | Grease speed: 2400 rpm
NU2320EMd: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Grease speed: 2400 rpm
NJ2320EMd: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Grease speed: 2400 rpm
NUP2320EMd: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Grease speed: 2400 rpm
NU2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 570 kN | C0r: 735 kN | Grease speed: 2200 rpm
NJ2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 570 kN | C0r: 735 kN | Grease speed: 2200 rpm
NUP2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 570 kN | C0r: 735 kN | Grease speed: 2200 rpm
NU2322EMd: 110 mm | D: 240 mm | B: 80 mm | Cr: 640 kN | C0r: 815 kN | Grease speed: 2200 rpm
NJ2322EMd: 110 mm | D: 240 mm | B: 80 mm | Cr: 640 kN | C0r: 815 kN | Grease speed: 2200 rpm
NUP2322EMd: 110 mm | D: 240 mm | B: 80 mm | Cr: 640 kN | C0r: 815 kN | Grease speed: 2200 rpm
NU2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Grease speed: 2000 rpm
NJ2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Grease speed: 2000 rpm
NUP2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Grease speed: 2000 rpm
NU2324EMd: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Grease speed: 2000 rpm
NJ2324EMd: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Grease speed: 2000 rpm
NUP2324EMd: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Grease speed: 2000 rpm
NU2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Grease speed: 1900 rpm
NJ2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Grease speed: 1900 rpm
NUP2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Grease speed: 1900 rpm
NU2326EMd: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Grease speed: 1300 rpm
NJ2326EMd: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Grease speed: 1300 rpm
NUP2326EMd: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Grease speed: 1300 rpm
NU2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Grease speed: 1700 rpm
NJ2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Grease speed: 1700 rpm
NUP2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Grease speed: 1700 rpm
NU2328EMd: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Grease speed: 1700 rpm
NJ2328EMd: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Grease speed: 1700 rpm
NUP2328EMd: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Grease speed: 1700 rpm
NU2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Grease speed: 1600 rpm
NJ2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Grease speed: 1600 rpm
NUP2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Grease speed: 1600 rpm
NU2330EMd: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Grease speed: 1600 rpm
NJ2330EMd: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Grease speed: 1600 rpm
NUP2330EMd: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Grease speed: 1600 rpm
NU2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Grease speed: 1500 rpm
NJ2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Grease speed: 1500 rpm
NUP2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Grease speed: 1500 rpm
NU2332EMd: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Grease speed: 1600 rpm
NJ2332EMd: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Grease speed: 1600 rpm
NUP2332EMd: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Grease speed: 1600 rpm
NU2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Grease speed: 1400 rpm
NJ2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Grease speed: 1400 rpm
NUP2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Grease speed: 1400 rpm
NU2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Grease speed: 1300 rpm
NJ2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Grease speed: 1300 rpm
NU2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Grease speed: 1300 rpm
NJ2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Grease speed: 1300 rpm
NU2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Grease speed: 1200 rpm
NJ2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Grease speed: 1200 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
