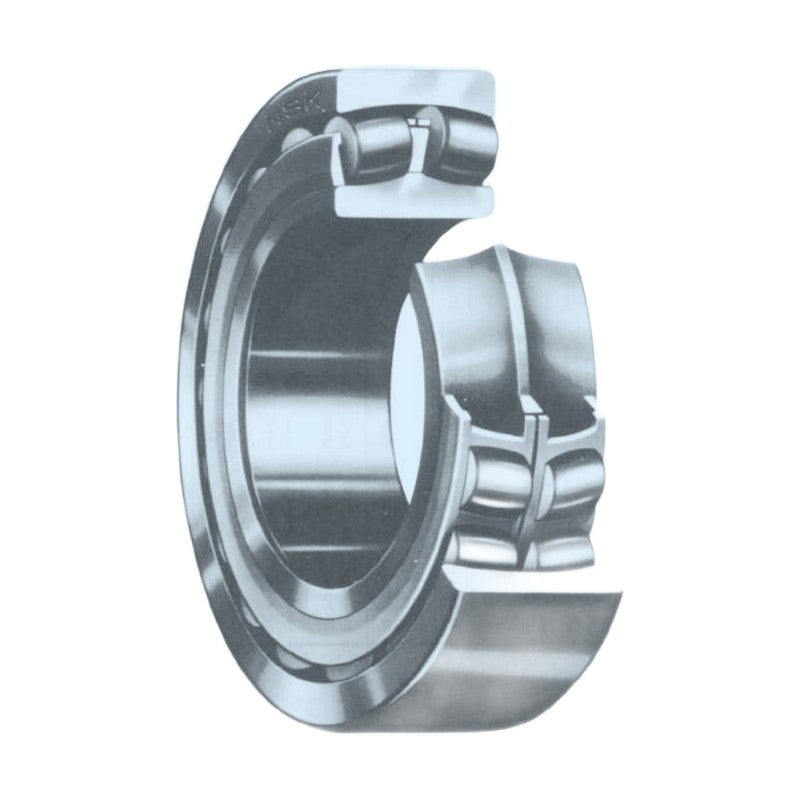

NSK 230 Series Spherical Roller Bearings (Cylindrical & K Bore)

NSK 230 Series Spherical Roller Bearings (Cylindrical & K Bore)

NSK 230 series double-row spherical roller bearings, bore 60-1120 mm, with cylindrical bore and tapered bore (K) designations as listed.

Key features

  • Double-row barrel rollers with spherical outer-ring raceway for self-alignment
  • High radial and moderate two-direction axial load capacity
  • K suffix: tapered bore (1:12) for sleeve mounting
  • Cage and design suffixes (EA, CA, CD, C, H, E4) as printed
  • Suitable for heavy-duty, misaligned or shock-loaded applications

Specifications

Bearing type Spherical roller bearing
Series 230
Bore range 60-1120 mm
Bore type Cylindrical; K = tapered
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B180-B201
23012C d: 60 mm | D: 95 mm | B: 26 mm | Cr: 98.5 kN | C0r: 141 kN | Grease speed: 3600 rpm
23012CK d: 60 mm | D: 95 mm | B: 26 mm | Cr: 98.5 kN | C0r: 141 kN | Grease speed: 3600 rpm
23020CD d: 100 mm | D: 150 mm | B: 37 mm | Cr: 212 kN | C0r: 335 kN | Grease speed: 2200 rpm
23020CDK d: 100 mm | D: 150 mm | B: 37 mm | Cr: 212 kN | C0r: 335 kN | Grease speed: 2200 rpm
23022CD d: 110 mm | D: 170 mm | B: 45 mm | Cr: 293 kN | C0r: 465 kN | Grease speed: 2000 rpm
23022CDK d: 110 mm | D: 170 mm | B: 45 mm | Cr: 293 kN | C0r: 465 kN | Grease speed: 2000 rpm
23024CD d: 120 mm | D: 180 mm | B: 46 mm | Cr: 315 kN | C0r: 525 kN | Grease speed: 1800 rpm
23024CDK d: 120 mm | D: 180 mm | B: 46 mm | Cr: 315 kN | C0r: 525 kN | Grease speed: 1800 rpm
23026CD d: 130 mm | D: 200 mm | B: 2 mm | Cr: 400 kN | C0r: 655 kN | Grease speed: 1700 rpm
23026CDK d: 130 mm | D: 200 mm | B: 2 mm | Cr: 400 kN | C0r: 655 kN | Grease speed: 1700 rpm
23028CD d: 140 mm | D: 210 mm | B: 53 mm | Cr: 420 kN | C0r: 715 kN | Grease speed: 1600 rpm
23028CDK d: 140 mm | D: 210 mm | B: 53 mm | Cr: 420 kN | C0r: 715 kN | Grease speed: 1600 rpm
23030CD d: 150 mm | D: 225 mm | B: 56 mm | Cr: 470 kN | C0r: 815 kN | Grease speed: 1400 rpm
23030CDK d: 150 mm | D: 225 mm | B: 56 mm | Cr: 470 kN | C0r: 815 kN | Grease speed: 1400 rpm
23032CD d: 160 mm | D: 240 mm | B: 60 mm | Cr: 540 kN | C0r: 955 kN | Grease speed: 1300 rpm
23032CDK d: 160 mm | D: 240 mm | B: 60 mm | Cr: 540 kN | C0r: 955 kN | Grease speed: 1300 rpm
23034CD d: 170 mm | D: 260 mm | B: 67 mm | Cr: 640 kN | C0r: 1080 kN | Grease speed: 1200 rpm
23034CDK d: 170 mm | D: 260 mm | B: 67 mm | Cr: 640 kN | C0r: 1080 kN | Grease speed: 1200 rpm
23036CD d: 180 mm | D: 280 mm | B: 4 mm | Cr: 750 kN | C0r: 1270 kN | Grease speed: 1200 rpm
23036CDK d: 180 mm | D: 280 mm | B: 4 mm | Cr: 750 kN | C0r: 1270 kN | Grease speed: 1200 rpm
23038CA d: 190 mm | D: 290 mm | B: 75 mm | Cr: 775 kN | C0r: 1350 kN | Grease speed: 1100 rpm
23038CAK d: 190 mm | D: 290 mm | B: 75 mm | Cr: 775 kN | C0r: 1350 kN | Grease speed: 1100 rpm
23040CA d: 200 mm | D: 310 mm | B: 82 mm | Cr: 940 kN | C0r: 1700 kN | Grease speed: 1000 rpm
23040CAK d: 200 mm | D: 310 mm | B: 82 mm | Cr: 940 kN | C0r: 1700 kN | Grease speed: 1000 rpm
23044CA d: 220 mm | D: 340 mm | B: 90 mm | Cr: 1090 kN | C0r: 1980 kN | Grease speed: 950 rpm
23044CAK d: 220 mm | D: 340 mm | B: 90 mm | Cr: 1090 kN | C0r: 1980 kN | Grease speed: 950 rpm
23048CA d: 240 mm | D: 360 mm | B: 92 mm | Cr: 1160 kN | C0r: 2140 kN | Grease speed: 850 rpm
23048CAK d: 240 mm | D: 360 mm | B: 92 mm | Cr: 1160 kN | C0r: 2140 kN | Grease speed: 850 rpm
23052CA d: 260 mm | D: 400 mm | B: 104 mm | Cr: 1430 kN | C0r: 2580 kN | Grease speed: 800 rpm
23052CAK d: 260 mm | D: 400 mm | B: 104 mm | Cr: 1430 kN | C0r: 2580 kN | Grease speed: 800 rpm
23056CA d: 280 mm | D: 420 mm | B: 106 mm | Cr: 1540 kN | C0r: 2950 kN | Grease speed: 710 rpm
23056CAK d: 280 mm | D: 420 mm | B: 106 mm | Cr: 1540 kN | C0r: 2950 kN | Grease speed: 710 rpm
23060CA d: 300 mm | D: 460 mm | B: 118 mm | Cr: 1920 kN | C0r: 3700 kN | Grease speed: 670 rpm
23060CAK d: 300 mm | D: 460 mm | B: 118 mm | Cr: 1920 kN | C0r: 3700 kN | Grease speed: 670 rpm
23064CA d: 320 mm | D: 480 mm | B: 121 mm | Cr: 1960 kN | C0r: 3850 kN | Grease speed: 630 rpm
23064CAK d: 320 mm | D: 480 mm | B: 121 mm | Cr: 1960 kN | C0r: 3850 kN | Grease speed: 630 rpm
23068CA d: 340 mm | D: 520 mm | B: 133 mm | Cr: 2280 kN | C0r: 4400 kN | Grease speed: 560 rpm
23068CAK d: 340 mm | D: 520 mm | B: 133 mm | Cr: 2280 kN | C0r: 4400 kN | Grease speed: 560 rpm
23072CA d: 360 mm | D: 540 mm | B: 134 mm | Cr: 2390 kN | C0r: 4700 kN | Grease speed: 530 rpm
23072CAK d: 360 mm | D: 540 mm | B: 134 mm | Cr: 2390 kN | C0r: 4700 kN | Grease speed: 530 rpm
23076CA d: 380 mm | D: 560 mm | B: 135 mm | Cr: 2500 kN | C0r: 5100 kN | Grease speed: 530 rpm
23076CAK d: 380 mm | D: 560 mm | B: 135 mm | Cr: 2500 kN | C0r: 5100 kN | Grease speed: 530 rpm
23080CA d: 400 mm | D: 600 mm | B: 148 mm | Cr: 2970 kN | C0r: 5900 kN | Grease speed: 480 rpm
23080CAK d: 400 mm | D: 600 mm | B: 148 mm | Cr: 2970 kN | C0r: 5900 kN | Grease speed: 480 rpm
23084CA d: 420 mm | D: 620 mm | B: 150 mm | Cr: 2910 kN | C0r: 5850 kN | Grease speed: 450 rpm
23084CAK d: 420 mm | D: 620 mm | B: 150 mm | Cr: 2910 kN | C0r: 5850 kN | Grease speed: 450 rpm
23088CA d: 440 mm | D: 650 mm | B: 157 mm | Cr: 3150 kN | C0r: 6350 kN | Grease speed: 430 rpm
23088CAK d: 440 mm | D: 650 mm | B: 157 mm | Cr: 3150 kN | C0r: 6350 kN | Grease speed: 430 rpm
23092CA d: 460 mm | D: 680 mm | B: 163 mm | Cr: 3450 kN | C0r: 7100 kN | Grease speed: 400 rpm
23092CAK d: 460 mm | D: 680 mm | B: 163 mm | Cr: 3450 kN | C0r: 7100 kN | Grease speed: 400 rpm
23096CA d: 480 mm | D: 700 mm | B: 165 mm | Cr: 3800 kN | C0r: 7950 kN | Grease speed: 400 rpm
23096CAK d: 480 mm | D: 700 mm | B: 165 mm | Cr: 3800 kN | C0r: 7950 kN | Grease speed: 400 rpm
230/500CAE4 d: 500 mm | D: 720 mm | B: 167 mm | Cr: 3750 kN | C0r: 8100 kN | Grease speed: 380 rpm
230/500CAKE4 d: 500 mm | D: 720 mm | B: 167 mm | Cr: 3750 kN | C0r: 8100 kN | Grease speed: 380 rpm
230/530CAE4 d: 530 mm | D: 780 mm | B: 185 mm | Cr: 4400 kN | C0r: 9200 kN | Grease speed: 340 rpm
230/530CAKE4 d: 530 mm | D: 780 mm | B: 185 mm | Cr: 4400 kN | C0r: 9200 kN | Grease speed: 340 rpm
230/560CAE4 d: 560 mm | D: 820 mm | B: 195 mm | Cr: 5000 kN | C0r: 10700 kN | Grease speed: 320 rpm
230/560CAKE4 d: 560 mm | D: 820 mm | B: 195 mm | Cr: 5000 kN | C0r: 10700 kN | Grease speed: 320 rpm
230/600CAE4 d: 600 mm | D: 870 mm | B: 200 mm | Cr: 6450 kN | C0r: 12200 kN | Grease speed: 300 rpm
230/600CAKE4 d: 600 mm | D: 870 mm | B: 200 mm | Cr: 6450 kN | C0r: 12200 kN | Grease speed: 300 rpm
230/630CAE4 d: 630 mm | D: 920 mm | B: 212 mm | Cr: 5800 kN | C0r: 12700 kN | Grease speed: 280 rpm
230/630CAKE4 d: 630 mm | D: 920 mm | B: 212 mm | Cr: 5800 kN | C0r: 12700 kN | Grease speed: 280 rpm
230/670CAE4 d: 670 mm | D: 980 mm | B: 230 mm | Cr: 6850 kN | C0r: 15000 kN | Grease speed: 240 rpm
230/670CAKE4 d: 670 mm | D: 980 mm | B: 230 mm | Cr: 6850 kN | C0r: 15000 kN | Grease speed: 240 rpm
230/710CAE4 d: 710 mm | D: 1030 mm | B: 236 mm | Cr: 7100 kN | C0r: 15860 kN | Grease speed: 240 rpm
230/710CAKE4 d: 710 mm | D: 1030 mm | B: 236 mm | Cr: 7100 kN | C0r: 15860 kN | Grease speed: 240 rpm
230/750CAE4 d: 750 mm | D: 1090 mm | B: 250 mm | Cr: 7750 kN | C0r: 17200 kN | Grease speed: 220 rpm
230/750CAKE4 d: 750 mm | D: 1090 mm | B: 250 mm | Cr: 7750 kN | C0r: 17200 kN | Grease speed: 220 rpm
230/800CAE4 d: 800 mm | D: 1150 mm | B: 258 mm | Cr: 8350 kN | C0r: 19100 kN | Grease speed: 200 rpm
230/800CAKE4 d: 800 mm | D: 1150 mm | B: 258 mm | Cr: 8350 kN | C0r: 19100 kN | Grease speed: 200 rpm
230/850CAE4 d: 850 mm | D: 1220 mm | B: 22 mm | Cr: 9300 kN | C0r: 21400 kN | Grease speed: 180 rpm
230/850CAKE4 d: 850 mm | D: 1220 mm | B: 22 mm | Cr: 9300 kN | C0r: 21400 kN | Grease speed: 180 rpm
230/900TAE4 d: 900 mm | D: 1280 mm | B: 280 mm | Cr: 9850 kN | C0r: 22800 kN | Grease speed: 160 rpm
230/900TAKE4 d: 900 mm | D: 1280 mm | B: 280 mm | Cr: 9850 kN | C0r: 22800 kN | Grease speed: 160 rpm
230/950CAE4 d: 950 mm | D: 1360 mm | B: 300 mm | Cr: 11300 kN | C0r: 26500 kN | Grease speed: 150 rpm
230/950CAKE4 d: 950 mm | D: 1360 mm | B: 300 mm | Cr: 11300 kN | C0r: 26500 kN | Grease speed: 150 rpm
230/1000CAE4 d: 1000 mm | D: 1420 mm | B: 308 mm | Cr: 11900 kN | C0r: 28100 kN | Grease speed: 140 rpm
230/1060CAE4 d: 1060 mm | D: 1500 mm | B: 325 mm | Cr: 13000 kN | C0r: 31500 kN | Grease speed: 120 rpm
230/1060CAKE4 d: 1060 mm | D: 1500 mm | B: 325 mm | Cr: 13000 kN | C0r: 31500 kN | Grease speed: 120 rpm
230/1120CAE4 d: 1120 mm | D: 1580 mm | B: 345 mm | Cr: 15400 kN | C0r: 38000 kN | Grease speed: 110 rpm
230/1120CAKE4 d: 1120 mm | D: 1580 mm | B: 345 mm | Cr: 15400 kN | C0r: 38000 kN | Grease speed: 110 rpm
Spherical Roller BearingsNSK
81 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 230 Series Spherical Roller Bearings (Cylindrical & K Bore)

Brand NSK·Spherical Roller Bearings

Available part numbers (81)

23012C, 23012CK, 23020CD, 23020CDK, 23022CD, 23022CDK, 23024CD, 23024CDK, 23026CD, 23026CDK + 71 more — see full table ↓
