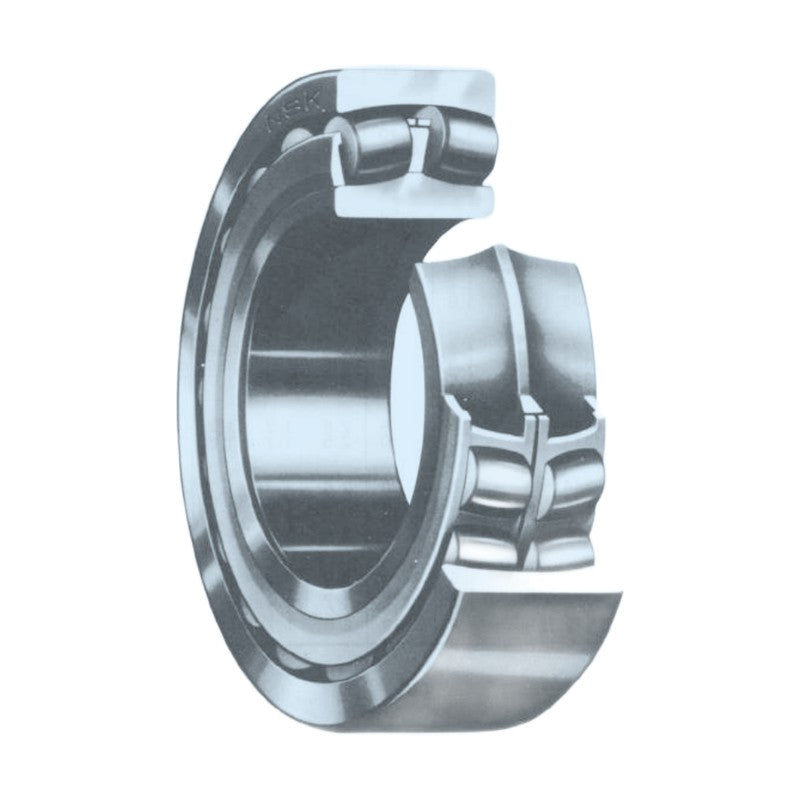

NSK 232 Series Spherical Roller Bearings (Cylindrical & K Bore)

NSK 232 Series Spherical Roller Bearings (Cylindrical & K Bore)

NSK 232 series double-row spherical roller bearings, bore 90-950 mm, with cylindrical bore and tapered bore (K) designations as listed.

Key features

  • Double-row barrel rollers with spherical outer-ring raceway for self-alignment
  • High radial and moderate two-direction axial load capacity
  • K suffix: tapered bore (1:12) for sleeve mounting
  • Cage and design suffixes (EA, CA, CD, C, H, E4) as printed
  • Suitable for heavy-duty, misaligned or shock-loaded applications

Specifications

Bearing type Spherical roller bearing
Series 232
Bore range 90-950 mm
Bore type Cylindrical; K = tapered
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B180-B201
23218C d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 340 kN | C0r: 490 kN | Grease speed: 1800 rpm
23218CK d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 340 kN | C0r: 490 kN | Grease speed: 1800 rpm
23219CA d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 370 kN | C0r: 525 kN | Grease speed: 1700 rpm
23219CAK d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 370 kN | C0r: 525 kN | Grease speed: 1700 rpm
23220C d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 420 kN | C0r: 605 kN | Grease speed: 1600 rpm
23220CK d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 420 kN | C0r: 605 kN | Grease speed: 1600 rpm
23222C d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 515 kN | C0r: 760 kN | Grease speed: 1500 rpm
23222CK d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 515 kN | C0r: 760 kN | Grease speed: 1500 rpm
23224C d: 120 mm | D: 215 mm | B: 76 mm | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
23224CK d: 120 mm | D: 215 mm | B: 76 mm | Cr: 630 kN | C0r: 970 kN | Grease speed: 1300 rpm
23226C d: 130 mm | D: 230 mm | B: 80 mm | Cr: 700 kN | C0r: 1080 kN | Grease speed: 1200 rpm
23226CK d: 130 mm | D: 230 mm | B: 80 mm | Cr: 700 kN | C0r: 1080 kN | Grease speed: 1200 rpm
23228C d: 140 mm | D: 250 mm | B: 88 mm | Cr: 835 kN | C0r: 1300 kN | Grease speed: 1100 rpm
23228CK d: 140 mm | D: 250 mm | B: 88 mm | Cr: 835 kN | C0r: 1300 kN | Grease speed: 1100 rpm
23230C d: 150 mm | D: 270 mm | B: 96 mm | Cr: 976 kN | C0r: 1560 kN | Grease speed: 1100 rpm
23230CK d: 150 mm | D: 270 mm | B: 96 mm | Cr: 976 kN | C0r: 1560 kN | Grease speed: 1100 rpm
23232C d: 160 mm | D: 290 mm | B: 104 mm | Cr: 1100 kN | C0r: 1770 kN | Grease speed: 1000 rpm
23232CK d: 160 mm | D: 290 mm | B: 104 mm | Cr: 1100 kN | C0r: 1770 kN | Grease speed: 1000 rpm
23234C d: 170 mm | D: 310 mm | B: 110 mm | Cr: 1200 kN | C0r: 1910 kN | Grease speed: 900 rpm
23234CK d: 170 mm | D: 310 mm | B: 110 mm | Cr: 1200 kN | C0r: 1910 kN | Grease speed: 900 rpm
23236C d: 180 mm | D: 320 mm | B: 112 mm | Cr: 1300 kN | C0r: 2110 kN | Grease speed: 850 rpm
23236CK d: 180 mm | D: 320 mm | B: 112 mm | Cr: 1300 kN | C0r: 2110 kN | Grease speed: 850 rpm
23238C d: 190 mm | D: 340 mm | B: 120 mm | Cr: 1440 kN | C0r: 2350 kN | Grease speed: 800 rpm
23238CK d: 190 mm | D: 340 mm | B: 120 mm | Cr: 1440 kN | C0r: 2350 kN | Grease speed: 800 rpm
23240C d: 200 mm | D: 360 mm | B: 128 mm | Cr: 1660 kN | C0r: 2750 kN | Grease speed: 760 rpm
23240CK d: 200 mm | D: 360 mm | B: 128 mm | Cr: 1660 kN | C0r: 2750 kN | Grease speed: 760 rpm
23244C d: 220 mm | D: 400 mm | B: 44 mm | Cr: 2070 kN | C0r: 3400 kN | Grease speed: 670 rpm
23244CK d: 220 mm | D: 400 mm | B: 44 mm | Cr: 2070 kN | C0r: 3400 kN | Grease speed: 670 rpm
23248CA d: 240 mm | D: 440 mm | B: 160 mm | Cr: 2440 kN | C0r: 4050 kN | Grease speed: 630 rpm
23248CAK d: 240 mm | D: 440 mm | B: 160 mm | Cr: 2440 kN | C0r: 4050 kN | Grease speed: 630 rpm
23252CA d: 260 mm | D: 480 mm | B: 174 mm | Cr: 2740 kN | C0r: 4550 kN | Grease speed: 560 rpm
23252CAK d: 260 mm | D: 480 mm | B: 174 mm | Cr: 2740 kN | C0r: 4550 kN | Grease speed: 560 rpm
23256CA d: 280 mm | D: 500 mm | B: 176 mm | Cr: 2880 kN | C0r: 4900 kN | Grease speed: 530 rpm
23256CAK d: 280 mm | D: 500 mm | B: 176 mm | Cr: 2880 kN | C0r: 4900 kN | Grease speed: 530 rpm
23260CA d: 300 mm | D: 540 mm | B: 192 mm | Cr: 3400 kN | C0r: 5900 kN | Grease speed: 480 rpm
23260CAK d: 300 mm | D: 540 mm | B: 192 mm | Cr: 3400 kN | C0r: 5900 kN | Grease speed: 480 rpm
23264CA d: 320 mm | D: 580 mm | B: 208 mm | Cr: 3900 kN | C0r: 6900 kN | Grease speed: 450 rpm
23264CAK d: 320 mm | D: 580 mm | B: 208 mm | Cr: 3900 kN | C0r: 6900 kN | Grease speed: 450 rpm
23268CA d: 340 mm | D: 620 mm | B: 224 mm | Cr: 4400 kN | C0r: 7800 kN | Grease speed: 400 rpm
23268CAK d: 340 mm | D: 620 mm | B: 224 mm | Cr: 4400 kN | C0r: 7800 kN | Grease speed: 400 rpm
23272CA d: 360 mm | D: 650 mm | B: 232 mm | Cr: 4800 kN | C0r: 8550 kN | Grease speed: 380 rpm
23272CAK d: 360 mm | D: 650 mm | B: 232 mm | Cr: 4800 kN | C0r: 8550 kN | Grease speed: 380 rpm
23276CA d: 380 mm | D: 680 mm | B: 240 mm | Cr: 5150 kN | C0r: 9200 kN | Grease speed: 360 rpm
23276CAK d: 380 mm | D: 680 mm | B: 240 mm | Cr: 5150 kN | C0r: 9200 kN | Grease speed: 360 rpm
23280CA d: 400 mm | D: 720 mm | B: 256 mm | Cr: 5800 kN | C0r: 10400 kN | Grease speed: 340 rpm
23280CAK d: 400 mm | D: 720 mm | B: 256 mm | Cr: 5800 kN | C0r: 10400 kN | Grease speed: 340 rpm
23284CA d: 420 mm | D: 760 mm | B: 272 mm | Cr: 6450 kN | C0r: 11700 kN | Grease speed: 320 rpm
23284CAK d: 420 mm | D: 760 mm | B: 272 mm | Cr: 6450 kN | C0r: 11700 kN | Grease speed: 320 rpm
23288CA d: 440 mm | D: 790 mm | B: 280 mm | Cr: 6900 kN | C0r: 12800 kN | Grease speed: 300 rpm
23288CAK d: 440 mm | D: 790 mm | B: 280 mm | Cr: 6900 kN | C0r: 12800 kN | Grease speed: 300 rpm
23292CA d: 460 mm | D: 830 mm | B: 296 mm | Cr: 7360 kN | C0r: 13700 kN | Grease speed: 280 rpm
23292CAK d: 460 mm | D: 830 mm | B: 296 mm | Cr: 7360 kN | C0r: 13700 kN | Grease speed: 280 rpm
23296CA d: 480 mm | D: 870 mm | B: 310 mm | Cr: 7850 kN | C0r: 14400 kN | Grease speed: 260 rpm
23296CAK d: 480 mm | D: 870 mm | B: 310 mm | Cr: 7850 kN | C0r: 14400 kN | Grease speed: 260 rpm
232/500CAE4 d: 500 mm | D: 920 mm | B: 336 mm | Cr: 9000 kN | C0r: 16600 kN | Grease speed: 260 rpm
232/500CAKE4 d: 500 mm | D: 920 mm | B: 336 mm | Cr: 9000 kN | C0r: 16600 kN | Grease speed: 260 rpm
232/530CAE4 d: 530 mm | D: 980 mm | B: 355 mm | Cr: 10100 kN | C0r: 18800 kN | Grease speed: 240 rpm
232/530CAKE4 d: 530 mm | D: 980 mm | B: 355 mm | Cr: 10100 kN | C0r: 18800 kN | Grease speed: 240 rpm
232/560CAE4 d: 560 mm | D: 1030 mm | B: 365 mm | Cr: 10900 kN | C0r: 20500 kN | Grease speed: 220 rpm
232/560CAKE4 d: 560 mm | D: 1030 mm | B: 365 mm | Cr: 10900 kN | C0r: 20500 kN | Grease speed: 220 rpm
232/600CAE4 d: 600 mm | D: 1090 mm | B: 388 mm | Cr: 12700 kN | C0r: 24900 kN | Grease speed: 200 rpm
232/600CAKE4 d: 600 mm | D: 1090 mm | B: 388 mm | Cr: 12700 kN | C0r: 24900 kN | Grease speed: 200 rpm
232/630CAE4 d: 630 mm | D: 1150 mm | B: 412 mm | Cr: 13400 kN | C0r: 25600 kN | Grease speed: 180 rpm
232/630CAKE4 d: 630 mm | D: 1150 mm | B: 412 mm | Cr: 13400 kN | C0r: 25600 kN | Grease speed: 180 rpm
232/670CAE4 d: 670 mm | D: 1220 mm | B: 438 mm | Cr: 14900 kN | C0r: 28700 kN | Grease speed: 170 rpm
232/670CAKE4 d: 670 mm | D: 1220 mm | B: 438 mm | Cr: 14900 kN | C0r: 28700 kN | Grease speed: 170 rpm
232/710CAE4 d: 710 mm | D: 1280 mm | B: 450 mm | Cr: 15700 kN | C0r: 30500 kN | Grease speed: 160 rpm
232/710CAKE4 d: 710 mm | D: 1280 mm | B: 450 mm | Cr: 15700 kN | C0r: 30500 kN | Grease speed: 160 rpm
232/750CAE4 d: 750 mm | D: 1360 mm | B: 475 mm | Cr: 17700 kN | C0r: 35500 kN | Grease speed: 140 rpm
232/750CAKE4 d: 750 mm | D: 1360 mm | B: 475 mm | Cr: 17700 kN | C0r: 35500 kN | Grease speed: 140 rpm
232/800CAE4 d: 800 mm | D: 1420 mm | B: 488 mm | Cr: 20300 kN | C0r: 41000 kN | Grease speed: 130 rpm
232/800CAKE4 d: 800 mm | D: 1420 mm | B: 488 mm | Cr: 20300 kN | C0r: 41000 kN | Grease speed: 130 rpm
232/850CAE4 d: 850 mm | D: 1500 mm | B: 515 mm | Cr: 22300 kN | C0r: 45500 kN | Grease speed: 120 rpm
232/850CAKE4 d: 850 mm | D: 1500 mm | B: 515 mm | Cr: 22300 kN | C0r: 45500 kN | Grease speed: 120 rpm
232/900CAE4 d: 900 mm | D: 1580 mm | B: 515 mm | Cr: 23400 kN | C0r: 47500 kN | Grease speed: 110 rpm
232/900CAKE4 d: 900 mm | D: 1580 mm | B: 515 mm | Cr: 23400 kN | C0r: 47500 kN | Grease speed: 110 rpm
232/950CAE4 d: 950 mm | D: 1660 mm | B: 530 mm | Cr: 24700 kN | C0r: 50500 kN | Grease speed: 100 rpm
232/950CAKE4 d: 950 mm | D: 1660 mm | B: 530 mm | Cr: 24700 kN | C0r: 50500 kN | Grease speed: 100 rpm
Spherical Roller BearingsNSK
78 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 232 Series Spherical Roller Bearings (Cylindrical & K Bore)

Brand NSK·Spherical Roller Bearings

Available part numbers (78)

23218C, 23218CK, 23219CA, 23219CAK, 23220C, 23220CK, 23222C, 23222CK, 23224C, 23224CK + 68 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
