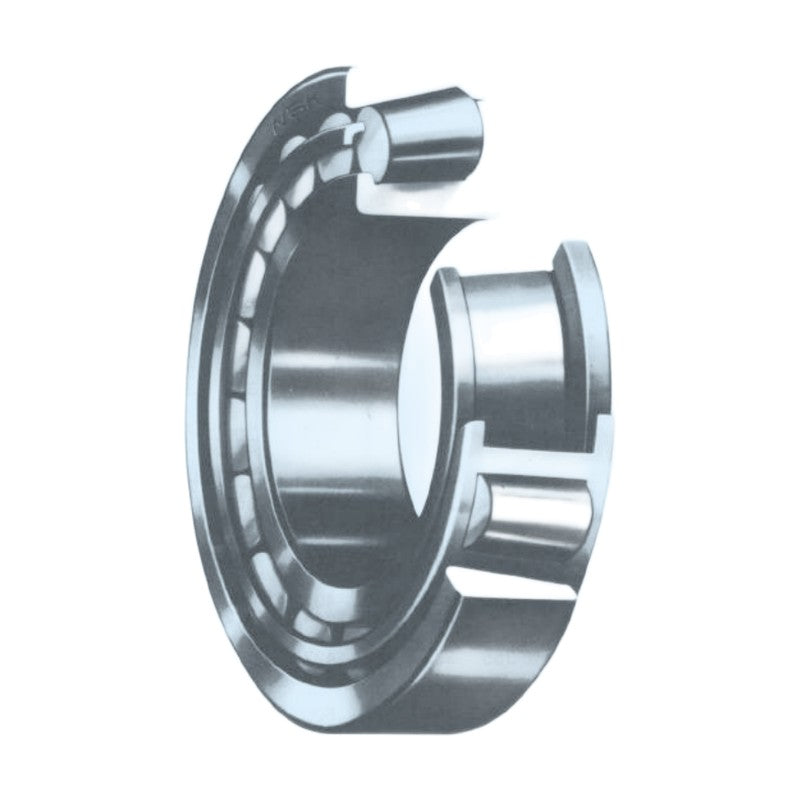

NSK 332 Series Tapered Roller Bearings (Metric, HR Type)

NSK 332 series single-row metric tapered roller bearings, bore 25-85 mm, including NSK HR high-capacity designs and suffix variants (J, C, D, X) as printed.

Key features

Separable cone (inner ring with rollers and cage) and cup (outer ring)
Carries combined radial and axial loads in one direction; normally mounted in pairs
HR prefix: NSK high-capacity design with enlarged rollers
Suffix C / D: steeper contact angle for higher axial load; J: ISO-compatible cup dimensions
Assembled width T shown per row

Specifications

Bearing type	Single-row tapered roller bearing
Series	332
Bore range	25-85 mm
Dimension system	Metric
Load ratings	Basic dynamic Cr / static C0r
Speed basis	Grease lubrication limit
Source	NSK Rolling Bearings Catalogue (Korean ed.), p. B116-B135

HR33205J		d: 25 mm \| D: 52 mm \| T: 22 mm \| Cr: 47.5 kN \| C0r: 56.5 kN \| Grease speed: 7500 rpm
HR33206J		d: 30 mm \| D: 62 mm \| T: 25 mm \| Cr: 66.5 kN \| C0r: 79.5 kN \| Grease speed: 6000 rpm
HR332/32J		d: 32 mm \| D: 65 mm \| T: 26 mm \| Cr: 70 kN \| C0r: 86.5 kN \| Grease speed: 5600 rpm
HR33207J		d: 35 mm \| D: 72 mm \| T: 28 mm \| Cr: 86.5 kN \| C0r: 108 kN \| Grease speed: 5300 rpm
HR33208J		d: 40 mm \| D: 80 mm \| T: 32 mm \| Cr: 107 kN \| C0r: 137 kN \| Grease speed: 4800 rpm
HR33209J		d: 45 mm \| D: 85 mm \| T: 32 mm \| Cr: 111 kN \| C0r: 147 kN \| Grease speed: 4300 rpm
HR33210J		d: 50 mm \| D: 90 mm \| T: 32 mm \| Cr: 118 kN \| C0r: 165 kN \| Grease speed: 4000 rpm
HR33211J		d: 55 mm \| D: 100 mm \| T: 35 mm \| Cr: 141 kN \| C0r: 193 kN \| Grease speed: 3600 rpm
HR33212J		d: 60 mm \| D: 110 mm \| T: 38 mm \| Cr: 166 kN \| C0r: 231 kN \| Grease speed: 3400 rpm
HR33213J		d: 65 mm \| D: 120 mm \| T: 41 mm \| Cr: 207 kN \| C0r: 282 kN \| Grease speed: 3000 rpm
HR33214J		d: 70 mm \| D: 126 mm \| T: 41 mm \| Cr: 209 kN \| C0r: 299 kN \| Grease speed: 2600 rpm
HR33215J		d: 75 mm \| D: 130 mm \| T: 41 mm \| Cr: 215 kN \| C0r: 315 kN \| Grease speed: 2800 rpm
HR33216J		d: 80 mm \| D: 140 mm \| T: 46 mm \| Cr: 256 kN \| C0r: 385 kN \| Grease speed: 2600 rpm
HR33217J		d: 85 mm \| D: 150 mm \| T: 49 mm \| Cr: 281 kN \| C0r: 415 kN \| Grease speed: 2400 rpm
