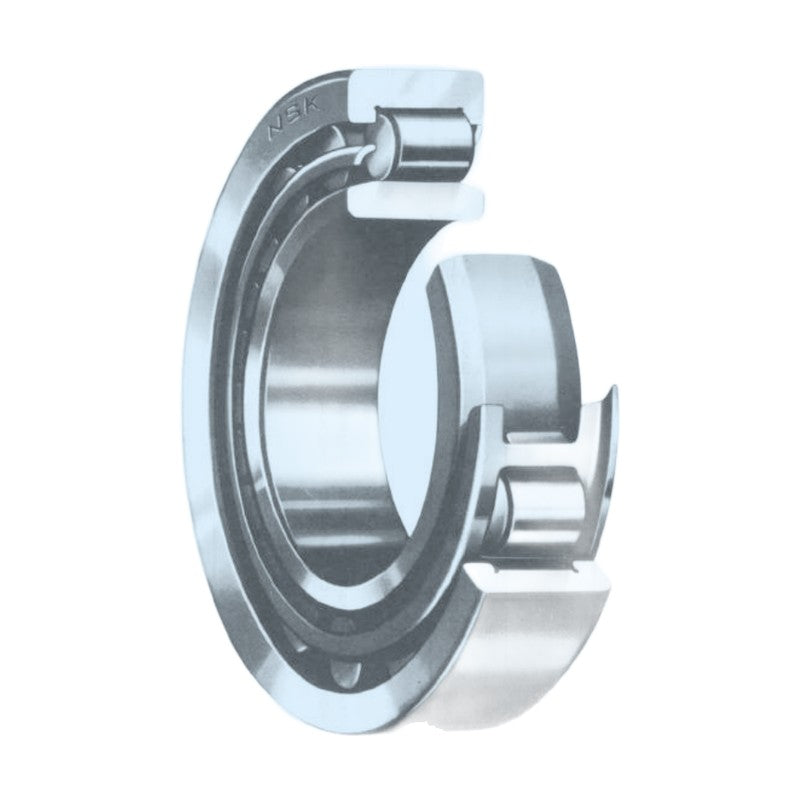

NSK 4 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NSK 4 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NSK single-row cylindrical roller bearings of dimension series 4, bore 25-150 mm, in the rib arrangements (NU, NJ, NUP, N, NF) listed for each size.

Key features

  • High radial load capacity with line contact between rollers and raceways
  • NU / N: separable, allow axial shaft displacement; NJ: locates in one direction; NUP: locates in both directions
  • ET / EM suffix: high-capacity design with polyamide (T) or machined brass (M) cage
  • Separable rings simplify mounting and dismounting
  • Suitable for high speeds

Specifications

Bearing type Single-row cylindrical roller bearing
Dimension series 4
Bore range 25-150 mm
Configurations NU, NJ, NUP, N, NF
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B84-B101
NU405 d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
NJ405 d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
N405 d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
NF405 d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
NU406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NJ406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NUP406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
N406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NF406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NU407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NJ407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NUP407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
N407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NF407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NU408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NJ408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NUP408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
N408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NF408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NU409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NJ409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NUP409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
N409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NF409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NU410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 129 kN | C0r: 124 kN | Grease speed: 5000 rpm
NJ410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 129 kN | C0r: 124 kN | Grease speed: 5000 rpm
NUP410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 129 kN | C0r: 124 kN | Grease speed: 5000 rpm
NU411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NJ411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NUP411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
N411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NF411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NU412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NJ412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NUP412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
N412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NF412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NU413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 182 kN | C0r: 186 kN | Grease speed: 4000 rpm
NJ413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 182 kN | C0r: 186 kN | Grease speed: 4000 rpm
NUP413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 182 kN | C0r: 186 kN | Grease speed: 4000 rpm
NU414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NJ414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NUP414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
N414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NF414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NU415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
NJ415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
N415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
NF415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
NU416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
NJ416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
N416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
NF416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
NU417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
NJ417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
N417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
NF417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
NU418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 375 kN | C0r: 400 kN | Grease speed: 2800 rpm
NJ418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 375 kN | C0r: 400 kN | Grease speed: 2800 rpm
N418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 375 kN | C0r: 400 kN | Grease speed: 2800 rpm
NU419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 400 kN | C0r: 445 kN | Grease speed: 2600 rpm
NJ419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 400 kN | C0r: 445 kN | Grease speed: 2600 rpm
NU420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
NJ420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
N420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
NF420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
NU421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 495 kN | C0r: 555 kN | Grease speed: 2400 rpm
NJ421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 495 kN | C0r: 555 kN | Grease speed: 2400 rpm
NU422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 620 kN | Grease speed: 2200 rpm
NJ422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 620 kN | Grease speed: 2200 rpm
NU424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 675 kN | C0r: 770 kN | Grease speed: 2000 rpm
NJ424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 675 kN | C0r: 770 kN | Grease speed: 2000 rpm
N424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 675 kN | C0r: 770 kN | Grease speed: 2000 rpm
NU426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 825 kN | C0r: 955 kN | Grease speed: 1800 rpm
NJ426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 825 kN | C0r: 955 kN | Grease speed: 1800 rpm
NU428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 875 kN | C0r: 1020 kN | Grease speed: 1700 rpm
NJ428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 875 kN | C0r: 1020 kN | Grease speed: 1700 rpm
N428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 875 kN | C0r: 1020 kN | Grease speed: 1700 rpm
NU430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1720 kN | Grease speed: 1600 rpm
NJ430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1720 kN | Grease speed: 1600 rpm
Cylindrical Roller BearingsNSK
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 4 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (80)

NU405, NJ405, N405, NF405, NU406, NJ406, NUP406, N406, NF406, NU407 + 70 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU405d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
NJ405d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
N405d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
NF405d: 25 mm | D: 80 mm | B: 21 mm | Cr: 46.5 kN | C0r: 40 kN | Grease speed: 9000 rpm
NU406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NJ406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NUP406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
N406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NF406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.5 kN | C0r: 55 kN | Grease speed: 7500 rpm
NU407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NJ407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NUP407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
N407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NF407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 69 kN | Grease speed: 6700 rpm
NU408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NJ408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NUP408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
N408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NF408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 95.5 kN | C0r: 89 kN | Grease speed: 6000 rpm
NU409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NJ409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NUP409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
N409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NF409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 107 kN | C0r: 102 kN | Grease speed: 5600 rpm
NU410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 129 kN | C0r: 124 kN | Grease speed: 5000 rpm
NJ410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 129 kN | C0r: 124 kN | Grease speed: 5000 rpm
NUP410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 129 kN | C0r: 124 kN | Grease speed: 5000 rpm
NU411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NJ411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NUP411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
N411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NF411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 139 kN | C0r: 138 kN | Grease speed: 4500 rpm
NU412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NJ412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NUP412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
N412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NF412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 167 kN | C0r: 168 kN | Grease speed: 4300 rpm
NU413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 182 kN | C0r: 186 kN | Grease speed: 4000 rpm
NJ413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 182 kN | C0r: 186 kN | Grease speed: 4000 rpm
NUP413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 182 kN | C0r: 186 kN | Grease speed: 4000 rpm
NU414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NJ414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NUP414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
N414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NF414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 228 kN | C0r: 236 kN | Grease speed: 3600 rpm
NU415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
NJ415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
N415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
NF415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 262 kN | C0r: 274 kN | Grease speed: 3400 rpm
NU416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
NJ416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
N416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
NF416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 299 kN | C0r: 315 kN | Grease speed: 3300 rpm
NU417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
NJ417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
N417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
NF417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 335 kN | C0r: 350 kN | Grease speed: 3000 rpm
NU418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 375 kN | C0r: 400 kN | Grease speed: 2800 rpm
NJ418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 375 kN | C0r: 400 kN | Grease speed: 2800 rpm
N418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 375 kN | C0r: 400 kN | Grease speed: 2800 rpm
NU419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 400 kN | C0r: 445 kN | Grease speed: 2600 rpm
NJ419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 400 kN | C0r: 445 kN | Grease speed: 2600 rpm
NU420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
NJ420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
N420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
NF420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 450 kN | C0r: 500 kN | Grease speed: 2600 rpm
NU421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 495 kN | C0r: 555 kN | Grease speed: 2400 rpm
NJ421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 495 kN | C0r: 555 kN | Grease speed: 2400 rpm
NU422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 620 kN | Grease speed: 2200 rpm
NJ422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 620 kN | Grease speed: 2200 rpm
NU424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 675 kN | C0r: 770 kN | Grease speed: 2000 rpm
NJ424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 675 kN | C0r: 770 kN | Grease speed: 2000 rpm
N424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 675 kN | C0r: 770 kN | Grease speed: 2000 rpm
NU426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 825 kN | C0r: 955 kN | Grease speed: 1800 rpm
NJ426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 825 kN | C0r: 955 kN | Grease speed: 1800 rpm
NU428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 875 kN | C0r: 1020 kN | Grease speed: 1700 rpm
NJ428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 875 kN | C0r: 1020 kN | Grease speed: 1700 rpm
N428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 875 kN | C0r: 1020 kN | Grease speed: 1700 rpm
NU430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1720 kN | Grease speed: 1600 rpm
NJ430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1720 kN | Grease speed: 1600 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
