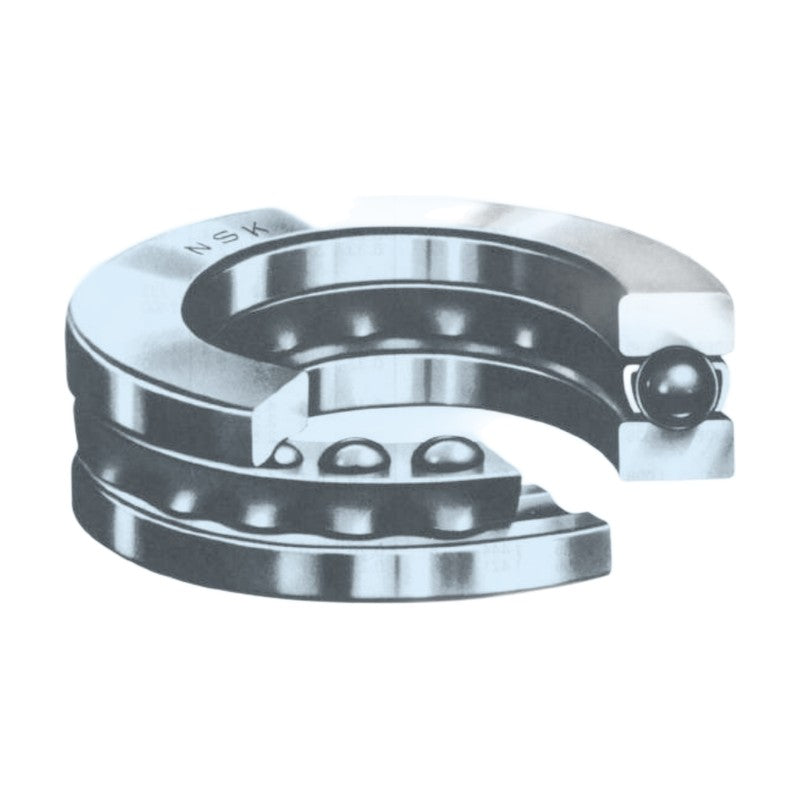

NSK 512 Series Thrust Ball Bearings (incl. 532, 532U)

NSK 512 Series Thrust Ball Bearings (incl. 532, 532U)

NSK 512 series single-direction thrust ball bearings, bore 10-360 mm, including aligning-seat (532) and aligning-seat-washer (532U) versions.

Key features

  • Carries axial load in one direction only
  • Flat-seat type with shaft washer, housing washer and ball-cage assembly
  • Aligning seat (53xx) and seat washer (U) types compensate for mounting error
  • Height shown per row for each seat type
  • Not suited to radial loads

Specifications

Bearing type Single-direction thrust ball bearing
Series 512
Bore range 10-360 mm
Load ratings Axial dynamic Ca / static C0a
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B206-B213
51200 d: 10 mm | D: 26 mm | Height: 11 mm | Ca: 12.8 kN | C0a: 17.1 kN | Grease speed: 6000 rpm
53200 d: 10 mm | D: 26 mm | Height: 11.6 mm | Ca: 12.8 kN | C0a: 17.1 kN | Grease speed: 6000 rpm
53200U d: 10 mm | D: 26 mm | Height: 13 mm | Ca: 12.8 kN | C0a: 17.1 kN | Grease speed: 6000 rpm
51201 d: 12 mm | D: 28 mm | Height: 11 mm | Ca: 13.3 kN | C0a: 19 kN | Grease speed: 6600 rpm
53201 d: 12 mm | D: 28 mm | Height: 11.4 mm | Ca: 13.3 kN | C0a: 19 kN | Grease speed: 6600 rpm
53201U d: 12 mm | D: 28 mm | Height: 13 mm | Ca: 13.3 kN | C0a: 19 kN | Grease speed: 6600 rpm
51202 d: 15 mm | D: 32 mm | Height: 12 mm | Ca: 16.7 kN | C0a: 24.8 kN | Grease speed: 6000 rpm
53202 d: 15 mm | D: 32 mm | Height: 13.3 mm | Ca: 16.7 kN | C0a: 24.8 kN | Grease speed: 6000 rpm
53202U d: 15 mm | D: 32 mm | Height: 15 mm | Ca: 16.7 kN | C0a: 24.8 kN | Grease speed: 6000 rpm
51203 d: 17 mm | D: 35 mm | Height: 12 mm | Ca: 17.3 kN | C0a: 27.3 kN | Grease speed: 4800 rpm
53203 d: 17 mm | D: 35 mm | Height: 13.2 mm | Ca: 17.3 kN | C0a: 27.3 kN | Grease speed: 4800 rpm
53203U d: 17 mm | D: 35 mm | Height: 15 mm | Ca: 17.3 kN | C0a: 27.3 kN | Grease speed: 4800 rpm
51204 d: 20 mm | D: 40 mm | Height: 14 mm | Ca: 22.5 kN | C0a: 37.5 kN | Grease speed: 4300 rpm
53204 d: 20 mm | D: 40 mm | Height: 14.7 mm | Ca: 22.5 kN | C0a: 37.5 kN | Grease speed: 4300 rpm
53204U d: 20 mm | D: 40 mm | Height: 17 mm | Ca: 22.5 kN | C0a: 37.5 kN | Grease speed: 4300 rpm
51205 d: 25 mm | D: 47 mm | Height: 15 mm | Ca: 28 kN | C0a: 50.5 kN | Grease speed: 3800 rpm
53205 d: 25 mm | D: 47 mm | Height: 16.7 mm | Ca: 28 kN | C0a: 50.5 kN | Grease speed: 3800 rpm
53205U d: 25 mm | D: 47 mm | Height: 19 mm | Ca: 28 kN | C0a: 50.5 kN | Grease speed: 3800 rpm
51206 d: 30 mm | D: 52 mm | Height: 16 mm | Ca: 29.5 kN | C0a: 58 kN | Grease speed: 3400 rpm
53206 d: 30 mm | D: 52 mm | Height: 17.8 mm | Ca: 29.5 kN | C0a: 58 kN | Grease speed: 3400 rpm
53206U d: 30 mm | D: 52 mm | Height: 20 mm | Ca: 29.5 kN | C0a: 58 kN | Grease speed: 3400 rpm
51207 d: 35 mm | D: 62 mm | Height: 18 mm | Ca: 39.5 kN | C0a: 78 kN | Grease speed: 3000 rpm
53207 d: 35 mm | D: 62 mm | Height: 19.9 mm | Ca: 39.5 kN | C0a: 78 kN | Grease speed: 3000 rpm
53207U d: 35 mm | D: 62 mm | Height: 22 mm | Ca: 39.5 kN | C0a: 78 kN | Grease speed: 3000 rpm
51208 d: 40 mm | D: 68 mm | Height: 19 mm | Ca: 47.5 kN | C0a: 98.5 kN | Grease speed: 2800 rpm
53208 d: 40 mm | D: 68 mm | Height: 20.3 mm | Ca: 47.5 kN | C0a: 98.5 kN | Grease speed: 2800 rpm
53208U d: 40 mm | D: 68 mm | Height: 23 mm | Ca: 47.5 kN | C0a: 98.5 kN | Grease speed: 2800 rpm
51209 d: 45 mm | D: 73 mm | Height: 20 mm | Ca: 48 kN | C0a: 105 kN | Grease speed: 2600 rpm
53209 d: 45 mm | D: 73 mm | Height: 21.3 mm | Ca: 48 kN | C0a: 105 kN | Grease speed: 2600 rpm
53209U d: 45 mm | D: 73 mm | Height: 24 mm | Ca: 48 kN | C0a: 105 kN | Grease speed: 2600 rpm
51210 d: 50 mm | D: 78 mm | Height: 22 mm | Ca: 49 kN | C0a: 177 kN | Grease speed: 2400 rpm
53210 d: 50 mm | D: 78 mm | Height: 23.5 mm | Ca: 49 kN | C0a: 177 kN | Grease speed: 2400 rpm
53210U d: 50 mm | D: 78 mm | Height: 26 mm | Ca: 49 kN | C0a: 177 kN | Grease speed: 2400 rpm
51211 d: 55 mm | D: 90 mm | Height: 25 mm | Ca: 70 kN | C0a: 159 kN | Grease speed: 2200 rpm
53211 d: 55 mm | D: 90 mm | Height: 27.3 mm | Ca: 70 kN | C0a: 159 kN | Grease speed: 2200 rpm
53211U d: 55 mm | D: 90 mm | Height: 30 mm | Ca: 70 kN | C0a: 159 kN | Grease speed: 2200 rpm
51212 d: 60 mm | D: 95 mm | Height: 26 mm | Ca: 71.5 kN | C0a: 169 kN | Grease speed: 2000 rpm
53212 d: 60 mm | D: 95 mm | Height: 28 mm | Ca: 71.5 kN | C0a: 169 kN | Grease speed: 2000 rpm
53212U d: 60 mm | D: 95 mm | Height: 31 mm | Ca: 71.5 kN | C0a: 169 kN | Grease speed: 2000 rpm
51213 d: 65 mm | D: 100 mm | Height: 27 mm | Ca: 75.5 kN | C0a: 189 kN | Grease speed: 1900 rpm
53213U d: 65 mm | D: 100 mm | Height: 32 mm | Ca: 75.5 kN | C0a: 189 kN | Grease speed: 1900 rpm
51214 d: 70 mm | D: 105 mm | Height: 27 mm | Ca: 74 kN | C0a: 189 kN | Grease speed: 1900 rpm
53214 d: 70 mm | D: 105 mm | Height: 28.8 mm | Ca: 74 kN | C0a: 189 kN | Grease speed: 1900 rpm
53214U d: 70 mm | D: 105 mm | Height: 32 mm | Ca: 74 kN | C0a: 189 kN | Grease speed: 1900 rpm
51215 d: 75 mm | D: 110 mm | Height: 27 mm | Ca: 78 kN | C0a: 209 kN | Grease speed: 1800 rpm
53215 d: 75 mm | D: 110 mm | Height: 28.3 mm | Ca: 78 kN | C0a: 209 kN | Grease speed: 1800 rpm
53215U d: 75 mm | D: 110 mm | Height: 32 mm | Ca: 78 kN | C0a: 209 kN | Grease speed: 1800 rpm
51216 d: 80 mm | D: 115 mm | Height: 28 mm | Ca: 79 kN | C0a: 218 kN | Grease speed: 1800 rpm
53216 d: 80 mm | D: 115 mm | Height: 29.5 mm | Ca: 79 kN | C0a: 218 kN | Grease speed: 1800 rpm
53216U d: 80 mm | D: 115 mm | Height: 33 mm | Ca: 79 kN | C0a: 218 kN | Grease speed: 1800 rpm
51217 d: 85 mm | D: 125 mm | Height: 31 mm | Ca: 96 kN | C0a: 264 kN | Grease speed: 1600 rpm
53217 d: 85 mm | D: 125 mm | Height: 33.1 mm | Ca: 96 kN | C0a: 264 kN | Grease speed: 1600 rpm
53217U d: 85 mm | D: 125 mm | Height: 37 mm | Ca: 96 kN | C0a: 264 kN | Grease speed: 1600 rpm
51218 d: 90 mm | D: 135 mm | Height: 35 mm | Ca: 114 kN | C0a: 310 kN | Grease speed: 1400 rpm
53218 d: 90 mm | D: 135 mm | Height: 38.5 mm | Ca: 114 kN | C0a: 310 kN | Grease speed: 1400 rpm
53218U d: 90 mm | D: 135 mm | Height: 42 mm | Ca: 114 kN | C0a: 310 kN | Grease speed: 1400 rpm
51220 d: 100 mm | D: 150 mm | Height: 38 mm | Ca: 135 kN | C0a: 375 kN | Grease speed: 1300 rpm
53220 d: 100 mm | D: 150 mm | Height: 40.9 mm | Ca: 135 kN | C0a: 375 kN | Grease speed: 1300 rpm
53220U d: 100 mm | D: 150 mm | Height: 45 mm | Ca: 135 kN | C0a: 375 kN | Grease speed: 1300 rpm
51222 d: 110 mm | D: 160 mm | Height: 38 mm | Ca: 136 kN | C0a: 395 kN | Grease speed: 1300 rpm
53222 d: 110 mm | D: 160 mm | Height: 40.2 mm | Ca: 136 kN | C0a: 395 kN | Grease speed: 1300 rpm
53222U d: 110 mm | D: 160 mm | Height: 45 mm | Ca: 136 kN | C0a: 395 kN | Grease speed: 1300 rpm
51224 d: 120 mm | D: 170 mm | Height: 39 mm | Ca: 141 kN | C0a: 430 kN | Grease speed: 1200 rpm
53224 d: 120 mm | D: 170 mm | Height: 40.8 mm | Ca: 141 kN | C0a: 430 kN | Grease speed: 1200 rpm
53224U d: 120 mm | D: 170 mm | Height: 46 mm | Ca: 141 kN | C0a: 430 kN | Grease speed: 1200 rpm
51226X d: 130 mm | D: 190 mm | Height: 45 mm | Ca: 183 kN | C0a: 550 kN | Grease speed: 1100 rpm
53226X d: 130 mm | D: 190 mm | Height: 47.9 mm | Ca: 183 kN | C0a: 550 kN | Grease speed: 1100 rpm
53226XU d: 130 mm | D: 190 mm | Height: 53 mm | Ca: 183 kN | C0a: 550 kN | Grease speed: 1100 rpm
51228X d: 140 mm | D: 200 mm | Height: 46 mm | Ca: 186 kN | C0a: 575 kN | Grease speed: 1000 rpm
53228X d: 140 mm | D: 200 mm | Height: 48.6 mm | Ca: 186 kN | C0a: 575 kN | Grease speed: 1000 rpm
53228XU d: 140 mm | D: 200 mm | Height: 55 mm | Ca: 186 kN | C0a: 575 kN | Grease speed: 1000 rpm
51230X d: 150 mm | D: 215 mm | Height: 50 mm | Ca: 238 kN | C0a: 735 kN | Grease speed: 950 rpm
53230X d: 150 mm | D: 215 mm | Height: 53.3 mm | Ca: 238 kN | C0a: 735 kN | Grease speed: 950 rpm
53230XU d: 150 mm | D: 215 mm | Height: 60 mm | Ca: 238 kN | C0a: 735 kN | Grease speed: 950 rpm
51232X d: 160 mm | D: 225 mm | Height: 51 mm | Ca: 249 kN | C0a: 805 kN | Grease speed: 900 rpm
53232X d: 160 mm | D: 225 mm | Height: 54.7 mm | Ca: 249 kN | C0a: 805 kN | Grease speed: 900 rpm
53232XU d: 160 mm | D: 225 mm | Height: 61 mm | Ca: 249 kN | C0a: 805 kN | Grease speed: 900 rpm
51234X d: 170 mm | D: 240 mm | Height: 55 mm | Ca: 280 kN | C0a: 915 kN | Grease speed: 850 rpm
53234X d: 170 mm | D: 240 mm | Height: 58.7 mm | Ca: 280 kN | C0a: 915 kN | Grease speed: 850 rpm
53234XU d: 170 mm | D: 240 mm | Height: 65 mm | Ca: 280 kN | C0a: 915 kN | Grease speed: 850 rpm
51236X d: 180 mm | D: 250 mm | Height: 56 mm | Ca: 284 kN | C0a: 955 kN | Grease speed: 600 rpm
53236X d: 180 mm | D: 250 mm | Height: 58.2 mm | Ca: 284 kN | C0a: 955 kN | Grease speed: 600 rpm
53236XU d: 180 mm | D: 250 mm | Height: 66 mm | Ca: 284 kN | C0a: 955 kN | Grease speed: 600 rpm
51238X d: 190 mm | D: 270 mm | Height: 62 mm | Ca: 320 kN | C0a: 1110 kN | Grease speed: 730 rpm
53238X d: 190 mm | D: 270 mm | Height: 65.7 mm | Ca: 320 kN | C0a: 1110 kN | Grease speed: 730 rpm
53238XU d: 190 mm | D: 270 mm | Height: 73 mm | Ca: 320 kN | C0a: 1110 kN | Grease speed: 730 rpm
51240X d: 200 mm | D: 280 mm | Height: 62 mm | Ca: 315 kN | C0a: 1110 kN | Grease speed: 710 rpm
51244X d: 220 mm | D: 300 mm | Height: 63 mm | Ca: 325 kN | C0a: 1210 kN | Grease speed: 670 rpm
53244X d: 220 mm | D: 300 mm | Height: 65.6 mm | Ca: 325 kN | C0a: 1210 kN | Grease speed: 670 rpm
53244XU d: 220 mm | D: 300 mm | Height: 75 mm | Ca: 325 kN | C0a: 1210 kN | Grease speed: 670 rpm
51248X d: 240 mm | D: 340 mm | Height: 78 mm | Ca: 420 kN | C0a: 1650 kN | Grease speed: 560 rpm
53248X d: 240 mm | D: 340 mm | Height: 81.6 mm | Ca: 420 kN | C0a: 1650 kN | Grease speed: 560 rpm
53248XU d: 240 mm | D: 340 mm | Height: 92 mm | Ca: 420 kN | C0a: 1650 kN | Grease speed: 560 rpm
51252X d: 260 mm | D: 360 mm | Height: 79 mm | Ca: 43.5 kN | C0a: 1800 kN | Grease speed: 560 rpm
53252X d: 260 mm | D: 360 mm | Height: 82.8 mm | Ca: 43.5 kN | C0a: 1800 kN | Grease speed: 560 rpm
53252XU d: 260 mm | D: 360 mm | Height: 93 mm | Ca: 43.5 kN | C0a: 1800 kN | Grease speed: 560 rpm
51256X d: 280 mm | D: 380 mm | Height: 80 mm | Ca: 450 kN | C0a: 1950 kN | Grease speed: 530 rpm
53256X d: 280 mm | D: 380 mm | Height: 85 mm | Ca: 450 kN | C0a: 1950 kN | Grease speed: 530 rpm
53256XU d: 280 mm | D: 380 mm | Height: 94 mm | Ca: 450 kN | C0a: 1950 kN | Grease speed: 530 rpm
51260X d: 300 mm | D: 420 mm | Height: 95 mm | Ca: 540 kN | C0a: 2410 kN | Grease speed: 450 rpm
53260X d: 300 mm | D: 420 mm | Height: 100.5 mm | Ca: 540 kN | C0a: 2410 kN | Grease speed: 450 rpm
53260XU d: 300 mm | D: 420 mm | Height: 112 mm | Ca: 540 kN | C0a: 2410 kN | Grease speed: 450 rpm
51264X d: 320 mm | D: 440 mm | Height: 95 mm | Ca: 585 kN | C0a: 2680 kN | Grease speed: 450 rpm
53264X d: 320 mm | D: 440 mm | Height: 100.5 mm | Ca: 585 kN | C0a: 2680 kN | Grease speed: 450 rpm
53264XU d: 320 mm | D: 440 mm | Height: 112 mm | Ca: 585 kN | C0a: 2680 kN | Grease speed: 450 rpm
51268X d: 340 mm | D: 460 mm | Height: 96 mm | Ca: 595 kN | C0a: 2800 kN | Grease speed: 430 rpm
53268X d: 340 mm | D: 460 mm | Height: 100.3 mm | Ca: 595 kN | C0a: 2800 kN | Grease speed: 430 rpm
53268XU d: 340 mm | D: 460 mm | Height: 113 mm | Ca: 595 kN | C0a: 2800 kN | Grease speed: 430 rpm
51272X d: 360 mm | D: 500 mm | Height: 110 mm | Ca: 705 kN | C0a: 3500 kN | Grease speed: 380 rpm
53272X d: 360 mm | D: 500 mm | Height: 116.7 mm | Ca: 705 kN | C0a: 3500 kN | Grease speed: 380 rpm
53272XU d: 360 mm | D: 500 mm | Height: 130 mm | Ca: 705 kN | C0a: 3500 kN | Grease speed: 380 rpm
