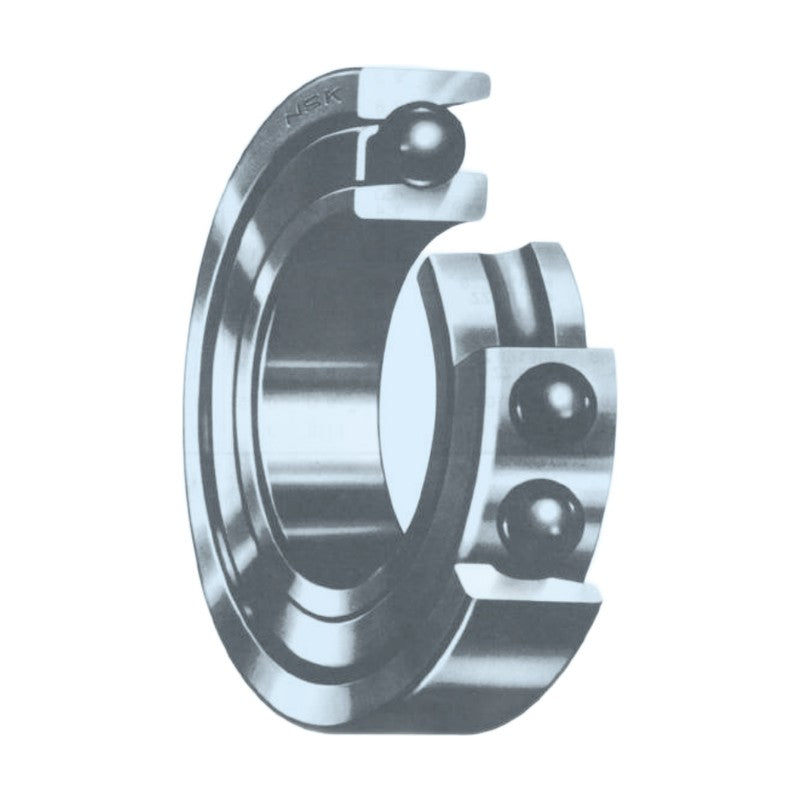

NSK 70 Series Angular Contact Ball Bearings (C/A; DB/DF/DT)

NSK 70 Series Angular Contact Ball Bearings (C/A; DB/DF/DT)

NSK 70 series single-row angular contact ball bearings, bore 10-200 mm, supplied as single bearings and as matched pairs in back-to-back (DB), face-to-face (DF) and tandem (DT) arrangement.

Key features

  • Contact angle codes: C = 15°, A = 30°
  • Carries combined radial and axial loads; axial load in one direction per single bearing
  • DB and DF pairs take axial load in both directions; DT pairs share axial load in one direction
  • Pair rows show the combined width and the paired load ratings and speed
  • Same boundary dimensions as the corresponding deep groove series

Specifications

Bearing type Single-row angular contact ball bearing
Series 70
Bore range 10-200 mm
Arrangements Single, DB, DF, DT
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B50-B65
7000A d: 10 mm | D: 26 mm | Width: 8 mm | Cr: 5.35 kN | C0r: 2.6 kN | Grease speed: 32000 rpm
7000ADB d: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 0.875 kN | C0r: 5.2 kN | Grease speed: 24000 rpm
7000ADF d: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 0.875 kN | C0r: 5.2 kN | Grease speed: 24000 rpm
7000ADT d: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 0.875 kN | C0r: 5.2 kN | Grease speed: 24000 rpm
7000C d: 10 mm | D: 26 mm | Width: 8 mm | Cr: 5.3 kN | C0r: 2.49 kN | Grease speed: 45000 rpm
7000CDB d: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 8.65 kN | C0r: 5 kN | Grease speed: 36000 rpm
7000CDF d: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 8.65 kN | C0r: 5 kN | Grease speed: 36000 rpm
7000CDT d: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 8.65 kN | C0r: 5 kN | Grease speed: 36000 rpm
7001A d: 12 mm | D: 28 mm | Width: 8 mm | Cr: 5.8 kN | C0r: 2.98 kN | Grease speed: 28000 rpm
7001ADB d: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.96 kN | Grease speed: 22000 rpm
7001ADF d: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.96 kN | Grease speed: 22000 rpm
7001ADT d: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.96 kN | Grease speed: 22000 rpm
7001C d: 12 mm | D: 28 mm | Width: 8 mm | Cr: 5.8 kN | C0r: 2.9 kN | Grease speed: 40000 rpm
7001CDB d: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.8 kN | Grease speed: 32000 rpm
7001CDF d: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.8 kN | Grease speed: 32000 rpm
7001CDT d: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.8 kN | Grease speed: 32000 rpm
7002A d: 15 mm | D: 32 mm | Width: 9 mm | Cr: 6.1 kN | C0r: 3.45 kN | Grease speed: 24000 rpm
7002ADB d: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 9.95 kN | C0r: 6.85 kN | Grease speed: 19000 rpm
7002ADF d: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 9.95 kN | C0r: 6.85 kN | Grease speed: 19000 rpm
7002ADT d: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 9.95 kN | C0r: 6.85 kN | Grease speed: 19000 rpm
7002C d: 15 mm | D: 32 mm | Width: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Grease speed: 34000 rpm
7002CDB d: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 10.1 kN | C0r: 6.75 kN | Grease speed: 28000 rpm
7002CDF d: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 10.1 kN | C0r: 6.75 kN | Grease speed: 28000 rpm
7002CDT d: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 10.1 kN | C0r: 6.75 kN | Grease speed: 28000 rpm
7003A d: 17 mm | D: 35 mm | Width: 10 mm | Cr: 6.4 kN | C0r: 3.8 kN | Grease speed: 22000 rpm
7003ADB d: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.4 kN | C0r: 7.65 kN | Grease speed: 17000 rpm
7003ADF d: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.4 kN | C0r: 7.65 kN | Grease speed: 17000 rpm
7003ADT d: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.4 kN | C0r: 7.65 kN | Grease speed: 17000 rpm
7003C d: 17 mm | D: 35 mm | Width: 10 mm | Cr: 6.6 kN | C0r: 3.8 kN | Grease speed: 32000 rpm
7003CDB d: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.7 kN | C0r: 7.6 kN | Grease speed: 26000 rpm
7003CDF d: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.7 kN | C0r: 7.6 kN | Grease speed: 26000 rpm
7003CDT d: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.7 kN | C0r: 7.6 kN | Grease speed: 26000 rpm
7004A d: 20 mm | D: 42 mm | Width: 12 mm | Cr: 10.8 kN | C0r: 6.6 kN | Grease speed: 18000 rpm
7004ADB d: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 17.6 kN | C0r: 13.2 kN | Grease speed: 15000 rpm
7004ADF d: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 17.6 kN | C0r: 13.2 kN | Grease speed: 15000 rpm
7004ADT d: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 17.6 kN | C0r: 13.2 kN | Grease speed: 15000 rpm
7004C d: 20 mm | D: 42 mm | Width: 12 mm | Cr: 11.1 kN | C0r: 6.55 kN | Grease speed: 26000 rpm
7004CDB d: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 18 kN | C0r: 13.1 kN | Grease speed: 20000 rpm
7004CDF d: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 18 kN | C0r: 13.1 kN | Grease speed: 20000 rpm
7004CDT d: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 18 kN | C0r: 13.1 kN | Grease speed: 20000 rpm
7005A d: 25 mm | D: 47 mm | Width: 12 mm | Cr: 11.3 kN | C0r: 7.4 kN | Grease speed: 16000 rpm
7005ADB d: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 18.3 kN | C0r: 14.8 kN | Grease speed: 13000 rpm
7005ADF d: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 18.3 kN | C0r: 14.8 kN | Grease speed: 13000 rpm
7005ADT d: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 18.3 kN | C0r: 14.8 kN | Grease speed: 13000 rpm
7005C d: 25 mm | D: 47 mm | Width: 12 mm | Cr: 11.7 kN | C0r: 7.4 kN | Grease speed: 22000 rpm
7005CDB d: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 19 kN | C0r: 14.8 kN | Grease speed: 18000 rpm
7005CDF d: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 19 kN | C0r: 14.8 kN | Grease speed: 18000 rpm
7005CDT d: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 19 kN | C0r: 14.8 kN | Grease speed: 18000 rpm
7006A d: 30 mm | D: 55 mm | Width: 13 mm | Cr: 14.6 kN | C0r: 10.1 kN | Grease speed: 13000 rpm
7006ADB d: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 23.6 kN | C0r: 20.2 kN | Grease speed: 11000 rpm
7006ADF d: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 23.6 kN | C0r: 20.2 kN | Grease speed: 11000 rpm
7006ADT d: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 23.6 kN | C0r: 20.2 kN | Grease speed: 11000 rpm
7006C d: 30 mm | D: 55 mm | Width: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Grease speed: 19000 rpm
7006CDB d: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 24.6 kN | C0r: 20.5 kN | Grease speed: 15000 rpm
7006CDF d: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 24.6 kN | C0r: 20.5 kN | Grease speed: 15000 rpm
7006CDT d: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 24.6 kN | C0r: 20.5 kN | Grease speed: 15000 rpm
7007A d: 35 mm | D: 62 mm | Width: 14 mm | Cr: 18.3 kN | C0r: 13.4 kN | Grease speed: 12000 rpm
7007ADB d: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 29.7 kN | C0r: 26.8 kN | Grease speed: 9500 rpm
7007ADF d: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 29.7 kN | C0r: 26.8 kN | Grease speed: 9500 rpm
7007ADT d: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 29.7 kN | C0r: 26.8 kN | Grease speed: 9500 rpm
7007C d: 35 mm | D: 62 mm | Width: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Grease speed: 17000 rpm
7007CDB d: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 31 kN | C0r: 27.3 kN | Grease speed: 13000 rpm
7007CDF d: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 31 kN | C0r: 27.3 kN | Grease speed: 13000 rpm
7007CDT d: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 31 kN | C0r: 27.3 kN | Grease speed: 13000 rpm
7008A d: 40 mm | D: 68 mm | Width: 15 mm | Cr: 19.5 kN | C0r: 15.4 kN | Grease speed: 10000 rpm
7008ADB d: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 31.8 kN | C0r: 31 kN | Grease speed: 8500 rpm
7008ADF d: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 31.8 kN | C0r: 31 kN | Grease speed: 8500 rpm
7008ADT d: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 31.8 kN | C0r: 31 kN | Grease speed: 8500 rpm
7008C d: 40 mm | D: 68 mm | Width: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Grease speed: 15000 rpm
7008CDB d: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 33.5 kN | C0r: 32 kN | Grease speed: 12000 rpm
7008CDF d: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 33.5 kN | C0r: 32 kN | Grease speed: 12000 rpm
7008CDT d: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 33.5 kN | C0r: 32 kN | Grease speed: 12000 rpm
7009A d: 45 mm | D: 75 mm | Width: 16 mm | Cr: 23.1 kN | C0r: 18.7 kN | Grease speed: 9500 rpm
7009ADB d: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 37.5 kN | C0r: 37.5 kN | Grease speed: 7500 rpm
7009ADF d: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 37.5 kN | C0r: 37.5 kN | Grease speed: 7500 rpm
7009ADT d: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 37.5 kN | C0r: 37.5 kN | Grease speed: 7500 rpm
7009C d: 45 mm | D: 75 mm | Width: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Grease speed: 14000 rpm
7009CDB d: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 39.5 kN | C0r: 38.5 kN | Grease speed: 11000 rpm
7009CDF d: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 39.5 kN | C0r: 38.5 kN | Grease speed: 11000 rpm
7009CDT d: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 39.5 kN | C0r: 38.5 kN | Grease speed: 11000 rpm
7010A d: 50 mm | D: 80 mm | Width: 16 mm | Cr: 24.5 kN | C0r: 21.1 kN | Grease speed: 8500 rpm
7010ADB d: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 40 kN | C0r: 42 kN | Grease speed: 7100 rpm
7010ADF d: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 40 kN | C0r: 42 kN | Grease speed: 7100 rpm
7010ADT d: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 40 kN | C0r: 42 kN | Grease speed: 7100 rpm
7010C d: 50 mm | D: 80 mm | Width: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Grease speed: 12000 rpm
7010CDB d: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 42 kN | C0r: 44 kN | Grease speed: 10000 rpm
7010CDF d: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 42 kN | C0r: 44 kN | Grease speed: 10000 rpm
7010CDT d: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 42 kN | C0r: 44 kN | Grease speed: 10000 rpm
7011A d: 55 mm | D: 90 mm | Width: 18 mm | Cr: 32.5 kN | C0r: 27.7 kN | Grease speed: 7500 rpm
7011ADB d: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 52.5 kN | C0r: 55.5 kN | Grease speed: 6300 rpm
7011ADF d: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 52.5 kN | C0r: 55.5 kN | Grease speed: 6300 rpm
7011ADT d: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 52.5 kN | C0r: 55.5 kN | Grease speed: 6300 rpm
7011C d: 55 mm | D: 90 mm | Width: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Grease speed: 11000 rpm
7011CDB d: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 55.5 kN | C0r: 57.5 kN | Grease speed: 9000 rpm
7011CDF d: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 55.5 kN | C0r: 57.5 kN | Grease speed: 9000 rpm
7011CDT d: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 55.5 kN | C0r: 57.5 kN | Grease speed: 9000 rpm
7012A d: 60 mm | D: 95 mm | Width: 18 mm | Cr: 33 kN | C0r: 29.5 kN | Grease speed: 7100 rpm
7012ADB d: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 53.5 kN | C0r: 59 kN | Grease speed: 6000 rpm
7012ADF d: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 53.5 kN | C0r: 59 kN | Grease speed: 6000 rpm
7012ADT d: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 53.5 kN | C0r: 59 kN | Grease speed: 6000 rpm
7012C d: 60 mm | D: 95 mm | Width: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Grease speed: 10000 rpm
7012CDB d: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 57 kN | C0r: 61.5 kN | Grease speed: 8500 rpm
7012CDF d: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 57 kN | C0r: 61.5 kN | Grease speed: 8500 rpm
7012CDT d: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 57 kN | C0r: 61.5 kN | Grease speed: 8500 rpm
7013A d: 65 mm | D: 100 mm | Width: 18 mm | Cr: 35 kN | C0r: 33 kN | Grease speed: 6700 rpm
7013ADB d: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 66.5 kN | C0r: 65.5 kN | Grease speed: 5600 rpm
7013ADF d: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 66.5 kN | C0r: 65.5 kN | Grease speed: 5600 rpm
7013ADT d: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 66.5 kN | C0r: 65.5 kN | Grease speed: 5600 rpm
7013C d: 65 mm | D: 100 mm | Width: 18 mm | Cr: 37 kN | C0r: 346 kN | Grease speed: 10000 rpm
7013CDB d: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 60.5 kN | C0r: 68.5 kN | Grease speed: 0 rpm
7013CDF d: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 60.5 kN | C0r: 68.5 kN | Grease speed: 0 rpm
7013CDT d: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 60.5 kN | C0r: 68.5 kN | Grease speed: 0 rpm
7014A d: 70 mm | D: 110 mm | Width: 20 mm | Cr: 44 kN | C0r: 41.5 kN | Grease speed: 6300 rpm
7014ADB d: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 71.5 kN | C0r: 82.5 kN | Grease speed: 5000 rpm
7014ADF d: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 71.5 kN | C0r: 82.5 kN | Grease speed: 5000 rpm
7014ADT d: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 71.5 kN | C0r: 82.5 kN | Grease speed: 5000 rpm
7014C d: 70 mm | D: 110 mm | Width: 20 mm | Cr: 47 kN | C0r: 43 kN | Grease speed: 9000 rpm
7014CDB d: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 76 kN | C0r: 86 kN | Grease speed: 7100 rpm
7014CDF d: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 76 kN | C0r: 86 kN | Grease speed: 7100 rpm
7014CDT d: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 76 kN | C0r: 86 kN | Grease speed: 7100 rpm
7015A d: 75 mm | D: 115 mm | Width: 20 mm | Cr: 45 kN | C0r: 43.5 kN | Grease speed: 6000 rpm
7015ADB d: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 73 kN | C0r: 87.5 kN | Grease speed: 4800 rpm
7015ADF d: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 73 kN | C0r: 87.5 kN | Grease speed: 4800 rpm
7015ADT d: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 73 kN | C0r: 87.5 kN | Grease speed: 4800 rpm
7015C d: 75 mm | D: 115 mm | Width: 20 mm | Cr: 48 kN | C0r: 45.6 kN | Grease speed: 8500 rpm
7015CDB d: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 78 kN | C0r: 91.5 kN | Grease speed: 6700 rpm
7015CDF d: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 78 kN | C0r: 91.5 kN | Grease speed: 6700 rpm
7015CDT d: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 78 kN | C0r: 91.5 kN | Grease speed: 6700 rpm
7016A d: 80 mm | D: 125 mm | Width: 22 mm | Cr: 55 kN | C0r: 53 kN | Grease speed: 5600 rpm
7016ADB d: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 89.5 kN | C0r: 106 kN | Grease speed: 4300 rpm
7016ADF d: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 89.5 kN | C0r: 106 kN | Grease speed: 4300 rpm
7016ADT d: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 89.5 kN | C0r: 106 kN | Grease speed: 4300 rpm
7016C d: 80 mm | D: 125 mm | Width: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Grease speed: 8000 rpm
7016CDB d: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 95.5 kN | C0r: 111 kN | Grease speed: 6300 rpm
7016CDF d: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 95.5 kN | C0r: 111 kN | Grease speed: 6300 rpm
7016CDT d: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 95.5 kN | C0r: 111 kN | Grease speed: 6300 rpm
7017A d: 85 mm | D: 130 mm | Width: 22 mm | Cr: 56.5 kN | C0r: 56 kN | Grease speed: 5300 rpm
7017ADB d: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 91.5 kN | C0r: 112 kN | Grease speed: 4300 rpm
7017ADF d: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 91.5 kN | C0r: 112 kN | Grease speed: 4300 rpm
7017ADT d: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 91.5 kN | C0r: 112 kN | Grease speed: 4300 rpm
7017C d: 85 mm | D: 130 mm | Width: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Grease speed: 7500 rpm
7017CDB d: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 98 kN | C0r: 117 kN | Grease speed: 6000 rpm
7017CDF d: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 98 kN | C0r: 117 kN | Grease speed: 6000 rpm
7017CDT d: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 98 kN | C0r: 117 kN | Grease speed: 6000 rpm
7018A d: 90 mm | D: 140 mm | Width: 24 mm | Cr: 67.5 kN | C0r: 66.5 kN | Grease speed: 4800 rpm
7018ADB d: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 133 kN | Grease speed: 3800 rpm
7018ADF d: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 133 kN | Grease speed: 3800 rpm
7018ADT d: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 133 kN | Grease speed: 3800 rpm
7018C d: 90 mm | D: 140 mm | Width: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Grease speed: 7100 rpm
7018CDB d: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 116 kN | C0r: 138 kN | Grease speed: 5600 rpm
7018CDF d: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 116 kN | C0r: 138 kN | Grease speed: 5600 rpm
7018CDT d: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 116 kN | C0r: 138 kN | Grease speed: 5600 rpm
7019A d: 95 mm | D: 145 mm | Width: 24 mm | Cr: 67 kN | C0r: 67 kN | Grease speed: 4500 rpm
7019ADB d: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 134 kN | Grease speed: 3800 rpm
7019ADF d: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 134 kN | Grease speed: 3800 rpm
7019ADT d: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 134 kN | Grease speed: 3800 rpm
7019C d: 95 mm | D: 145 mm | Width: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Grease speed: 6700 rpm
7019CDB d: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 119 kN | C0r: 146 kN | Grease speed: 5300 rpm
7019CDF d: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 119 kN | C0r: 146 kN | Grease speed: 5300 rpm
7019CDT d: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 119 kN | C0r: 146 kN | Grease speed: 5300 rpm
7020A d: 100 mm | D: 150 mm | Width: 24 mm | Cr: 68.5 kN | C0r: 70.5 kN | Grease speed: 4500 rpm
7020ADB d: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 171 kN | C0r: 141 kN | Grease speed: 3600 rpm
7020ADF d: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 171 kN | C0r: 141 kN | Grease speed: 3600 rpm
7020ADT d: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 171 kN | C0r: 141 kN | Grease speed: 3600 rpm
7020C d: 100 mm | D: 150 mm | Width: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Grease speed: 6300 rpm
7020CDB d: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 122 kN | C0r: 154 kN | Grease speed: 5300 rpm
7020CDF d: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 122 kN | C0r: 154 kN | Grease speed: 5300 rpm
7020CDT d: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 122 kN | C0r: 154 kN | Grease speed: 5300 rpm
7021A d: 105 mm | D: 160 mm | Width: 26 mm | Cr: 80 kN | C0r: 81.5 kN | Grease speed: 4300 rpm
7021ADB d: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 130 kN | C0r: 163 kN | Grease speed: 3400 rpm
7021ADF d: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 130 kN | C0r: 163 kN | Grease speed: 3400 rpm
7021ADT d: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 130 kN | C0r: 163 kN | Grease speed: 3400 rpm
7021C d: 105 mm | D: 160 mm | Width: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Grease speed: 6000 rpm
7021CDB d: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 143 kN | C0r: 179 kN | Grease speed: 4800 rpm
7021CDF d: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 143 kN | C0r: 179 kN | Grease speed: 4800 rpm
7021CDT d: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 143 kN | C0r: 179 kN | Grease speed: 4800 rpm
7022A d: 110 mm | D: 170 mm | Width: 28 mm | Cr: 96.5 kN | C0r: 95.5 kN | Grease speed: 4000 rpm
7022ADB d: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 157 kN | C0r: 191 kN | Grease speed: 3200 rpm
7022ADF d: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 157 kN | C0r: 191 kN | Grease speed: 3200 rpm
7022ADT d: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 157 kN | C0r: 191 kN | Grease speed: 3200 rpm
7022C d: 110 mm | D: 170 mm | Width: 28 mm | Cr: 106 kN | C0r: 104 kN | Grease speed: 5600 rpm
7022CDB d: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 172 kN | C0r: 208 kN | Grease speed: 4500 rpm
7022CDF d: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 172 kN | C0r: 208 kN | Grease speed: 4500 rpm
7022CDT d: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 172 kN | C0r: 208 kN | Grease speed: 4500 rpm
7024A d: 120 mm | D: 180 mm | Width: 28 mm | Cr: 102 kN | C0r: 107 kN | Grease speed: 3600 rpm
7024ADB d: 120 mm | D: 180 mm | Width: 56 mm (pair) | Cr: 166 kN | C0r: 213 kN | Grease speed: 3000 rpm
7024ADF d: 120 mm | D: 180 mm | Width: 56 mm (pair) | Cr: 166 kN | C0r: 213 kN | Grease speed: 3000 rpm
7024ADT d: 120 mm | D: 180 mm | Width: 56 mm (pair) | Cr: 166 kN | C0r: 213 kN | Grease speed: 3000 rpm
7026A d: 130 mm | D: 200 mm | Width: 33 mm | Cr: 117 kN | C0r: 125 kN | Grease speed: 3400 rpm
7026ADB d: 130 mm | D: 200 mm | Width: 66 mm (pair) | Cr: 192 kN | C0r: 251 kN | Grease speed: 2600 rpm
7026ADF d: 130 mm | D: 200 mm | Width: 66 mm (pair) | Cr: 192 kN | C0r: 251 kN | Grease speed: 2600 rpm
7026ADT d: 130 mm | D: 200 mm | Width: 66 mm (pair) | Cr: 192 kN | C0r: 251 kN | Grease speed: 2600 rpm
7028A d: 140 mm | D: 210 mm | Width: 33 mm | Cr: 120 kN | C0r: 133 kN | Grease speed: 3200 rpm
7028ADB d: 140 mm | D: 210 mm | Width: 66 mm (pair) | Cr: 194 kN | C0r: 265 kN | Grease speed: 2600 rpm
7028ADF d: 140 mm | D: 210 mm | Width: 66 mm (pair) | Cr: 194 kN | C0r: 265 kN | Grease speed: 2600 rpm
7028ADT d: 140 mm | D: 210 mm | Width: 66 mm (pair) | Cr: 194 kN | C0r: 265 kN | Grease speed: 2600 rpm
7030A d: 150 mm | D: 225 mm | Width: 35 mm | Cr: 137 kN | C0r: 154 kN | Grease speed: 2400 rpm
7030ADB d: 150 mm | D: 225 mm | Width: 70 mm (pair) | Cr: 222 kN | C0r: 305 kN | Grease speed: 1900 rpm
7030ADF d: 150 mm | D: 225 mm | Width: 70 mm (pair) | Cr: 222 kN | C0r: 305 kN | Grease speed: 1900 rpm
7030ADT d: 150 mm | D: 225 mm | Width: 70 mm (pair) | Cr: 222 kN | C0r: 305 kN | Grease speed: 1900 rpm
7032A d: 160 mm | D: 240 mm | Width: 38 mm | Cr: 155 kN | C0r: 176 kN | Grease speed: 2200 rpm
7032ADB d: 160 mm | D: 240 mm | Width: 76 mm (pair) | Cr: 252 kN | C0r: 355 kN | Grease speed: 1700 rpm
7032ADF d: 160 mm | D: 240 mm | Width: 76 mm (pair) | Cr: 252 kN | C0r: 355 kN | Grease speed: 1700 rpm
7032ADT d: 160 mm | D: 240 mm | Width: 76 mm (pair) | Cr: 252 kN | C0r: 355 kN | Grease speed: 1700 rpm
7034A d: 170 mm | D: 260 mm | Width: 42 mm | Cr: 186 kN | C0r: 214 kN | Grease speed: 2000 rpm
7034ADB d: 170 mm | D: 260 mm | Width: 84 mm (pair) | Cr: 300 kN | C0r: 430 kN | Grease speed: 1600 rpm
7034ADF d: 170 mm | D: 260 mm | Width: 84 mm (pair) | Cr: 300 kN | C0r: 430 kN | Grease speed: 1600 rpm
7034ADT d: 170 mm | D: 260 mm | Width: 84 mm (pair) | Cr: 300 kN | C0r: 430 kN | Grease speed: 1600 rpm
7036A d: 180 mm | D: 280 mm | Width: 46 mm | Cr: 207 kN | C0r: 252 kN | Grease speed: 1900 rpm
7036ADB d: 180 mm | D: 280 mm | Width: 92 mm (pair) | Cr: 335 kN | C0r: 506 kN | Grease speed: 1500 rpm
7036ADF d: 180 mm | D: 280 mm | Width: 92 mm (pair) | Cr: 335 kN | C0r: 506 kN | Grease speed: 1500 rpm
7036ADT d: 180 mm | D: 280 mm | Width: 92 mm (pair) | Cr: 335 kN | C0r: 506 kN | Grease speed: 1500 rpm
7038A d: 190 mm | D: 290 mm | Width: 46 mm | Cr: 224 kN | C0r: 280 kN | Grease speed: 1800 rpm
7038ADB d: 190 mm | D: 290 mm | Width: 92 mm (pair) | Cr: 365 kN | C0r: 560 kN | Grease speed: 1400 rpm
7038ADF d: 190 mm | D: 290 mm | Width: 92 mm (pair) | Cr: 365 kN | C0r: 560 kN | Grease speed: 1400 rpm
7038ADT d: 190 mm | D: 290 mm | Width: 92 mm (pair) | Cr: 365 kN | C0r: 560 kN | Grease speed: 1400 rpm
7040A d: 200 mm | D: 310 mm | Width: 51 mm | Cr: 240 kN | C0r: 310 kN | Grease speed: 1700 rpm
7040ADB d: 200 mm | D: 310 mm | Width: 102 mm (pair) | Cr: 390 kN | C0r: 620 kN | Grease speed: 1300 rpm
7040ADF d: 200 mm | D: 310 mm | Width: 102 mm (pair) | Cr: 390 kN | C0r: 620 kN | Grease speed: 1300 rpm
7040ADT d: 200 mm | D: 310 mm | Width: 102 mm (pair) | Cr: 390 kN | C0r: 620 kN | Grease speed: 1300 rpm
Angular Contact Ball BearingsNSK
220 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK 70 Series Angular Contact Ball Bearings (C/A; DB/DF/DT)

Brand NSK·Angular Contact Ball Bearings

Available part numbers (220)

7000A, 7000ADB, 7000ADF, 7000ADT, 7000C, 7000CDB, 7000CDF, 7000CDT, 7001A, 7001ADB + 210 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7000Ad: 10 mm | D: 26 mm | Width: 8 mm | Cr: 5.35 kN | C0r: 2.6 kN | Grease speed: 32000 rpm
7000ADBd: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 0.875 kN | C0r: 5.2 kN | Grease speed: 24000 rpm
7000ADFd: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 0.875 kN | C0r: 5.2 kN | Grease speed: 24000 rpm
7000ADTd: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 0.875 kN | C0r: 5.2 kN | Grease speed: 24000 rpm
7000Cd: 10 mm | D: 26 mm | Width: 8 mm | Cr: 5.3 kN | C0r: 2.49 kN | Grease speed: 45000 rpm
7000CDBd: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 8.65 kN | C0r: 5 kN | Grease speed: 36000 rpm
7000CDFd: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 8.65 kN | C0r: 5 kN | Grease speed: 36000 rpm
7000CDTd: 10 mm | D: 26 mm | Width: 16 mm (pair) | Cr: 8.65 kN | C0r: 5 kN | Grease speed: 36000 rpm
7001Ad: 12 mm | D: 28 mm | Width: 8 mm | Cr: 5.8 kN | C0r: 2.98 kN | Grease speed: 28000 rpm
7001ADBd: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.96 kN | Grease speed: 22000 rpm
7001ADFd: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.96 kN | Grease speed: 22000 rpm
7001ADTd: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.96 kN | Grease speed: 22000 rpm
7001Cd: 12 mm | D: 28 mm | Width: 8 mm | Cr: 5.8 kN | C0r: 2.9 kN | Grease speed: 40000 rpm
7001CDBd: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.8 kN | Grease speed: 32000 rpm
7001CDFd: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.8 kN | Grease speed: 32000 rpm
7001CDTd: 12 mm | D: 28 mm | Width: 16 mm (pair) | Cr: 9.4 kN | C0r: 5.8 kN | Grease speed: 32000 rpm
7002Ad: 15 mm | D: 32 mm | Width: 9 mm | Cr: 6.1 kN | C0r: 3.45 kN | Grease speed: 24000 rpm
7002ADBd: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 9.95 kN | C0r: 6.85 kN | Grease speed: 19000 rpm
7002ADFd: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 9.95 kN | C0r: 6.85 kN | Grease speed: 19000 rpm
7002ADTd: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 9.95 kN | C0r: 6.85 kN | Grease speed: 19000 rpm
7002Cd: 15 mm | D: 32 mm | Width: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Grease speed: 34000 rpm
7002CDBd: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 10.1 kN | C0r: 6.75 kN | Grease speed: 28000 rpm
7002CDFd: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 10.1 kN | C0r: 6.75 kN | Grease speed: 28000 rpm
7002CDTd: 15 mm | D: 32 mm | Width: 18 mm (pair) | Cr: 10.1 kN | C0r: 6.75 kN | Grease speed: 28000 rpm
7003Ad: 17 mm | D: 35 mm | Width: 10 mm | Cr: 6.4 kN | C0r: 3.8 kN | Grease speed: 22000 rpm
7003ADBd: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.4 kN | C0r: 7.65 kN | Grease speed: 17000 rpm
7003ADFd: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.4 kN | C0r: 7.65 kN | Grease speed: 17000 rpm
7003ADTd: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.4 kN | C0r: 7.65 kN | Grease speed: 17000 rpm
7003Cd: 17 mm | D: 35 mm | Width: 10 mm | Cr: 6.6 kN | C0r: 3.8 kN | Grease speed: 32000 rpm
7003CDBd: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.7 kN | C0r: 7.6 kN | Grease speed: 26000 rpm
7003CDFd: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.7 kN | C0r: 7.6 kN | Grease speed: 26000 rpm
7003CDTd: 17 mm | D: 35 mm | Width: 20 mm (pair) | Cr: 10.7 kN | C0r: 7.6 kN | Grease speed: 26000 rpm
7004Ad: 20 mm | D: 42 mm | Width: 12 mm | Cr: 10.8 kN | C0r: 6.6 kN | Grease speed: 18000 rpm
7004ADBd: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 17.6 kN | C0r: 13.2 kN | Grease speed: 15000 rpm
7004ADFd: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 17.6 kN | C0r: 13.2 kN | Grease speed: 15000 rpm
7004ADTd: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 17.6 kN | C0r: 13.2 kN | Grease speed: 15000 rpm
7004Cd: 20 mm | D: 42 mm | Width: 12 mm | Cr: 11.1 kN | C0r: 6.55 kN | Grease speed: 26000 rpm
7004CDBd: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 18 kN | C0r: 13.1 kN | Grease speed: 20000 rpm
7004CDFd: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 18 kN | C0r: 13.1 kN | Grease speed: 20000 rpm
7004CDTd: 20 mm | D: 42 mm | Width: 24 mm (pair) | Cr: 18 kN | C0r: 13.1 kN | Grease speed: 20000 rpm
7005Ad: 25 mm | D: 47 mm | Width: 12 mm | Cr: 11.3 kN | C0r: 7.4 kN | Grease speed: 16000 rpm
7005ADBd: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 18.3 kN | C0r: 14.8 kN | Grease speed: 13000 rpm
7005ADFd: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 18.3 kN | C0r: 14.8 kN | Grease speed: 13000 rpm
7005ADTd: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 18.3 kN | C0r: 14.8 kN | Grease speed: 13000 rpm
7005Cd: 25 mm | D: 47 mm | Width: 12 mm | Cr: 11.7 kN | C0r: 7.4 kN | Grease speed: 22000 rpm
7005CDBd: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 19 kN | C0r: 14.8 kN | Grease speed: 18000 rpm
7005CDFd: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 19 kN | C0r: 14.8 kN | Grease speed: 18000 rpm
7005CDTd: 25 mm | D: 47 mm | Width: 24 mm (pair) | Cr: 19 kN | C0r: 14.8 kN | Grease speed: 18000 rpm
7006Ad: 30 mm | D: 55 mm | Width: 13 mm | Cr: 14.6 kN | C0r: 10.1 kN | Grease speed: 13000 rpm
7006ADBd: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 23.6 kN | C0r: 20.2 kN | Grease speed: 11000 rpm
7006ADFd: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 23.6 kN | C0r: 20.2 kN | Grease speed: 11000 rpm
7006ADTd: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 23.6 kN | C0r: 20.2 kN | Grease speed: 11000 rpm
7006Cd: 30 mm | D: 55 mm | Width: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Grease speed: 19000 rpm
7006CDBd: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 24.6 kN | C0r: 20.5 kN | Grease speed: 15000 rpm
7006CDFd: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 24.6 kN | C0r: 20.5 kN | Grease speed: 15000 rpm
7006CDTd: 30 mm | D: 55 mm | Width: 26 mm (pair) | Cr: 24.6 kN | C0r: 20.5 kN | Grease speed: 15000 rpm
7007Ad: 35 mm | D: 62 mm | Width: 14 mm | Cr: 18.3 kN | C0r: 13.4 kN | Grease speed: 12000 rpm
7007ADBd: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 29.7 kN | C0r: 26.8 kN | Grease speed: 9500 rpm
7007ADFd: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 29.7 kN | C0r: 26.8 kN | Grease speed: 9500 rpm
7007ADTd: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 29.7 kN | C0r: 26.8 kN | Grease speed: 9500 rpm
7007Cd: 35 mm | D: 62 mm | Width: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Grease speed: 17000 rpm
7007CDBd: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 31 kN | C0r: 27.3 kN | Grease speed: 13000 rpm
7007CDFd: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 31 kN | C0r: 27.3 kN | Grease speed: 13000 rpm
7007CDTd: 35 mm | D: 62 mm | Width: 28 mm (pair) | Cr: 31 kN | C0r: 27.3 kN | Grease speed: 13000 rpm
7008Ad: 40 mm | D: 68 mm | Width: 15 mm | Cr: 19.5 kN | C0r: 15.4 kN | Grease speed: 10000 rpm
7008ADBd: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 31.8 kN | C0r: 31 kN | Grease speed: 8500 rpm
7008ADFd: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 31.8 kN | C0r: 31 kN | Grease speed: 8500 rpm
7008ADTd: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 31.8 kN | C0r: 31 kN | Grease speed: 8500 rpm
7008Cd: 40 mm | D: 68 mm | Width: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Grease speed: 15000 rpm
7008CDBd: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 33.5 kN | C0r: 32 kN | Grease speed: 12000 rpm
7008CDFd: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 33.5 kN | C0r: 32 kN | Grease speed: 12000 rpm
7008CDTd: 40 mm | D: 68 mm | Width: 30 mm (pair) | Cr: 33.5 kN | C0r: 32 kN | Grease speed: 12000 rpm
7009Ad: 45 mm | D: 75 mm | Width: 16 mm | Cr: 23.1 kN | C0r: 18.7 kN | Grease speed: 9500 rpm
7009ADBd: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 37.5 kN | C0r: 37.5 kN | Grease speed: 7500 rpm
7009ADFd: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 37.5 kN | C0r: 37.5 kN | Grease speed: 7500 rpm
7009ADTd: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 37.5 kN | C0r: 37.5 kN | Grease speed: 7500 rpm
7009Cd: 45 mm | D: 75 mm | Width: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Grease speed: 14000 rpm
7009CDBd: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 39.5 kN | C0r: 38.5 kN | Grease speed: 11000 rpm
7009CDFd: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 39.5 kN | C0r: 38.5 kN | Grease speed: 11000 rpm
7009CDTd: 45 mm | D: 75 mm | Width: 32 mm (pair) | Cr: 39.5 kN | C0r: 38.5 kN | Grease speed: 11000 rpm
7010Ad: 50 mm | D: 80 mm | Width: 16 mm | Cr: 24.5 kN | C0r: 21.1 kN | Grease speed: 8500 rpm
7010ADBd: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 40 kN | C0r: 42 kN | Grease speed: 7100 rpm
7010ADFd: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 40 kN | C0r: 42 kN | Grease speed: 7100 rpm
7010ADTd: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 40 kN | C0r: 42 kN | Grease speed: 7100 rpm
7010Cd: 50 mm | D: 80 mm | Width: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Grease speed: 12000 rpm
7010CDBd: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 42 kN | C0r: 44 kN | Grease speed: 10000 rpm
7010CDFd: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 42 kN | C0r: 44 kN | Grease speed: 10000 rpm
7010CDTd: 50 mm | D: 80 mm | Width: 32 mm (pair) | Cr: 42 kN | C0r: 44 kN | Grease speed: 10000 rpm
7011Ad: 55 mm | D: 90 mm | Width: 18 mm | Cr: 32.5 kN | C0r: 27.7 kN | Grease speed: 7500 rpm
7011ADBd: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 52.5 kN | C0r: 55.5 kN | Grease speed: 6300 rpm
7011ADFd: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 52.5 kN | C0r: 55.5 kN | Grease speed: 6300 rpm
7011ADTd: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 52.5 kN | C0r: 55.5 kN | Grease speed: 6300 rpm
7011Cd: 55 mm | D: 90 mm | Width: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Grease speed: 11000 rpm
7011CDBd: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 55.5 kN | C0r: 57.5 kN | Grease speed: 9000 rpm
7011CDFd: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 55.5 kN | C0r: 57.5 kN | Grease speed: 9000 rpm
7011CDTd: 55 mm | D: 90 mm | Width: 36 mm (pair) | Cr: 55.5 kN | C0r: 57.5 kN | Grease speed: 9000 rpm
7012Ad: 60 mm | D: 95 mm | Width: 18 mm | Cr: 33 kN | C0r: 29.5 kN | Grease speed: 7100 rpm
7012ADBd: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 53.5 kN | C0r: 59 kN | Grease speed: 6000 rpm
7012ADFd: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 53.5 kN | C0r: 59 kN | Grease speed: 6000 rpm
7012ADTd: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 53.5 kN | C0r: 59 kN | Grease speed: 6000 rpm
7012Cd: 60 mm | D: 95 mm | Width: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Grease speed: 10000 rpm
7012CDBd: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 57 kN | C0r: 61.5 kN | Grease speed: 8500 rpm
7012CDFd: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 57 kN | C0r: 61.5 kN | Grease speed: 8500 rpm
7012CDTd: 60 mm | D: 95 mm | Width: 36 mm (pair) | Cr: 57 kN | C0r: 61.5 kN | Grease speed: 8500 rpm
7013Ad: 65 mm | D: 100 mm | Width: 18 mm | Cr: 35 kN | C0r: 33 kN | Grease speed: 6700 rpm
7013ADBd: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 66.5 kN | C0r: 65.5 kN | Grease speed: 5600 rpm
7013ADFd: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 66.5 kN | C0r: 65.5 kN | Grease speed: 5600 rpm
7013ADTd: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 66.5 kN | C0r: 65.5 kN | Grease speed: 5600 rpm
7013Cd: 65 mm | D: 100 mm | Width: 18 mm | Cr: 37 kN | C0r: 346 kN | Grease speed: 10000 rpm
7013CDBd: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 60.5 kN | C0r: 68.5 kN | Grease speed: 0 rpm
7013CDFd: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 60.5 kN | C0r: 68.5 kN | Grease speed: 0 rpm
7013CDTd: 65 mm | D: 100 mm | Width: 36 mm (pair) | Cr: 60.5 kN | C0r: 68.5 kN | Grease speed: 0 rpm
7014Ad: 70 mm | D: 110 mm | Width: 20 mm | Cr: 44 kN | C0r: 41.5 kN | Grease speed: 6300 rpm
7014ADBd: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 71.5 kN | C0r: 82.5 kN | Grease speed: 5000 rpm
7014ADFd: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 71.5 kN | C0r: 82.5 kN | Grease speed: 5000 rpm
7014ADTd: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 71.5 kN | C0r: 82.5 kN | Grease speed: 5000 rpm
7014Cd: 70 mm | D: 110 mm | Width: 20 mm | Cr: 47 kN | C0r: 43 kN | Grease speed: 9000 rpm
7014CDBd: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 76 kN | C0r: 86 kN | Grease speed: 7100 rpm
7014CDFd: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 76 kN | C0r: 86 kN | Grease speed: 7100 rpm
7014CDTd: 70 mm | D: 110 mm | Width: 40 mm (pair) | Cr: 76 kN | C0r: 86 kN | Grease speed: 7100 rpm
7015Ad: 75 mm | D: 115 mm | Width: 20 mm | Cr: 45 kN | C0r: 43.5 kN | Grease speed: 6000 rpm
7015ADBd: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 73 kN | C0r: 87.5 kN | Grease speed: 4800 rpm
7015ADFd: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 73 kN | C0r: 87.5 kN | Grease speed: 4800 rpm
7015ADTd: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 73 kN | C0r: 87.5 kN | Grease speed: 4800 rpm
7015Cd: 75 mm | D: 115 mm | Width: 20 mm | Cr: 48 kN | C0r: 45.6 kN | Grease speed: 8500 rpm
7015CDBd: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 78 kN | C0r: 91.5 kN | Grease speed: 6700 rpm
7015CDFd: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 78 kN | C0r: 91.5 kN | Grease speed: 6700 rpm
7015CDTd: 75 mm | D: 115 mm | Width: 40 mm (pair) | Cr: 78 kN | C0r: 91.5 kN | Grease speed: 6700 rpm
7016Ad: 80 mm | D: 125 mm | Width: 22 mm | Cr: 55 kN | C0r: 53 kN | Grease speed: 5600 rpm
7016ADBd: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 89.5 kN | C0r: 106 kN | Grease speed: 4300 rpm
7016ADFd: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 89.5 kN | C0r: 106 kN | Grease speed: 4300 rpm
7016ADTd: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 89.5 kN | C0r: 106 kN | Grease speed: 4300 rpm
7016Cd: 80 mm | D: 125 mm | Width: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Grease speed: 8000 rpm
7016CDBd: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 95.5 kN | C0r: 111 kN | Grease speed: 6300 rpm
7016CDFd: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 95.5 kN | C0r: 111 kN | Grease speed: 6300 rpm
7016CDTd: 80 mm | D: 125 mm | Width: 44 mm (pair) | Cr: 95.5 kN | C0r: 111 kN | Grease speed: 6300 rpm
7017Ad: 85 mm | D: 130 mm | Width: 22 mm | Cr: 56.5 kN | C0r: 56 kN | Grease speed: 5300 rpm
7017ADBd: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 91.5 kN | C0r: 112 kN | Grease speed: 4300 rpm
7017ADFd: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 91.5 kN | C0r: 112 kN | Grease speed: 4300 rpm
7017ADTd: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 91.5 kN | C0r: 112 kN | Grease speed: 4300 rpm
7017Cd: 85 mm | D: 130 mm | Width: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Grease speed: 7500 rpm
7017CDBd: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 98 kN | C0r: 117 kN | Grease speed: 6000 rpm
7017CDFd: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 98 kN | C0r: 117 kN | Grease speed: 6000 rpm
7017CDTd: 85 mm | D: 130 mm | Width: 44 mm (pair) | Cr: 98 kN | C0r: 117 kN | Grease speed: 6000 rpm
7018Ad: 90 mm | D: 140 mm | Width: 24 mm | Cr: 67.5 kN | C0r: 66.5 kN | Grease speed: 4800 rpm
7018ADBd: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 133 kN | Grease speed: 3800 rpm
7018ADFd: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 133 kN | Grease speed: 3800 rpm
7018ADTd: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 133 kN | Grease speed: 3800 rpm
7018Cd: 90 mm | D: 140 mm | Width: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Grease speed: 7100 rpm
7018CDBd: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 116 kN | C0r: 138 kN | Grease speed: 5600 rpm
7018CDFd: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 116 kN | C0r: 138 kN | Grease speed: 5600 rpm
7018CDTd: 90 mm | D: 140 mm | Width: 48 mm (pair) | Cr: 116 kN | C0r: 138 kN | Grease speed: 5600 rpm
7019Ad: 95 mm | D: 145 mm | Width: 24 mm | Cr: 67 kN | C0r: 67 kN | Grease speed: 4500 rpm
7019ADBd: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 134 kN | Grease speed: 3800 rpm
7019ADFd: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 134 kN | Grease speed: 3800 rpm
7019ADTd: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 109 kN | C0r: 134 kN | Grease speed: 3800 rpm
7019Cd: 95 mm | D: 145 mm | Width: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Grease speed: 6700 rpm
7019CDBd: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 119 kN | C0r: 146 kN | Grease speed: 5300 rpm
7019CDFd: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 119 kN | C0r: 146 kN | Grease speed: 5300 rpm
7019CDTd: 95 mm | D: 145 mm | Width: 48 mm (pair) | Cr: 119 kN | C0r: 146 kN | Grease speed: 5300 rpm
7020Ad: 100 mm | D: 150 mm | Width: 24 mm | Cr: 68.5 kN | C0r: 70.5 kN | Grease speed: 4500 rpm
7020ADBd: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 171 kN | C0r: 141 kN | Grease speed: 3600 rpm
7020ADFd: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 171 kN | C0r: 141 kN | Grease speed: 3600 rpm
7020ADTd: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 171 kN | C0r: 141 kN | Grease speed: 3600 rpm
7020Cd: 100 mm | D: 150 mm | Width: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Grease speed: 6300 rpm
7020CDBd: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 122 kN | C0r: 154 kN | Grease speed: 5300 rpm
7020CDFd: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 122 kN | C0r: 154 kN | Grease speed: 5300 rpm
7020CDTd: 100 mm | D: 150 mm | Width: 48 mm (pair) | Cr: 122 kN | C0r: 154 kN | Grease speed: 5300 rpm
7021Ad: 105 mm | D: 160 mm | Width: 26 mm | Cr: 80 kN | C0r: 81.5 kN | Grease speed: 4300 rpm
7021ADBd: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 130 kN | C0r: 163 kN | Grease speed: 3400 rpm
7021ADFd: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 130 kN | C0r: 163 kN | Grease speed: 3400 rpm
7021ADTd: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 130 kN | C0r: 163 kN | Grease speed: 3400 rpm
7021Cd: 105 mm | D: 160 mm | Width: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Grease speed: 6000 rpm
7021CDBd: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 143 kN | C0r: 179 kN | Grease speed: 4800 rpm
7021CDFd: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 143 kN | C0r: 179 kN | Grease speed: 4800 rpm
7021CDTd: 105 mm | D: 160 mm | Width: 52 mm (pair) | Cr: 143 kN | C0r: 179 kN | Grease speed: 4800 rpm
7022Ad: 110 mm | D: 170 mm | Width: 28 mm | Cr: 96.5 kN | C0r: 95.5 kN | Grease speed: 4000 rpm
7022ADBd: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 157 kN | C0r: 191 kN | Grease speed: 3200 rpm
7022ADFd: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 157 kN | C0r: 191 kN | Grease speed: 3200 rpm
7022ADTd: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 157 kN | C0r: 191 kN | Grease speed: 3200 rpm
7022Cd: 110 mm | D: 170 mm | Width: 28 mm | Cr: 106 kN | C0r: 104 kN | Grease speed: 5600 rpm
7022CDBd: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 172 kN | C0r: 208 kN | Grease speed: 4500 rpm
7022CDFd: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 172 kN | C0r: 208 kN | Grease speed: 4500 rpm
7022CDTd: 110 mm | D: 170 mm | Width: 56 mm (pair) | Cr: 172 kN | C0r: 208 kN | Grease speed: 4500 rpm
7024Ad: 120 mm | D: 180 mm | Width: 28 mm | Cr: 102 kN | C0r: 107 kN | Grease speed: 3600 rpm
7024ADBd: 120 mm | D: 180 mm | Width: 56 mm (pair) | Cr: 166 kN | C0r: 213 kN | Grease speed: 3000 rpm
7024ADFd: 120 mm | D: 180 mm | Width: 56 mm (pair) | Cr: 166 kN | C0r: 213 kN | Grease speed: 3000 rpm
7024ADTd: 120 mm | D: 180 mm | Width: 56 mm (pair) | Cr: 166 kN | C0r: 213 kN | Grease speed: 3000 rpm
7026Ad: 130 mm | D: 200 mm | Width: 33 mm | Cr: 117 kN | C0r: 125 kN | Grease speed: 3400 rpm
7026ADBd: 130 mm | D: 200 mm | Width: 66 mm (pair) | Cr: 192 kN | C0r: 251 kN | Grease speed: 2600 rpm
7026ADFd: 130 mm | D: 200 mm | Width: 66 mm (pair) | Cr: 192 kN | C0r: 251 kN | Grease speed: 2600 rpm
7026ADTd: 130 mm | D: 200 mm | Width: 66 mm (pair) | Cr: 192 kN | C0r: 251 kN | Grease speed: 2600 rpm
7028Ad: 140 mm | D: 210 mm | Width: 33 mm | Cr: 120 kN | C0r: 133 kN | Grease speed: 3200 rpm
7028ADBd: 140 mm | D: 210 mm | Width: 66 mm (pair) | Cr: 194 kN | C0r: 265 kN | Grease speed: 2600 rpm
7028ADFd: 140 mm | D: 210 mm | Width: 66 mm (pair) | Cr: 194 kN | C0r: 265 kN | Grease speed: 2600 rpm
7028ADTd: 140 mm | D: 210 mm | Width: 66 mm (pair) | Cr: 194 kN | C0r: 265 kN | Grease speed: 2600 rpm
7030Ad: 150 mm | D: 225 mm | Width: 35 mm | Cr: 137 kN | C0r: 154 kN | Grease speed: 2400 rpm
7030ADBd: 150 mm | D: 225 mm | Width: 70 mm (pair) | Cr: 222 kN | C0r: 305 kN | Grease speed: 1900 rpm
7030ADFd: 150 mm | D: 225 mm | Width: 70 mm (pair) | Cr: 222 kN | C0r: 305 kN | Grease speed: 1900 rpm
7030ADTd: 150 mm | D: 225 mm | Width: 70 mm (pair) | Cr: 222 kN | C0r: 305 kN | Grease speed: 1900 rpm
7032Ad: 160 mm | D: 240 mm | Width: 38 mm | Cr: 155 kN | C0r: 176 kN | Grease speed: 2200 rpm
7032ADBd: 160 mm | D: 240 mm | Width: 76 mm (pair) | Cr: 252 kN | C0r: 355 kN | Grease speed: 1700 rpm
7032ADFd: 160 mm | D: 240 mm | Width: 76 mm (pair) | Cr: 252 kN | C0r: 355 kN | Grease speed: 1700 rpm
7032ADTd: 160 mm | D: 240 mm | Width: 76 mm (pair) | Cr: 252 kN | C0r: 355 kN | Grease speed: 1700 rpm
7034Ad: 170 mm | D: 260 mm | Width: 42 mm | Cr: 186 kN | C0r: 214 kN | Grease speed: 2000 rpm
7034ADBd: 170 mm | D: 260 mm | Width: 84 mm (pair) | Cr: 300 kN | C0r: 430 kN | Grease speed: 1600 rpm
7034ADFd: 170 mm | D: 260 mm | Width: 84 mm (pair) | Cr: 300 kN | C0r: 430 kN | Grease speed: 1600 rpm
7034ADTd: 170 mm | D: 260 mm | Width: 84 mm (pair) | Cr: 300 kN | C0r: 430 kN | Grease speed: 1600 rpm
7036Ad: 180 mm | D: 280 mm | Width: 46 mm | Cr: 207 kN | C0r: 252 kN | Grease speed: 1900 rpm
7036ADBd: 180 mm | D: 280 mm | Width: 92 mm (pair) | Cr: 335 kN | C0r: 506 kN | Grease speed: 1500 rpm
7036ADFd: 180 mm | D: 280 mm | Width: 92 mm (pair) | Cr: 335 kN | C0r: 506 kN | Grease speed: 1500 rpm
7036ADTd: 180 mm | D: 280 mm | Width: 92 mm (pair) | Cr: 335 kN | C0r: 506 kN | Grease speed: 1500 rpm
7038Ad: 190 mm | D: 290 mm | Width: 46 mm | Cr: 224 kN | C0r: 280 kN | Grease speed: 1800 rpm
7038ADBd: 190 mm | D: 290 mm | Width: 92 mm (pair) | Cr: 365 kN | C0r: 560 kN | Grease speed: 1400 rpm
7038ADFd: 190 mm | D: 290 mm | Width: 92 mm (pair) | Cr: 365 kN | C0r: 560 kN | Grease speed: 1400 rpm
7038ADTd: 190 mm | D: 290 mm | Width: 92 mm (pair) | Cr: 365 kN | C0r: 560 kN | Grease speed: 1400 rpm
7040Ad: 200 mm | D: 310 mm | Width: 51 mm | Cr: 240 kN | C0r: 310 kN | Grease speed: 1700 rpm
7040ADBd: 200 mm | D: 310 mm | Width: 102 mm (pair) | Cr: 390 kN | C0r: 620 kN | Grease speed: 1300 rpm
7040ADFd: 200 mm | D: 310 mm | Width: 102 mm (pair) | Cr: 390 kN | C0r: 620 kN | Grease speed: 1300 rpm
7040ADTd: 200 mm | D: 310 mm | Width: 102 mm (pair) | Cr: 390 kN | C0r: 620 kN | Grease speed: 1300 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
