NSK AL / ALL Locking Stoppers for Bearing Nuts

NSK AL / ALL Locking Stoppers for Bearing Nuts

NSK AL and ALL locking stoppers (lock plates) that secure large AN and ANL bearing nuts with a bolt, for nut sizes 44 to 100.

Key features

  • Secures large AN / ANL nuts
  • Bolted to the nut face and engaging the shaft or sleeve slot
  • AL for AN nuts, ALL for ANL nuts
  • Applicable nut sizes listed per stopper

Specifications

Product Locking stopper
Series AL, ALL
Used with AN 44-AN 100, ANL 44-ANL 100
Mass 2.1-10.5 kg per 100 pcs
Material Steel
Source NSK Rolling Bearings Catalogue (Part 4), p. 395

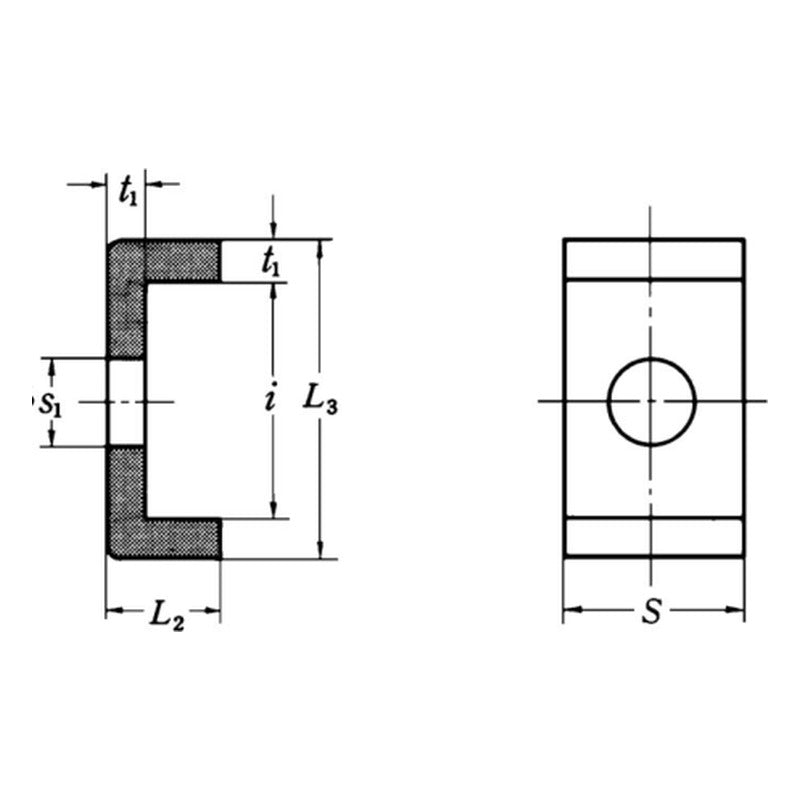

AL 44 t1: 4 mm | Width S: 20 mm | L2: 12 mm | Hole s1: 9 mm | L3: 30.5 mm
AL 52 t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 12 mm | L3: 33.5 mm
AL 60 t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 12 mm | L3: 38.5 mm
AL 64 t1: 5 mm | Width S: 24 mm | L2: 15 mm | Hole s1: 12 mm | L3: 41 mm
AL 68 t1: 5 mm | Width S: 28 mm | L2: 15 mm | Hole s1: 14 mm | L3: 48 mm
AL 76 t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 14 mm | L3: 50 mm
AL 80 t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 18 mm | L3: 55 mm
AL 88 t1: 5 mm | Width S: 36 mm | L2: 15 mm | Hole s1: 18 mm | L3: 53 mm
AL 96 t1: 5 mm | Width S: 36 mm | L2: 15 mm | Hole s1: 18 mm | L3: 63 mm
AL 100 t1: 5 mm | Width S: 40 mm | L2: 15 mm | Hole s1: 18 mm | L3: 55 mm
ALL 44 t1: 4 mm | Width S: 20 mm | L2: 12 mm | Hole s1: 7 mm | L3: 21.5 mm
ALL 48 t1: 4 mm | Width S: 20 mm | L2: 12 mm | Hole s1: 9 mm | L3: 25.5 mm
ALL 56 t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 9 mm | L3: 25.5 mm
ALL 60 t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 9 mm | L3: 28.5 mm
ALL 64 t1: 5 mm | Width S: 24 mm | L2: 15 mm | Hole s1: 9 mm | L3: 31 mm
ALL 72 t1: 5 mm | Width S: 28 mm | L2: 15 mm | Hole s1: 9 mm | L3: 30 mm
ALL 76 t1: 5 mm | Width S: 28 mm | L2: 15 mm | Hole s1: 12 mm | L3: 34 mm
ALL 84 t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 12 mm | L3: 34 mm
ALL 88 t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 14 mm | L3: 38 mm
ALL 96 t1: 5 mm | Width S: 36 mm | L2: 15 mm | Hole s1: 14 mm | L3: 38 mm
Lock Nuts & WashersNSK
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK AL / ALL Locking Stoppers for Bearing Nuts

Brand NSK·Lock Nuts & Washers

Available part numbers (20)

AL 44, AL 52, AL 60, AL 64, AL 68, AL 76, AL 80, AL 88, AL 96, AL 100 + 10 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL 44t1: 4 mm | Width S: 20 mm | L2: 12 mm | Hole s1: 9 mm | L3: 30.5 mm
AL 52t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 12 mm | L3: 33.5 mm
AL 60t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 12 mm | L3: 38.5 mm
AL 64t1: 5 mm | Width S: 24 mm | L2: 15 mm | Hole s1: 12 mm | L3: 41 mm
AL 68t1: 5 mm | Width S: 28 mm | L2: 15 mm | Hole s1: 14 mm | L3: 48 mm
AL 76t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 14 mm | L3: 50 mm
AL 80t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 18 mm | L3: 55 mm
AL 88t1: 5 mm | Width S: 36 mm | L2: 15 mm | Hole s1: 18 mm | L3: 53 mm
AL 96t1: 5 mm | Width S: 36 mm | L2: 15 mm | Hole s1: 18 mm | L3: 63 mm
AL 100t1: 5 mm | Width S: 40 mm | L2: 15 mm | Hole s1: 18 mm | L3: 55 mm
ALL 44t1: 4 mm | Width S: 20 mm | L2: 12 mm | Hole s1: 7 mm | L3: 21.5 mm
ALL 48t1: 4 mm | Width S: 20 mm | L2: 12 mm | Hole s1: 9 mm | L3: 25.5 mm
ALL 56t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 9 mm | L3: 25.5 mm
ALL 60t1: 4 mm | Width S: 24 mm | L2: 12 mm | Hole s1: 9 mm | L3: 28.5 mm
ALL 64t1: 5 mm | Width S: 24 mm | L2: 15 mm | Hole s1: 9 mm | L3: 31 mm
ALL 72t1: 5 mm | Width S: 28 mm | L2: 15 mm | Hole s1: 9 mm | L3: 30 mm
ALL 76t1: 5 mm | Width S: 28 mm | L2: 15 mm | Hole s1: 12 mm | L3: 34 mm
ALL 84t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 12 mm | L3: 34 mm
ALL 88t1: 5 mm | Width S: 32 mm | L2: 15 mm | Hole s1: 14 mm | L3: 38 mm
ALL 96t1: 5 mm | Width S: 36 mm | L2: 15 mm | Hole s1: 14 mm | L3: 38 mm
