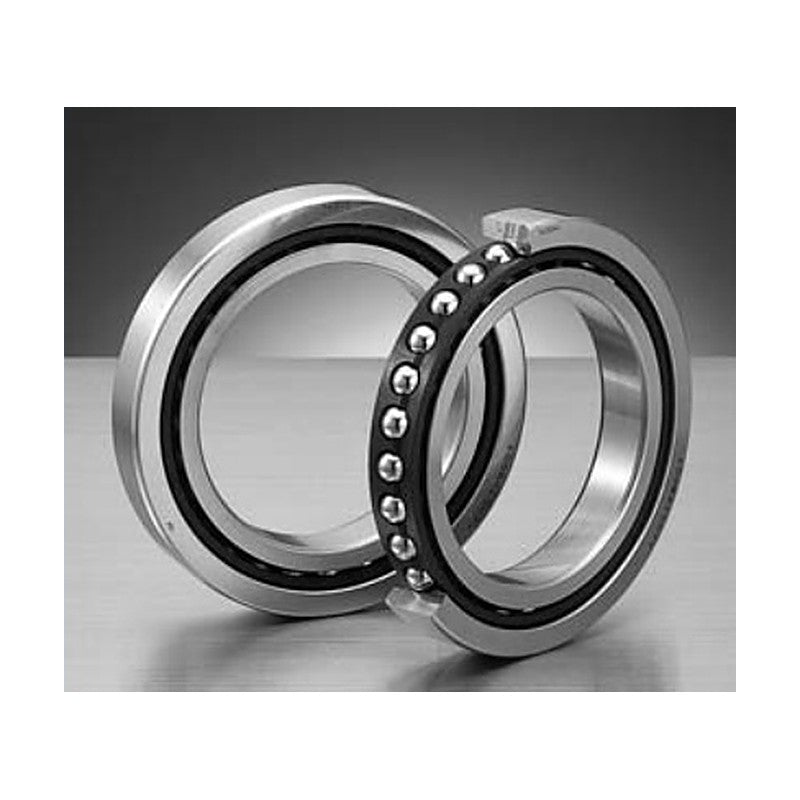

NSK BAR10 / BTR10 ROBUST Thrust Angular Contact Bearings (S, H)

NSK BAR10 / BTR10 ROBUST Thrust Angular Contact Bearings (S, H)

NSK ROBUST BAR10 (30°) and BTR10 (40°) high-speed thrust angular contact ball bearings, supplied as DB pairs, bore 50 to 200 mm.

Key features

  • High-speed axial support for lathe and machining-center spindles
  • BAR 30° and BTR 40° contact angles
  • Type S steel balls or type H ceramic balls
  • Interchangeable with double-direction thrust bearings TAC series
  • Width 2B listed for the DB pair

Specifications

Series BAR10 / BTR10
Contact angle BAR 30°, BTR 40°
Bore range 50 - 200 mm
Arrangement DB pair, EL preload
Speed basis Grease lubrication
Source NSK Super Precision Bearings, p. 102-104
50BAR10S d: 50 mm | D: 80 mm | 2B: 28.5 mm | Cr: 14.7 kN | C0r: 27.7 kN | Speed (grease): 11,600 min-1
50BAR10H d: 50 mm | D: 80 mm | 2B: 28.5 mm | Cr: 14.7 kN | C0r: 27.7 kN | Speed (grease): 13,100 min-1
50BTR10S d: 50 mm | D: 80 mm | 2B: 28.5 mm | Cr: 17.4 kN | C0r: 31.5 kN | Speed (grease): 10,000 min-1
50BTR10H d: 50 mm | D: 80 mm | 2B: 28.5 mm | Cr: 17.4 kN | C0r: 31.5 kN | Speed (grease): 11,600 min-1
55BAR10S d: 55 mm | D: 90 mm | 2B: 33.0 mm | Cr: 18.2 kN | C0r: 35.0 kN | Speed (grease): 10,400 min-1
55BAR10H d: 55 mm | D: 90 mm | 2B: 33.0 mm | Cr: 18.2 kN | C0r: 35.0 kN | Speed (grease): 11,800 min-1
55BTR10S d: 55 mm | D: 90 mm | 2B: 33.0 mm | Cr: 21.6 kN | C0r: 40.0 kN | Speed (grease): 9,000 min-1
55BTR10H d: 55 mm | D: 90 mm | 2B: 33.0 mm | Cr: 21.6 kN | C0r: 40.0 kN | Speed (grease): 10,400 min-1
60BAR10S d: 60 mm | D: 95 mm | 2B: 33.0 mm | Cr: 18.9 kN | C0r: 38.0 kN | Speed (grease): 9,700 min-1
60BAR10H d: 60 mm | D: 95 mm | 2B: 33.0 mm | Cr: 18.9 kN | C0r: 38.0 kN | Speed (grease): 11,000 min-1
60BTR10S d: 60 mm | D: 95 mm | 2B: 33.0 mm | Cr: 22.4 kN | C0r: 43.5 kN | Speed (grease): 8,400 min-1
60BTR10H d: 60 mm | D: 95 mm | 2B: 33.0 mm | Cr: 22.4 kN | C0r: 43.5 kN | Speed (grease): 9,700 min-1
65BAR10S d: 65 mm | D: 100 mm | 2B: 33.0 mm | Cr: 19.5 kN | C0r: 41.5 kN | Speed (grease): 9,100 min-1
65BAR10H d: 65 mm | D: 100 mm | 2B: 33.0 mm | Cr: 19.5 kN | C0r: 41.5 kN | Speed (grease): 10,400 min-1
65BTR10S d: 65 mm | D: 100 mm | 2B: 33.0 mm | Cr: 23.1 kN | C0r: 47.0 kN | Speed (grease): 7,900 min-1
65BTR10H d: 65 mm | D: 100 mm | 2B: 33.0 mm | Cr: 23.1 kN | C0r: 47.0 kN | Speed (grease): 9,100 min-1
70BAR10S d: 70 mm | D: 110 mm | 2B: 36.0 mm | Cr: 26.9 kN | C0r: 55.0 kN | Speed (grease): 8,400 min-1
70BAR10H d: 70 mm | D: 110 mm | 2B: 36.0 mm | Cr: 26.9 kN | C0r: 55.0 kN | Speed (grease): 9,500 min-1
70BTR10S d: 70 mm | D: 110 mm | 2B: 36.0 mm | Cr: 32.0 kN | C0r: 63.0 kN | Speed (grease): 7,300 min-1
70BTR10H d: 70 mm | D: 110 mm | 2B: 36.0 mm | Cr: 32.0 kN | C0r: 63.0 kN | Speed (grease): 8,400 min-1
75BAR10S d: 75 mm | D: 115 mm | 2B: 36.0 mm | Cr: 27.3 kN | C0r: 58.0 kN | Speed (grease): 7,900 min-1
75BAR10H d: 75 mm | D: 115 mm | 2B: 36.0 mm | Cr: 27.3 kN | C0r: 58.0 kN | Speed (grease): 9,000 min-1
75BTR10S d: 75 mm | D: 115 mm | 2B: 36.0 mm | Cr: 32.5 kN | C0r: 65.5 kN | Speed (grease): 6,900 min-1
75BTR10H d: 75 mm | D: 115 mm | 2B: 36.0 mm | Cr: 32.5 kN | C0r: 65.5 kN | Speed (grease): 7,900 min-1
80BAR10S d: 80 mm | D: 125 mm | 2B: 40.5 mm | Cr: 32.0 kN | C0r: 68.5 kN | Speed (grease): 7,400 min-1
80BAR10H d: 80 mm | D: 125 mm | 2B: 40.5 mm | Cr: 32.0 kN | C0r: 68.5 kN | Speed (grease): 8,300 min-1
80BTR10S d: 80 mm | D: 125 mm | 2B: 40.5 mm | Cr: 38.0 kN | C0r: 78.0 kN | Speed (grease): 6,400 min-1
80BTR10H d: 80 mm | D: 125 mm | 2B: 40.5 mm | Cr: 38.0 kN | C0r: 78.0 kN | Speed (grease): 7,400 min-1
85BAR10S d: 85 mm | D: 130 mm | 2B: 40.5 mm | Cr: 32.5 kN | C0r: 71.5 kN | Speed (grease): 7,000 min-1
85BAR10H d: 85 mm | D: 130 mm | 2B: 40.5 mm | Cr: 32.5 kN | C0r: 71.5 kN | Speed (grease): 8,000 min-1
85BTR10S d: 85 mm | D: 130 mm | 2B: 40.5 mm | Cr: 38.5 kN | C0r: 81.5 kN | Speed (grease): 6,100 min-1
85BTR10H d: 85 mm | D: 130 mm | 2B: 40.5 mm | Cr: 38.5 kN | C0r: 81.5 kN | Speed (grease): 7,000 min-1
90BAR10S d: 90 mm | D: 140 mm | 2B: 45 mm | Cr: 42.5 kN | C0r: 92.5 kN | Speed (grease): 6,600 min-1
90BAR10H d: 90 mm | D: 140 mm | 2B: 45 mm | Cr: 42.5 kN | C0r: 92.5 kN | Speed (grease): 7,400 min-1
90BTR10S d: 90 mm | D: 140 mm | 2B: 45 mm | Cr: 50.0 kN | C0r: 105 kN | Speed (grease): 5,700 min-1
90BTR10H d: 90 mm | D: 140 mm | 2B: 45 mm | Cr: 50.0 kN | C0r: 105 kN | Speed (grease): 6,600 min-1
95BAR10S d: 95 mm | D: 145 mm | 2B: 45 mm | Cr: 43.0 kN | C0r: 96.5 kN | Speed (grease): 6,300 min-1
95BAR10H d: 95 mm | D: 145 mm | 2B: 45 mm | Cr: 43.0 kN | C0r: 96.5 kN | Speed (grease): 7,100 min-1
95BTR10S d: 95 mm | D: 145 mm | 2B: 45 mm | Cr: 51.0 kN | C0r: 110 kN | Speed (grease): 5,500 min-1
95BTR10H d: 95 mm | D: 145 mm | 2B: 45 mm | Cr: 51.0 kN | C0r: 110 kN | Speed (grease): 6,300 min-1
100BAR10S d: 100 mm | D: 150 mm | 2B: 45 mm | Cr: 43.5 kN | C0r: 100 kN | Speed (grease): 6,000 min-1
100BAR10H d: 100 mm | D: 150 mm | 2B: 45 mm | Cr: 43.5 kN | C0r: 100 kN | Speed (grease): 6,800 min-1
100BTR10S d: 100 mm | D: 150 mm | 2B: 45 mm | Cr: 51.5 kN | C0r: 114 kN | Speed (grease): 5,200 min-1
100BTR10H d: 100 mm | D: 150 mm | 2B: 45 mm | Cr: 51.5 kN | C0r: 114 kN | Speed (grease): 6,000 min-1
105BAR10S d: 105 mm | D: 160 mm | 2B: 49.5 mm | Cr: 49.5 kN | C0r: 115 kN | Speed (grease): 5,700 min-1
105BAR10H d: 105 mm | D: 160 mm | 2B: 49.5 mm | Cr: 49.5 kN | C0r: 115 kN | Speed (grease): 6,500 min-1
105BTR10S d: 105 mm | D: 160 mm | 2B: 49.5 mm | Cr: 58.5 kN | C0r: 131 kN | Speed (grease): 5,000 min-1
105BTR10H d: 105 mm | D: 160 mm | 2B: 49.5 mm | Cr: 58.5 kN | C0r: 131 kN | Speed (grease): 5,700 min-1
110BAR10S d: 110 mm | D: 170 mm | 2B: 54.0 mm | Cr: 55.5 kN | C0r: 131 kN | Speed (grease): 5,400 min-1
110BAR10H d: 110 mm | D: 170 mm | 2B: 54.0 mm | Cr: 55.5 kN | C0r: 131 kN | Speed (grease): 6,100 min-1
110BTR10S d: 110 mm | D: 170 mm | 2B: 54.0 mm | Cr: 66.0 kN | C0r: 148 kN | Speed (grease): 4,700 min-1
110BTR10H d: 110 mm | D: 170 mm | 2B: 54.0 mm | Cr: 66.0 kN | C0r: 148 kN | Speed (grease): 5,400 min-1
120BAR10S d: 120 mm | D: 180 mm | 2B: 54.0 mm | Cr: 57.0 kN | C0r: 141 kN | Speed (grease): 5,000 min-1
120BAR10H d: 120 mm | D: 180 mm | 2B: 54.0 mm | Cr: 57.0 kN | C0r: 141 kN | Speed (grease): 5,700 min-1
120BTR10S d: 120 mm | D: 180 mm | 2B: 54.0 mm | Cr: 68.0 kN | C0r: 160 kN | Speed (grease): 4,400 min-1
120BTR10H d: 120 mm | D: 180 mm | 2B: 54.0 mm | Cr: 68.0 kN | C0r: 160 kN | Speed (grease): 5,000 min-1
130BAR10S d: 130 mm | D: 200 mm | 2B: 63.0 mm | Cr: 72.5 kN | C0r: 172 kN | Speed (grease): 4,600 min-1
130BAR10H d: 130 mm | D: 200 mm | 2B: 63.0 mm | Cr: 72.5 kN | C0r: 172 kN | Speed (grease): 5,200 min-1
130BTR10S d: 130 mm | D: 200 mm | 2B: 63.0 mm | Cr: 86.0 kN | C0r: 195 kN | Speed (grease): 4,000 min-1
130BTR10H d: 130 mm | D: 200 mm | 2B: 63.0 mm | Cr: 86.0 kN | C0r: 195 kN | Speed (grease): 4,600 min-1
140BAR10S d: 140 mm | D: 210 mm | 2B: 63.0 mm | Cr: 78.5 kN | C0r: 200 kN | Speed (grease): 4,300 min-1
140BTR10S d: 140 mm | D: 210 mm | 2B: 63.0 mm | Cr: 93.0 kN | C0r: 227 kN | Speed (grease): 3,800 min-1
150BAR10S d: 150 mm | D: 225 mm | 2B: 67.5 mm | Cr: 92.5 kN | C0r: 234 kN | Speed (grease): 4,000 min-1
150BTR10S d: 150 mm | D: 225 mm | 2B: 67.5 mm | Cr: 110 kN | C0r: 267 kN | Speed (grease): 3,500 min-1
160BAR10S d: 160 mm | D: 240 mm | 2B: 72.0 mm | Cr: 98.5 kN | C0r: 250 kN | Speed (grease): 3,800 min-1
160BTR10S d: 160 mm | D: 240 mm | 2B: 72.0 mm | Cr: 117 kN | C0r: 284 kN | Speed (grease): 3,300 min-1
170BAR10S d: 170 mm | D: 260 mm | 2B: 81.0 mm | Cr: 115 kN | C0r: 295 kN | Speed (grease): 3,500 min-1
170BTR10S d: 170 mm | D: 260 mm | 2B: 81.0 mm | Cr: 136 kN | C0r: 335 kN | Speed (grease): 3,100 min-1
180BAR10S d: 180 mm | D: 280 mm | 2B: 90.0 mm | Cr: 151 kN | C0r: 385 kN | Speed (grease): 3,300 min-1
180BTR10S d: 180 mm | D: 280 mm | 2B: 90.0 mm | Cr: 179 kN | C0r: 440 kN | Speed (grease): 2,900 min-1
190BAR10S d: 190 mm | D: 290 mm | 2B: 90.0 mm | Cr: 151 kN | C0r: 390 kN | Speed (grease): 3,200 min-1
190BTR10S d: 190 mm | D: 290 mm | 2B: 90.0 mm | Cr: 179 kN | C0r: 445 kN | Speed (grease): 2,800 min-1
200BAR10S d: 200 mm | D: 310 mm | 2B: 99.0 mm | Cr: 169 kN | C0r: 444 kN | Speed (grease): 3,000 min-1
200BTR10S d: 200 mm | D: 310 mm | 2B: 99.0 mm | Cr: 201 kN | C0r: 505 kN | Speed (grease): 2,600 min-1
