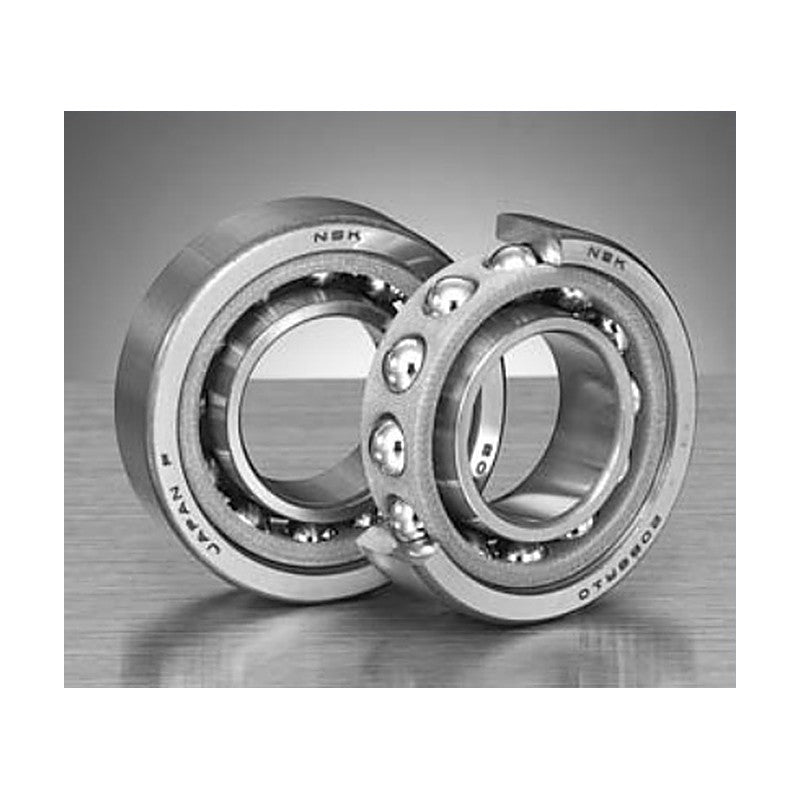

NSK BGR ROBUST Ultra-Precision Angular Contact Bearings (19, 10, 02)

NSK BGR ROBUST Ultra-Precision Angular Contact Bearings (19, 10, 02)

NSK ROBUST BGR ultra-precision angular contact ball bearings with 15° contact angle in BGR19, BGR10 and BGR02 series, bore 6 to 25 mm, in S, H and X types.

Key features

  • 15° contact angle for high-speed precision applications
  • BGR19, BGR10 and BGR02 dimension series
  • Types S (steel), H (ceramic balls), X (SHX rings, ceramic balls)
  • Outer-ring-guided phenolic cage (T)
  • Supplied non-preloaded (EL) as universal sets (SU/DU)

Specifications

Series BGR19 / BGR10 / BGR02
Contact angle 15°
Bore range 6 - 25 mm
Types S, H, X
Speed basis Grease lubrication
Source NSK Super Precision Bearings, p. 81-84
10BGR19S d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.03 kN | C0r: 0.78 kN | Speed (grease): 100,000 min-1
10BGR19H d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.03 kN | C0r: 0.78 kN | Speed (grease): 119,000 min-1
10BGR19X d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.03 kN | C0r: 0.78 kN | Speed (grease): 138,000 min-1
12BGR19S d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.28 kN | C0r: 0.95 kN | Speed (grease): 88,900 min-1
12BGR19H d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.28 kN | C0r: 0.95 kN | Speed (grease): 106,000 min-1
12BGR19X d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.28 kN | C0r: 0.95 kN | Speed (grease): 123,000 min-1
15BGR19S d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.25 kN | C0r: 1.35 kN | Speed (grease): 74,500 min-1
15BGR19H d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.25 kN | C0r: 1.35 kN | Speed (grease): 88,400 min-1
15BGR19X d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.25 kN | C0r: 1.35 kN | Speed (grease): 103,000 min-1
17BGR19S d: 17 mm | D: 30 mm | B: 7 mm | Cr: 3.40 kN | C0r: 1.50 kN | Speed (grease): 68,100 min-1
17BGR19H d: 17 mm | D: 30 mm | B: 7 mm | Cr: 3.40 kN | C0r: 1.50 kN | Speed (grease): 80,900 min-1
17BGR19X d: 17 mm | D: 30 mm | B: 7 mm | Cr: 3.40 kN | C0r: 1.50 kN | Speed (grease): 93,700 min-1
20BGR19S d: 20 mm | D: 37 mm | B: 9 mm | Cr: 4.75 kN | C0r: 2.16 kN | Speed (grease): 56,200 min-1
20BGR19H d: 20 mm | D: 37 mm | B: 9 mm | Cr: 4.75 kN | C0r: 2.16 kN | Speed (grease): 66,700 min-1
20BGR19X d: 20 mm | D: 37 mm | B: 9 mm | Cr: 4.75 kN | C0r: 2.16 kN | Speed (grease): 77,200 min-1
25BGR19S d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.40 kN | C0r: 2.76 kN | Speed (grease): 47,800 min-1
25BGR19H d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.40 kN | C0r: 2.76 kN | Speed (grease): 56,800 min-1
25BGR19X d: 25 mm | D: 42 mm | B: 9 mm | Cr: 5.40 kN | C0r: 2.76 kN | Speed (grease): 65,700 min-1
6BGR10S d: 6 mm | D: 17 mm | B: 6 mm | Cr: 1.42 kN | C0r: 0.43 kN | Speed (grease): 140,000 min-1
6BGR10H d: 6 mm | D: 17 mm | B: 6 mm | Cr: 1.42 kN | C0r: 0.43 kN | Speed (grease): 166,000 min-1
6BGR10X d: 6 mm | D: 17 mm | B: 6 mm | Cr: 1.42 kN | C0r: 0.43 kN | Speed (grease): 192,000 min-1
7BGR10S d: 7 mm | D: 19 mm | B: 6 mm | Cr: 1.60 kN | C0r: 0.52 kN | Speed (grease): 124,000 min-1
7BGR10H d: 7 mm | D: 19 mm | B: 6 mm | Cr: 1.60 kN | C0r: 0.52 kN | Speed (grease): 147,000 min-1
7BGR10X d: 7 mm | D: 19 mm | B: 6 mm | Cr: 1.60 kN | C0r: 0.52 kN | Speed (grease): 170,000 min-1
8BGR10S d: 8 mm | D: 22 mm | B: 7 mm | Cr: 2.37 kN | C0r: 0.80 kN | Speed (grease): 107,000 min-1
8BGR10H d: 8 mm | D: 22 mm | B: 7 mm | Cr: 2.37 kN | C0r: 0.80 kN | Speed (grease): 127,000 min-1
8BGR10X d: 8 mm | D: 22 mm | B: 7 mm | Cr: 2.37 kN | C0r: 0.80 kN | Speed (grease): 147,000 min-1
10BGR10S d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.50 kN | C0r: 1.27 kN | Speed (grease): 88,900 min-1
10BGR10H d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.50 kN | C0r: 1.27 kN | Speed (grease): 106,000 min-1
10BGR10X d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.50 kN | C0r: 1.27 kN | Speed (grease): 123,000 min-1
12BGR10S d: 12 mm | D: 28 mm | B: 8 mm | Cr: 3.85 kN | C0r: 1.48 kN | Speed (grease): 80,000 min-1
12BGR10H d: 12 mm | D: 28 mm | B: 8 mm | Cr: 3.85 kN | C0r: 1.48 kN | Speed (grease): 95,000 min-1
12BGR10X d: 12 mm | D: 28 mm | B: 8 mm | Cr: 3.85 kN | C0r: 1.48 kN | Speed (grease): 110,000 min-1
15BGR10S d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.20 kN | C0r: 1.72 kN | Speed (grease): 68,100 min-1
15BGR10H d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.20 kN | C0r: 1.72 kN | Speed (grease): 80,900 min-1
15BGR10X d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.20 kN | C0r: 1.72 kN | Speed (grease): 93,700 min-1
17BGR10S d: 17 mm | D: 35 mm | B: 10 mm | Cr: 4.45 kN | C0r: 1.93 kN | Speed (grease): 61,600 min-1
17BGR10H d: 17 mm | D: 35 mm | B: 10 mm | Cr: 4.45 kN | C0r: 1.93 kN | Speed (grease): 73,100 min-1
17BGR10X d: 17 mm | D: 35 mm | B: 10 mm | Cr: 4.45 kN | C0r: 1.93 kN | Speed (grease): 84,700 min-1
20BGR10S d: 20 mm | D: 42 mm | B: 12 mm | Cr: 7.45 kN | C0r: 3.35 kN | Speed (grease): 51,700 min-1
20BGR10H d: 20 mm | D: 42 mm | B: 12 mm | Cr: 7.45 kN | C0r: 3.35 kN | Speed (grease): 61,300 min-1
20BGR10X d: 20 mm | D: 42 mm | B: 12 mm | Cr: 7.45 kN | C0r: 3.35 kN | Speed (grease): 71,000 min-1
25BGR10S d: 25 mm | D: 47 mm | B: 12 mm | Cr: 7.90 kN | C0r: 3.75 kN | Speed (grease): 44,500 min-1
25BGR10H d: 25 mm | D: 47 mm | B: 12 mm | Cr: 7.90 kN | C0r: 3.75 kN | Speed (grease): 52,800 min-1
25BGR10X d: 25 mm | D: 47 mm | B: 12 mm | Cr: 7.90 kN | C0r: 3.75 kN | Speed (grease): 61,200 min-1
10BGR02S d: 10 mm | D: 30 mm | B: 9 mm | Cr: 3.60 kN | C0r: 1.33 kN | Speed (grease): 80,000 min-1
10BGR02H d: 10 mm | D: 30 mm | B: 9 mm | Cr: 3.60 kN | C0r: 1.33 kN | Speed (grease): 95,000 min-1
10BGR02X d: 10 mm | D: 30 mm | B: 9 mm | Cr: 3.60 kN | C0r: 1.33 kN | Speed (grease): 110,000 min-1
12BGR02S d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.30 kN | C0r: 1.99 kN | Speed (grease): 72,800 min-1
12BGR02H d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.30 kN | C0r: 1.99 kN | Speed (grease): 86,400 min-1
12BGR02X d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.30 kN | C0r: 1.99 kN | Speed (grease): 100,000 min-1
15BGR02S d: 15 mm | D: 35 mm | B: 11 mm | Cr: 5.80 kN | C0r: 2.34 kN | Speed (grease): 64,000 min-1
15BGR02H d: 15 mm | D: 35 mm | B: 11 mm | Cr: 5.80 kN | C0r: 2.34 kN | Speed (grease): 76,000 min-1
15BGR02X d: 15 mm | D: 35 mm | B: 11 mm | Cr: 5.80 kN | C0r: 2.34 kN | Speed (grease): 88,000 min-1
17BGR02S d: 17 mm | D: 40 mm | B: 12 mm | Cr: 7.25 kN | C0r: 2.98 kN | Speed (grease): 56,200 min-1
17BGR02H d: 17 mm | D: 40 mm | B: 12 mm | Cr: 7.25 kN | C0r: 2.98 kN | Speed (grease): 66,700 min-1
17BGR02X d: 17 mm | D: 40 mm | B: 12 mm | Cr: 7.25 kN | C0r: 2.98 kN | Speed (grease): 77,200 min-1
20BGR02S d: 20 mm | D: 47 mm | B: 14 mm | Cr: 9.70 kN | C0r: 4.10 kN | Speed (grease): 47,800 min-1
20BGR02H d: 20 mm | D: 47 mm | B: 14 mm | Cr: 9.70 kN | C0r: 4.10 kN | Speed (grease): 56,800 min-1
20BGR02X d: 20 mm | D: 47 mm | B: 14 mm | Cr: 9.70 kN | C0r: 4.10 kN | Speed (grease): 65,700 min-1
25BGR02S d: 25 mm | D: 52 mm | B: 15 mm | Cr: 11.1 kN | C0r: 5.20 kN | Speed (grease): 41,600 min-1
25BGR02H d: 25 mm | D: 52 mm | B: 15 mm | Cr: 11.1 kN | C0r: 5.20 kN | Speed (grease): 49,400 min-1
25BGR02X d: 25 mm | D: 52 mm | B: 15 mm | Cr: 11.1 kN | C0r: 5.20 kN | Speed (grease): 57,200 min-1
Angular Contact Ball BearingsNSK
63 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK BGR ROBUST Ultra-Precision Angular Contact Bearings (19, 10, 02)

Brand NSK·Angular Contact Ball Bearings

Available part numbers (63)

10BGR19S, 10BGR19H, 10BGR19X, 12BGR19S, 12BGR19H, 12BGR19X, 15BGR19S, 15BGR19H, 15BGR19X, 17BGR19S + 53 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
