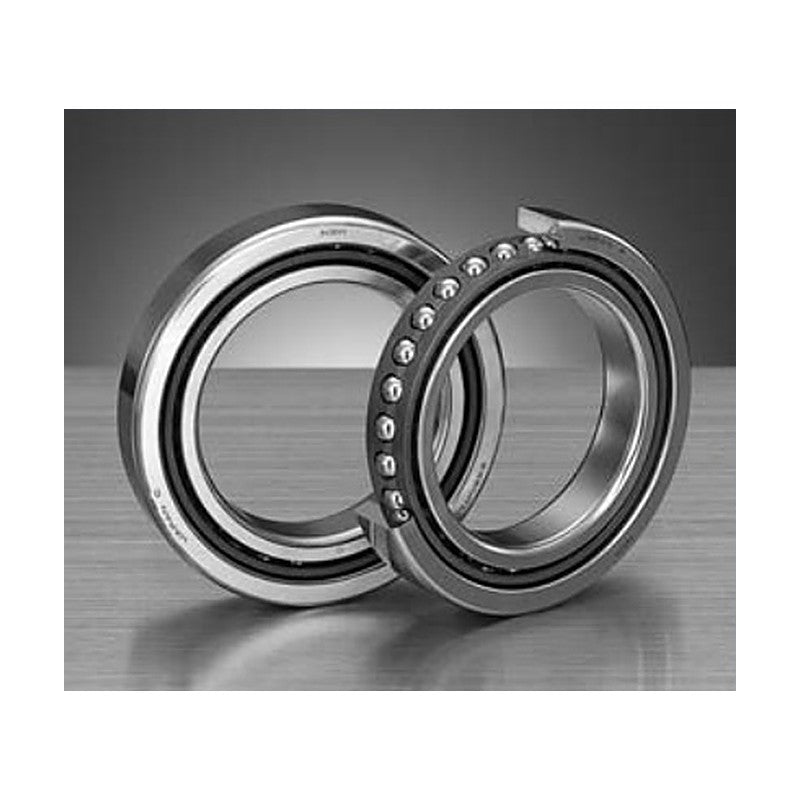

NSK BNR29 / BER29 Sealed ROBUST Angular Contact Bearings (V1V)

NSK BNR29 / BER29 Sealed ROBUST Angular Contact Bearings (V1V)

NSK ROBUST BNR29 (18°) and BER29 (25°) sealed ultra high-speed angular contact ball bearings with non-contact V1V seals, wide 19-series section, bore 30 to 100 mm.

Key features

  • Non-contact rubber seals both sides (V1V), pre-greased
  • Wide-width version of the 19 dimension series
  • Types S, H (ceramic balls) and X (SHX rings, ceramic balls)
  • BNR 18° and BER 25° nominal contact angles
  • Reduces grease handling at spindle assembly

Specifications

Series BNR29 / BER29
Contact angle BNR 18°, BER 25°
Bore range 30 - 100 mm
Seal V1V non-contact seals
Speed basis Grease lubrication
Source NSK Super Precision Bearings, p. 74-76
30BNR29SV1V d: 30 mm | D: 47 mm | B: 11 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 36,400 min-1
30BNR29HV1V d: 30 mm | D: 47 mm | B: 11 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 46,800 min-1
30BNR29XV1V d: 30 mm | D: 47 mm | B: 11 mm | Cr: 6.30 kN | C0r: 4.05 kN | Speed (grease): 54,600 min-1
30BER29SV1V d: 30 mm | D: 47 mm | B: 11 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 31,200 min-1
30BER29HV1V d: 30 mm | D: 47 mm | B: 11 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 41,600 min-1
30BER29XV1V d: 30 mm | D: 47 mm | B: 11 mm | Cr: 6.00 kN | C0r: 3.90 kN | Speed (grease): 49,400 min-1
35BNR29SV1V d: 35 mm | D: 55 mm | B: 13 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 31,200 min-1
35BNR29HV1V d: 35 mm | D: 55 mm | B: 13 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 40,000 min-1
35BNR29XV1V d: 35 mm | D: 55 mm | B: 13 mm | Cr: 9.20 kN | C0r: 6.00 kN | Speed (grease): 46,700 min-1
35BER29SV1V d: 35 mm | D: 55 mm | B: 13 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 26,700 min-1
35BER29HV1V d: 35 mm | D: 55 mm | B: 13 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 35,600 min-1
35BER29XV1V d: 35 mm | D: 55 mm | B: 13 mm | Cr: 8.80 kN | C0r: 5.75 kN | Speed (grease): 42,300 min-1
40BNR29SV1V d: 40 mm | D: 62 mm | B: 14 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 27,500 min-1
40BNR29HV1V d: 40 mm | D: 62 mm | B: 14 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 35,300 min-1
40BNR29XV1V d: 40 mm | D: 62 mm | B: 14 mm | Cr: 11.5 kN | C0r: 7.65 kN | Speed (grease): 41,200 min-1
40BER29SV1V d: 40 mm | D: 62 mm | B: 14 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 23,600 min-1
40BER29HV1V d: 40 mm | D: 62 mm | B: 14 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 31,400 min-1
40BER29XV1V d: 40 mm | D: 62 mm | B: 14 mm | Cr: 11.0 kN | C0r: 7.35 kN | Speed (grease): 37,300 min-1
45BNR29SV1V d: 45 mm | D: 68 mm | B: 14 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 24,800 min-1
45BNR29HV1V d: 45 mm | D: 68 mm | B: 14 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 31,900 min-1
45BNR29XV1V d: 45 mm | D: 68 mm | B: 14 mm | Cr: 12.1 kN | C0r: 8.70 kN | Speed (grease): 37,200 min-1
45BER29SV1V d: 45 mm | D: 68 mm | B: 14 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 21,300 min-1
45BER29HV1V d: 45 mm | D: 68 mm | B: 14 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 28,400 min-1
45BER29XV1V d: 45 mm | D: 68 mm | B: 14 mm | Cr: 11.6 kN | C0r: 8.35 kN | Speed (grease): 33,700 min-1
50BNR29SV1V d: 50 mm | D: 72 mm | B: 14 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 23,000 min-1
50BNR29HV1V d: 50 mm | D: 72 mm | B: 14 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 29,600 min-1
50BNR29XV1V d: 50 mm | D: 72 mm | B: 14 mm | Cr: 12.8 kN | C0r: 9.75 kN | Speed (grease): 34,500 min-1
50BER29SV1V d: 50 mm | D: 72 mm | B: 14 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 19,700 min-1
50BER29HV1V d: 50 mm | D: 72 mm | B: 14 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 26,300 min-1
50BER29XV1V d: 50 mm | D: 72 mm | B: 14 mm | Cr: 12.3 kN | C0r: 9.35 kN | Speed (grease): 31,200 min-1
55BNR29SV1V d: 55 mm | D: 80 mm | B: 16 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 20,800 min-1
55BNR29HV1V d: 55 mm | D: 80 mm | B: 16 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 26,700 min-1
55BNR29XV1V d: 55 mm | D: 80 mm | B: 16 mm | Cr: 14.4 kN | C0r: 11.4 kN | Speed (grease): 31,200 min-1
55BER29SV1V d: 55 mm | D: 80 mm | B: 16 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 17,800 min-1
55BER29HV1V d: 55 mm | D: 80 mm | B: 16 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 23,800 min-1
55BER29XV1V d: 55 mm | D: 80 mm | B: 16 mm | Cr: 13.8 kN | C0r: 10.9 kN | Speed (grease): 28,200 min-1
60BNR29SV1V d: 60 mm | D: 85 mm | B: 16 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 19,400 min-1
60BNR29HV1V d: 60 mm | D: 85 mm | B: 16 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 24,900 min-1
60BNR29XV1V d: 60 mm | D: 85 mm | B: 16 mm | Cr: 14.6 kN | C0r: 12.0 kN | Speed (grease): 29,000 min-1
60BER29SV1V d: 60 mm | D: 85 mm | B: 16 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 16,600 min-1
60BER29HV1V d: 60 mm | D: 85 mm | B: 16 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 22,100 min-1
60BER29XV1V d: 60 mm | D: 85 mm | B: 16 mm | Cr: 14.0 kN | C0r: 11.5 kN | Speed (grease): 26,300 min-1
65BNR29SV1V d: 65 mm | D: 90 mm | B: 16 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 18,100 min-1
65BNR29HV1V d: 65 mm | D: 90 mm | B: 16 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 23,300 min-1
65BNR29XV1V d: 65 mm | D: 90 mm | B: 16 mm | Cr: 15.2 kN | C0r: 13.2 kN | Speed (grease): 27,100 min-1
65BER29SV1V d: 65 mm | D: 90 mm | B: 16 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 15,500 min-1
65BER29HV1V d: 65 mm | D: 90 mm | B: 16 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 20,700 min-1
65BER29XV1V d: 65 mm | D: 90 mm | B: 16 mm | Cr: 14.5 kN | C0r: 12.6 kN | Speed (grease): 24,600 min-1
70BNR29SV1V d: 70 mm | D: 100 mm | B: 19 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 16,500 min-1
70BNR29HV1V d: 70 mm | D: 100 mm | B: 19 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 21,200 min-1
70BNR29XV1V d: 70 mm | D: 100 mm | B: 19 mm | Cr: 21.3 kN | C0r: 18.1 kN | Speed (grease): 24,800 min-1
70BER29SV1V d: 70 mm | D: 100 mm | B: 19 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 14,200 min-1
70BER29HV1V d: 70 mm | D: 100 mm | B: 19 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 18,900 min-1
70BER29XV1V d: 70 mm | D: 100 mm | B: 19 mm | Cr: 20.4 kN | C0r: 17.3 kN | Speed (grease): 22,400 min-1
75BNR29SV1V d: 75 mm | D: 105 mm | B: 19 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 15,600 min-1
75BNR29HV1V d: 75 mm | D: 105 mm | B: 19 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 20,000 min-1
75BNR29XV1V d: 75 mm | D: 105 mm | B: 19 mm | Cr: 21.6 kN | C0r: 19.0 kN | Speed (grease): 23,400 min-1
75BER29SV1V d: 75 mm | D: 105 mm | B: 19 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 13,400 min-1
75BER29HV1V d: 75 mm | D: 105 mm | B: 19 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 17,800 min-1
75BER29XV1V d: 75 mm | D: 105 mm | B: 19 mm | Cr: 20.7 kN | C0r: 18.2 kN | Speed (grease): 21,200 min-1
80BNR29SV1V d: 80 mm | D: 110 mm | B: 19 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 14,800 min-1
80BNR29HV1V d: 80 mm | D: 110 mm | B: 19 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 19,000 min-1
80BNR29XV1V d: 80 mm | D: 110 mm | B: 19 mm | Cr: 22.0 kN | C0r: 19.9 kN | Speed (grease): 22,200 min-1
80BER29SV1V d: 80 mm | D: 110 mm | B: 19 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 12,700 min-1
80BER29HV1V d: 80 mm | D: 110 mm | B: 19 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 16,900 min-1
80BER29XV1V d: 80 mm | D: 110 mm | B: 19 mm | Cr: 21.0 kN | C0r: 19.1 kN | Speed (grease): 20,000 min-1
85BNR29SV1V d: 85 mm | D: 120 mm | B: 22 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 13,700 min-1
85BNR29HV1V d: 85 mm | D: 120 mm | B: 22 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 17,600 min-1
85BNR29XV1V d: 85 mm | D: 120 mm | B: 22 mm | Cr: 29.4 kN | C0r: 26.3 kN | Speed (grease): 20,500 min-1
85BER29SV1V d: 85 mm | D: 120 mm | B: 22 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 11,800 min-1
85BER29HV1V d: 85 mm | D: 120 mm | B: 22 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 15,700 min-1
85BER29XV1V d: 85 mm | D: 120 mm | B: 22 mm | Cr: 28.1 kN | C0r: 25.2 kN | Speed (grease): 18,600 min-1
90BNR29SV1V d: 90 mm | D: 125 mm | B: 22 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 13,100 min-1
90BNR29HV1V d: 90 mm | D: 125 mm | B: 22 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 16,800 min-1
90BNR29XV1V d: 90 mm | D: 125 mm | B: 22 mm | Cr: 31.5 kN | C0r: 29.7 kN | Speed (grease): 19,600 min-1
90BER29SV1V d: 90 mm | D: 125 mm | B: 22 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 11,200 min-1
90BER29HV1V d: 90 mm | D: 125 mm | B: 22 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 14,900 min-1
90BER29XV1V d: 90 mm | D: 125 mm | B: 22 mm | Cr: 30.0 kN | C0r: 28.5 kN | Speed (grease): 17,700 min-1
95BNR29SV1V d: 95 mm | D: 130 mm | B: 22 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 12,500 min-1
95BNR29HV1V d: 95 mm | D: 130 mm | B: 22 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 16,000 min-1
95BNR29XV1V d: 95 mm | D: 130 mm | B: 22 mm | Cr: 32.0 kN | C0r: 31.0 kN | Speed (grease): 18,700 min-1
95BER29SV1V d: 95 mm | D: 130 mm | B: 22 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 10,700 min-1
95BER29HV1V d: 95 mm | D: 130 mm | B: 22 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 14,300 min-1
95BER29XV1V d: 95 mm | D: 130 mm | B: 22 mm | Cr: 30.5 kN | C0r: 29.7 kN | Speed (grease): 16,900 min-1
100BNR29SV1V d: 100 mm | D: 140 mm | B: 24 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 11,700 min-1
100BNR29HV1V d: 100 mm | D: 140 mm | B: 24 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 15,000 min-1
100BNR29XV1V d: 100 mm | D: 140 mm | B: 24 mm | Cr: 38.0 kN | C0r: 35.0 kN | Speed (grease): 17,500 min-1
100BER29SV1V d: 100 mm | D: 140 mm | B: 24 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 10,000 min-1
100BER29HV1V d: 100 mm | D: 140 mm | B: 24 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 13,400 min-1
100BER29XV1V d: 100 mm | D: 140 mm | B: 24 mm | Cr: 36.0 kN | C0r: 33.5 kN | Speed (grease): 15,900 min-1
