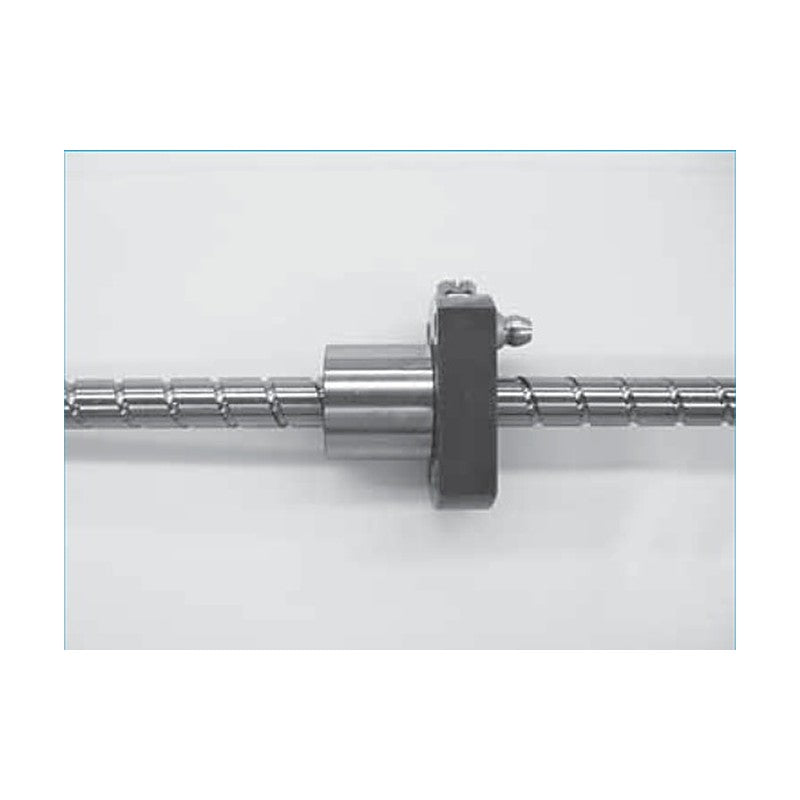

NSK BSS End Deflector Type Ball Screws (Standard Nut)

NSK BSS End Deflector Type Ball Screws (Standard Nut)

NSK BSS end deflector type standard nut ball screws offer high-speed, low-noise operation with a compact nut.

Key features

  • End deflector ball recirculation
  • Compact nut outside diameter
  • Suited to high-speed operation
  • Shaft diameters 10 to 50 mm
  • Leads up to 100 mm

Specifications

Nut type End deflector
Series BSS
Brand NSK
Product type Ball Screws
Listed models 56
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B467-B472
BSS1005-3E Shaft dia d: 10 mm | Lead l: 5 mm | Ca: 2.93 kN | C0a: 4.79 kN | Nut model: BSS
BSS1010-2E Shaft dia d: 10 mm | Lead l: 10 mm | Ca: 1.97 kN | C0a: 3.01 kN | Nut model: BSS
BSS1205-3E Shaft dia d: 12 mm | Lead l: 5 mm | Ca: 3.2 kN | C0a: 5.86 kN | Nut model: BSS
BSS1210-3E Shaft dia d: 12 mm | Lead l: 10 mm | Ca: 3.2 kN | C0a: 5.86 kN | Nut model: BSS
BSS1220-2E Shaft dia d: 12 mm | Lead l: 20 mm | Ca: 2.15 kN | C0a: 3.61 kN | Nut model: BSS
BSS1230-2E Shaft dia d: 12 mm | Lead l: 30 mm | Ca: 2.15 kN | C0a: 3.61 kN | Nut model: BSS
BSS1505-3E Shaft dia d: 15 mm | Lead l: 5 mm | Ca: 5.46 kN | C0a: 10.2 kN | Nut model: BSS
BSS1510-3E Shaft dia d: 15 mm | Lead l: 10 mm | Ca: 5.46 kN | C0a: 10.2 kN | Nut model: BSS
BSS1520-2E Shaft dia d: 15 mm | Lead l: 20 mm | Ca: 5.07 kN | C0a: 8.73 kN | Nut model: BSS
BSS1530-2E Shaft dia d: 15 mm | Lead l: 30 mm | Ca: 5.07 kN | C0a: 8.73 kN | Nut model: BSS
BSS2005-3E Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 8.79 kN | C0a: 18.5 kN | Nut model: BSS
BSS2010-3E Shaft dia d: 20 mm | Lead l: 10 mm | Ca: 8.79 kN | C0a: 18.5 kN | Nut model: BSS
BSS2020-2E Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 5.9 kN | C0a: 11.7 kN | Nut model: BSS
BSS2030-2E Shaft dia d: 20 mm | Lead l: 30 mm | Ca: 5.9 kN | C0a: 11.7 kN | Nut model: BSS
BSS2040-2E Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 5.9 kN | C0a: 11.7 kN | Nut model: BSS
BSS2060-2E Shaft dia d: 20 mm | Lead l: 60 mm | Ca: 5.9 kN | C0a: 11.7 kN | Nut model: BSS
BSS2505-3E Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 9.76 kN | C0a: 23.6 kN | Nut model: BSS
BSS2510-4E Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 12.8 kN | C0a: 32.3 kN | Nut model: BSS
BSS2520-2E Shaft dia d: 25 mm | Lead l: 20 mm | Ca: 6.56 kN | C0a: 14.6 kN | Nut model: BSS
BSS2525-2E Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 6.56 kN | C0a: 14.6 kN | Nut model: BSS
BSS2530-2E Shaft dia d: 25 mm | Lead l: 30 mm | Ca: 6.56 kN | C0a: 14.6 kN | Nut model: BSS
BSS2550-2E Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 6.56 kN | C0a: 14.6 kN | Nut model: BSS
BSS3205-4E Shaft dia d: 32 mm | Lead l: 5 mm | Ca: 14.2 kN | C0a: 41.4 kN | Nut model: BSS
BSS3210-6E Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 43.3 kN | C0a: 111 kN | Nut model: BSS
BSS3212-5E Shaft dia d: 32 mm | Lead l: 12 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: BSS
BSS3216-5E Shaft dia d: 32 mm | Lead l: 16 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: BSS
BSS3220-5E Shaft dia d: 32 mm | Lead l: 20 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: BSS
BSS3232-2E Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 15.3 kN | C0a: 32.4 kN | Nut model: BSS
BSS3264-2E Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 15.3 kN | C0a: 32.4 kN | Nut model: BSS
BSS3605-3E Shaft dia d: 36 mm | Lead l: 5 mm | Ca: 11.4 kN | C0a: 34.1 kN | Nut model: BSS
BSS3610-6E Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 55.2 kN | C0a: 142 kN | Nut model: BSS
BSS3612-6E Shaft dia d: 36 mm | Lead l: 12 mm | Ca: 55.2 kN | C0a: 142 kN | Nut model: BSS
BSS3616-6E Shaft dia d: 36 mm | Lead l: 16 mm | Ca: 55.2 kN | C0a: 142 kN | Nut model: BSS
BSS3620-6E Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 55.2 kN | C0a: 142 kN | Nut model: BSS
BSS4010-5E Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 49.3 kN | C0a: 130 kN | Nut model: BSS
BSS4012-5E Shaft dia d: 40 mm | Lead l: 12 mm | Ca: 49.3 kN | C0a: 130 kN | Nut model: BSS
BSS4016-5E Shaft dia d: 40 mm | Lead l: 16 mm | Ca: 49.3 kN | C0a: 130 kN | Nut model: BSS
BSS4020-5E Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 49.3 kN | C0a: 130 kN | Nut model: BSS
BSS4025-4E Shaft dia d: 40 mm | Lead l: 25 mm | Ca: 40.1 kN | C0a: 103 kN | Nut model: BSS
BSS4030-3E Shaft dia d: 40 mm | Lead l: 30 mm | Ca: 30.6 kN | C0a: 74 kN | Nut model: BSS
BSS4040-2E Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 20.6 kN | C0a: 46.6 kN | Nut model: BSS
BSS4080-2E Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 20.6 kN | C0a: 46.6 kN | Nut model: BSS
BSS4510-5E Shaft dia d: 45 mm | Lead l: 10 mm | Ca: 51.4 kN | C0a: 146 kN | Nut model: BSS
BSS4512-5E Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 51.4 kN | C0a: 146 kN | Nut model: BSS
BSS4516-5E Shaft dia d: 45 mm | Lead l: 16 mm | Ca: 51.4 kN | C0a: 146 kN | Nut model: BSS
BSS4520-5E Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 51.4 kN | C0a: 146 kN | Nut model: BSS
BSS4525-5E Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 51.4 kN | C0a: 146 kN | Nut model: BSS
BSS4530-4E Shaft dia d: 45 mm | Lead l: 30 mm | Ca: 41.8 kN | C0a: 116 kN | Nut model: BSS
BSS5010-4E Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 44.6 kN | C0a: 129 kN | Nut model: BSS
BSS5012-4E Shaft dia d: 50 mm | Lead l: 12 mm | Ca: 44.6 kN | C0a: 129 kN | Nut model: BSS
BSS5016-4E Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 44.6 kN | C0a: 129 kN | Nut model: BSS
BSS5020-4E Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 44.6 kN | C0a: 129 kN | Nut model: BSS
BSS5025-4E Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 44.6 kN | C0a: 129 kN | Nut model: BSS
BSS5030-4E Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 44.6 kN | C0a: 129 kN | Nut model: BSS
BSS5050-2E Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 22.8 kN | C0a: 58.3 kN | Nut model: BSS
BSS50100-2E Shaft dia d: 50 mm | Lead l: 100 mm | Ca: 22.8 kN | C0a: 58.3 kN | Nut model: BSS
Ball ScrewsNSK
56 product codes available in this family
