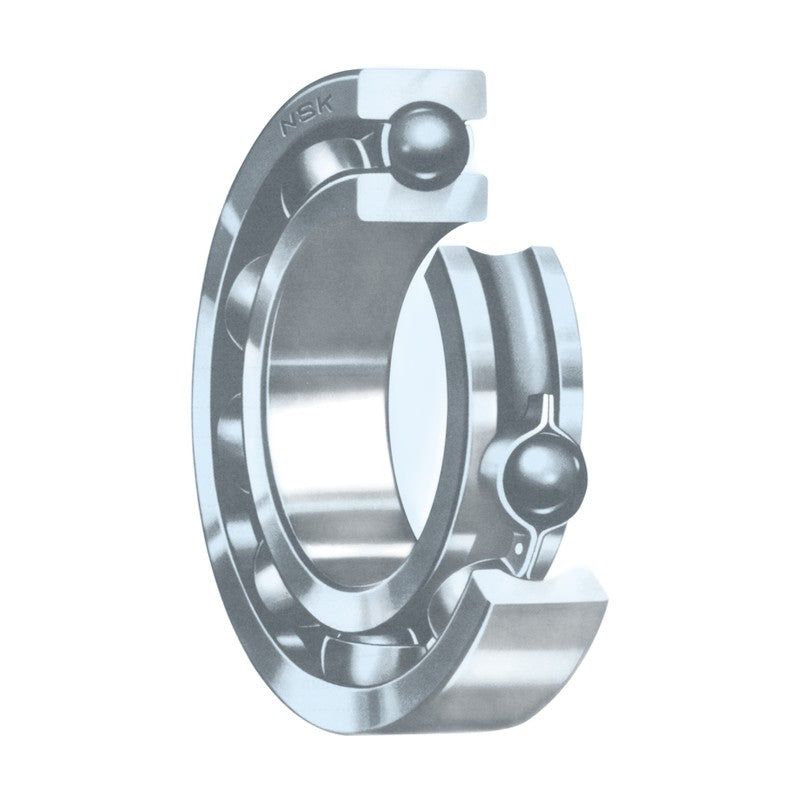

NSK E / EN Series Magneto Ball Bearings

NSK E / EN Series Magneto Ball Bearings

NSK magneto ball bearings (E, EN, BO and L types), bore 4-20 mm; the outer ring has a single shoulder so the bearing can be separated for mounting.

Key features

  • Separable design: outer ring can be removed from the inner ring and ball set
  • Carries radial load and axial load in one direction
  • Compact, lightweight bearing for small generators, magnetos and instruments
  • E series outer ring tolerance is plus-toleranced as noted in the catalogue

Specifications

Bearing type Magneto (separable) ball bearing
Series E, EN, BO, L
Bore range 4-20 mm
Load ratings Basic dynamic Cr / static C0r
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B28-B29
E4 d: 4 mm | D: 16 mm | B: 5 mm | Cr: 1.65 kN | C0r: 0.288 kN | Grease speed: 34000 rpm
EN4 d: 4 mm | D: 16 mm | B: 5 mm | Cr: 1.65 kN | C0r: 0.288 kN | Grease speed: 34000 rpm
E5 d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.65 kN | C0r: 0.288 kN | Grease speed: 34000 rpm
EN5 d: 5 mm | D: 16 mm | B: 5 mm | Cr: 1.65 kN | C0r: 0.288 kN | Grease speed: 34000 rpm
E6 d: 6 mm | D: 21 mm | B: 7 mm | Cr: 2.49 kN | C0r: 0.445 kN | Grease speed: 30000 rpm
EN6 d: 6 mm | D: 21 mm | B: 7 mm | Cr: 2.49 kN | C0r: 0.445 kN | Grease speed: 30000 rpm
E7 d: 7 mm | D: 22 mm | B: 7 mm | Cr: 2.49 kN | C0r: 0.445 kN | Grease speed: 30000 rpm
EN7 d: 7 mm | D: 22 mm | B: 7 mm | Cr: 2.49 kN | C0r: 0.445 kN | Grease speed: 30000 rpm
E8 d: 8 mm | D: 24 mm | B: 7 mm | Cr: 3.45 kN | C0r: 0.65 kN | Grease speed: 28000 rpm
EN8 d: 8 mm | D: 24 mm | B: 7 mm | Cr: 3.45 kN | C0r: 0.65 kN | Grease speed: 28000 rpm
E9 d: 9 mm | D: 28 mm | B: 8 mm | Cr: 4.55 kN | C0r: 0.88 kN | Grease speed: 24000 rpm
EN9 d: 9 mm | D: 28 mm | B: 8 mm | Cr: 4.55 kN | C0r: 0.88 kN | Grease speed: 24000 rpm
E10 d: 10 mm | D: 28 mm | B: 8 mm | Cr: 4.55 kN | C0r: 0.88 kN | Grease speed: 24000 rpm
EN10 d: 10 mm | D: 28 mm | B: 8 mm | Cr: 4.55 kN | C0r: 0.88 kN | Grease speed: 24000 rpm
E11 d: 11 mm | D: 32 mm | B: 7 mm | Cr: 4.4 kN | C0r: 0.845 kN | Grease speed: 22000 rpm
EN11 d: 11 mm | D: 32 mm | B: 7 mm | Cr: 4.4 kN | C0r: 0.845 kN | Grease speed: 22000 rpm
E12 d: 12 mm | D: 32 mm | B: 7 mm | Cr: 4.4 kN | C0r: 0.845 kN | Grease speed: 22000 rpm
EN12 d: 12 mm | D: 32 mm | B: 7 mm | Cr: 4.4 kN | C0r: 0.845 kN | Grease speed: 22000 rpm
E13 d: 13 mm | D: 30 mm | B: 7 mm | Cr: 4.4 kN | C0r: 0.845 kN | Grease speed: 22000 rpm
EN13 d: 13 mm | D: 30 mm | B: 7 mm | Cr: 4.4 kN | C0r: 0.845 kN | Grease speed: 22000 rpm
EN14 d: 14 mm | D: 35 mm | B: 8 mm | Cr: 5.8 kN | C0r: 1.15 kN | Grease speed: 19000 rpm
E15 d: 15 mm | D: 35 mm | B: 8 mm | Cr: 5.8 kN | C0r: 1.15 kN | Grease speed: 19000 rpm
EN15 d: 15 mm | D: 35 mm | B: 8 mm | Cr: 5.8 kN | C0r: 1.15 kN | Grease speed: 19000 rpm
BO15 d: 15 mm | D: 40 mm | B: 10 mm | Cr: 7.4 kN | C0r: 1.5 kN | Grease speed: 17000 rpm
EN16 d: 16 mm | D: 38 mm | B: 10 mm | Cr: 6.9 kN | C0r: 1.38 kN | Grease speed: 17000 rpm
L17 d: 17 mm | D: 40 mm | B: 10 mm | Cr: 7.4 kN | C0r: 1.5 kN | Grease speed: 17000 rpm
EN17 d: 17 mm | D: 44 mm | B: 11 mm | Cr: 7.35 kN | C0r: 1.5 kN | Grease speed: 16000 rpm
BO17 d: 17 mm | D: 44 mm | B: 11 mm | Cr: 7.35 kN | C0r: 1.5 kN | Grease speed: 16000 rpm
EN18 d: 18 mm | D: 40 mm | B: mm | Cr: 5.05 kN | C0r: 1.03 kN | Grease speed: 17000 rpm
E19 d: 19 mm | D: 40 mm | B: mm | Cr: 5.05 kN | C0r: 1.03 kN | Grease speed: 17000 rpm
EN19 d: 19 mm | D: 40 mm | B: mm | Cr: 5.05 kN | C0r: 1.03 kN | Grease speed: 17000 rpm
E20 d: 20 mm | D: 47 mm | B: 12 mm | Cr: 11 kN | C0r: 2.38 kN | Grease speed: 14000 rpm
EN20 d: 20 mm | D: 47 mm | B: 12 mm | Cr: 11 kN | C0r: 2.38 kN | Grease speed: 14000 rpm
L20 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 11 kN | C0r: 2.38 kN | Grease speed: 14000 rpm
