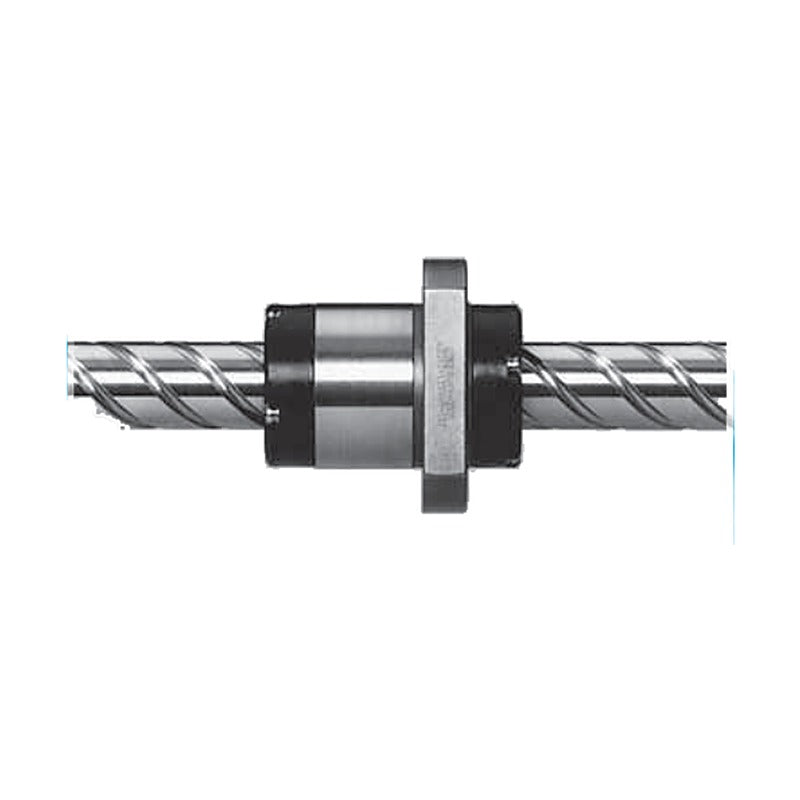

NSK End Cap Type Ball Screws, Standard Nut (USFC, UPFC, LSFC, LPFC)

NSK End Cap Type Ball Screws, Standard Nut (USFC, UPFC, LSFC, LPFC)

NSK end cap type standard nut ball screws for high helix and ultra high helix leads and high-speed transfer.

Key features

  • End cap recirculation for high helix leads
  • High-speed travel
  • USFC/UPFC ultra high helix, LSFC/LPFC high helix
  • Clearance and P preload
  • Compact nut

Specifications

Nut type End cap
Brand NSK
Product type Ball Screws
Listed models 68
Dimension units mm
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B521-B526
USFC 1220-1.5 Shaft dia d: 12 mm | Lead l: 20 mm | Ca: 2.69 kN | C0a: 4.42 kN | Nut model: USFC
UPFC 1220-1.5 Shaft dia d: 12 mm | Lead l: 20 mm | Ca: 2.69 kN | C0a: 4.42 kN | Nut model: UPFC
USFC 1520-1.5 Shaft dia d: 15 mm | Lead l: 20 mm | Ca: 5.07 kN | C0a: 8.73 kN | Nut model: USFC
UPFC 1520-1.5 Shaft dia d: 15 mm | Lead l: 20 mm | Ca: 5.07 kN | C0a: 8.73 kN | Nut model: UPFC
USFC 1540-1 Shaft dia d: 15 mm | Lead l: 40 mm | Ca: 3.86 kN | C0a: 6.05 kN | Nut model: USFC
UPFC 1540-1 Shaft dia d: 15 mm | Lead l: 40 mm | Ca: 3.86 kN | C0a: 6.05 kN | Nut model: UPFC
USFC 1540-2 Shaft dia d: 15 mm | Lead l: 40 mm | Ca: 7 kN | C0a: 12.1 kN | Nut model: USFC
UPFC 1540-2 Shaft dia d: 15 mm | Lead l: 40 mm | Ca: 7 kN | C0a: 12.1 kN | Nut model: UPFC
LSFC 1616-3 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 6.38 kN | C0a: 12.5 kN | Nut model: LSFC
LPFC 1616-3 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 6.38 kN | C0a: 12.5 kN | Nut model: LPFC
LSFC 1616-6 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 11.6 kN | C0a: 25 kN | Nut model: LSFC
LPFC 1616-6 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 11.6 kN | C0a: 25 kN | Nut model: LPFC
USFC 1632-1 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 4 kN | C0a: 6.69 kN | Nut model: USFC
UPFC 1632-1 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 4 kN | C0a: 6.69 kN | Nut model: UPFC
USFC 1632-3 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 8.58 kN | C0a: 17 kN | Nut model: USFC
UPFC 1632-3 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 8.58 kN | C0a: 17 kN | Nut model: UPFC
USFC 1632-6 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 15.6 kN | C0a: 34.1 kN | Nut model: USFC
UPFC 1632-6 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 15.6 kN | C0a: 34.1 kN | Nut model: UPFC
USFC 1650-1 Shaft dia d: 16 mm | Lead l: 50 mm | Ca: 4 kN | C0a: 6.69 kN | Nut model: USFC
UPFC 1650-1 Shaft dia d: 16 mm | Lead l: 50 mm | Ca: 4 kN | C0a: 6.69 kN | Nut model: UPFC
USFC 1650-2 Shaft dia d: 16 mm | Lead l: 50 mm | Ca: 7.26 kN | C0a: 13.4 kN | Nut model: USFC
UPFC 1650-2 Shaft dia d: 16 mm | Lead l: 50 mm | Ca: 7.26 kN | C0a: 13.4 kN | Nut model: UPFC
LSFC 2020-3 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 9.62 kN | C0a: 21 kN | Nut model: LSFC
LPFC 2020-3 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 9.62 kN | C0a: 21 kN | Nut model: LPFC
LSFC 2020-6 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 17.5 kN | C0a: 42 kN | Nut model: LSFC
LPFC 2020-6 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 17.5 kN | C0a: 42 kN | Nut model: LPFC
USFC 2040-1 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 4.49 kN | C0a: 8.64 kN | Nut model: USFC
UPFC 2040-1 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 4.49 kN | C0a: 8.64 kN | Nut model: UPFC
USFC 2040-3 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 9.62 kN | C0a: 21 kN | Nut model: USFC
UPFC 2040-3 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 9.62 kN | C0a: 21 kN | Nut model: UPFC
USFC 2040-6 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 17.5 kN | C0a: 42 kN | Nut model: USFC
UPFC 2040-6 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 17.5 kN | C0a: 42 kN | Nut model: UPFC
USFC 2060-1 Shaft dia d: 20 mm | Lead l: 60 mm | Ca: 4.49 kN | C0a: 8.64 kN | Nut model: USFC
UPFC 2060-1 Shaft dia d: 20 mm | Lead l: 60 mm | Ca: 4.49 kN | C0a: 8.64 kN | Nut model: UPFC
USFC 2060-2 Shaft dia d: 20 mm | Lead l: 60 mm | Ca: 8.14 kN | C0a: 17.3 kN | Nut model: USFC
UPFC 2060-2 Shaft dia d: 20 mm | Lead l: 60 mm | Ca: 8.14 kN | C0a: 17.3 kN | Nut model: UPFC
LSFC 2525-3 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 14.4 kN | C0a: 32.8 kN | Nut model: LSFC
LPFC 2525-3 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 14.4 kN | C0a: 32.8 kN | Nut model: LPFC
LSFC 2525-6 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 26.1 kN | C0a: 65.6 kN | Nut model: LSFC
LPFC 2525-6 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 26.1 kN | C0a: 65.6 kN | Nut model: LPFC
USFC 2550-1 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 6.7 kN | C0a: 13.5 kN | Nut model: USFC
UPFC 2550-1 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 6.7 kN | C0a: 13.5 kN | Nut model: UPFC
USFC 2550-3 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 14.4 kN | C0a: 32.8 kN | Nut model: USFC
UPFC 2550-3 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 14.4 kN | C0a: 32.8 kN | Nut model: UPFC
USFC 2550-6 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 26.1 kN | C0a: 65.6 kN | Nut model: USFC
UPFC 2550-6 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 26.1 kN | C0a: 65.6 kN | Nut model: UPFC
USFC 2580-1 Shaft dia d: 25 mm | Lead l: 80 mm | Ca: 6.7 kN | C0a: 13.5 kN | Nut model: USFC
UPFC 2580-1 Shaft dia d: 25 mm | Lead l: 80 mm | Ca: 6.7 kN | C0a: 13.5 kN | Nut model: UPFC
USFC 2580-2 Shaft dia d: 25 mm | Lead l: 80 mm | Ca: 12.2 kN | C0a: 27 kN | Nut model: USFC
UPFC 2580-2 Shaft dia d: 25 mm | Lead l: 80 mm | Ca: 12.2 kN | C0a: 27 kN | Nut model: UPFC
LSFC 3232-3 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 21 kN | C0a: 51.6 kN | Nut model: LSFC
LPFC 3232-3 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 21 kN | C0a: 51.6 kN | Nut model: LPFC
LSFC 3232-6 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 38.1 kN | C0a: 103 kN | Nut model: LSFC
LPFC 3232-6 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 38.1 kN | C0a: 103 kN | Nut model: LPFC
USFC 3264-1 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 9.8 kN | C0a: 20.9 kN | Nut model: USFC
UPFC 3264-1 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 9.8 kN | C0a: 20.9 kN | Nut model: UPFC
USFC 3264-3 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 21 kN | C0a: 51.6 kN | Nut model: USFC
UPFC 3264-3 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 21 kN | C0a: 51.6 kN | Nut model: UPFC
USFC 3264-6 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 38.1 kN | C0a: 103 kN | Nut model: USFC
UPFC 3264-6 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 38.1 kN | C0a: 103 kN | Nut model: UPFC
LSFC 4040-3 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 33.5 kN | C0a: 86.5 kN | Nut model: LSFC
LPFC 4040-3 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 33.5 kN | C0a: 86.5 kN | Nut model: LPFC
LSFC 4040-6 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 60.8 kN | C0a: 173 kN | Nut model: LSFC
LPFC 4040-6 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 60.8 kN | C0a: 173 kN | Nut model: LPFC
LSFC 5050-3 Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 50 kN | C0a: 135 kN | Nut model: LSFC
LPFC 5050-3 Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 50 kN | C0a: 135 kN | Nut model: LPFC
LSFC 5050-6 Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 90.8 kN | C0a: 270 kN | Nut model: LSFC
LPFC 5050-6 Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 90.8 kN | C0a: 270 kN | Nut model: LPFC
Ball ScrewsNSK
68 product codes available in this family
