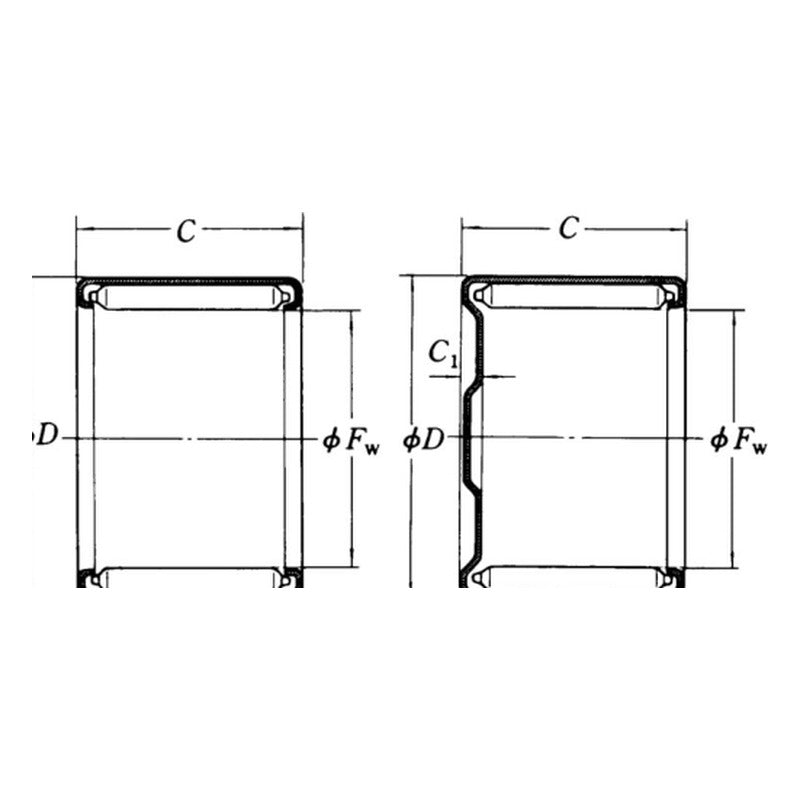

NSK F / FH / MF Full Complement Drawn Cup Needle Bearings (Fw 8-55)

NSK F / FH / MF Full Complement Drawn Cup Needle Bearings (Fw 8-55)

NSK full complement shell-type (drawn cup) needle roller bearings without cage, in open-end (F, FH) and closed-end (MF, MFH) versions, roller inscribed circle diameters 8 to 55 mm.

Key features

  • Full complement of needle rollers for maximum load capacity in a drawn cup
  • Thin pressed outer ring for minimum radial section height
  • Closed-end MF / MFH versions seal shaft ends
  • Retained by press fit in the housing
  • Suited to oscillating and low-speed applications

Specifications

Product Drawn cup needle roller bearing, full complement
Inscribed circle Fw 8-55 mm
Versions Open end (F, FH), closed end (MF, MFH)
Recommended fit Shaft h6, housing N7
Inner ring Optional FIR inner ring
Designation Type - Fw C
Source NSK Rolling Bearings Catalogue (Part 3), p. 254-259
FH-810 Fw: 8 mm | D: 14 mm | C: 10 mm | Cr: 5.55 kN | Grease speed: 6300 rpm
MFH-810 Fw: 8 mm | D: 14 mm | C: 10 mm | Cr: 5.55 kN | Grease speed: 6300 rpm
FH-910 Fw: 9 mm | D: 15 mm | C: 10 mm | Cr: 6.1 kN | Grease speed: 6000 rpm
MFH-910 Fw: 9 mm | D: 15 mm | C: 10 mm | Cr: 6.1 kN | Grease speed: 6000 rpm
FH-1010 Fw: 10 mm | D: 16 mm | C: 10 mm | Cr: 6.65 kN | Grease speed: 5600 rpm
MFH-1010 Fw: 10 mm | D: 16 mm | C: 10 mm | Cr: 6.65 kN | Grease speed: 5600 rpm
FH-1212 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 9 kN | Grease speed: 4500 rpm
MFH-1212 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 9 kN | Grease speed: 4500 rpm
F-1312 Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 9.55 kN | Grease speed: 4300 rpm
MF-1312 Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 9.55 kN | Grease speed: 4300 rpm
F-1412 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 9.45 kN | Grease speed: 3800 rpm
MF-1412 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 9.45 kN | Grease speed: 3800 rpm
F-1416 Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 13.3 kN | Grease speed: 3800 rpm
MF-1416 Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 13.3 kN | Grease speed: 3800 rpm
F-1512 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 10.3 kN | Grease speed: 3800 rpm
MF-1512 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 10.3 kN | Grease speed: 3800 rpm
F-1514 Fw: 15 mm | D: 21 mm | C: 14 mm | Cr: 12.4 kN | Grease speed: 3800 rpm
MF-1514 Fw: 15 mm | D: 21 mm | C: 14 mm | Cr: 12.4 kN | Grease speed: 3800 rpm
F-1516 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 14.5 kN | Grease speed: 3800 rpm
MF-1516 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 14.5 kN | Grease speed: 3800 rpm
F-1612 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 10.2 kN | Grease speed: 3400 rpm
MF-1612 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 10.2 kN | Grease speed: 3400 rpm
F-1616 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 14.4 kN | Grease speed: 3400 rpm
MF-1616 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 14.4 kN | Grease speed: 3400 rpm
F-1712 Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 11.3 kN | Grease speed: 3400 rpm
MF-1712 Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 11.3 kN | Grease speed: 3400 rpm
F-1716 Fw: 17 mm | D: 23 mm | C: 16 mm | Cr: 15.8 kN | Grease speed: 3400 rpm
MF-1716 Fw: 17 mm | D: 23 mm | C: 16 mm | Cr: 15.8 kN | Grease speed: 3400 rpm
F-1812 Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 10.9 kN | Grease speed: 3000 rpm
MF-1812 Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 10.9 kN | Grease speed: 3000 rpm
F-1816 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 15.3 kN | Grease speed: 3000 rpm
MF-1816 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 15.3 kN | Grease speed: 3000 rpm
F-2012 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 11.5 kN | Grease speed: 2800 rpm
MF-2012 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 11.5 kN | Grease speed: 2800 rpm
F-2016 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 16.2 kN | Grease speed: 2800 rpm
MF-2016 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 16.2 kN | Grease speed: 2800 rpm
F-2020 Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 20.5 kN | Grease speed: 2800 rpm
MF-2020 Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 20.5 kN | Grease speed: 2800 rpm
F-2212 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 12.1 kN | Grease speed: 2400 rpm
MF-2212 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 12.1 kN | Grease speed: 2400 rpm
F-2216 Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 17.1 kN | Grease speed: 2400 rpm
MF-2216 Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 17.1 kN | Grease speed: 2400 rpm
F-2220 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 21.6 kN | Grease speed: 2400 rpm
MF-2220 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 21.6 kN | Grease speed: 2400 rpm
F-2516 Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 20.2 kN | Grease speed: 2800 rpm
MF-2516 Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 20.2 kN | Grease speed: 2800 rpm
F-2520 Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 25.9 kN | Grease speed: 2800 rpm
MF-2520 Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 25.9 kN | Grease speed: 2800 rpm
F-2526 Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 34 kN | Grease speed: 2800 rpm
MF-2526 Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 34 kN | Grease speed: 2800 rpm
F-2816 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 21.3 kN | Grease speed: 2400 rpm
MF-2816 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 21.3 kN | Grease speed: 2400 rpm
F-2820 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 27.3 kN | Grease speed: 2400 rpm
MF-2820 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 27.3 kN | Grease speed: 2400 rpm
F-2826 Fw: 28 mm | D: 35 mm | C: 26 mm | Cr: 35.5 kN | Grease speed: 2400 rpm
MF-2826 Fw: 28 mm | D: 35 mm | C: 26 mm | Cr: 35.5 kN | Grease speed: 2400 rpm
F-3016 Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 22.1 kN | Grease speed: 2400 rpm
MF-3016 Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 22.1 kN | Grease speed: 2400 rpm
F-3020 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 28.4 kN | Grease speed: 2400 rpm
MF-3020 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 28.4 kN | Grease speed: 2400 rpm
F-3026 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 37 kN | Grease speed: 2400 rpm
MF-3026 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 37 kN | Grease speed: 2400 rpm
F-3516 Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 24 kN | Grease speed: 2000 rpm
MF-3516 Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 24 kN | Grease speed: 2000 rpm
F-3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 31 kN | Grease speed: 2000 rpm
MF-3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 31 kN | Grease speed: 2000 rpm
F-3526 Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 40 kN | Grease speed: 2000 rpm
MF-3526 Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 40 kN | Grease speed: 2000 rpm
F-4016 Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 25.7 kN | Grease speed: 1800 rpm
MF-4016 Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 25.7 kN | Grease speed: 1800 rpm
F-4020 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 32.5 kN | Grease speed: 1800 rpm
MF-4020 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 32.5 kN | Grease speed: 1800 rpm
F-4516 Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 27.3 kN | Grease speed: 1600 rpm
MF-4516 Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 27.3 kN | Grease speed: 1600 rpm
F-4520 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 35 kN | Grease speed: 1600 rpm
MF-4520 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 35 kN | Grease speed: 1600 rpm
F-5020 Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 39.5 kN | Grease speed: 1700 rpm
MF-5020 Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 39.5 kN | Grease speed: 1700 rpm
F-5024 Fw: 50 mm | D: 58 mm | C: 24 mm | Cr: 48 kN | Grease speed: 1700 rpm
MF-5024 Fw: 50 mm | D: 58 mm | C: 24 mm | Cr: 48 kN | Grease speed: 1700 rpm
F-5520 Fw: 55 mm | D: 63 mm | C: 20 mm | Cr: 41.5 kN | Grease speed: 1600 rpm
MF-5520 Fw: 55 mm | D: 63 mm | C: 20 mm | Cr: 41.5 kN | Grease speed: 1600 rpm
F-5524 Fw: 55 mm | D: 63 mm | C: 24 mm | Cr: 50.5 kN | Grease speed: 1600 rpm
MF-5524 Fw: 55 mm | D: 63 mm | C: 24 mm | Cr: 50.5 kN | Grease speed: 1600 rpm
