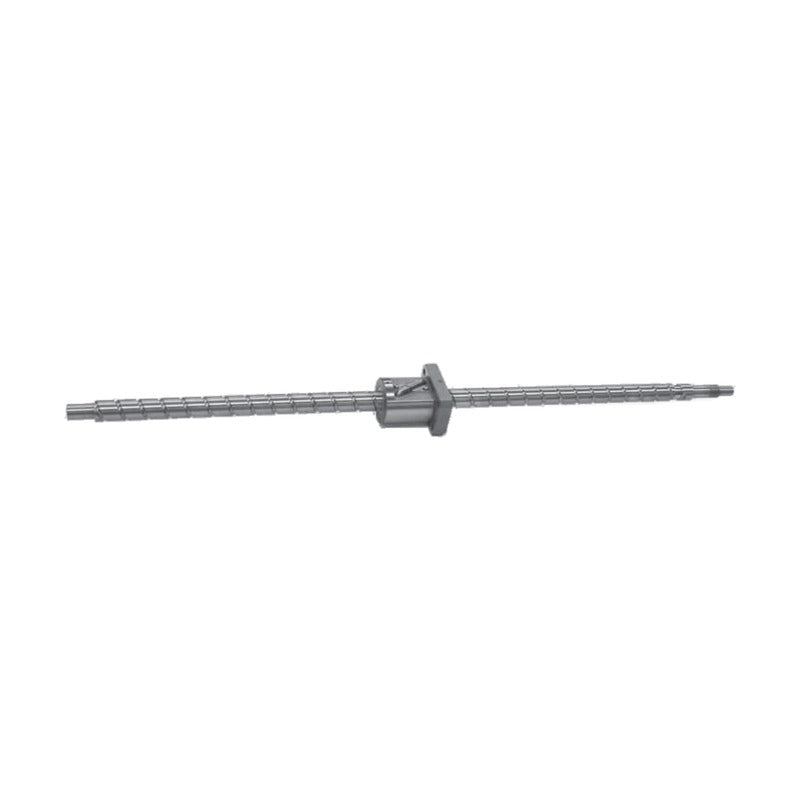

NSK FA Type Ball Screws for Small Equipment, Finished Shaft End

NSK FA Type Ball Screws for Small Equipment, Finished Shaft End

NSK FA type standard ball screws for small equipment have finished shaft ends and are offered in fine, medium, high helix and ultra high helix leads.

Key features

  • Shaft diameters 10 to 32 mm
  • Leads from 4 to 50 mm
  • Preloaded and precise-clearance versions
  • Accuracy grades C3 and C5
  • Finished shaft ends for NSK support units

Specifications

Type FA (finished shaft end)
Nut models PFT/SFT, LPFT/LSFT, UPFC/USFC
Brand NSK
Product type Ball Screws
Listed models 284
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B265-B300
W1001FA-1P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1001FA-2-C3T4 Shaft x lead: 10 x 4 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1001FA-3P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1001FA-4-C3T4 Shaft x lead: 10 x 4 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1002FA-1P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1002FA-2-C3T4 Shaft x lead: 10 x 4 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1002FA-3P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1002FA-4-C3T4 Shaft x lead: 10 x 4 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1003FA-1P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1003FA-2-C3T4 Shaft x lead: 10 x 4 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1003FA-3P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1003FA-4-C3T4 Shaft x lead: 10 x 4 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1201FA-1P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1201FA-2-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1201FA-3P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1201FA-4-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1202FA-1P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1202FA-2-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1202FA-3P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1202FA-4-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1203FA-1P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1203FA-2-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1204FA-1P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1204FA-2-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1205FA-1P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1205FA-2-C3T5 Shaft x lead: 12 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1201FA-5P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1201FA-6-C5T10 Shaft x lead: 12 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1202FA-5P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1202FA-6-C5T10 Shaft x lead: 12 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1203FA-3P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1203FA-4-C5T10 Shaft x lead: 12 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1204FA-3P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1204FA-4-C5T10 Shaft x lead: 12 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1205FA-3P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1205FA-4-C5T10 Shaft x lead: 12 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1401FA-1P-C3Z5 Shaft x lead: 14 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1401FA-2-C3T5 Shaft x lead: 14 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1402FA-1P-C3Z5 Shaft x lead: 14 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1402FA-2-C3T5 Shaft x lead: 14 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1403FA-1P-C3Z5 Shaft x lead: 14 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1403FA-2-C3T5 Shaft x lead: 14 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1404FA-1P-C3Z5 Shaft x lead: 14 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1404FA-2-C3T5 Shaft x lead: 14 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FA-1P-C3Z5 Shaft x lead: 14 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1405FA-2-C3T5 Shaft x lead: 14 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FA-1P-C3Z5 Shaft x lead: 14 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1406FA-2-C3T5 Shaft x lead: 14 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1401FA-3P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1401FA-4-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1402FA-3P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1402FA-4-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1402FA-5P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1402FA-6-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1403FA-3P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1403FA-4-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1403FA-5P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1403FA-6-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1404FA-3P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1404FA-4-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1404FA-5P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1404FA-6-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FA-3P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1405FA-4-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FA-5P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1405FA-6-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FA-3P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1406FA-4-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FA-5P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1406FA-6-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1407FA-1P-C5Z8 Shaft x lead: 14 x 8 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1407FA-2-C5T8 Shaft x lead: 14 x 8 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1501FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1501FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1502FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1502FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1502FA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1502FA-4-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1503FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1503FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1503FA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1503FA-4-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1504FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1504FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1504FA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1504FA-4-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1505FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1505FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1505FA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1505FA-4-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1506FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1506FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1506FA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1506FA-4-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1507FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1507FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1508FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1508FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1510FA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1510FA-2-C5T10 Shaft x lead: 15 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1501FA-3PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1501FA-4G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1502FA-5PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1502FA-6G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1502FA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1502FA-8G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1503FA-5PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1503FA-6G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1503FA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1503FA-8G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1504FA-5PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1504FA-6G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1504FA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1504FA-8G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1505FA-5PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1505FA-6G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1505FA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1505FA-8G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1506FA-5PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1506FA-6G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1506FA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1506FA-8G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1507FA-3PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1507FA-4G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1508FA-3PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1508FA-4G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1510FA-3PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1510FA-4G-C5T20 Shaft x lead: 15 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1601FA-1P-C3Z5 Shaft x lead: 16 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1601FA-2-C3T5 Shaft x lead: 16 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1602FA-1P-C3Z5 Shaft x lead: 16 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1602FA-2-C3T5 Shaft x lead: 16 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1603FA-1P-C3Z5 Shaft x lead: 16 x 5 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1603FA-2-C3T5 Shaft x lead: 16 x 5 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1604FA-1P-C3Z5 Shaft x lead: 16 x 5 mm | Stroke: 400 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1604FA-2-C3T5 Shaft x lead: 16 x 5 mm | Stroke: 400 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1606FA-1P-C3Z5 Shaft x lead: 16 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1606FA-2-C3T5 Shaft x lead: 16 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1608FA-1P-C3Z5 Shaft x lead: 16 x 5 mm | Stroke: 800 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1608FA-2-C3T5 Shaft x lead: 16 x 5 mm | Stroke: 800 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1601FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1601FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1602FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1602FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1602FA-5P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1602FA-6-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1603FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1603FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1603FA-5P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1603FA-6-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1604FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1604FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1604FA-5P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1604FA-6-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1605FA-1P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1605FA-2-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1605FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1605FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1606FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1606FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1606FA-5P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1606FA-6-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1607FA-1P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1607FA-2-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1608FA-3P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1608FA-4-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1610FA-1P-C5Z16 Shaft x lead: 16 x 16 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1610FA-2-C5T16 Shaft x lead: 16 x 16 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1603FA-7PGX-C5Z32 Shaft x lead: 16 x 32 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1603FA-8GX-C5T32 Shaft x lead: 16 x 32 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1605FA-5PGX-C5Z32 Shaft x lead: 16 x 32 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1605FA-6GX-C5T32 Shaft x lead: 16 x 32 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1608FA-5PGX-C5Z32 Shaft x lead: 16 x 32 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1608FA-6GX-C5T32 Shaft x lead: 16 x 32 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1612FA-1PGX-C5Z32 Shaft x lead: 16 x 32 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1612FA-2GX-C5T32 Shaft x lead: 16 x 32 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W2002FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2002FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2003FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2003FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2004FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2004FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2005FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2005FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2006FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2006FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2007FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2007FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2008FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2008FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2009FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2009FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2010FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2010FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2011FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2011FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2012FA-1P-C5Z10 Shaft x lead: 20 x 10 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2012FA-2-C5T10 Shaft x lead: 20 x 10 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2003FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2003FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2004FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2004FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2005FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2005FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2006FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2006FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2007FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2007FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2008FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2008FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2009FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2009FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2010FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2010FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2011FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2011FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2012FA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2012FA-4-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2015FA-1P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2015FA-2-C5T20 Shaft x lead: 20 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2005FA-5PGX-C5Z40 Shaft x lead: 20 x 40 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2005FA-6GX-C5T40 Shaft x lead: 20 x 40 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2007FA-5PGX-C5Z40 Shaft x lead: 20 x 40 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2007FA-6GX-C5T40 Shaft x lead: 20 x 40 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2009FA-5PGX-C5Z40 Shaft x lead: 20 x 40 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2009FA-6GX-C5T40 Shaft x lead: 20 x 40 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2011FA-5PGX-C5Z40 Shaft x lead: 20 x 40 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2011FA-6GX-C5T40 Shaft x lead: 20 x 40 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2013FA-1PGX-C5Z40 Shaft x lead: 20 x 40 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2013FA-2GX-C5T40 Shaft x lead: 20 x 40 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2017FA-1PGX-C5Z40 Shaft x lead: 20 x 40 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2017FA-2GX-C5T40 Shaft x lead: 20 x 40 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2507FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2507FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2509FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2509FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2511FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2511FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2513FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2513FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2515FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2515FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2517FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2517FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2521FA-1P-C5Z20 Shaft x lead: 25 x 20 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2521FA-2-C5T20 Shaft x lead: 25 x 20 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2507FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2507FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2509FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2509FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2511FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2511FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2513FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2513FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2515FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2515FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2517FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2517FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2521FA-3P-C5Z25 Shaft x lead: 25 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2521FA-4-C5T25 Shaft x lead: 25 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2508FA-1PGX-C5Z50 Shaft x lead: 25 x 50 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2508FA-2GX-C5T50 Shaft x lead: 25 x 50 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W2511FA-5PGX-C5Z50 Shaft x lead: 25 x 50 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2511FA-6GX-C5T50 Shaft x lead: 25 x 50 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W2516FA-1PGX-C5Z50 Shaft x lead: 25 x 50 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2516FA-2GX-C5T50 Shaft x lead: 25 x 50 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W2521FA-5PGX-C5Z50 Shaft x lead: 25 x 50 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2521FA-6GX-C5T50 Shaft x lead: 25 x 50 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W3211FA-1P-C5Z25 Shaft x lead: 32 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3211FA-2-C5T25 Shaft x lead: 32 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3216FA-1P-C5Z25 Shaft x lead: 32 x 25 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3216FA-2-C5T25 Shaft x lead: 32 x 25 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3221FA-1P-C5Z25 Shaft x lead: 32 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3221FA-2-C5T25 Shaft x lead: 32 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3227FA-1P-C5Z25 Shaft x lead: 32 x 25 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3227FA-2-C5T25 Shaft x lead: 32 x 25 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3211FA-3P-C5Z32 Shaft x lead: 32 x 32 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3211FA-4-C5T32 Shaft x lead: 32 x 32 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3216FA-3P-C5Z32 Shaft x lead: 32 x 32 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3216FA-4-C5T32 Shaft x lead: 32 x 32 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3221FA-3P-C5Z32 Shaft x lead: 32 x 32 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3221FA-4-C5T32 Shaft x lead: 32 x 32 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3227FA-3P-C5Z32 Shaft x lead: 32 x 32 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3227FA-4-C5T32 Shaft x lead: 32 x 32 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
Ball ScrewsNSK
284 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK FA Type Ball Screws for Small Equipment, Finished Shaft End

Brand NSK·Ball Screws

Available part numbers (284)

W1001FA-1P-C3Z4, W1001FA-2-C3T4, W1001FA-3P-C3Z4, W1001FA-4-C3T4, W1002FA-1P-C3Z4, W1002FA-2-C3T4, W1002FA-3P-C3Z4, W1002FA-4-C3T4, W1003FA-1P-C3Z4, W1003FA-2-C3T4 + 274 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W1001FA-1P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1001FA-2-C3T4Shaft x lead: 10 x 4 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1001FA-3P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1001FA-4-C3T4Shaft x lead: 10 x 4 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1002FA-1P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1002FA-2-C3T4Shaft x lead: 10 x 4 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1002FA-3P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1002FA-4-C3T4Shaft x lead: 10 x 4 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1003FA-1P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1003FA-2-C3T4Shaft x lead: 10 x 4 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1003FA-3P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 1.73 kN | C0a: 2.23 kN
W1003FA-4-C3T4Shaft x lead: 10 x 4 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1201FA-1P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1201FA-2-C3T5Shaft x lead: 12 x 5 mm | Stroke: 50 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1201FA-3P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1201FA-4-C3T5Shaft x lead: 12 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1202FA-1P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1202FA-2-C3T5Shaft x lead: 12 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1202FA-3P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1202FA-4-C3T5Shaft x lead: 12 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1203FA-1P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1203FA-2-C3T5Shaft x lead: 12 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1204FA-1P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1204FA-2-C3T5Shaft x lead: 12 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1205FA-1P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: Z | Ca: 2.37 kN | C0a: 3.16 kN
W1205FA-2-C3T5Shaft x lead: 12 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1201FA-5P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1201FA-6-C5T10Shaft x lead: 12 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1202FA-5P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1202FA-6-C5T10Shaft x lead: 12 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1203FA-3P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1203FA-4-C5T10Shaft x lead: 12 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1204FA-3P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1204FA-4-C5T10Shaft x lead: 12 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1205FA-3P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 2.36 kN | C0a: 3.24 kN
W1205FA-4-C5T10Shaft x lead: 12 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1401FA-1P-C3Z5Shaft x lead: 14 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1401FA-2-C3T5Shaft x lead: 14 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1402FA-1P-C3Z5Shaft x lead: 14 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1402FA-2-C3T5Shaft x lead: 14 x 5 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1403FA-1P-C3Z5Shaft x lead: 14 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1403FA-2-C3T5Shaft x lead: 14 x 5 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1404FA-1P-C3Z5Shaft x lead: 14 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1404FA-2-C3T5Shaft x lead: 14 x 5 mm | Stroke: 350 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FA-1P-C3Z5Shaft x lead: 14 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1405FA-2-C3T5Shaft x lead: 14 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FA-1P-C3Z5Shaft x lead: 14 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1406FA-2-C3T5Shaft x lead: 14 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1401FA-3P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1401FA-4-C5T8Shaft x lead: 14 x 8 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1402FA-3P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1402FA-4-C5T8Shaft x lead: 14 x 8 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1402FA-5P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1402FA-6-C5T8Shaft x lead: 14 x 8 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1403FA-3P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1403FA-4-C5T8Shaft x lead: 14 x 8 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1403FA-5P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1403FA-6-C5T8Shaft x lead: 14 x 8 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1404FA-3P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1404FA-4-C5T8Shaft x lead: 14 x 8 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1404FA-5P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1404FA-6-C5T8Shaft x lead: 14 x 8 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FA-3P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1405FA-4-C5T8Shaft x lead: 14 x 8 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FA-5P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1405FA-6-C5T8Shaft x lead: 14 x 8 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FA-3P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1406FA-4-C5T8Shaft x lead: 14 x 8 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FA-5P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1406FA-6-C5T8Shaft x lead: 14 x 8 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1407FA-1P-C5Z8Shaft x lead: 14 x 8 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 4.28 kN | C0a: 5.84 kN
W1407FA-2-C5T8Shaft x lead: 14 x 8 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1501FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1501FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1502FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1502FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1502FA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1502FA-4-C5T10Shaft x lead: 15 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1503FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1503FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1503FA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1503FA-4-C5T10Shaft x lead: 15 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1504FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1504FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1504FA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1504FA-4-C5T10Shaft x lead: 15 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1505FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1505FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1505FA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1505FA-4-C5T10Shaft x lead: 15 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1506FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1506FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1506FA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1506FA-4-C5T10Shaft x lead: 15 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1507FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1507FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1508FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1508FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1510FA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 4.45 kN | C0a: 6.38 kN
W1510FA-2-C5T10Shaft x lead: 15 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1501FA-3PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1501FA-4G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1502FA-5PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1502FA-6G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1502FA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1502FA-8G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1503FA-5PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1503FA-6G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1503FA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1503FA-8G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1504FA-5PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1504FA-6G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1504FA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1504FA-8G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1505FA-5PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1505FA-6G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1505FA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1505FA-8G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1506FA-5PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1506FA-6G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1506FA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1506FA-8G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1507FA-3PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1507FA-4G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1508FA-3PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1508FA-4G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1510FA-3PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 3.87 kN | C0a: 5.82 kN
W1510FA-4G-C5T20Shaft x lead: 15 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1601FA-1P-C3Z5Shaft x lead: 16 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1601FA-2-C3T5Shaft x lead: 16 x 5 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1602FA-1P-C3Z5Shaft x lead: 16 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1602FA-2-C3T5Shaft x lead: 16 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1603FA-1P-C3Z5Shaft x lead: 16 x 5 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1603FA-2-C3T5Shaft x lead: 16 x 5 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1604FA-1P-C3Z5Shaft x lead: 16 x 5 mm | Stroke: 400 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1604FA-2-C3T5Shaft x lead: 16 x 5 mm | Stroke: 400 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1606FA-1P-C3Z5Shaft x lead: 16 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1606FA-2-C3T5Shaft x lead: 16 x 5 mm | Stroke: 600 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1608FA-1P-C3Z5Shaft x lead: 16 x 5 mm | Stroke: 800 mm | Accuracy: C3 | Axial play: Z | Ca: 4.62 kN | C0a: 6.75 kN
W1608FA-2-C3T5Shaft x lead: 16 x 5 mm | Stroke: 800 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1601FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1601FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 100 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1602FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1602FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 150 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1602FA-5P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1602FA-6-C5T16Shaft x lead: 16 x 16 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1603FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1603FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1603FA-5P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1603FA-6-C5T16Shaft x lead: 16 x 16 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1604FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1604FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 350 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1604FA-5P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1604FA-6-C5T16Shaft x lead: 16 x 16 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1605FA-1P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1605FA-2-C5T16Shaft x lead: 16 x 16 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1605FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1605FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1606FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1606FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 550 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1606FA-5P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1606FA-6-C5T16Shaft x lead: 16 x 16 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1607FA-1P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1607FA-2-C5T16Shaft x lead: 16 x 16 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1608FA-3P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1608FA-4-C5T16Shaft x lead: 16 x 16 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1610FA-1P-C5Z16Shaft x lead: 16 x 16 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 3.6 kN | C0a: 5.41 kN
W1610FA-2-C5T16Shaft x lead: 16 x 16 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1603FA-7PGX-C5Z32Shaft x lead: 16 x 32 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1603FA-8GX-C5T32Shaft x lead: 16 x 32 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1605FA-5PGX-C5Z32Shaft x lead: 16 x 32 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1605FA-6GX-C5T32Shaft x lead: 16 x 32 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1608FA-5PGX-C5Z32Shaft x lead: 16 x 32 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1608FA-6GX-C5T32Shaft x lead: 16 x 32 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1612FA-1PGX-C5Z32Shaft x lead: 16 x 32 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 4 kN | C0a: 6.69 kN
W1612FA-2GX-C5T32Shaft x lead: 16 x 32 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W2002FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2002FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2003FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2003FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2004FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2004FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2005FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2005FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2006FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2006FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2007FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2007FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2008FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2008FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2009FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2009FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2010FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2010FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2011FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2011FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2012FA-1P-C5Z10Shaft x lead: 20 x 10 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 6.88 kN | C0a: 10.8 kN
W2012FA-2-C5T10Shaft x lead: 20 x 10 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2003FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2003FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2004FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2004FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 300 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2005FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2005FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2006FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2006FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 500 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2007FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2007FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2008FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2008FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2009FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2009FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2010FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2010FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 900 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2011FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2011FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2012FA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2012FA-4-C5T20Shaft x lead: 20 x 20 mm | Stroke: 1100 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2015FA-1P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.37 kN | C0a: 8.45 kN
W2015FA-2-C5T20Shaft x lead: 20 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2005FA-5PGX-C5Z40Shaft x lead: 20 x 40 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2005FA-6GX-C5T40Shaft x lead: 20 x 40 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2007FA-5PGX-C5Z40Shaft x lead: 20 x 40 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2007FA-6GX-C5T40Shaft x lead: 20 x 40 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2009FA-5PGX-C5Z40Shaft x lead: 20 x 40 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2009FA-6GX-C5T40Shaft x lead: 20 x 40 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2011FA-5PGX-C5Z40Shaft x lead: 20 x 40 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2011FA-6GX-C5T40Shaft x lead: 20 x 40 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2013FA-1PGX-C5Z40Shaft x lead: 20 x 40 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2013FA-2GX-C5T40Shaft x lead: 20 x 40 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2017FA-1PGX-C5Z40Shaft x lead: 20 x 40 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.49 kN | C0a: 8.64 kN
W2017FA-2GX-C5T40Shaft x lead: 20 x 40 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2507FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2507FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2509FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2509FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2511FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2511FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2513FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2513FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2515FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2515FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2517FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2517FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2521FA-1P-C5Z20Shaft x lead: 25 x 20 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 9.9 kN | C0a: 16.4 kN
W2521FA-2-C5T20Shaft x lead: 25 x 20 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2507FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2507FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2509FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2509FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 800 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2511FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2511FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2513FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2513FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 1200 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2515FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2515FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 1400 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2517FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2517FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 1600 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2521FA-3P-C5Z25Shaft x lead: 25 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 7.73 kN | C0a: 12.7 kN
W2521FA-4-C5T25Shaft x lead: 25 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2508FA-1PGX-C5Z50Shaft x lead: 25 x 50 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2508FA-2GX-C5T50Shaft x lead: 25 x 50 mm | Stroke: 700 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W2511FA-5PGX-C5Z50Shaft x lead: 25 x 50 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2511FA-6GX-C5T50Shaft x lead: 25 x 50 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W2516FA-1PGX-C5Z50Shaft x lead: 25 x 50 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2516FA-2GX-C5T50Shaft x lead: 25 x 50 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W2521FA-5PGX-C5Z50Shaft x lead: 25 x 50 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 6.69 kN | C0a: 13.5 kN
W2521FA-6GX-C5T50Shaft x lead: 25 x 50 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 6.69 kN | C0a: 13.5 kN
W3211FA-1P-C5Z25Shaft x lead: 32 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3211FA-2-C5T25Shaft x lead: 32 x 25 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3216FA-1P-C5Z25Shaft x lead: 32 x 25 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3216FA-2-C5T25Shaft x lead: 32 x 25 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3221FA-1P-C5Z25Shaft x lead: 32 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3221FA-2-C5T25Shaft x lead: 32 x 25 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3227FA-1P-C5Z25Shaft x lead: 32 x 25 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: Z | Ca: 11.3 kN | C0a: 20.9 kN
W3227FA-2-C5T25Shaft x lead: 32 x 25 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3211FA-3P-C5Z32Shaft x lead: 32 x 32 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3211FA-4-C5T32Shaft x lead: 32 x 32 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3216FA-3P-C5Z32Shaft x lead: 32 x 32 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3216FA-4-C5T32Shaft x lead: 32 x 32 mm | Stroke: 1500 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3221FA-3P-C5Z32Shaft x lead: 32 x 32 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3221FA-4-C5T32Shaft x lead: 32 x 32 mm | Stroke: 2000 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3227FA-3P-C5Z32Shaft x lead: 32 x 32 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: Z | Ca: 8.8 kN | C0a: 16.6 kN
W3227FA-4-C5T32Shaft x lead: 32 x 32 mm | Stroke: 2600 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
