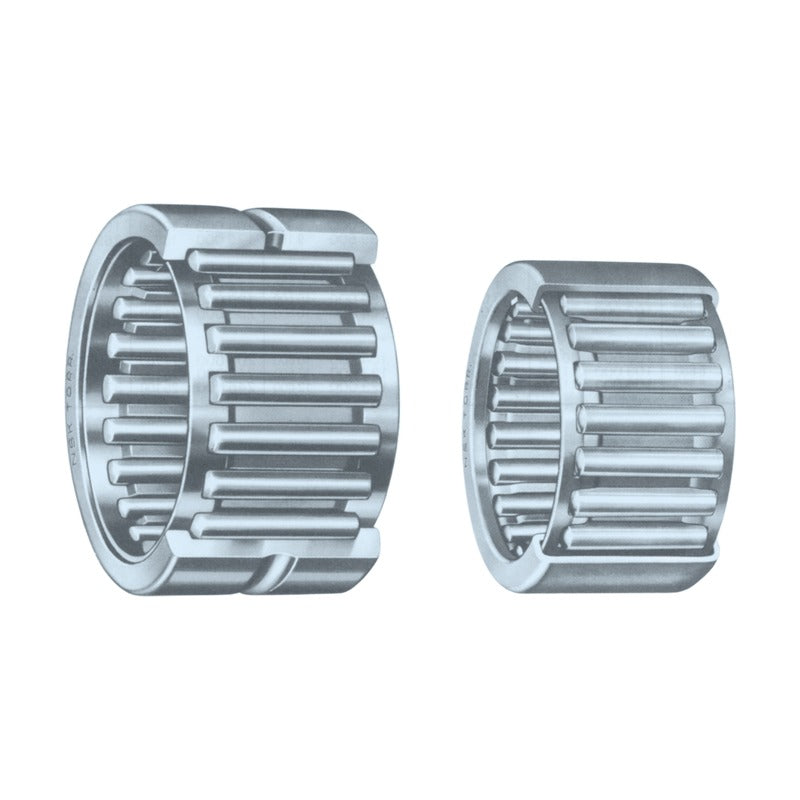

NSK FBN-E Needle Cages for Connecting Rod Small Ends (Fw 9-19 mm)

NSK needle roller and cage assemblies designed for the small (piston pin) end of connecting rods, roller inscribed circle diameters 9 to 19 mm.

Key features

Designed for connecting rod small-end (piston pin) positions
Cage and roller design using pin and rod bore as raceways
Compact cross-section with high load capacity
Bc width tolerance -0.2/-0.4 mm

Specifications

Product	Needle cage for connecting rod small end
Inscribed circle Fw	9-19 mm
Width tolerance Bc	-0.2 / -0.4 mm
Application	Connecting rod small end (piston pin)
Raceways	Piston pin and rod bore
Suffix	-E (connecting rod type)
Source	NSK Rolling Bearings Catalogue (Part 3), p. 253

FBN-91211Z-E		Fw: 9 mm \| Ew: 12 mm \| Bc: 11.5 mm \| Cr: 4.2 kN \| C0r: 4.5 kN
FBN-101412Z-E		Fw: 10 mm \| Ew: 14 mm \| Bc: 12.7 mm \| Cr: 5.9 kN \| C0r: 5.95 kN
FBN-121514Z-E		Fw: 12 mm \| Ew: 15 mm \| Bc: 14.3 mm \| Cr: 6.4 kN \| C0r: 8.4 kN
FBN-121613-E		Fw: 12 mm \| Ew: 16 mm \| Bc: 13 mm \| Cr: 7.25 kN \| C0r: 8.2 kN
FBN-121615Z-E		Fw: 12 mm \| Ew: 16 mm \| Bc: 15.5 mm \| Cr: 8.5 kN \| C0r: 10 kN
FBN-121616-E		Fw: 12 mm \| Ew: 16 mm \| Bc: 16 mm \| Cr: 8.5 kN \| C0r: 10 kN
FBN-141812-E		Fw: 14 mm \| Ew: 18 mm \| Bc: 12 mm \| Cr: 6.95 kN \| C0r: 8.05 kN
FBN-141816Z-E		Fw: 14 mm \| Ew: 18 mm \| Bc: 16.5 mm \| Cr: 9.25 kN \| C0r: 11.6 kN
FBN-141818-E		Fw: 14 mm \| Ew: 18 mm \| Bc: 18 mm \| Cr: 10.7 kN \| C0r: 14 kN
FBN-141820-E1		Fw: 14 mm \| Ew: 18 mm \| Bc: 20 mm \| Cr: 9.55 kN \| C0r: 12 kN
FBN-151918-E		Fw: 15 mm \| Ew: 19 mm \| Bc: 18 mm \| Cr: 11.3 kN \| C0r: 15.3 kN
FBN-152118-E		Fw: 15 mm \| Ew: 21 mm \| Bc: 18 mm \| Cr: 12.9 kN \| C0r: 13.9 kN
FBN-162022-E		Fw: 16 mm \| Ew: 20 mm \| Bc: 22 mm \| Cr: 13.7 kN \| C0r: 20 kN
FBN-162023Z-E		Fw: 16 mm \| Ew: 20 mm \| Bc: 23.5 mm \| Cr: 14.9 kN \| C0r: 22.3 kN
FBN-162120-E		Fw: 16 mm \| Ew: 21 mm \| Bc: 20 mm \| Cr: 14.2 kN \| C0r: 18.1 kN
FBN-172123-E		Fw: 17 mm \| Ew: 21 mm \| Bc: 23 mm \| Cr: 14.8 kN \| C0r: 22.5 kN
FBN-182217-E		Fw: 18 mm \| Ew: 22 mm \| Bc: 17 mm \| Cr: 11.5 kN \| C0r: 16.5 kN
FBN-182222-E		Fw: 18 mm \| Ew: 22 mm \| Bc: 22 mm \| Cr: 14.2 kN \| C0r: 21.6 kN
FBN-182223Z-E		Fw: 18 mm \| Ew: 22 mm \| Bc: 23.6 mm \| Cr: 15.4 kN \| C0r: 24.1 kN
FBN-192323Z-E		Fw: 19 mm \| Ew: 23 mm \| Bc: 23.7 mm \| Cr: 16 kN \| C0r: 25.8 kN

Needle Roller BearingsNSK

20 product codes available in this family
