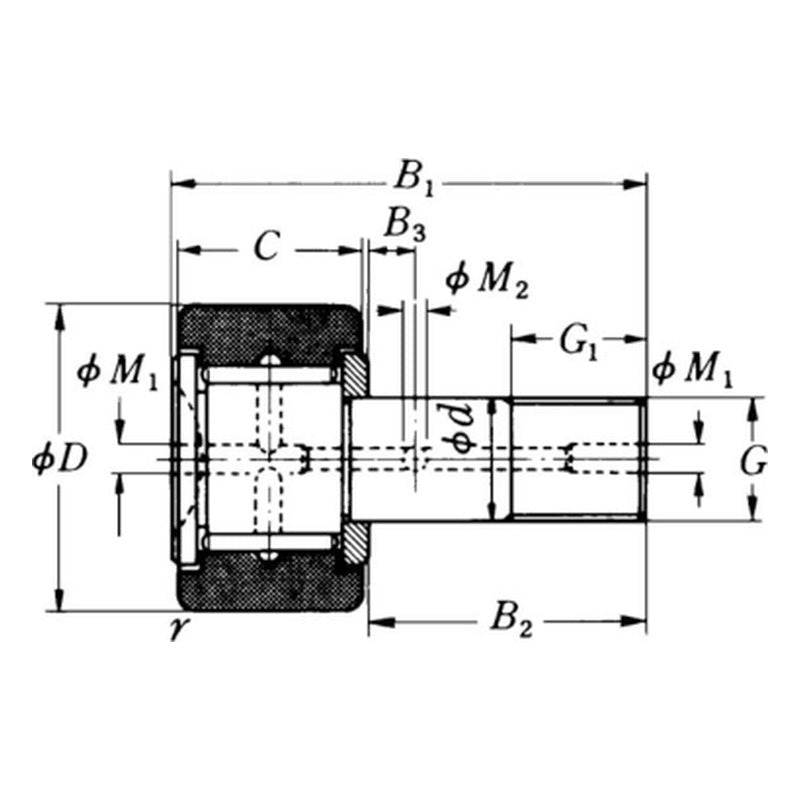

NSK FCR / FCRS / FCJ / FCJS Cam Followers (OD 16-90 mm)

NSK FCR / FCRS / FCJ / FCJS Cam Followers (OD 16-90 mm)

NSK stud-type cam followers with thick outer ring, full complement (FCR, FCRS) or caged (FCJ, FCJS) needle rollers, outer diameters 16 to 90 mm.

Key features

  • Thick-walled outer ring rolls directly on cams and tracks
  • Integral threaded stud for simple cantilever mounting
  • FCR full complement for high loads; FCJ caged for higher speeds
  • S versions with seals and thrust washers
  • Sealed types are pre-greased

Specifications

Product Stud type cam follower
Outer diameter D 16-90 mm
Stud tolerance h7
Versions Full complement / caged, open / sealed
Thread Metric fine
Source NSK Rolling Bearings Catalogue (Part 3), p. 272-273
FCR-16 D: 16 mm | C: 11 mm | Stud d: 6 mm | Thread: M6x1 | B1: 28 mm | Cr: 5.8 kN
FCRS-16 D: 16 mm | C: 11 mm | Stud d: 6 mm | Thread: M6x1 | B1: 28 mm | Cr: 5.8 kN
FCJ-16 D: 16 mm | C: 11 mm | Stud d: 6 mm | Thread: M6x1 | B1: 28 mm | Cr: 2.83 kN
FCJS-16 D: 16 mm | C: 11 mm | Stud d: 6 mm | Thread: M6x1 | B1: 28 mm | Cr: 2.83 kN
FCR-19 D: 19 mm | C: 11 mm | Stud d: 8 mm | Thread: M8x1.25 | B1: 32 mm | Cr: 6.6 kN
FCRS-19 D: 19 mm | C: 11 mm | Stud d: 8 mm | Thread: M8x1.25 | B1: 32 mm | Cr: 6.6 kN
FCJ-19 D: 19 mm | C: 11 mm | Stud d: 8 mm | Thread: M8x1.25 | B1: 32 mm | Cr: 3.45 kN
FCJS-19 D: 19 mm | C: 11 mm | Stud d: 8 mm | Thread: M8x1.25 | B1: 32 mm | Cr: 3.45 kN
FCR-22 D: 22 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 8.55 kN
FCRS-22 D: 22 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 8.55 kN
FCJ-22 D: 22 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 4.35 kN
FCJS-22 D: 22 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 4.35 kN
FCR-26 D: 26 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 8.55 kN
FCRS-26 D: 26 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 8.55 kN
FCJ-26 D: 26 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 4.35 kN
FCJS-26 D: 26 mm | C: 12 mm | Stud d: 10 mm | Thread: M10x1.25 | B1: 36 mm | Cr: 4.35 kN
FCR-30 D: 30 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 12.5 kN
FCRS-30 D: 30 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 12.5 kN
FCJ-30 D: 30 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 7.2 kN
FCJS-30 D: 30 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 7.2 kN
FCR-32 D: 32 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 12.5 kN
FCRS-32 D: 32 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 12.5 kN
FCJ-32 D: 32 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 7.2 kN
FCJS-32 D: 32 mm | C: 14 mm | Stud d: 12 mm | Thread: M12x1.5 | B1: 40 mm | Cr: 7.2 kN
FCR-35 D: 35 mm | C: 18 mm | Stud d: 16 mm | Thread: M16x1.5 | B1: 52 mm | Cr: 18.6 kN
FCRS-35 D: 35 mm | C: 18 mm | Stud d: 16 mm | Thread: M16x1.5 | B1: 52 mm | Cr: 18.6 kN
FCJ-35 D: 35 mm | C: 18 mm | Stud d: 16 mm | Thread: M16x1.5 | B1: 52 mm | Cr: 9.7 kN
FCJS-35 D: 35 mm | C: 18 mm | Stud d: 16 mm | Thread: M16x1.5 | B1: 52 mm | Cr: 9.7 kN
FCR-40 D: 40 mm | C: 20 mm | Stud d: 18 mm | Thread: M18x1.5 | B1: 58 mm | Cr: 20.5 kN
FCRS-40 D: 40 mm | C: 20 mm | Stud d: 18 mm | Thread: M18x1.5 | B1: 58 mm | Cr: 20.5 kN
FCJ-40 D: 40 mm | C: 20 mm | Stud d: 18 mm | Thread: M18x1.5 | B1: 58 mm | Cr: 10.3 kN
FCJS-40 D: 40 mm | C: 20 mm | Stud d: 18 mm | Thread: M18x1.5 | B1: 58 mm | Cr: 10.3 kN
FCR-47 D: 47 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 28.2 kN
FCRS-47 D: 47 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 28.2 kN
FCJ-47 D: 47 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 19.2 kN
FCJS-47 D: 47 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 19.2 kN
FCR-52 D: 52 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 28.2 kN
FCRS-52 D: 52 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 28.2 kN
FCJ-52 D: 52 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 19.2 kN
FCJS-52 D: 52 mm | C: 24 mm | Stud d: 20 mm | Thread: M20x1.5 | B1: 66 mm | Cr: 19.2 kN
FCR-62 D: 62 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 40 kN
FCRS-62 D: 62 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 40 kN
FCJ-62 D: 62 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 24.9 kN
FCJS-62 D: 62 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 24.9 kN
FCR-72 D: 72 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 40 kN
FCRS-72 D: 72 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 40 kN
FCJ-72 D: 72 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 24.9 kN
FCJS-72 D: 72 mm | C: 29 mm | Stud d: 24 mm | Thread: M24x1.5 | B1: 80 mm | Cr: 24.9 kN
FCR-80 D: 80 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 60.5 kN
FCRS-80 D: 80 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 60.5 kN
FCJ-80 D: 80 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 39 kN
FCJS-80 D: 80 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 39 kN
FCR-85 D: 85 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 60.5 kN
FCRS-85 D: 85 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 60.5 kN
FCJ-85 D: 85 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 39 kN
FCJS-85 D: 85 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 39 kN
FCR-90 D: 90 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 60.5 kN
FCRS-90 D: 90 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 60.5 kN
FCJ-90 D: 90 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 39 kN
FCJS-90 D: 90 mm | C: 35 mm | Stud d: 30 mm | Thread: M30x1.5 | B1: 100 mm | Cr: 39 kN
Track RollersNSK
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK FCR / FCRS / FCJ / FCJS Cam Followers (OD 16-90 mm)

Brand NSK·Track Rollers

Available part numbers (60)

FCR-16, FCRS-16, FCJ-16, FCJS-16, FCR-19, FCRS-19, FCJ-19, FCJS-19, FCR-22, FCRS-22 + 50 more — see full table ↓
