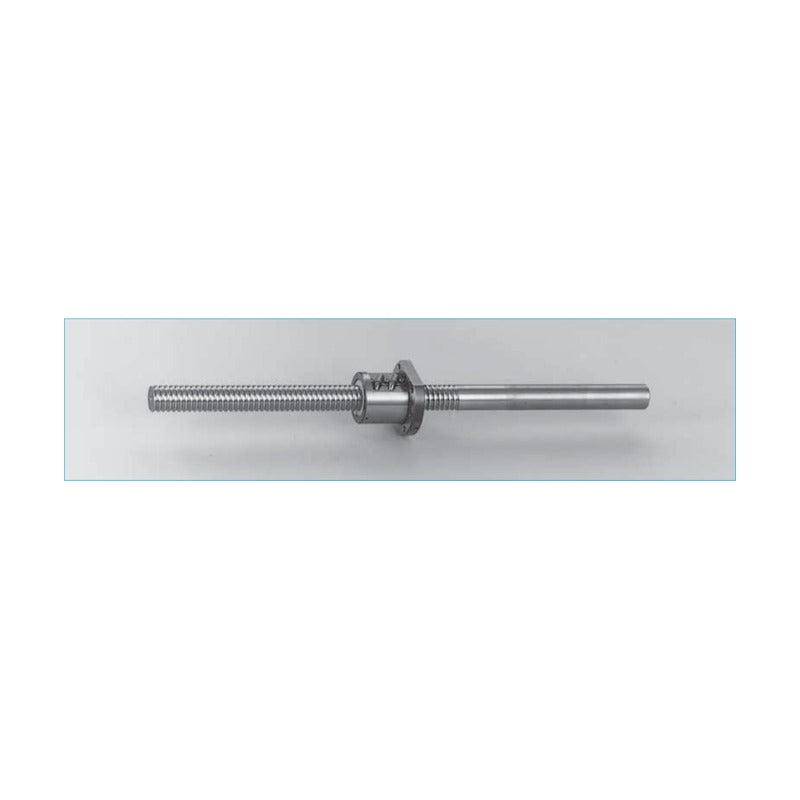

NSK FS Type Ball Screws for Small Equipment, Blank Shaft End

NSK FS Type Ball Screws for Small Equipment, Blank Shaft End

NSK FS type standard ball screws for small equipment with blank shaft ends, in fine to ultra high helix leads.

Key features

  • Shaft diameters 10 to 32 mm
  • Tube-type (SFT, LSFT) and end cap (USFC) nuts
  • Blank shaft ends for custom machining
  • Accuracy grades C3 and C5
  • Precise clearance axial play

Specifications

Type FS (blank shaft end)
Brand NSK
Product type Ball Screws
Listed models 42
Dimension units mm
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B393-B404
W1001FS-1-C3T4 Shaft x lead: 10 x 4 mm | Max stroke: 126 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1002FS-1-C3T4 Shaft x lead: 10 x 4 mm | Max stroke: 226 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1003FS-1-C3T4 Shaft x lead: 10 x 4 mm | Max stroke: 326 mm | Accuracy: C3 | Axial play: T | Ca: 2.74 kN | C0a: 4.45 kN
W1201FS-1-C3T5 Shaft x lead: 12 x 5 mm | Max stroke: 110 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1202FS-1-C3T5 Shaft x lead: 12 x 5 mm | Max stroke: 210 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1204FS-1-C3T5 Shaft x lead: 12 x 5 mm | Max stroke: 410 mm | Accuracy: C3 | Axial play: T | Ca: 3.76 kN | C0a: 6.31 kN
W1202FS-2-C5T10 Shaft x lead: 12 x 10 mm | Max stroke: 200 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1204FS-2-C5T10 Shaft x lead: 12 x 10 mm | Max stroke: 400 mm | Accuracy: C5 | Axial play: T | Ca: 3.75 kN | C0a: 6.48 kN
W1403FS-1-C3T5 Shaft x lead: 14 x 5 mm | Max stroke: 310 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1406FS-1-C3T5 Shaft x lead: 14 x 5 mm | Max stroke: 560 mm | Accuracy: C3 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1405FS-1-C5T8 Shaft x lead: 14 x 8 mm | Max stroke: 454 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1408FS-1-C5T8 Shaft x lead: 14 x 8 mm | Max stroke: 754 mm | Accuracy: C5 | Axial play: T | Ca: 6.79 kN | C0a: 11.7 kN
W1504FS-1-C5T10 Shaft x lead: 15 x 10 mm | Max stroke: 349 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1506FS-1-C5T10 Shaft x lead: 15 x 10 mm | Max stroke: 549 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1509FS-1-C5T10 Shaft x lead: 15 x 10 mm | Max stroke: 849 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1511FS-1-C5T10 Shaft x lead: 15 x 10 mm | Max stroke: 1049 mm | Accuracy: C5 | Axial play: T | Ca: 7.07 kN | C0a: 12.8 kN
W1504FS-2G-C5T20 Shaft x lead: 15 x 20 mm | Max stroke: 355 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1506FS-2G-C5T20 Shaft x lead: 15 x 20 mm | Max stroke: 555 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1509FS-2G-C5T20 Shaft x lead: 15 x 20 mm | Max stroke: 855 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1511FS-2G-C5T20 Shaft x lead: 15 x 20 mm | Max stroke: 1055 mm | Accuracy: C5 | Axial play: T | Ca: 5.07 kN | C0a: 8.73 kN
W1609FS-2GX-C5T32 Shaft x lead: 16 x 32 mm | Max stroke: 866 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W1613FS-1GX-C5T32 Shaft x lead: 16 x 32 mm | Max stroke: 1266 mm | Accuracy: C5 | Axial play: T | Ca: 4 kN | C0a: 6.69 kN
W2011FS-1GX-C5T40 Shaft x lead: 20 x 40 mm | Max stroke: 1059 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W2017FS-1GX-C5T40 Shaft x lead: 20 x 40 mm | Max stroke: 1659 mm | Accuracy: C5 | Axial play: T | Ca: 4.49 kN | C0a: 8.64 kN
W1605FS-1-C3T5 Shaft x lead: 16 x 5 mm | Max stroke: 458 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1609FS-1-C3T5 Shaft x lead: 16 x 5 mm | Max stroke: 858 mm | Accuracy: C3 | Axial play: T | Ca: 7.33 kN | C0a: 13.5 kN
W1606FS-1-C5T16 Shaft x lead: 16 x 16 mm | Max stroke: 544 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W1611FS-1-C5T16 Shaft x lead: 16 x 16 mm | Max stroke: 1044 mm | Accuracy: C5 | Axial play: T | Ca: 4.71 kN | C0a: 8.11 kN
W2009FS-1-C5T10 Shaft x lead: 20 x 10 mm | Max stroke: 846 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2013FS-1-C5T10 Shaft x lead: 20 x 10 mm | Max stroke: 1246 mm | Accuracy: C5 | Axial play: T | Ca: 10.9 kN | C0a: 21.7 kN
W2010FS-1-C5T20 Shaft x lead: 20 x 20 mm | Max stroke: 937 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2015FS-1-C5T20 Shaft x lead: 20 x 20 mm | Max stroke: 1437 mm | Accuracy: C5 | Axial play: T | Ca: 7.04 kN | C0a: 12.7 kN
W2513FS-1-C5T20 Shaft x lead: 25 x 20 mm | Max stroke: 1254 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2521FS-1-C5T20 Shaft x lead: 25 x 20 mm | Max stroke: 2054 mm | Accuracy: C5 | Axial play: T | Ca: 15.7 kN | C0a: 32.8 kN
W2513FS-2-C5T25 Shaft x lead: 25 x 25 mm | Max stroke: 1260 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2521FS-2-C5T25 Shaft x lead: 25 x 25 mm | Max stroke: 2060 mm | Accuracy: C5 | Axial play: T | Ca: 10.1 kN | C0a: 19.1 kN
W2515FS-1GX-C5T50 Shaft x lead: 25 x 50 mm | Max stroke: 1450 mm | Accuracy: C5 | Axial play: T | Ca: 6.7 kN | C0a: 13.5 kN
W2521FS-3GX-C5T50 Shaft x lead: 25 x 50 mm | Max stroke: 2100 mm | Accuracy: C5 | Axial play: T | Ca: 6.7 kN | C0a: 13.5 kN
W3217FS-1-C5T25 Shaft x lead: 32 x 25 mm | Max stroke: 1583 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3227FS-1-C5T25 Shaft x lead: 32 x 25 mm | Max stroke: 2583 mm | Accuracy: C5 | Axial play: T | Ca: 17.9 kN | C0a: 41.8 kN
W3217FS-2-C5T32 Shaft x lead: 32 x 32 mm | Max stroke: 1591 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
W3227FS-2-C5T32 Shaft x lead: 32 x 32 mm | Max stroke: 2591 mm | Accuracy: C5 | Axial play: T | Ca: 11.5 kN | C0a: 24.8 kN
Ball ScrewsNSK
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK FS Type Ball Screws for Small Equipment, Blank Shaft End

Brand NSK·Ball Screws

Available part numbers (42)

W1001FS-1-C3T4, W1002FS-1-C3T4, W1003FS-1-C3T4, W1201FS-1-C3T5, W1202FS-1-C3T5, W1204FS-1-C3T5, W1202FS-2-C5T10, W1204FS-2-C5T10, W1403FS-1-C3T5, W1406FS-1-C3T5 + 32 more — see full table ↓
