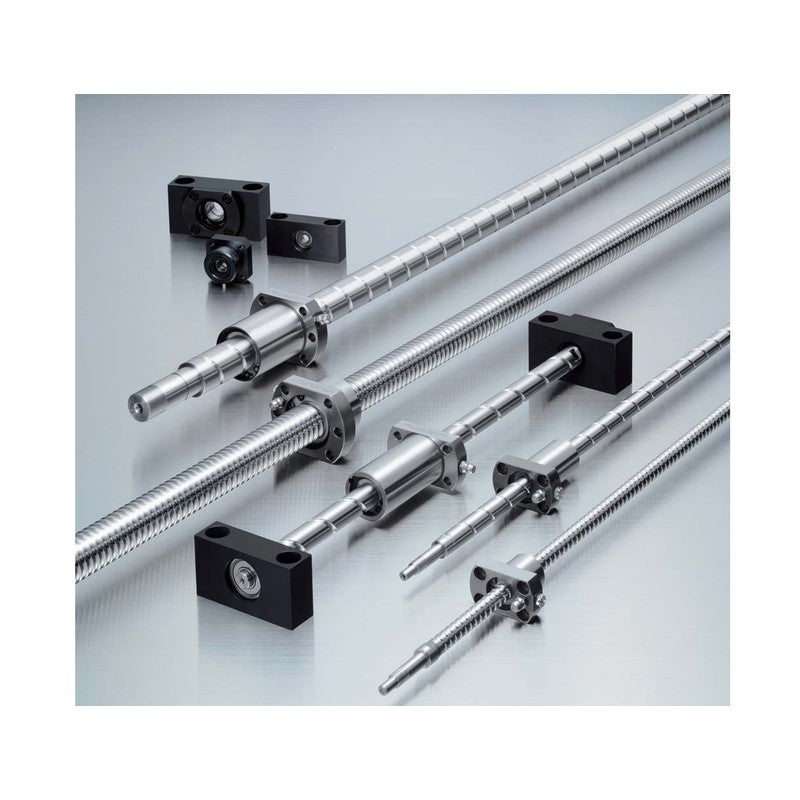

NSK FSS Compact FA Ball Screws (JIS Ct7, Unfinished Ends)

NSK FSS Compact FA Ball Screws (JIS Ct7, Unfinished Ends)

NSK FSS compact standard-stock ball screws for general transfer with low-noise BSS nut, JIS Ct7 accuracy and unfinished shaft ends that can be cut to the required stroke.

Key features

  • Standard-stock ball screw series for transfer and general FA
  • Shaft ends unfinished: cut to length for free stroke selection
  • Low-noise BSS nut
  • Two oil holes (M5x0.5) with grease nipple fitted as standard
  • Nut interchangeable with PSS and USS series

Specifications

Series FSS
Accuracy JIS Ct7
Shaft dia range 12 - 25 mm
Lead range 10 - 25 mm
Shaft ends Unfinished
Source NSK Standard Stock Ball Screws for Transfer, p. 24-27
FSS1210N1D0400 Shaft dia: 12 mm | Lead: 10 mm | Overall length: 400 mm | Ca: 3,200 N | C0a: 5,860 N
FSS1210N1D0600 Shaft dia: 12 mm | Lead: 10 mm | Overall length: 600 mm | Ca: 3,200 N | C0a: 5,860 N
FSS1210N1D0900 Shaft dia: 12 mm | Lead: 10 mm | Overall length: 900 mm | Ca: 3,200 N | C0a: 5,860 N
FSS1510N1D0500 Shaft dia: 15 mm | Lead: 10 mm | Overall length: 500 mm | Ca: 5,460 N | C0a: 10,200 N
FSS1510N1D1000 Shaft dia: 15 mm | Lead: 10 mm | Overall length: 1000 mm | Ca: 5,460 N | C0a: 10,200 N
FSS1510N1D1450 Shaft dia: 15 mm | Lead: 10 mm | Overall length: 1450 mm | Ca: 5,460 N | C0a: 10,200 N
FSS1520N1D0500 Shaft dia: 15 mm | Lead: 20 mm | Overall length: 500 mm | Ca: 5,070 N | C0a: 8,730 N
FSS1520N1D1000 Shaft dia: 15 mm | Lead: 20 mm | Overall length: 1000 mm | Ca: 5,070 N | C0a: 8,730 N
FSS1520N1D1450 Shaft dia: 15 mm | Lead: 20 mm | Overall length: 1450 mm | Ca: 5,070 N | C0a: 8,730 N
FSS2010N1D0600 Shaft dia: 20 mm | Lead: 10 mm | Overall length: 600 mm | Ca: 8,790 N | C0a: 18,500 N
FSS2010N1D1000 Shaft dia: 20 mm | Lead: 10 mm | Overall length: 1000 mm | Ca: 8,790 N | C0a: 18,500 N
FSS2010N1D1450 Shaft dia: 20 mm | Lead: 10 mm | Overall length: 1450 mm | Ca: 8,790 N | C0a: 18,500 N
FSS2020N1D0600 Shaft dia: 20 mm | Lead: 20 mm | Overall length: 600 mm | Ca: 5,900 N | C0a: 11,700 N
FSS2020N1D1000 Shaft dia: 20 mm | Lead: 20 mm | Overall length: 1000 mm | Ca: 5,900 N | C0a: 11,700 N
FSS2020N1D1450 Shaft dia: 20 mm | Lead: 20 mm | Overall length: 1450 mm | Ca: 5,900 N | C0a: 11,700 N
FSS2510N1D0600 Shaft dia: 25 mm | Lead: 10 mm | Overall length: 600 mm | Ca: 12,800 N | C0a: 32,300 N
FSS2510N1D1000 Shaft dia: 25 mm | Lead: 10 mm | Overall length: 1000 mm | Ca: 12,800 N | C0a: 32,300 N
FSS2510N1D1450 Shaft dia: 25 mm | Lead: 10 mm | Overall length: 1450 mm | Ca: 12,800 N | C0a: 32,300 N
FSS2520N1D0600 Shaft dia: 25 mm | Lead: 20 mm | Overall length: 600 mm | Ca: 6,560 N | C0a: 14,600 N
FSS2520N1D1000 Shaft dia: 25 mm | Lead: 20 mm | Overall length: 1000 mm | Ca: 6,560 N | C0a: 14,600 N
FSS2520N1D1450 Shaft dia: 25 mm | Lead: 20 mm | Overall length: 1450 mm | Ca: 6,560 N | C0a: 14,600 N
FSS2525N1D0600 Shaft dia: 25 mm | Lead: 25 mm | Overall length: 600 mm | Ca: 6,560 N | C0a: 14,600 N
FSS2525N1D1000 Shaft dia: 25 mm | Lead: 25 mm | Overall length: 1000 mm | Ca: 6,560 N | C0a: 14,600 N
FSS2525N1D1450 Shaft dia: 25 mm | Lead: 25 mm | Overall length: 1450 mm | Ca: 6,560 N | C0a: 14,600 N
