NSK FTRA-FTRE Thrust Washers for Thrust Needle Bearings

NSK FTRA-FTRE Thrust Washers for Thrust Needle Bearings

NSK FTR thrust washers (raceway washers) for FNTA thrust needle roller and cage assemblies, in thicknesses 1.0, 1.5, 2.0, 2.5 and 3.0 mm.

Key features

  • Hardened raceway washers for FNTA cage assemblies
  • Five thicknesses: FTRA 1.0, FTRB 1.5, FTRC 2.0, FTRD 2.5, FTRE 3.0 mm
  • Bore and outer diameter match the FNTA assembly designation
  • Can be used as shaft or housing washers

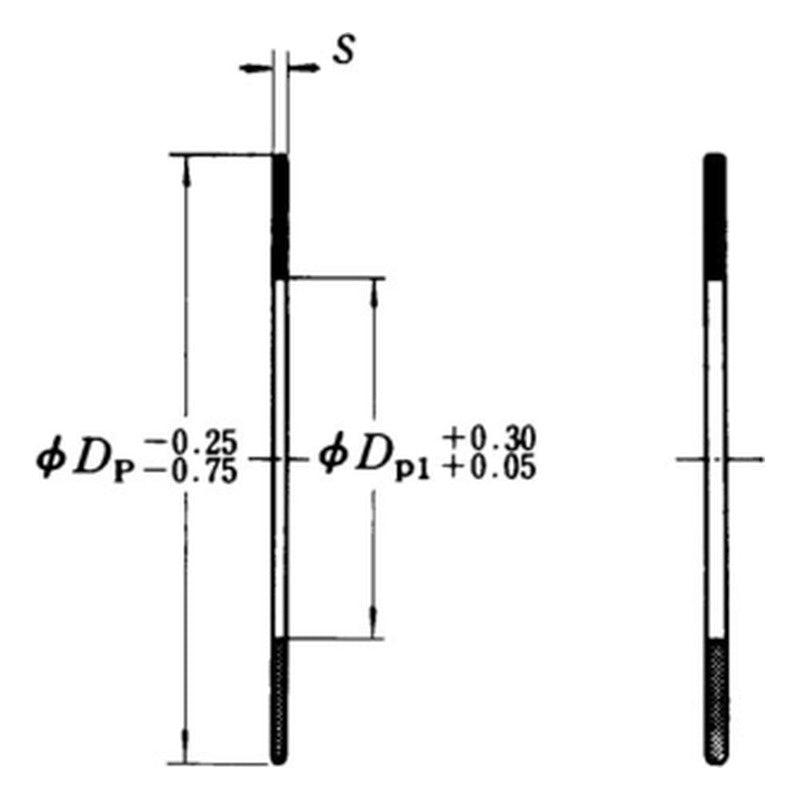

Specifications

Product Thrust washer for thrust needle bearings
Bore Dp1 10-100 mm
Thickness S 1.0-3.0 mm
Used with FNTA cage assemblies
Designation FTR(A-E) - Dp1 Dp
Source NSK Rolling Bearings Catalogue (Part 3), p. 270-271
FTRA-1024 Bore Dp1: 10 mm | OD Dp: 24 mm | Thickness S: 1.0 mm
FTRA-1226 Bore Dp1: 12 mm | OD Dp: 26 mm | Thickness S: 1.0 mm
FTRA-1528 Bore Dp1: 15 mm | OD Dp: 28 mm | Thickness S: 1.0 mm
FTRA-1629 Bore Dp1: 16 mm | OD Dp: 29 mm | Thickness S: 1.0 mm
FTRA-1730 Bore Dp1: 17 mm | OD Dp: 30 mm | Thickness S: 1.0 mm
FTRA-1831 Bore Dp1: 18 mm | OD Dp: 31 mm | Thickness S: 1.0 mm
FTRA-2035 Bore Dp1: 20 mm | OD Dp: 35 mm | Thickness S: 1.0 mm
FTRA-2542 Bore Dp1: 25 mm | OD Dp: 42 mm | Thickness S: 1.0 mm
FTRA-3047 Bore Dp1: 30 mm | OD Dp: 47 mm | Thickness S: 1.0 mm
FTRA-3552 Bore Dp1: 35 mm | OD Dp: 52 mm | Thickness S: 1.0 mm
FTRA-4060 Bore Dp1: 40 mm | OD Dp: 60 mm | Thickness S: 1.0 mm
FTRA-4565 Bore Dp1: 45 mm | OD Dp: 65 mm | Thickness S: 1.0 mm
FTRA-5070 Bore Dp1: 50 mm | OD Dp: 70 mm | Thickness S: 1.0 mm
FTRA-5578 Bore Dp1: 55 mm | OD Dp: 78 mm | Thickness S: 1.0 mm
FTRA-6085 Bore Dp1: 60 mm | OD Dp: 85 mm | Thickness S: 1.0 mm
FTRA-6590 Bore Dp1: 65 mm | OD Dp: 90 mm | Thickness S: 1.0 mm
FTRA-7095 Bore Dp1: 70 mm | OD Dp: 95 mm | Thickness S: 1.0 mm
FTRA-75100 Bore Dp1: 75 mm | OD Dp: 100 mm | Thickness S: 1.0 mm
FTRA-80105 Bore Dp1: 80 mm | OD Dp: 105 mm | Thickness S: 1.0 mm
FTRA-85110 Bore Dp1: 85 mm | OD Dp: 110 mm | Thickness S: 1.0 mm
FTRA-90120 Bore Dp1: 90 mm | OD Dp: 120 mm | Thickness S: 1.0 mm
FTRA-100135 Bore Dp1: 100 mm | OD Dp: 135 mm | Thickness S: 1.0 mm
FTRB-1024 Bore Dp1: 10 mm | OD Dp: 24 mm | Thickness S: 1.5 mm
FTRB-1226 Bore Dp1: 12 mm | OD Dp: 26 mm | Thickness S: 1.5 mm
FTRB-1528 Bore Dp1: 15 mm | OD Dp: 28 mm | Thickness S: 1.5 mm
FTRB-1629 Bore Dp1: 16 mm | OD Dp: 29 mm | Thickness S: 1.5 mm
FTRB-1730 Bore Dp1: 17 mm | OD Dp: 30 mm | Thickness S: 1.5 mm
FTRB-1831 Bore Dp1: 18 mm | OD Dp: 31 mm | Thickness S: 1.5 mm
FTRB-2035 Bore Dp1: 20 mm | OD Dp: 35 mm | Thickness S: 1.5 mm
FTRB-2542 Bore Dp1: 25 mm | OD Dp: 42 mm | Thickness S: 1.5 mm
FTRB-3047 Bore Dp1: 30 mm | OD Dp: 47 mm | Thickness S: 1.5 mm
FTRB-3552 Bore Dp1: 35 mm | OD Dp: 52 mm | Thickness S: 1.5 mm
FTRB-4060 Bore Dp1: 40 mm | OD Dp: 60 mm | Thickness S: 1.5 mm
FTRB-4565 Bore Dp1: 45 mm | OD Dp: 65 mm | Thickness S: 1.5 mm
FTRB-5070 Bore Dp1: 50 mm | OD Dp: 70 mm | Thickness S: 1.5 mm
FTRB-5578 Bore Dp1: 55 mm | OD Dp: 78 mm | Thickness S: 1.5 mm
FTRB-6085 Bore Dp1: 60 mm | OD Dp: 85 mm | Thickness S: 1.5 mm
FTRB-6590 Bore Dp1: 65 mm | OD Dp: 90 mm | Thickness S: 1.5 mm
FTRB-7095 Bore Dp1: 70 mm | OD Dp: 95 mm | Thickness S: 1.5 mm
FTRB-75100 Bore Dp1: 75 mm | OD Dp: 100 mm | Thickness S: 1.5 mm
FTRB-80105 Bore Dp1: 80 mm | OD Dp: 105 mm | Thickness S: 1.5 mm
FTRB-85110 Bore Dp1: 85 mm | OD Dp: 110 mm | Thickness S: 1.5 mm
FTRB-90120 Bore Dp1: 90 mm | OD Dp: 120 mm | Thickness S: 1.5 mm
FTRB-100135 Bore Dp1: 100 mm | OD Dp: 135 mm | Thickness S: 1.5 mm
FTRC-1024 Bore Dp1: 10 mm | OD Dp: 24 mm | Thickness S: 2.0 mm
FTRC-1226 Bore Dp1: 12 mm | OD Dp: 26 mm | Thickness S: 2.0 mm
FTRC-1528 Bore Dp1: 15 mm | OD Dp: 28 mm | Thickness S: 2.0 mm
FTRC-1629 Bore Dp1: 16 mm | OD Dp: 29 mm | Thickness S: 2.0 mm
FTRC-1730 Bore Dp1: 17 mm | OD Dp: 30 mm | Thickness S: 2.0 mm
FTRC-1831 Bore Dp1: 18 mm | OD Dp: 31 mm | Thickness S: 2.0 mm
FTRC-2035 Bore Dp1: 20 mm | OD Dp: 35 mm | Thickness S: 2.0 mm
FTRC-2542 Bore Dp1: 25 mm | OD Dp: 42 mm | Thickness S: 2.0 mm
FTRC-3047 Bore Dp1: 30 mm | OD Dp: 47 mm | Thickness S: 2.0 mm
FTRC-3552 Bore Dp1: 35 mm | OD Dp: 52 mm | Thickness S: 2.0 mm
FTRC-4060 Bore Dp1: 40 mm | OD Dp: 60 mm | Thickness S: 2.0 mm
FTRC-4565 Bore Dp1: 45 mm | OD Dp: 65 mm | Thickness S: 2.0 mm
FTRC-5070 Bore Dp1: 50 mm | OD Dp: 70 mm | Thickness S: 2.0 mm
FTRC-5578 Bore Dp1: 55 mm | OD Dp: 78 mm | Thickness S: 2.0 mm
FTRC-6085 Bore Dp1: 60 mm | OD Dp: 85 mm | Thickness S: 2.0 mm
FTRC-6590 Bore Dp1: 65 mm | OD Dp: 90 mm | Thickness S: 2.0 mm
FTRC-7095 Bore Dp1: 70 mm | OD Dp: 95 mm | Thickness S: 2.0 mm
FTRC-75100 Bore Dp1: 75 mm | OD Dp: 100 mm | Thickness S: 2.0 mm
FTRC-80105 Bore Dp1: 80 mm | OD Dp: 105 mm | Thickness S: 2.0 mm
FTRC-85110 Bore Dp1: 85 mm | OD Dp: 110 mm | Thickness S: 2.0 mm
FTRC-90120 Bore Dp1: 90 mm | OD Dp: 120 mm | Thickness S: 2.0 mm
FTRC-100135 Bore Dp1: 100 mm | OD Dp: 135 mm | Thickness S: 2.0 mm
FTRD-1528 Bore Dp1: 15 mm | OD Dp: 28 mm | Thickness S: 2.5 mm
FTRD-1629 Bore Dp1: 16 mm | OD Dp: 29 mm | Thickness S: 2.5 mm
FTRD-1730 Bore Dp1: 17 mm | OD Dp: 30 mm | Thickness S: 2.5 mm
FTRD-1831 Bore Dp1: 18 mm | OD Dp: 31 mm | Thickness S: 2.5 mm
FTRD-2035 Bore Dp1: 20 mm | OD Dp: 35 mm | Thickness S: 2.5 mm
FTRD-2542 Bore Dp1: 25 mm | OD Dp: 42 mm | Thickness S: 2.5 mm
FTRD-3047 Bore Dp1: 30 mm | OD Dp: 47 mm | Thickness S: 2.5 mm
FTRD-3552 Bore Dp1: 35 mm | OD Dp: 52 mm | Thickness S: 2.5 mm
FTRD-4060 Bore Dp1: 40 mm | OD Dp: 60 mm | Thickness S: 2.5 mm
FTRD-4565 Bore Dp1: 45 mm | OD Dp: 65 mm | Thickness S: 2.5 mm
FTRD-5070 Bore Dp1: 50 mm | OD Dp: 70 mm | Thickness S: 2.5 mm
FTRD-5578 Bore Dp1: 55 mm | OD Dp: 78 mm | Thickness S: 2.5 mm
FTRD-6085 Bore Dp1: 60 mm | OD Dp: 85 mm | Thickness S: 2.5 mm
FTRD-6590 Bore Dp1: 65 mm | OD Dp: 90 mm | Thickness S: 2.5 mm
FTRD-7095 Bore Dp1: 70 mm | OD Dp: 95 mm | Thickness S: 2.5 mm
FTRD-75100 Bore Dp1: 75 mm | OD Dp: 100 mm | Thickness S: 2.5 mm
FTRD-80105 Bore Dp1: 80 mm | OD Dp: 105 mm | Thickness S: 2.5 mm
FTRD-85110 Bore Dp1: 85 mm | OD Dp: 110 mm | Thickness S: 2.5 mm
FTRD-90120 Bore Dp1: 90 mm | OD Dp: 120 mm | Thickness S: 2.5 mm
FTRD-100135 Bore Dp1: 100 mm | OD Dp: 135 mm | Thickness S: 2.5 mm
FTRE-1528 Bore Dp1: 15 mm | OD Dp: 28 mm | Thickness S: 3.0 mm
FTRE-1629 Bore Dp1: 16 mm | OD Dp: 29 mm | Thickness S: 3.0 mm
FTRE-1730 Bore Dp1: 17 mm | OD Dp: 30 mm | Thickness S: 3.0 mm
FTRE-1831 Bore Dp1: 18 mm | OD Dp: 31 mm | Thickness S: 3.0 mm
FTRE-2035 Bore Dp1: 20 mm | OD Dp: 35 mm | Thickness S: 3.0 mm
FTRE-2542 Bore Dp1: 25 mm | OD Dp: 42 mm | Thickness S: 3.0 mm
FTRE-3047 Bore Dp1: 30 mm | OD Dp: 47 mm | Thickness S: 3.0 mm
FTRE-3552 Bore Dp1: 35 mm | OD Dp: 52 mm | Thickness S: 3.0 mm
FTRE-4060 Bore Dp1: 40 mm | OD Dp: 60 mm | Thickness S: 3.0 mm
FTRE-4565 Bore Dp1: 45 mm | OD Dp: 65 mm | Thickness S: 3.0 mm
FTRE-5070 Bore Dp1: 50 mm | OD Dp: 70 mm | Thickness S: 3.0 mm
FTRE-5578 Bore Dp1: 55 mm | OD Dp: 78 mm | Thickness S: 3.0 mm
FTRE-6085 Bore Dp1: 60 mm | OD Dp: 85 mm | Thickness S: 3.0 mm
FTRE-6590 Bore Dp1: 65 mm | OD Dp: 90 mm | Thickness S: 3.0 mm
FTRE-7095 Bore Dp1: 70 mm | OD Dp: 95 mm | Thickness S: 3.0 mm
FTRE-75100 Bore Dp1: 75 mm | OD Dp: 100 mm | Thickness S: 3.0 mm
FTRE-80105 Bore Dp1: 80 mm | OD Dp: 105 mm | Thickness S: 3.0 mm
FTRE-85110 Bore Dp1: 85 mm | OD Dp: 110 mm | Thickness S: 3.0 mm
FTRE-90120 Bore Dp1: 90 mm | OD Dp: 120 mm | Thickness S: 3.0 mm
FTRE-100135 Bore Dp1: 100 mm | OD Dp: 135 mm | Thickness S: 3.0 mm
