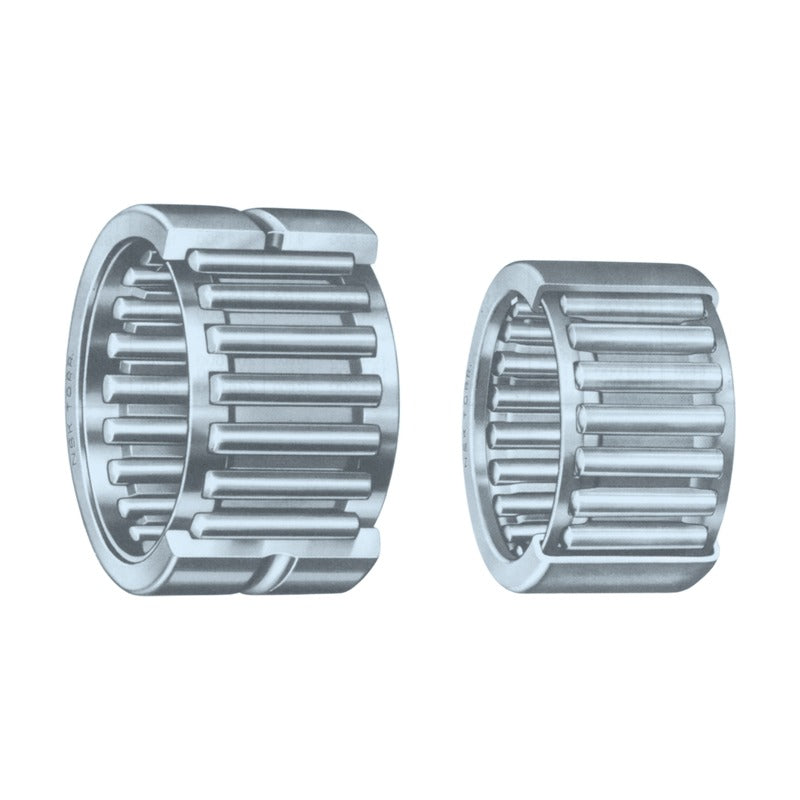

NSK FWF / FWJ / FBN Needle Roller and Cage Assemblies (Fw 5-100 mm)

NSK radial needle roller and cage assemblies (FWF, FWJ, FBN and polyamide-caged FBNP types) for applications where the shaft and housing bore serve directly as raceways. Roller inscribed circle diameters from 5 to 100 mm.

Key features

Compact radial design: cage and needle rollers only, no inner or outer ring
High load capacity for the cross-section height
Shaft and housing bore act as raceways
FBNP types use a polyamide cage (max. 120 °C, continuous 100 °C or less)
Bc width tolerance -0.2/-0.55 mm

Specifications

Product	Radial needle roller and cage assembly
Inscribed circle Fw	5-100 mm
Width tolerance Bc	-0.2 / -0.55 mm
Cage	Steel (FBNP: polyamide)
Raceways	Shaft and housing bore
Designation	Type - Fw Ew Bc
Source	NSK Rolling Bearings Catalogue (Part 3), p. 248-251

FBNP-588		Fw: 5 mm \| Ew: 8 mm \| Bc: 8 mm \| Cr: 2.33 kN \| C0r: 1.86 kN \| Grease speed: 60000 rpm
FBNP-698		Fw: 6 mm \| Ew: 9 mm \| Bc: 8 mm \| Cr: 2.2 kN \| C0r: 1.78 kN \| Grease speed: 48000 rpm
FBNP-6910		Fw: 6 mm \| Ew: 9 mm \| Bc: 10 mm \| Cr: 3.35 kN \| C0r: 3.05 kN \| Grease speed: 48000 rpm
FBNP-7108		Fw: 7 mm \| Ew: 10 mm \| Bc: 8 mm \| Cr: 2.84 kN \| C0r: 2.56 kN \| Grease speed: 40000 rpm
FBNP-71010		Fw: 7 mm \| Ew: 10 mm \| Bc: 10 mm \| Cr: 3.65 kN \| C0r: 3.55 kN \| Grease speed: 40000 rpm
FBNP-81110		Fw: 8 mm \| Ew: 11 mm \| Bc: 10 mm \| Cr: 3.95 kN \| C0r: 4 kN \| Grease speed: 34000 rpm
FBNP-81113		Fw: 8 mm \| Ew: 11 mm \| Bc: 13 mm \| Cr: 4.75 kN \| C0r: 5.15 kN \| Grease speed: 34000 rpm
FBNP-91210		Fw: 9 mm \| Ew: 12 mm \| Bc: 10 mm \| Cr: 3.75 kN \| C0r: 3.85 kN \| Grease speed: 30000 rpm
FBNP-91213		Fw: 9 mm \| Ew: 12 mm \| Bc: 13 mm \| Cr: 5.1 kN \| C0r: 5.75 kN \| Grease speed: 30000 rpm
FBN-101310		Fw: 10 mm \| Ew: 13 mm \| Bc: 10 mm \| Cr: 3.95 kN \| C0r: 4.3 kN \| Grease speed: 28000 rpm
FBN-101313		Fw: 10 mm \| Ew: 13 mm \| Bc: 13 mm \| Cr: 5.4 kN \| C0r: 6.35 kN \| Grease speed: 28000 rpm
FWF-101413		Fw: 10 mm \| Ew: 14 mm \| Bc: 13 mm \| Cr: 6.5 kN \| C0r: 6.75 kN \| Grease speed: 28000 rpm
FBN-121510		Fw: 12 mm \| Ew: 15 mm \| Bc: 10 mm \| Cr: 4.35 kN \| C0r: 5.1 kN \| Grease speed: 22000 rpm
FBN-121513		Fw: 12 mm \| Ew: 15 mm \| Bc: 13 mm \| Cr: 5.95 kN \| C0r: 7.6 kN \| Grease speed: 22000 rpm
FWF-121613		Fw: 12 mm \| Ew: 16 mm \| Bc: 13 mm \| Cr: 7.35 kN \| C0r: 8.35 kN \| Grease speed: 22000 rpm
FWF-141810		Fw: 14 mm \| Ew: 18 mm \| Bc: 10 mm \| Cr: 6.75 kN \| C0r: 7.75 kN \| Grease speed: 19000 rpm
FWF-141813		Fw: 14 mm \| Ew: 18 mm \| Bc: 13 mm \| Cr: 8.05 kN \| C0r: 9.75 kN \| Grease speed: 19000 rpm
FWF-142017		Fw: 14 mm \| Ew: 20 mm \| Bc: 17 mm \| Cr: 13.4 kN \| C0r: 14.6 kN \| Grease speed: 20000 rpm
FWF-151910		Fw: 15 mm \| Ew: 19 mm \| Bc: 10 mm \| Cr: 7.05 kN \| C0r: 8.4 kN \| Grease speed: 18000 rpm
FWF-151913		Fw: 15 mm \| Ew: 19 mm \| Bc: 13 mm \| Cr: 8.4 kN \| C0r: 10.5 kN \| Grease speed: 18000 rpm
FWF-152117		Fw: 15 mm \| Ew: 21 mm \| Bc: 17 mm \| Cr: 13.4 kN \| C0r: 14.8 kN \| Grease speed: 19000 rpm
FWF-162010		Fw: 16 mm \| Ew: 20 mm \| Bc: 10 mm \| Cr: 7.35 kN \| C0r: 9 kN \| Grease speed: 17000 rpm
FWF-162013		Fw: 16 mm \| Ew: 20 mm \| Bc: 13 mm \| Cr: 8.8 kN \| C0r: 11.3 kN \| Grease speed: 17000 rpm
FWF-162217		Fw: 16 mm \| Ew: 22 mm \| Bc: 17 mm \| Cr: 14.7 kN \| C0r: 16.9 kN \| Grease speed: 17000 rpm
FWF-172110		Fw: 17 mm \| Ew: 21 mm \| Bc: 10 mm \| Cr: 7.65 kN \| C0r: 9.65 kN \| Grease speed: 16000 rpm
FWJ-172113		Fw: 17 mm \| Ew: 21 mm \| Bc: 13 mm \| Cr: 10.2 kN \| C0r: 14 kN \| Grease speed: 16000 rpm
FWF-172317		Fw: 17 mm \| Ew: 23 mm \| Bc: 17 mm \| Cr: 15.1 kN \| C0r: 17.8 kN \| Grease speed: 16000 rpm
FWF-182210		Fw: 18 mm \| Ew: 22 mm \| Bc: 10 mm \| Cr: 7.9 kN \| C0r: 10.3 kN \| Grease speed: 15000 rpm
FWF-182213		Fw: 18 mm \| Ew: 22 mm \| Bc: 13 mm \| Cr: 9.45 kN \| C0r: 12.9 kN \| Grease speed: 15000 rpm
FWJ-182417		Fw: 18 mm \| Ew: 24 mm \| Bc: 17 mm \| Cr: 17.4 kN \| C0r: 21.6 kN \| Grease speed: 15000 rpm
FWF-202410		Fw: 20 mm \| Ew: 24 mm \| Bc: 10 mm \| Cr: 8 kN \| C0r: 10.7 kN \| Grease speed: 13000 rpm
FWF-202413		Fw: 20 mm \| Ew: 24 mm \| Bc: 13 mm \| Cr: 9.7 kN \| C0r: 13.7 kN \| Grease speed: 13000 rpm
FWJ-202617		Fw: 20 mm \| Ew: 26 mm \| Bc: 17 mm \| Cr: 18 kN \| C0r: 23.2 kN \| Grease speed: 14000 rpm
FWF-222610		Fw: 22 mm \| Ew: 26 mm \| Bc: 10 mm \| Cr: 8.6 kN \| C0r: 12.2 kN \| Grease speed: 12000 rpm
FWF-222613		Fw: 22 mm \| Ew: 26 mm \| Bc: 13 mm \| Cr: 10.3 kN \| C0r: 15.3 kN \| Grease speed: 12000 rpm
FWF-222817		Fw: 22 mm \| Ew: 28 mm \| Bc: 17 mm \| Cr: 17.3 kN \| C0r: 22.7 kN \| Grease speed: 12000 rpm
FWF-252910		Fw: 25 mm \| Ew: 29 mm \| Bc: 10 mm \| Cr: 9.35 kN \| C0r: 14.1 kN \| Grease speed: 10000 rpm
FWF-252913		Fw: 25 mm \| Ew: 29 mm \| Bc: 13 mm \| Cr: 11.3 kN \| C0r: 18 kN \| Grease speed: 10000 rpm
FWF-253117		Fw: 25 mm \| Ew: 31 mm \| Bc: 17 mm \| Cr: 19.2 kN \| C0r: 26.8 kN \| Grease speed: 10000 rpm
FWF-283313		Fw: 28 mm \| Ew: 33 mm \| Bc: 13 mm \| Cr: 13.7 kN \| C0r: 20.4 kN \| Grease speed: 9500 rpm
FWF-283317		Fw: 28 mm \| Ew: 33 mm \| Bc: 17 mm \| Cr: 17.6 kN \| C0r: 28.3 kN \| Grease speed: 9500 rpm
FWF-283417		Fw: 28 mm \| Ew: 34 mm \| Bc: 17 mm \| Cr: 19.9 kN \| C0r: 29.1 kN \| Grease speed: 9500 rpm
FWF-303513		Fw: 30 mm \| Ew: 35 mm \| Bc: 13 mm \| Cr: 14 kN \| C0r: 21.6 kN \| Grease speed: 8500 rpm
FWF-303517A		Fw: 30 mm \| Ew: 35 mm \| Bc: 17 mm \| Cr: 18.7 kN \| C0r: 31.5 kN \| Grease speed: 8500 rpm
FWF-303720		Fw: 30 mm \| Ew: 37 mm \| Bc: 20 mm \| Cr: 26 kN \| C0r: 38 kN \| Grease speed: 9000 rpm
FWF-323713		Fw: 32 mm \| Ew: 37 mm \| Bc: 13 mm \| Cr: 15.1 kN \| C0r: 24.4 kN \| Grease speed: 8000 rpm
FWJ-323717		Fw: 32 mm \| Ew: 37 mm \| Bc: 17 mm \| Cr: 18.5 kN \| C0r: 31.5 kN \| Grease speed: 8000 rpm
FWF-323920		Fw: 32 mm \| Ew: 39 mm \| Bc: 20 mm \| Cr: 27.3 kN \| C0r: 41 kN \| Grease speed: 8500 rpm
FWF-354013		Fw: 35 mm \| Ew: 40 mm \| Bc: 13 mm \| Cr: 15.8 kN \| C0r: 26.4 kN \| Grease speed: 7500 rpm
FWF-354017		Fw: 35 mm \| Ew: 40 mm \| Bc: 17 mm \| Cr: 20.5 kN \| C0r: 37 kN \| Grease speed: 7500 rpm
FWJ-354220		Fw: 35 mm \| Ew: 42 mm \| Bc: 20 mm \| Cr: 30 kN \| C0r: 47.5 kN \| Grease speed: 7500 rpm
FWF-404517A		Fw: 40 mm \| Ew: 45 mm \| Bc: 17 mm \| Cr: 21 kN \| C0r: 40 kN \| Grease speed: 6300 rpm
FWF-404527		Fw: 40 mm \| Ew: 45 mm \| Bc: 27 mm \| Cr: 32 kN \| C0r: 68 kN \| Grease speed: 6300 rpm
FWF-404825		Fw: 40 mm \| Ew: 48 mm \| Bc: 25 mm \| Cr: 40.5 kN \| C0r: 66.5 kN \| Grease speed: 6700 rpm
FWF-455017		Fw: 45 mm \| Ew: 50 mm \| Bc: 17 mm \| Cr: 21.6 kN \| C0r: 43 kN \| Grease speed: 5600 rpm
FWF-455027		Fw: 45 mm \| Ew: 50 mm \| Bc: 27 mm \| Cr: 34 kN \| C0r: 77.5 kN \| Grease speed: 5600 rpm
FWF-455325		Fw: 45 mm \| Ew: 53 mm \| Bc: 25 mm \| Cr: 44 kN \| C0r: 77 kN \| Grease speed: 5600 rpm
FWF-505520		Fw: 50 mm \| Ew: 55 mm \| Bc: 20 mm \| Cr: 26.9 kN \| C0r: 59 kN \| Grease speed: 5000 rpm
FWF-505527		Fw: 50 mm \| Ew: 55 mm \| Bc: 27 mm \| Cr: 35 kN \| C0r: 83 kN \| Grease speed: 5000 rpm
FWF-505825		Fw: 50 mm \| Ew: 58 mm \| Bc: 25 mm \| Cr: 48.5 kN \| C0r: 90.5 kN \| Grease speed: 5300 rpm
FWF-556120		Fw: 55 mm \| Ew: 61 mm \| Bc: 20 mm \| Cr: 31 kN \| C0r: 64 kN \| Grease speed: 4500 rpm
FWF-556130		Fw: 55 mm \| Ew: 61 mm \| Bc: 30 mm \| Cr: 47 kN \| C0r: 109 kN \| Grease speed: 4500 rpm
FWF-556325		Fw: 55 mm \| Ew: 63 mm \| Bc: 25 mm \| Cr: 50 kN \| C0r: 97.5 kN \| Grease speed: 4800 rpm
FWF-606620		Fw: 60 mm \| Ew: 66 mm \| Bc: 20 mm \| Cr: 33 kN \| C0r: 71.5 kN \| Grease speed: 4300 rpm
FWF-606630		Fw: 60 mm \| Ew: 66 mm \| Bc: 30 mm \| Cr: 50 kN \| C0r: 122 kN \| Grease speed: 4300 rpm
FWF-606825		Fw: 60 mm \| Ew: 68 mm \| Bc: 25 mm \| Cr: 52 kN \| C0r: 105 kN \| Grease speed: 4300 rpm
FWF-657330		Fw: 65 mm \| Ew: 73 mm \| Bc: 30 mm \| Cr: 61 kN \| C0r: 132 kN \| Grease speed: 4000 rpm
FWF-707830		Fw: 70 mm \| Ew: 78 mm \| Bc: 30 mm \| Cr: 63 kN \| C0r: 140 kN \| Grease speed: 3600 rpm
FWF-758330		Fw: 75 mm \| Ew: 83 mm \| Bc: 30 mm \| Cr: 65 kN \| C0r: 151 kN \| Grease speed: 3400 rpm
FWF-808830		Fw: 80 mm \| Ew: 88 mm \| Bc: 30 mm \| Cr: 69 kN \| C0r: 166 kN \| Grease speed: 3200 rpm
FWF-859330		Fw: 85 mm \| Ew: 93 mm \| Bc: 30 mm \| Cr: 71 kN \| C0r: 176 kN \| Grease speed: 3000 rpm
FWF-909830		Fw: 90 mm \| Ew: 98 mm \| Bc: 30 mm \| Cr: 70 kN \| C0r: 177 kN \| Grease speed: 2800 rpm
FWF-9510330		Fw: 95 mm \| Ew: 103 mm \| Bc: 30 mm \| Cr: 69.5 kN \| C0r: 177 kN \| Grease speed: 2600 rpm
FWF-10010830		Fw: 100 mm \| Ew: 108 mm \| Bc: 30 mm \| Cr: 75.5 kN \| C0r: 201 kN \| Grease speed: 2400 rpm

Needle Roller BearingsNSK

74 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK FWF / FWJ / FBN Needle Roller and Cage Assemblies (Fw 5-100 mm)

Brand NSK·Needle Roller Bearings

Available part numbers (74)

FBNP-588, FBNP-698, FBNP-6910, FBNP-7108, FBNP-71010, FBNP-81110, FBNP-81113, FBNP-91210, FBNP-91213, FBN-101310 + 64 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
