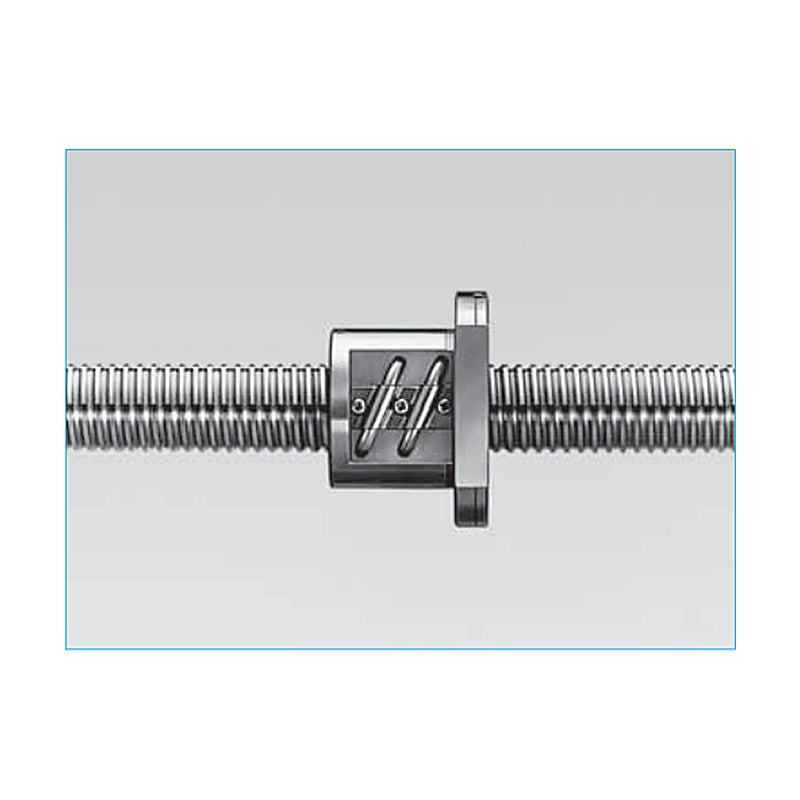

NSK GSCT Return Tube Ball Screws (Non-preload, Dia. 140-250)

NSK GSCT return tube type ball screws are very large non-preloaded ball screws for heavy-load applications.

Key features

Shaft diameters 140 to 250 mm
Non-preload single nut
Very high load capacity
Return tube recirculation
For presses and heavy machinery

Specifications

Nut model	GSCT (non-preload)
Brand	NSK
Product type	Ball Screws
Listed models	24
Dimension units	mm
Source	NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B505-B506

GSCT14025-5		Shaft dia d: 140 mm \| Lead l: 25 mm \| Ca: 272 kN \| C0a: 1400 kN \| Nut model: GSCT
GSCT14025-7.5		Shaft dia d: 140 mm \| Lead l: 25 mm \| Ca: 362 kN \| C0a: 2090 kN \| Nut model: GSCT
GSCT14032-5		Shaft dia d: 140 mm \| Lead l: 32 mm \| Ca: 428 kN \| C0a: 1920 kN \| Nut model: GSCT
GSCT14032-7.5		Shaft dia d: 140 mm \| Lead l: 32 mm \| Ca: 568 kN \| C0a: 2880 kN \| Nut model: GSCT
GSCT14040-5		Shaft dia d: 140 mm \| Lead l: 40 mm \| Ca: 428 kN \| C0a: 1920 kN \| Nut model: GSCT
GSCT14040-7.5		Shaft dia d: 140 mm \| Lead l: 40 mm \| Ca: 568 kN \| C0a: 2880 kN \| Nut model: GSCT
GSCT14050-5		Shaft dia d: 140 mm \| Lead l: 50 mm \| Ca: 518 kN \| C0a: 2190 kN \| Nut model: GSCT
GSCT14050-7.5		Shaft dia d: 140 mm \| Lead l: 50 mm \| Ca: 688 kN \| C0a: 3290 kN \| Nut model: GSCT
GSCT16032-5		Shaft dia d: 160 mm \| Lead l: 32 mm \| Ca: 458 kN \| C0a: 2210 kN \| Nut model: GSCT
GSCT16032-7.5		Shaft dia d: 160 mm \| Lead l: 32 mm \| Ca: 608 kN \| C0a: 3310 kN \| Nut model: GSCT
GSCT16040-5		Shaft dia d: 160 mm \| Lead l: 40 mm \| Ca: 458 kN \| C0a: 2210 kN \| Nut model: GSCT
GSCT16040-7.5		Shaft dia d: 160 mm \| Lead l: 40 mm \| Ca: 608 kN \| C0a: 3310 kN \| Nut model: GSCT
GSCT16050-5		Shaft dia d: 160 mm \| Lead l: 50 mm \| Ca: 544 kN \| C0a: 2560 kN \| Nut model: GSCT
GSCT16050-7.5		Shaft dia d: 160 mm \| Lead l: 50 mm \| Ca: 722 kN \| C0a: 3840 kN \| Nut model: GSCT
GSCT20032-5		Shaft dia d: 200 mm \| Lead l: 32 mm \| Ca: 509 kN \| C0a: 2820 kN \| Nut model: GSCT
GSCT20032-7.5		Shaft dia d: 200 mm \| Lead l: 32 mm \| Ca: 676 kN \| C0a: 4230 kN \| Nut model: GSCT
GSCT20040-5		Shaft dia d: 200 mm \| Lead l: 40 mm \| Ca: 509 kN \| C0a: 2820 kN \| Nut model: GSCT
GSCT20040-7.5		Shaft dia d: 200 mm \| Lead l: 40 mm \| Ca: 676 kN \| C0a: 4230 kN \| Nut model: GSCT
GSCT20050-5		Shaft dia d: 200 mm \| Lead l: 50 mm \| Ca: 604 kN \| C0a: 3200 kN \| Nut model: GSCT
GSCT20050-7.5		Shaft dia d: 200 mm \| Lead l: 50 mm \| Ca: 802 kN \| C0a: 4800 kN \| Nut model: GSCT
GSCT25040-5		Shaft dia d: 250 mm \| Lead l: 40 mm \| Ca: 662 kN \| C0a: 4000 kN \| Nut model: GSCT
GSCT25040-7.5		Shaft dia d: 250 mm \| Lead l: 40 mm \| Ca: 879 kN \| C0a: 6000 kN \| Nut model: GSCT
GSCT25050-5		Shaft dia d: 250 mm \| Lead l: 50 mm \| Ca: 825 kN \| C0a: 5000 kN \| Nut model: GSCT
GSCT25050-7.5		Shaft dia d: 250 mm \| Lead l: 50 mm \| Ca: 1100 kN \| C0a: 7500 kN \| Nut model: GSCT

Ball ScrewsNSK

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK GSCT Return Tube Ball Screws (Non-preload, Dia. 140-250)

Brand NSK·Ball Screws

Available part numbers (24)

GSCT14025-5, GSCT14025-7.5, GSCT14032-5, GSCT14032-7.5, GSCT14040-5, GSCT14040-7.5, GSCT14050-5, GSCT14050-7.5, GSCT16032-5, GSCT16032-7.5 + 14 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
