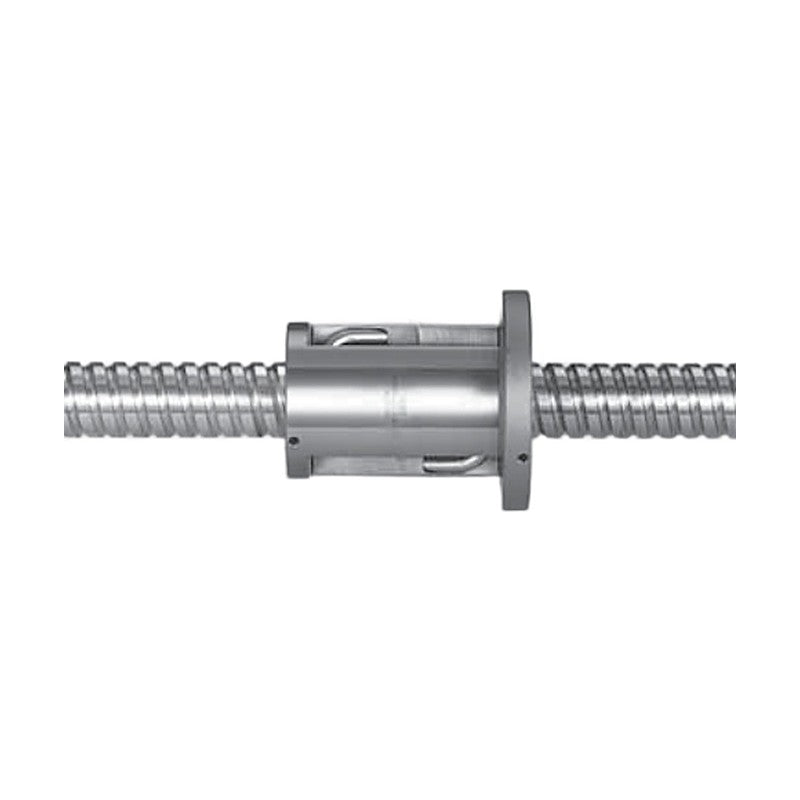

NSK HMC Type Ball Screws (HZC/HZF/HDC/HDF) for Machine Tools

NSK HMC Type Ball Screws (HZC/HZF/HDC/HDF) for Machine Tools

NSK HMC type ball screws use high helix leads and a reinforced return tube for travel speeds of 40 to 120 m/min on high-speed machine tools.

Key features

  • High helix leads of 16 to 36 mm with double-start thread
  • Reinforced ball recirculation tube for high speed
  • Compact nut: about 50% smaller volume
  • Z preload (HZC, HZF) or D preload (HDC, HDF)
  • Accuracy grades C3 and C5

Specifications

Series HMC
Nut models HZC, HZF, HDC, HDF
Accuracy grades C3, C5
Axial play 0 (preloaded)
Brand NSK
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B113-B118
HZF3616-5 Shaft dia d: 36 mm | Lead l: 16 mm | Ca: 40.2 kN | C0a: 102 kN | Nut model: HZF
HZC3616-5 Shaft dia d: 36 mm | Lead l: 16 mm | Ca: 40.2 kN | C0a: 102 kN | Nut model: HZC
HZF3620-3.5 Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 44 kN | C0a: 98.5 kN | Nut model: HZF
HZC3620-3.5 Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 44 kN | C0a: 98.5 kN | Nut model: HZC
HZF4016-5 Shaft dia d: 40 mm | Lead l: 16 mm | Ca: 41.2 kN | C0a: 112 kN | Nut model: HZF
HZC4016-5 Shaft dia d: 40 mm | Lead l: 16 mm | Ca: 41.2 kN | C0a: 112 kN | Nut model: HZC
HZF4020-3.5 Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 46.1 kN | C0a: 107 kN | Nut model: HZF
HZC4020-3.5 Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 46.1 kN | C0a: 107 kN | Nut model: HZC
HZF4020-5 Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 62.6 kN | C0a: 153 kN | Nut model: HZF
HZC4020-5 Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 62.6 kN | C0a: 153 kN | Nut model: HZC
HZF4516-5 Shaft dia d: 45 mm | Lead l: 16 mm | Ca: 43.8 kN | C0a: 127 kN | Nut model: HZF
HZF4516-7.5 Shaft dia d: 45 mm | Lead l: 16 mm | Ca: 62.1 kN | C0a: 191 kN | Nut model: HZF
HZF4520-3.5 Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 47.6 kN | C0a: 120 kN | Nut model: HZF
HZC4520-3.5 Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 47.6 kN | C0a: 120 kN | Nut model: HZC
HZF4520-5 Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 64.7 kN | C0a: 170 kN | Nut model: HZF
HZC4520-5 Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 64.7 kN | C0a: 170 kN | Nut model: HZC
HZF4525-3.5 Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 56.8 kN | C0a: 137 kN | Nut model: HZF
HZC4525-3.5 Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 56.8 kN | C0a: 137 kN | Nut model: HZC
HZF5020-3.5 Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 50.4 kN | C0a: 133 kN | Nut model: HZF
HZC5020-3.5 Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 50.4 kN | C0a: 133 kN | Nut model: HZC
HZF5020-5 Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 68.5 kN | C0a: 191 kN | Nut model: HZF
HZC5020-5 Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 68.5 kN | C0a: 191 kN | Nut model: HZC
HZF5025-3.5 Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZF
HZC5025-3.5 Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZC
HZF5025-5 Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HZF
HZC5025-5 Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HZC
HZF5030-3.5 Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZF
HZC5030-3.5 Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZC
HZF5520-3.5 Shaft dia d: 55 mm | Lead l: 20 mm | Ca: 51.6 kN | C0a: 145 kN | Nut model: HZF
HZF5520-5 Shaft dia d: 55 mm | Lead l: 20 mm | Ca: 70.2 kN | C0a: 208 kN | Nut model: HZF
HZF5525-3.5 Shaft dia d: 55 mm | Lead l: 25 mm | Ca: 62.6 kN | C0a: 165 kN | Nut model: HZF
HZF5525-5 Shaft dia d: 55 mm | Lead l: 25 mm | Ca: 85 kN | C0a: 238 kN | Nut model: HZF
HZF5530-3.5 Shaft dia d: 55 mm | Lead l: 30 mm | Ca: 62.6 kN | C0a: 165 kN | Nut model: HZF
HDF3620-5 Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 59.8 kN | C0a: 138 kN | Nut model: HDF
HDC3620-5 Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 59.8 kN | C0a: 138 kN | Nut model: HDC
HDF4025-5 Shaft dia d: 40 mm | Lead l: 25 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDF
HDC4025-5 Shaft dia d: 40 mm | Lead l: 25 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDC
HDF4030-5 Shaft dia d: 40 mm | Lead l: 30 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDF
HDC4030-5 Shaft dia d: 40 mm | Lead l: 30 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDC
HDF4032-7.5 Shaft dia d: 40 mm | Lead l: 32 mm | Ca: 88.7 kN | C0a: 230 kN | Nut model: HDF
HDC4032-7.5 Shaft dia d: 40 mm | Lead l: 32 mm | Ca: 88.7 kN | C0a: 230 kN | Nut model: HDC
HDF4036-4.5 Shaft dia d: 40 mm | Lead l: 36 mm | Ca: 57.2 kN | C0a: 138 kN | Nut model: HDF
HDF4525-5 Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDF
HDC4525-5 Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDC
HDF4530-5 Shaft dia d: 45 mm | Lead l: 30 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDF
HDC4530-5 Shaft dia d: 45 mm | Lead l: 30 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDC
HDF4532-7.5 Shaft dia d: 45 mm | Lead l: 32 mm | Ca: 91.7 kN | C0a: 256 kN | Nut model: HDF
HDC4532-7.5 Shaft dia d: 45 mm | Lead l: 32 mm | Ca: 91.7 kN | C0a: 256 kN | Nut model: HDC
HDF4536-4.5 Shaft dia d: 45 mm | Lead l: 36 mm | Ca: 59.1 kN | C0a: 155 kN | Nut model: HDF
HDF5030-5 Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HDF
HDC5030-5 Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HDC
HDF5032-7.5 Shaft dia d: 50 mm | Lead l: 32 mm | Ca: 97.1 kN | C0a: 286 kN | Nut model: HDF
HDC5032-7.5 Shaft dia d: 50 mm | Lead l: 32 mm | Ca: 97.1 kN | C0a: 286 kN | Nut model: HDC
HDF5530-5 Shaft dia d: 55 mm | Lead l: 30 mm | Ca: 85 kN | C0a: 238 kN | Nut model: HDF
HDF5532-7.5 Shaft dia d: 55 mm | Lead l: 32 mm | Ca: 99.5 kN | C0a: 313 kN | Nut model: HDF
Ball ScrewsNSK
55 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK HMC Type Ball Screws (HZC/HZF/HDC/HDF) for Machine Tools

Brand NSK·Ball Screws

Available part numbers (55)

HZF3616-5, HZC3616-5, HZF3620-3.5, HZC3620-3.5, HZF4016-5, HZC4016-5, HZF4020-3.5, HZC4020-3.5, HZF4020-5, HZC4020-5 + 45 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HZF3616-5Shaft dia d: 36 mm | Lead l: 16 mm | Ca: 40.2 kN | C0a: 102 kN | Nut model: HZF
HZC3616-5Shaft dia d: 36 mm | Lead l: 16 mm | Ca: 40.2 kN | C0a: 102 kN | Nut model: HZC
HZF3620-3.5Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 44 kN | C0a: 98.5 kN | Nut model: HZF
HZC3620-3.5Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 44 kN | C0a: 98.5 kN | Nut model: HZC
HZF4016-5Shaft dia d: 40 mm | Lead l: 16 mm | Ca: 41.2 kN | C0a: 112 kN | Nut model: HZF
HZC4016-5Shaft dia d: 40 mm | Lead l: 16 mm | Ca: 41.2 kN | C0a: 112 kN | Nut model: HZC
HZF4020-3.5Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 46.1 kN | C0a: 107 kN | Nut model: HZF
HZC4020-3.5Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 46.1 kN | C0a: 107 kN | Nut model: HZC
HZF4020-5Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 62.6 kN | C0a: 153 kN | Nut model: HZF
HZC4020-5Shaft dia d: 40 mm | Lead l: 20 mm | Ca: 62.6 kN | C0a: 153 kN | Nut model: HZC
HZF4516-5Shaft dia d: 45 mm | Lead l: 16 mm | Ca: 43.8 kN | C0a: 127 kN | Nut model: HZF
HZF4516-7.5Shaft dia d: 45 mm | Lead l: 16 mm | Ca: 62.1 kN | C0a: 191 kN | Nut model: HZF
HZF4520-3.5Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 47.6 kN | C0a: 120 kN | Nut model: HZF
HZC4520-3.5Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 47.6 kN | C0a: 120 kN | Nut model: HZC
HZF4520-5Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 64.7 kN | C0a: 170 kN | Nut model: HZF
HZC4520-5Shaft dia d: 45 mm | Lead l: 20 mm | Ca: 64.7 kN | C0a: 170 kN | Nut model: HZC
HZF4525-3.5Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 56.8 kN | C0a: 137 kN | Nut model: HZF
HZC4525-3.5Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 56.8 kN | C0a: 137 kN | Nut model: HZC
HZF5020-3.5Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 50.4 kN | C0a: 133 kN | Nut model: HZF
HZC5020-3.5Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 50.4 kN | C0a: 133 kN | Nut model: HZC
HZF5020-5Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 68.5 kN | C0a: 191 kN | Nut model: HZF
HZC5020-5Shaft dia d: 50 mm | Lead l: 20 mm | Ca: 68.5 kN | C0a: 191 kN | Nut model: HZC
HZF5025-3.5Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZF
HZC5025-3.5Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZC
HZF5025-5Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HZF
HZC5025-5Shaft dia d: 50 mm | Lead l: 25 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HZC
HZF5030-3.5Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZF
HZC5030-3.5Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 58.9 kN | C0a: 152 kN | Nut model: HZC
HZF5520-3.5Shaft dia d: 55 mm | Lead l: 20 mm | Ca: 51.6 kN | C0a: 145 kN | Nut model: HZF
HZF5520-5Shaft dia d: 55 mm | Lead l: 20 mm | Ca: 70.2 kN | C0a: 208 kN | Nut model: HZF
HZF5525-3.5Shaft dia d: 55 mm | Lead l: 25 mm | Ca: 62.6 kN | C0a: 165 kN | Nut model: HZF
HZF5525-5Shaft dia d: 55 mm | Lead l: 25 mm | Ca: 85 kN | C0a: 238 kN | Nut model: HZF
HZF5530-3.5Shaft dia d: 55 mm | Lead l: 30 mm | Ca: 62.6 kN | C0a: 165 kN | Nut model: HZF
HDF3620-5Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 59.8 kN | C0a: 138 kN | Nut model: HDF
HDC3620-5Shaft dia d: 36 mm | Lead l: 20 mm | Ca: 59.8 kN | C0a: 138 kN | Nut model: HDC
HDF4025-5Shaft dia d: 40 mm | Lead l: 25 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDF
HDC4025-5Shaft dia d: 40 mm | Lead l: 25 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDC
HDF4030-5Shaft dia d: 40 mm | Lead l: 30 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDF
HDC4030-5Shaft dia d: 40 mm | Lead l: 30 mm | Ca: 74 kN | C0a: 175 kN | Nut model: HDC
HDF4032-7.5Shaft dia d: 40 mm | Lead l: 32 mm | Ca: 88.7 kN | C0a: 230 kN | Nut model: HDF
HDC4032-7.5Shaft dia d: 40 mm | Lead l: 32 mm | Ca: 88.7 kN | C0a: 230 kN | Nut model: HDC
HDF4036-4.5Shaft dia d: 40 mm | Lead l: 36 mm | Ca: 57.2 kN | C0a: 138 kN | Nut model: HDF
HDF4525-5Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDF
HDC4525-5Shaft dia d: 45 mm | Lead l: 25 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDC
HDF4530-5Shaft dia d: 45 mm | Lead l: 30 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDF
HDC4530-5Shaft dia d: 45 mm | Lead l: 30 mm | Ca: 77.2 kN | C0a: 197 kN | Nut model: HDC
HDF4532-7.5Shaft dia d: 45 mm | Lead l: 32 mm | Ca: 91.7 kN | C0a: 256 kN | Nut model: HDF
HDC4532-7.5Shaft dia d: 45 mm | Lead l: 32 mm | Ca: 91.7 kN | C0a: 256 kN | Nut model: HDC
HDF4536-4.5Shaft dia d: 45 mm | Lead l: 36 mm | Ca: 59.1 kN | C0a: 155 kN | Nut model: HDF
HDF5030-5Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HDF
HDC5030-5Shaft dia d: 50 mm | Lead l: 30 mm | Ca: 80.1 kN | C0a: 216 kN | Nut model: HDC
HDF5032-7.5Shaft dia d: 50 mm | Lead l: 32 mm | Ca: 97.1 kN | C0a: 286 kN | Nut model: HDF
HDC5032-7.5Shaft dia d: 50 mm | Lead l: 32 mm | Ca: 97.1 kN | C0a: 286 kN | Nut model: HDC
HDF5530-5Shaft dia d: 55 mm | Lead l: 30 mm | Ca: 85 kN | C0a: 238 kN | Nut model: HDF
HDF5532-7.5Shaft dia d: 55 mm | Lead l: 32 mm | Ca: 99.5 kN | C0a: 313 kN | Nut model: HDF
