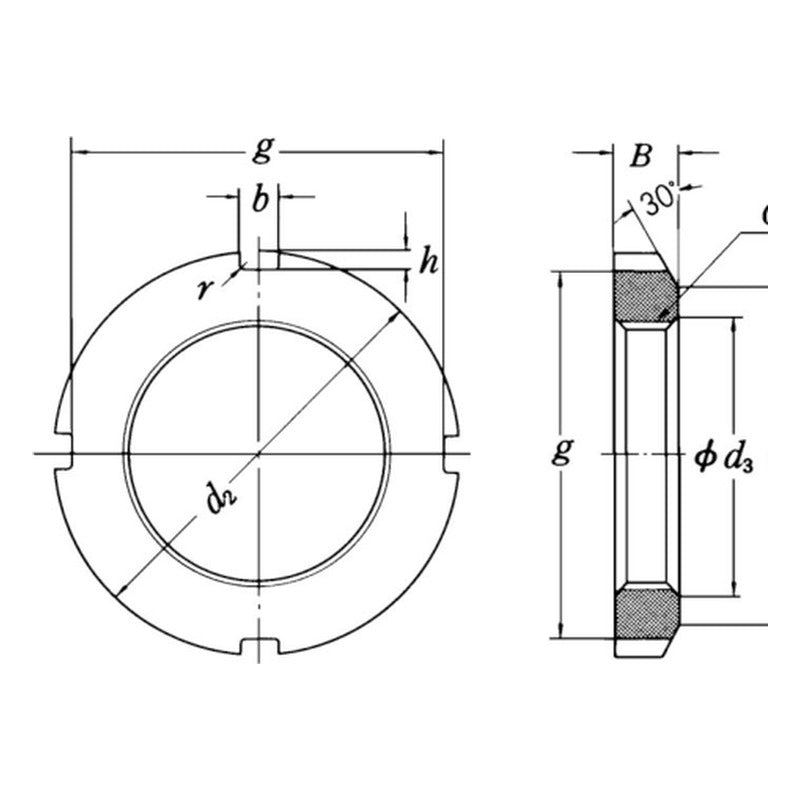

NSK HN and HNL nuts with trapezoidal thread for withdrawal sleeves of large bearings, threads Tr 205 to Tr 550.

Key features

  • Nuts for mounting and removing AH / AHX withdrawal sleeves
  • Trapezoidal threads to JIS B 0216
  • HN standard and HNL narrow series
  • Notches for hook spanners

Specifications

Product Nut for withdrawal sleeves
Series HN, HNL
Thread Tr 205x4 to Tr 550x6
Used with AH, AHX sleeves
Material Steel
Source NSK Rolling Bearings Catalogue (Part 4), p. 393
HN 42 Thread G: Tr 210x4 | d2: 270 mm | d1: 238 mm | Width B: 30 mm
HN 44 Thread G: Tr 220x4 | d2: 280 mm | d1: 250 mm | Width B: 32 mm
HN 48 Thread G: Tr 240x4 | d2: 300 mm | d1: 270 mm | Width B: 34 mm
HN 52 Thread G: Tr 260x4 | d2: 330 mm | d1: 300 mm | Width B: 36 mm
HN 58 Thread G: Tr 290x4 | d2: 370 mm | d1: 330 mm | Width B: 40 mm
HN 62 Thread G: Tr 310x5 | d2: 390 mm | d1: 350 mm | Width B: 42 mm
HN 66 Thread G: Tr 330x5 | d2: 420 mm | d1: 380 mm | Width B: 52 mm
HN 70 Thread G: Tr 350x5 | d2: 450 mm | d1: 410 mm | Width B: 55 mm
HN 74 Thread G: Tr 370x5 | d2: 470 mm | d1: 430 mm | Width B: 58 mm
HN 80 Thread G: Tr 400x5 | d2: 520 mm | d1: 470 mm | Width B: 62 mm
HN 84 Thread G: Tr 420x5 | d2: 540 mm | d1: 490 mm | Width B: 70 mm
HN 88 Thread G: Tr 440x5 | d2: 560 mm | d1: 510 mm | Width B: 70 mm
HN 92 Thread G: Tr 460x5 | d2: 580 mm | d1: 540 mm | Width B: 75 mm
HN 96 Thread G: Tr 480x5 | d2: 620 mm | d1: 560 mm | Width B: 75 mm
HN 102 Thread G: Tr 510x6 | d2: 650 mm | d1: 590 mm | Width B: 80 mm
HN 106 Thread G: Tr 530x6 | d2: 670 mm | d1: 610 mm | Width B: 80 mm
HN 110 Thread G: Tr 550x6 | d2: 700 mm | d1: 640 mm | Width B: 80 mm
HNL 42 Thread G: Tr 205x4 | d2: 250 mm | d1: 232 mm | Width B: 30 mm
HNL 44 Thread G: Tr 215x4 | d2: 260 mm | d1: 242 mm | Width B: 30 mm
HNL 48 Thread G: Tr 235x4 | d2: 280 mm | d1: 262 mm | Width B: 34 mm
HNL 52 Thread G: Tr 260x4 | d2: 310 mm | d1: 290 mm | Width B: 34 mm
HNL 58 Thread G: Tr 280x4 | d2: 330 mm | d1: 310 mm | Width B: 38 mm
HNL 62 Thread G: Tr 300x4 | d2: 360 mm | d1: 336 mm | Width B: 42 mm
HNL 66 Thread G: Tr 320x5 | d2: 380 mm | d1: 356 mm | Width B: 42 mm
HNL 70 Thread G: Tr 345x5 | d2: 410 mm | d1: 384 mm | Width B: 45 mm
HNL 74 Thread G: Tr 365x5 | d2: 430 mm | d1: 404 mm | Width B: 48 mm
HNL 80 Thread G: Tr 385x5 | d2: 450 mm | d1: 422 mm | Width B: 48 mm
HNL 84 Thread G: Tr 410x5 | d2: 480 mm | d1: 452 mm | Width B: 52 mm
HNL 88 Thread G: Tr 430x5 | d2: 500 mm | d1: 472 mm | Width B: 52 mm
HNL 92 Thread G: Tr 450x5 | d2: 520 mm | d1: 490 mm | Width B: 60 mm
HNL 96 Thread G: Tr 470x5 | d2: 540 mm | d1: 510 mm | Width B: 60 mm
HNL 102 Thread G: Tr 490x5 | d2: 580 mm | d1: 550 mm | Width B: 60 mm
HNL 106 Thread G: Tr 520x6 | d2: 600 mm | d1: 570 mm | Width B: 68 mm
HNL 110 Thread G: Tr 540x6 | d2: 630 mm | d1: 590 mm | Width B: 68 mm
