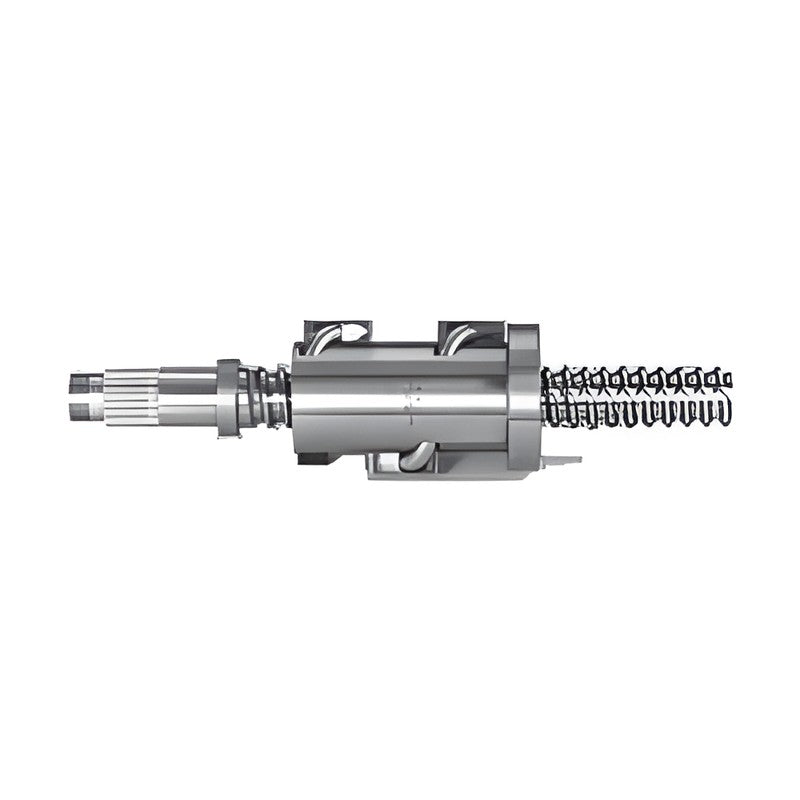

NSK HTF Type Ball Screws for High-Load Drive (Dia. 32-200)

NSK HTF Type Ball Screws for High-Load Drive (Dia. 32-200)

NSK HTF type ball screws are heavy-duty return tube ball screws for high-load applications, with shaft diameters up to 200 mm.

Key features

  • Shaft diameters from 32 to 200 mm
  • Large balls and multiple circuits for very high load capacity
  • For injection moulding machines and presses
  • Tube-type recirculation
  • Load ratings in kN

Specifications

Series HTF
Brand NSK
Product type Ball Screws
Listed models 43
Dimension units mm
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B131-B138
HTF3210-5 Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 71 kN | C0a: 169 kN | Nut model: HTF
HTF3610-5 Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 76.9 kN | C0a: 191 kN | Nut model: HTF
HTF3612-5 Shaft dia d: 36 mm | Lead l: 12 mm | Ca: 90 kN | C0a: 228 kN | Nut model: HTF
HTF4010-7.5 Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 120 kN | C0a: 344 kN | Nut model: HTF
HTF4012-7.5 Shaft dia d: 40 mm | Lead l: 12 mm | Ca: 147 kN | C0a: 422 kN | Nut model: HTF
HTF4510-7.5 Shaft dia d: 45 mm | Lead l: 10 mm | Ca: 127 kN | C0a: 386 kN | Nut model: HTF
HTF4512-7.5 Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 156 kN | C0a: 473 kN | Nut model: HTF
HTF5010-7.5 Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 133 kN | C0a: 435 kN | Nut model: HTF
HTF5012-7.5 Shaft dia d: 50 mm | Lead l: 12 mm | Ca: 164 kN | C0a: 525 kN | Nut model: HTF
HTF5014-7.5 Shaft dia d: 50 mm | Lead l: 14 mm | Ca: 211 kN | C0a: 623 kN | Nut model: HTF
HTF5016-7.5 Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 306 kN | C0a: 818 kN | Nut model: HTF
HTF5510-7.5 Shaft dia d: 55 mm | Lead l: 10 mm | Ca: 139 kN | C0a: 477 kN | Nut model: HTF
HTF5512-7.5 Shaft dia d: 55 mm | Lead l: 12 mm | Ca: 171 kN | C0a: 586 kN | Nut model: HTF
HTF5514-7.5 Shaft dia d: 55 mm | Lead l: 14 mm | Ca: 216 kN | C0a: 696 kN | Nut model: HTF
HTF5516-7.5 Shaft dia d: 55 mm | Lead l: 16 mm | Ca: 319 kN | C0a: 922 kN | Nut model: HTF
HTF6312-7.5 Shaft dia d: 63 mm | Lead l: 12 mm | Ca: 181 kN | C0a: 668 kN | Nut model: HTF
HTF6314-7.5 Shaft dia d: 63 mm | Lead l: 14 mm | Ca: 233 kN | C0a: 800 kN | Nut model: HTF
HTF6316-7.5 Shaft dia d: 63 mm | Lead l: 16 mm | Ca: 343 kN | C0a: 1050 kN | Nut model: HTF
HTF6316-10.5 Shaft dia d: 63 mm | Lead l: 16 mm | Ca: 450 kN | C0a: 1450 kN | Nut model: HTF
HTF6320-7.5 Shaft dia d: 63 mm | Lead l: 20 mm | Ca: 457 kN | C0a: 1320 kN | Nut model: HTF
HTF8014-7.5 Shaft dia d: 80 mm | Lead l: 14 mm | Ca: 261 kN | C0a: 1020 kN | Nut model: HTF
HTF8016-7.5 Shaft dia d: 80 mm | Lead l: 16 mm | Ca: 382 kN | C0a: 1340 kN | Nut model: HTF
HTF8016-10.5 Shaft dia d: 80 mm | Lead l: 16 mm | Ca: 501 kN | C0a: 1870 kN | Nut model: HTF
HTF8020-7.5 Shaft dia d: 80 mm | Lead l: 20 mm | Ca: 511 kN | C0a: 1690 kN | Nut model: HTF
HTF8020-10.5 Shaft dia d: 80 mm | Lead l: 20 mm | Ca: 670 kN | C0a: 2300 kN | Nut model: HTF
HTF8025-7.5 Shaft dia d: 80 mm | Lead l: 25 mm | Ca: 663 kN | C0a: 2020 kN | Nut model: HTF
HTF10016-7.5 Shaft dia d: 100 mm | Lead l: 16 mm | Ca: 423 kN | C0a: 1710 kN | Nut model: HTF
HTF10020-7.5 Shaft dia d: 100 mm | Lead l: 20 mm | Ca: 571 kN | C0a: 2140 kN | Nut model: HTF
HTF10025-7.5 Shaft dia d: 100 mm | Lead l: 25 mm | Ca: 734 kN | C0a: 2550 kN | Nut model: HTF
HTF10025-10.5 Shaft dia d: 100 mm | Lead l: 25 mm | Ca: 962 kN | C0a: 3490 kN | Nut model: HTF
HTF12016-7.5 Shaft dia d: 120 mm | Lead l: 16 mm | Ca: 457 kN | C0a: 2050 kN | Nut model: HTF
HTF12020-7.5 Shaft dia d: 120 mm | Lead l: 20 mm | Ca: 620 kN | C0a: 2550 kN | Nut model: HTF
HTF12025-7.5 Shaft dia d: 120 mm | Lead l: 25 mm | Ca: 792 kN | C0a: 3080 kN | Nut model: HTF
HTF12025-10.5 Shaft dia d: 120 mm | Lead l: 25 mm | Ca: 1040 kN | C0a: 4200 kN | Nut model: HTF
HTF14020-7.5 Shaft dia d: 140 mm | Lead l: 20 mm | Ca: 663 kN | C0a: 3000 kN | Nut model: HTF
HTF14025-7.5 Shaft dia d: 140 mm | Lead l: 25 mm | Ca: 842 kN | C0a: 3610 kN | Nut model: HTF
HTF14030-7.5 Shaft dia d: 140 mm | Lead l: 30 mm | Ca: 1050 kN | C0a: 4110 kN | Nut model: HTF
HTF14032-7.5 Shaft dia d: 140 mm | Lead l: 32 mm | Ca: 1270 kN | C0a: 4740 kN | Nut model: HTF
HTF16025-7.5 Shaft dia d: 160 mm | Lead l: 25 mm | Ca: 909 kN | C0a: 4140 kN | Nut model: HTF
HTF16030-7.5 Shaft dia d: 160 mm | Lead l: 30 mm | Ca: 1120 kN | C0a: 4760 kN | Nut model: HTF
HTF16032-7.5 Shaft dia d: 160 mm | Lead l: 32 mm | Ca: 1330 kN | C0a: 5370 kN | Nut model: HTF
HTF20030-7.5 Shaft dia d: 200 mm | Lead l: 30 mm | Ca: 1240 kN | C0a: 5960 kN | Nut model: HTF
HTF20032-7.5 Shaft dia d: 200 mm | Lead l: 32 mm | Ca: 1470 kN | C0a: 6840 kN | Nut model: HTF
Ball ScrewsNSK
43 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK HTF Type Ball Screws for High-Load Drive (Dia. 32-200)

Brand NSK·Ball Screws

Available part numbers (43)

HTF3210-5, HTF3610-5, HTF3612-5, HTF4010-7.5, HTF4012-7.5, HTF4510-7.5, HTF4512-7.5, HTF5010-7.5, HTF5012-7.5, HTF5014-7.5 + 33 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HTF3210-5Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 71 kN | C0a: 169 kN | Nut model: HTF
HTF3610-5Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 76.9 kN | C0a: 191 kN | Nut model: HTF
HTF3612-5Shaft dia d: 36 mm | Lead l: 12 mm | Ca: 90 kN | C0a: 228 kN | Nut model: HTF
HTF4010-7.5Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 120 kN | C0a: 344 kN | Nut model: HTF
HTF4012-7.5Shaft dia d: 40 mm | Lead l: 12 mm | Ca: 147 kN | C0a: 422 kN | Nut model: HTF
HTF4510-7.5Shaft dia d: 45 mm | Lead l: 10 mm | Ca: 127 kN | C0a: 386 kN | Nut model: HTF
HTF4512-7.5Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 156 kN | C0a: 473 kN | Nut model: HTF
HTF5010-7.5Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 133 kN | C0a: 435 kN | Nut model: HTF
HTF5012-7.5Shaft dia d: 50 mm | Lead l: 12 mm | Ca: 164 kN | C0a: 525 kN | Nut model: HTF
HTF5014-7.5Shaft dia d: 50 mm | Lead l: 14 mm | Ca: 211 kN | C0a: 623 kN | Nut model: HTF
HTF5016-7.5Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 306 kN | C0a: 818 kN | Nut model: HTF
HTF5510-7.5Shaft dia d: 55 mm | Lead l: 10 mm | Ca: 139 kN | C0a: 477 kN | Nut model: HTF
HTF5512-7.5Shaft dia d: 55 mm | Lead l: 12 mm | Ca: 171 kN | C0a: 586 kN | Nut model: HTF
HTF5514-7.5Shaft dia d: 55 mm | Lead l: 14 mm | Ca: 216 kN | C0a: 696 kN | Nut model: HTF
HTF5516-7.5Shaft dia d: 55 mm | Lead l: 16 mm | Ca: 319 kN | C0a: 922 kN | Nut model: HTF
HTF6312-7.5Shaft dia d: 63 mm | Lead l: 12 mm | Ca: 181 kN | C0a: 668 kN | Nut model: HTF
HTF6314-7.5Shaft dia d: 63 mm | Lead l: 14 mm | Ca: 233 kN | C0a: 800 kN | Nut model: HTF
HTF6316-7.5Shaft dia d: 63 mm | Lead l: 16 mm | Ca: 343 kN | C0a: 1050 kN | Nut model: HTF
HTF6316-10.5Shaft dia d: 63 mm | Lead l: 16 mm | Ca: 450 kN | C0a: 1450 kN | Nut model: HTF
HTF6320-7.5Shaft dia d: 63 mm | Lead l: 20 mm | Ca: 457 kN | C0a: 1320 kN | Nut model: HTF
HTF8014-7.5Shaft dia d: 80 mm | Lead l: 14 mm | Ca: 261 kN | C0a: 1020 kN | Nut model: HTF
HTF8016-7.5Shaft dia d: 80 mm | Lead l: 16 mm | Ca: 382 kN | C0a: 1340 kN | Nut model: HTF
HTF8016-10.5Shaft dia d: 80 mm | Lead l: 16 mm | Ca: 501 kN | C0a: 1870 kN | Nut model: HTF
HTF8020-7.5Shaft dia d: 80 mm | Lead l: 20 mm | Ca: 511 kN | C0a: 1690 kN | Nut model: HTF
HTF8020-10.5Shaft dia d: 80 mm | Lead l: 20 mm | Ca: 670 kN | C0a: 2300 kN | Nut model: HTF
HTF8025-7.5Shaft dia d: 80 mm | Lead l: 25 mm | Ca: 663 kN | C0a: 2020 kN | Nut model: HTF
HTF10016-7.5Shaft dia d: 100 mm | Lead l: 16 mm | Ca: 423 kN | C0a: 1710 kN | Nut model: HTF
HTF10020-7.5Shaft dia d: 100 mm | Lead l: 20 mm | Ca: 571 kN | C0a: 2140 kN | Nut model: HTF
HTF10025-7.5Shaft dia d: 100 mm | Lead l: 25 mm | Ca: 734 kN | C0a: 2550 kN | Nut model: HTF
HTF10025-10.5Shaft dia d: 100 mm | Lead l: 25 mm | Ca: 962 kN | C0a: 3490 kN | Nut model: HTF
HTF12016-7.5Shaft dia d: 120 mm | Lead l: 16 mm | Ca: 457 kN | C0a: 2050 kN | Nut model: HTF
HTF12020-7.5Shaft dia d: 120 mm | Lead l: 20 mm | Ca: 620 kN | C0a: 2550 kN | Nut model: HTF
HTF12025-7.5Shaft dia d: 120 mm | Lead l: 25 mm | Ca: 792 kN | C0a: 3080 kN | Nut model: HTF
HTF12025-10.5Shaft dia d: 120 mm | Lead l: 25 mm | Ca: 1040 kN | C0a: 4200 kN | Nut model: HTF
HTF14020-7.5Shaft dia d: 140 mm | Lead l: 20 mm | Ca: 663 kN | C0a: 3000 kN | Nut model: HTF
HTF14025-7.5Shaft dia d: 140 mm | Lead l: 25 mm | Ca: 842 kN | C0a: 3610 kN | Nut model: HTF
HTF14030-7.5Shaft dia d: 140 mm | Lead l: 30 mm | Ca: 1050 kN | C0a: 4110 kN | Nut model: HTF
HTF14032-7.5Shaft dia d: 140 mm | Lead l: 32 mm | Ca: 1270 kN | C0a: 4740 kN | Nut model: HTF
HTF16025-7.5Shaft dia d: 160 mm | Lead l: 25 mm | Ca: 909 kN | C0a: 4140 kN | Nut model: HTF
HTF16030-7.5Shaft dia d: 160 mm | Lead l: 30 mm | Ca: 1120 kN | C0a: 4760 kN | Nut model: HTF
HTF16032-7.5Shaft dia d: 160 mm | Lead l: 32 mm | Ca: 1330 kN | C0a: 5370 kN | Nut model: HTF
HTF20030-7.5Shaft dia d: 200 mm | Lead l: 30 mm | Ca: 1240 kN | C0a: 5960 kN | Nut model: HTF
HTF20032-7.5Shaft dia d: 200 mm | Lead l: 32 mm | Ca: 1470 kN | C0a: 6840 kN | Nut model: HTF
