NSK JAA Bellows for LA Series Linear Guides

NSK JAA Bellows for LA Series Linear Guides

NSK JAA bellows cover the rail of LA Series linear guides to protect the rolling surfaces from chips and dust. The full reference number adds the number of folds (BL), e.g. JAA25L08.

Key features

  • Covers the complete linear guide rail
  • High type (N) and low type (L) to suit slide height codes
  • Bellows for the ends (A) and middle bellows (B)
  • Fold number BL selected to suit stroke; one BL = 6 folds

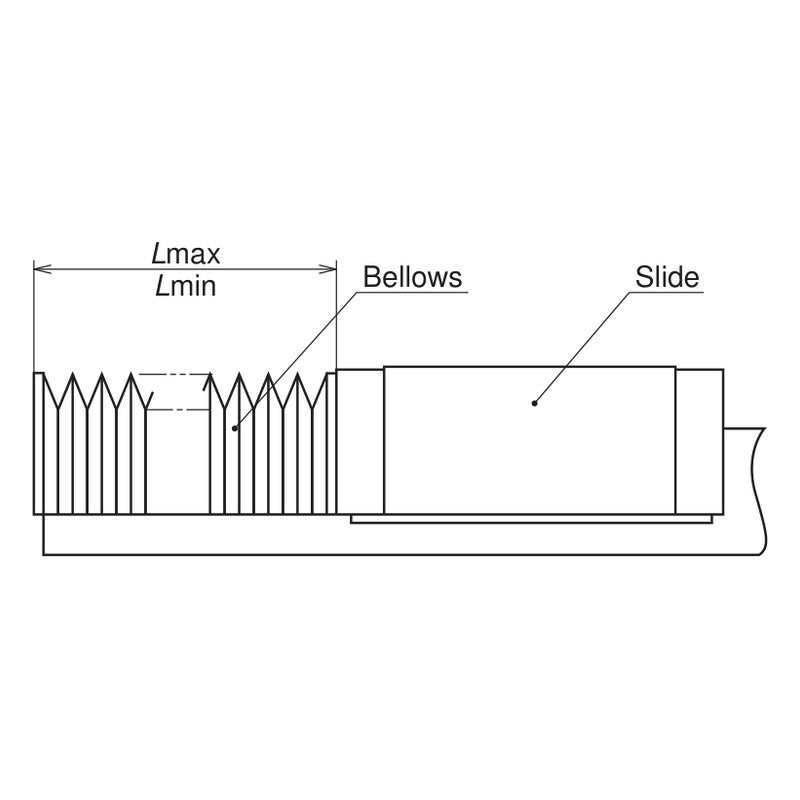

  • Stroke = Lmax - Lmin

Specifications

Applicable series LA
Reference number JAA + size + N/L + number of BL (e.g. 08)
BL range in table 2 to 20 (odd BL by interpolation)
Max stroke column Stroke at 20 BL
Brand NSK
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A276
JAA25L Type: Low type (L) | Height H: 35 mm | Width W: 55 mm | Max stroke (20 BL): 1340 mm
JAA25N Type: High type (N) | Height H: 39 mm | Width W: 61 mm | Max stroke (20 BL): 1760 mm
JAA30L Type: Low type (L) | Height H: 41 mm | Width W: 60 mm | Max stroke (20 BL): 1340 mm
JAA30N Type: High type (N) | Height H: 44 mm | Width W: 66 mm | Max stroke (20 BL): 1760 mm
JAA35L Type: Low type (L) | Height H: 47 mm | Width W: 72 mm | Max stroke (20 BL): 1760 mm
JAA35N Type: High type (N) | Height H: 54 mm | Width W: 82 mm | Max stroke (20 BL): 2460 mm
JAA45L Type: Low type (L) | Height H: 59 mm | Width W: 93 mm | Max stroke (20 BL): 2460 mm
JAA45N Type: High type (N) | Height H: 69 mm | Width W: 113 mm | Max stroke (20 BL): 3860 mm
JAA55L Type: Low type (L) | Height H: 69 mm | Width W: 101 mm | Max stroke (20 BL): 2460 mm
JAA55N Type: High type (N) | Height H: 79 mm | Width W: 121 mm | Max stroke (20 BL): 3860 mm
JAA65N Type: High type (N) | Height H: 89 mm | Width W: 131 mm | Max stroke (20 BL): 3860 mm
Bearing AccessoriesNSK
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK JAA Bellows for LA Series Linear Guides

Brand NSK·Bearing Accessories

Available part numbers (11)

JAA25L, JAA25N, JAA30L, JAA30N, JAA35L, JAA35N, JAA45L, JAA45N, JAA55L, JAA55N + 1 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JAA25LType: Low type (L) | Height H: 35 mm | Width W: 55 mm | Max stroke (20 BL): 1340 mm
JAA25NType: High type (N) | Height H: 39 mm | Width W: 61 mm | Max stroke (20 BL): 1760 mm
JAA30LType: Low type (L) | Height H: 41 mm | Width W: 60 mm | Max stroke (20 BL): 1340 mm
JAA30NType: High type (N) | Height H: 44 mm | Width W: 66 mm | Max stroke (20 BL): 1760 mm
JAA35LType: Low type (L) | Height H: 47 mm | Width W: 72 mm | Max stroke (20 BL): 1760 mm
JAA35NType: High type (N) | Height H: 54 mm | Width W: 82 mm | Max stroke (20 BL): 2460 mm
JAA45LType: Low type (L) | Height H: 59 mm | Width W: 93 mm | Max stroke (20 BL): 2460 mm
JAA45NType: High type (N) | Height H: 69 mm | Width W: 113 mm | Max stroke (20 BL): 3860 mm
JAA55LType: Low type (L) | Height H: 69 mm | Width W: 101 mm | Max stroke (20 BL): 2460 mm
JAA55NType: High type (N) | Height H: 79 mm | Width W: 121 mm | Max stroke (20 BL): 3860 mm
JAA65NType: High type (N) | Height H: 89 mm | Width W: 131 mm | Max stroke (20 BL): 3860 mm
