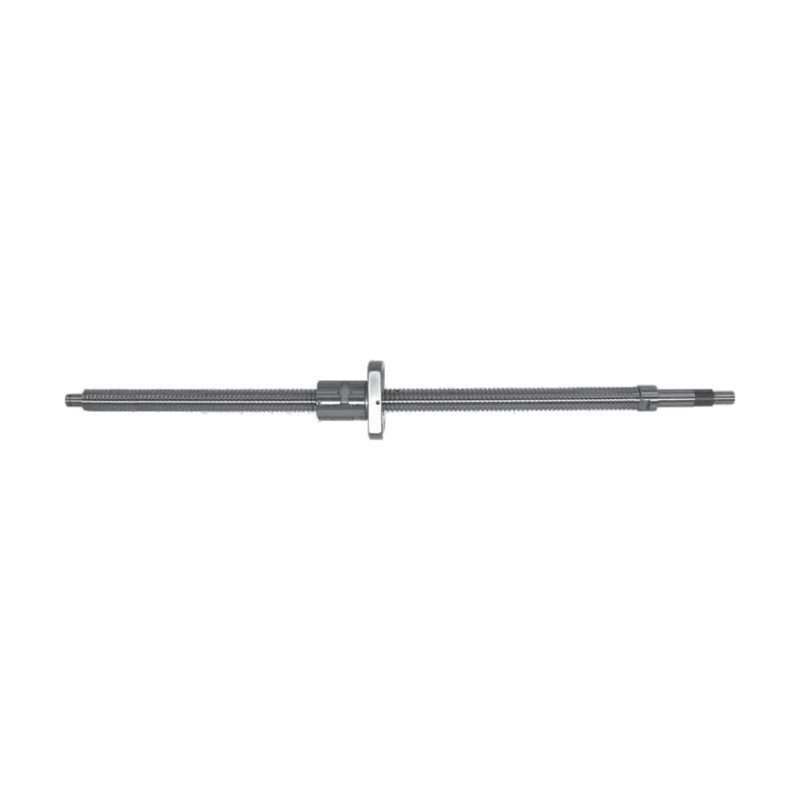

NSK KA Type Stainless Steel Ball Screws, Finished Shaft End

NSK KA Type Stainless Steel Ball Screws, Finished Shaft End

NSK KA type standard ball screws are stainless steel ball screws with finished shaft ends for clean or corrosive environments.

Key features

  • Stainless steel screw shaft and nut
  • Shaft diameters 6 to 20 mm
  • MPFD, PFT, LPFT and UPFC nuts
  • Accuracy grades C3 and C5
  • Finished shaft ends for NSK support units

Specifications

Type KA (finished shaft end)
Material Stainless steel
Brand NSK
Product type Ball Screws
Listed models 23
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B357-B382
W0601KA-3PY-C3Z1 Shaft x lead: 6 x 1 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 0.47 kN | C0a: 0.68 kN
W0802KA-1PY-C3Z1 Shaft x lead: 8 x 1 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 0.545 kN | C0a: 0.955 kN
W0802KA-5PY-C3Z2 Shaft x lead: 8 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.08 kN | C0a: 1.63 kN
W1002KA-3PY-C3Z2 Shaft x lead: 10 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 1.21 kN | C0a: 2.11 kN
W1001KA-3P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.25 kN | C0a: 3.29 kN
W1003KA-3P-C3Z4 Shaft x lead: 10 x 4 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 2.25 kN | C0a: 3.29 kN
W1201KA-3PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.36 kN | C0a: 2.68 kN
W1203KA-1PY-C3Z2 Shaft x lead: 12 x 2 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 1.36 kN | C0a: 2.68 kN
W1202KA-3P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 3.07 kN | C0a: 4.67 kN
W1205KA-1P-C3Z5 Shaft x lead: 12 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: Z | Ca: 3.07 kN | C0a: 4.67 kN
W1203KA-3P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 3.07 kN | C0a: 4.79 kN
W1205KA-3P-C5Z10 Shaft x lead: 12 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 3.07 kN | C0a: 4.79 kN
W1504KA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.78 kN | C0a: 9.43 kN
W1506KA-3P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.78 kN | C0a: 9.43 kN
W1510KA-1P-C5Z10 Shaft x lead: 15 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 5.78 kN | C0a: 9.43 kN
W1504KA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.15 kN | C0a: 6.45 kN
W1506KA-7PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.15 kN | C0a: 6.45 kN
W1510KA-3PG-C5Z20 Shaft x lead: 15 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 4.15 kN | C0a: 6.45 kN
W1601KA-3PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.87 kN | C0a: 6.25 kN
W1603KA-1PY-C3Z2 Shaft x lead: 16 x 2 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 2.87 kN | C0a: 6.25 kN
W2005KA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.76 kN | C0a: 9.37 kN
W2007KA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.76 kN | C0a: 9.37 kN
W2011KA-3P-C5Z20 Shaft x lead: 20 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 5.76 kN | C0a: 9.37 kN
Ball ScrewsNSK
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK KA Type Stainless Steel Ball Screws, Finished Shaft End

Brand NSK·Ball Screws

Available part numbers (23)

W0601KA-3PY-C3Z1, W0802KA-1PY-C3Z1, W0802KA-5PY-C3Z2, W1002KA-3PY-C3Z2, W1001KA-3P-C3Z4, W1003KA-3P-C3Z4, W1201KA-3PY-C3Z2, W1203KA-1PY-C3Z2, W1202KA-3P-C3Z5, W1205KA-1P-C3Z5 + 13 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W0601KA-3PY-C3Z1Shaft x lead: 6 x 1 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 0.47 kN | C0a: 0.68 kN
W0802KA-1PY-C3Z1Shaft x lead: 8 x 1 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 0.545 kN | C0a: 0.955 kN
W0802KA-5PY-C3Z2Shaft x lead: 8 x 2 mm | Stroke: 150 mm | Accuracy: C3 | Axial play: Z | Ca: 1.08 kN | C0a: 1.63 kN
W1002KA-3PY-C3Z2Shaft x lead: 10 x 2 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 1.21 kN | C0a: 2.11 kN
W1001KA-3P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.25 kN | C0a: 3.29 kN
W1003KA-3P-C3Z4Shaft x lead: 10 x 4 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 2.25 kN | C0a: 3.29 kN
W1201KA-3PY-C3Z2Shaft x lead: 12 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 1.36 kN | C0a: 2.68 kN
W1203KA-1PY-C3Z2Shaft x lead: 12 x 2 mm | Stroke: 250 mm | Accuracy: C3 | Axial play: Z | Ca: 1.36 kN | C0a: 2.68 kN
W1202KA-3P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 200 mm | Accuracy: C3 | Axial play: Z | Ca: 3.07 kN | C0a: 4.67 kN
W1205KA-1P-C3Z5Shaft x lead: 12 x 5 mm | Stroke: 450 mm | Accuracy: C3 | Axial play: Z | Ca: 3.07 kN | C0a: 4.67 kN
W1203KA-3P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 250 mm | Accuracy: C5 | Axial play: Z | Ca: 3.07 kN | C0a: 4.79 kN
W1205KA-3P-C5Z10Shaft x lead: 12 x 10 mm | Stroke: 450 mm | Accuracy: C5 | Axial play: Z | Ca: 3.07 kN | C0a: 4.79 kN
W1504KA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.78 kN | C0a: 9.43 kN
W1506KA-3P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.78 kN | C0a: 9.43 kN
W1510KA-1P-C5Z10Shaft x lead: 15 x 10 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 5.78 kN | C0a: 9.43 kN
W1504KA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 4.15 kN | C0a: 6.45 kN
W1506KA-7PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 4.15 kN | C0a: 6.45 kN
W1510KA-3PG-C5Z20Shaft x lead: 15 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 4.15 kN | C0a: 6.45 kN
W1601KA-3PY-C3Z2Shaft x lead: 16 x 2 mm | Stroke: 100 mm | Accuracy: C3 | Axial play: Z | Ca: 2.87 kN | C0a: 6.25 kN
W1603KA-1PY-C3Z2Shaft x lead: 16 x 2 mm | Stroke: 300 mm | Accuracy: C3 | Axial play: Z | Ca: 2.87 kN | C0a: 6.25 kN
W2005KA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 5.76 kN | C0a: 9.37 kN
W2007KA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 5.76 kN | C0a: 9.37 kN
W2011KA-3P-C5Z20Shaft x lead: 20 x 20 mm | Stroke: 1000 mm | Accuracy: C5 | Axial play: Z | Ca: 5.76 kN | C0a: 9.37 kN
