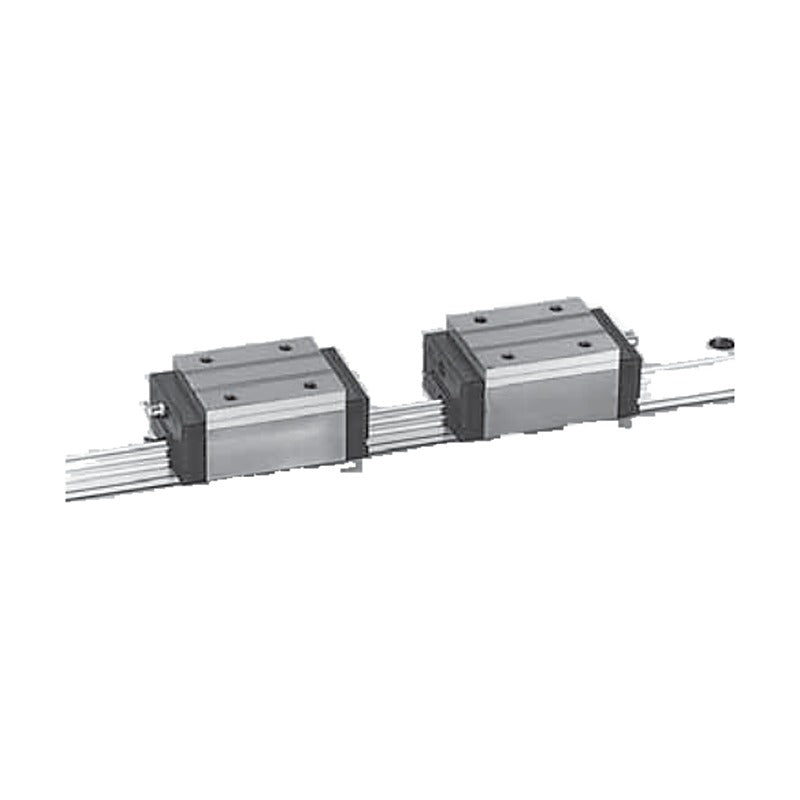

NSK LA Series Linear Guides (machine tools)

NSK LA Series Linear Guides (machine tools)

NSK LA Series high-rigidity ball guides use a six-row ball arrangement for machine tool applications. Sizes 25 to 65.

Key features

  • Six rows of balls for very high load capacity and rigidity
  • Designed for machine tools and heavy-duty equipment
  • Flanged and square ball slides, high-load and super-high-load types
  • Double seal, protector and bellows available
  • No ball retainer: balls fall out when the slide is withdrawn

Specifications

Series LA
Application machine tools
Sizes 25, 30, 35, 45, 55, 65
Slide shape codes AL, AN, BL, BN, EL, FL, GL, HL
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A269-A286
LA25AL Rail width W1: 23 mm | Height H: 36 mm | Width W: 48 mm | Length L: 79.8 mm | C: 30 kN | C0: 50 kN
LA25BL Rail width W1: 23 mm | Height H: 36 mm | Width W: 48 mm | Length L: 107.8 mm | C: 40.5 kN | C0: 77 kN
LA25AN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 79.8 mm | C: 30 kN | C0: 50 kN
LA25BN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 107.8 mm | C: 40.5 kN | C0: 77 kN
LA25EL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 79.8 mm | C: 30 kN | C0: 50 kN
LA25GL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 107.8 mm | C: 40.5 kN | C0: 77 kN
LA25FL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 79.8 mm | C: 30 kN | C0: 50 kN
LA25HL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 107.8 mm | C: 40.5 kN | C0: 77 kN
LA30AL Rail width W1: 28 mm | Height H: 42 mm | Width W: 60 mm | Length L: 100.2 mm | C: 47 kN | C0: 77.5 kN
LA30BL Rail width W1: 28 mm | Height H: 42 mm | Width W: 60 mm | Length L: 126.2 mm | C: 58 kN | C0: 105 kN
LA30AN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 100.2 mm | C: 47 kN | C0: 77.5 kN
LA30BN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 126.2 mm | C: 58 kN | C0: 105 kN
LA30EL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 100.2 mm | C: 47 kN | C0: 77.5 kN
LA30GL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 126.2 mm | C: 58 kN | C0: 105 kN
LA30FL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 100.2 mm | C: 47 kN | C0: 77.5 kN
LA30HL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 126.2 mm | C: 58 kN | C0: 105 kN
LA35AL Rail width W1: 34 mm | Height H: 48 mm | Width W: 70 mm | Length L: 110.6 mm | C: 61.5 kN | C0: 98 kN
LA35BL Rail width W1: 34 mm | Height H: 48 mm | Width W: 70 mm | Length L: 144.6 mm | C: 80.5 kN | C0: 143 kN
LA35AN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 110.6 mm | C: 61.5 kN | C0: 98 kN
LA35BN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 144.6 mm | C: 80.5 kN | C0: 143 kN
LA35EL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 110.6 mm | C: 61.5 kN | C0: 98 kN
LA35GL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 144.6 mm | C: 80.5 kN | C0: 143 kN
LA35FL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 110.6 mm | C: 61.5 kN | C0: 98 kN
LA35HL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 144.6 mm | C: 80.5 kN | C0: 143 kN
LA45AL Rail width W1: 45 mm | Height H: 60 mm | Width W: 86 mm | Length L: 141.4 mm | C: 91 kN | C0: 148 kN
LA45BL Rail width W1: 45 mm | Height H: 60 mm | Width W: 86 mm | Length L: 173.4 mm | C: 111 kN | C0: 197 kN
LA45AN Rail width W1: 45 mm | Height H: 70 mm | Width W: 86 mm | Length L: 141.4 mm | C: 91 kN | C0: 148 kN
LA45BN Rail width W1: 45 mm | Height H: 70 mm | Width W: 86 mm | Length L: 173.4 mm | C: 111 kN | C0: 197 kN
LA45EL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 141.4 mm | C: 91 kN | C0: 148 kN
LA45GL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 173.4 mm | C: 111 kN | C0: 197 kN
LA45FL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 141.4 mm | C: 91 kN | C0: 148 kN
LA45HL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 173.4 mm | C: 111 kN | C0: 197 kN
LA55AL Rail width W1: 53 mm | Height H: 70 mm | Width W: 100 mm | Length L: 165.4 mm | C: 139 kN | C0: 215 kN
LA55BL Rail width W1: 53 mm | Height H: 70 mm | Width W: 100 mm | Length L: 203.4 mm | C: 172 kN | C0: 292 kN
LA55AN Rail width W1: 53 mm | Height H: 80 mm | Width W: 100 mm | Length L: 165.4 mm | C: 139 kN | C0: 215 kN
LA55BN Rail width W1: 53 mm | Height H: 80 mm | Width W: 100 mm | Length L: 203.4 mm | C: 172 kN | C0: 292 kN
LA55EL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 165.4 mm | C: 139 kN | C0: 215 kN
LA55GL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 203.4 mm | C: 172 kN | C0: 292 kN
LA55FL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 165.4 mm | C: 139 kN | C0: 215 kN
LA55HL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 203.4 mm | C: 172 kN | C0: 292 kN
LA65AN Rail width W1: 63 mm | Height H: 90 mm | Width W: 126 mm | Length L: 196.2 mm | C: 260 kN | C0: 420 kN
LA65BN Rail width W1: 63 mm | Height H: 90 mm | Width W: 126 mm | Length L: 256.2 mm | C: 340 kN | C0: 615 kN
LA65EL Rail width W1: 63 mm | Height H: 90 mm | Width W: 170 mm | Length L: 196.2 mm | C: 260 kN | C0: 420 kN
LA65GL Rail width W1: 63 mm | Height H: 90 mm | Width W: 170 mm | Length L: 256.2 mm | C: 340 kN | C0: 615 kN
LA65FL Rail width W1: 63 mm | Height H: 90 mm | Width W: 170 mm | Length L: 196.2 mm | C: 260 kN | C0: 420 kN
LA65HL Rail width W1: 63 mm | Height H: 90 mm | Width W: 170 mm | Length L: 256.2 mm | C: 340 kN | C0: 615 kN
