NSK SH/LH Series Linear Guide Double Seal & Protector Sets

NSK SH/LH Series Linear Guide Double Seal & Protector Sets

Retrofit double-seal and protector sets for NSK SH/LH Series linear guides. Double seals combine two end seals for better sealing; steel protectors guard the end seal against hot chips and hard contamination.

Key features

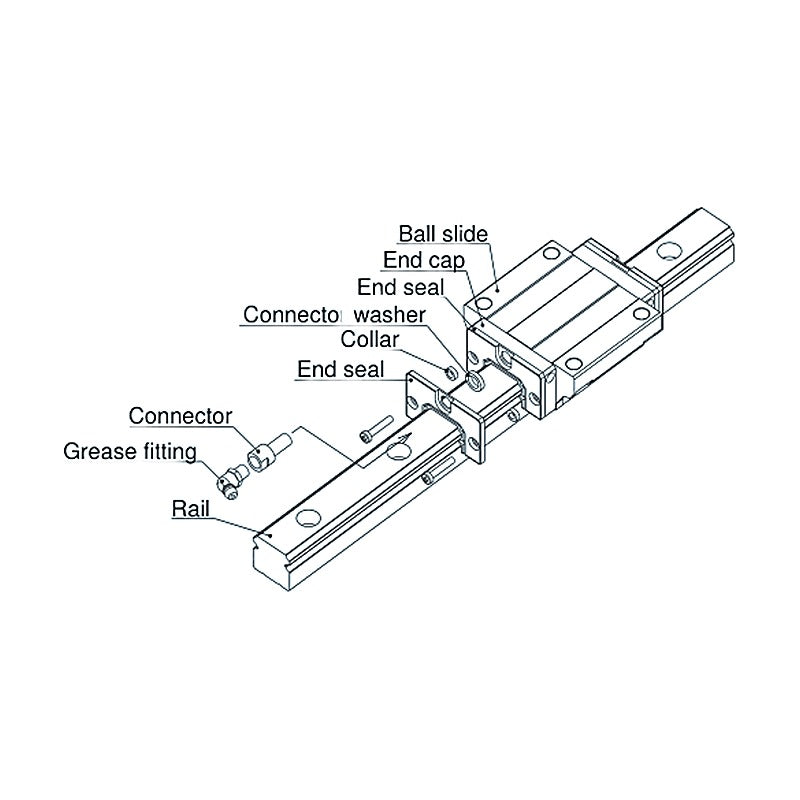

  • Double seal set: two end seals, collar and screws for installation on completed products
  • Protector set: steel plate protects the end seal from spatter and hard foreign matter
  • Versions with connector for grease fitting installation
  • Increase in ball slide length per end is listed per code
  • A connector is required when a grease fitting is fitted after installation

Specifications

Applicable series SH/LH
Reference suffix WS / WSC Double seal, without / with connector
Reference suffix PT / PTC Protector, without / with connector
Added length Increase in thickness V1 / V2 per end
Brand NSK
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A123-A124, A169-A170
LH15PT-01 Type: Protector set | Connector: Without connector | Fits: LH15, SH15 | Added length: 2.7 mm
LH15WS-01 Type: Double seal set | Connector: Without connector | Fits: LH15, SH15 | Added length: 2.5 mm
LH20PT-01 Type: Protector set | Connector: Without connector | Fits: LH20, SH20 | Added length: 2.9 mm
LH20PTC-01 Type: Protector set | Connector: With connector | Fits: LH20, SH20 | Added length: 2.9 mm
LH20WS-01 Type: Double seal set | Connector: Without connector | Fits: LH20, SH20 | Added length: 2.5 mm
LH20WSC-01 Type: Double seal set | Connector: With connector | Fits: LH20, SH20 | Added length: 2.5 mm
LH25PT-01 Type: Protector set | Connector: Without connector | Fits: LH25, SH25 | Added length: 3.2 mm
LH25PTC-01 Type: Protector set | Connector: With connector | Fits: LH25, SH25 | Added length: 3.2 mm
LH25WS-01 Type: Double seal set | Connector: Without connector | Fits: LH25, SH25 | Added length: 2.8 mm
LH25WSC-01 Type: Double seal set | Connector: With connector | Fits: LH25, SH25 | Added length: 2.8 mm
LH30PT-01 Type: Protector set | Connector: Without connector | Fits: LH30, SH30 | Added length: 4.2 mm
LH30PTC-01 Type: Protector set | Connector: With connector | Fits: LH30, SH30 | Added length: 4.2 mm
LH30WS-01 Type: Double seal set | Connector: Without connector | Fits: LH30, SH30 | Added length: 3.6 mm
LH30WSC-01 Type: Double seal set | Connector: With connector | Fits: LH30, SH30 | Added length: 3.6 mm
LH35PT-01 Type: Protector set | Connector: Without connector | Fits: LH35, SH35 | Added length: 4.2 mm
LH35PTC-01 Type: Protector set | Connector: With connector | Fits: LH35, SH35 | Added length: 4.2 mm
LH35WS-01 Type: Double seal set | Connector: Without connector | Fits: LH35, SH35 | Added length: 3.6 mm
LH35WSC-01 Type: Double seal set | Connector: With connector | Fits: LH35, SH35 | Added length: 3.6 mm
LH45PT-01 Type: Protector set | Connector: Without connector | Fits: LH45, SH45 | Added length: 4.9 mm
LH45PTC-01 Type: Protector set | Connector: With connector | Fits: LH45, SH45 | Added length: 4.9 mm
LH45WS-01 Type: Double seal set | Connector: Without connector | Fits: LH45, SH45 | Added length: 4.3 mm
LH45WSC-01 Type: Double seal set | Connector: With connector | Fits: LH45, SH45 | Added length: 4.3 mm
LH55PT-01 Type: Protector set | Connector: Without connector | Fits: LH55, SH55 | Added length: 4.9 mm
LH55PTC-01 Type: Protector set | Connector: With connector | Fits: LH55, SH55 | Added length: 4.9 mm
LH55WS-01 Type: Double seal set | Connector: Without connector | Fits: LH55, SH55 | Added length: 4.3 mm
LH55WSC-01 Type: Double seal set | Connector: With connector | Fits: LH55, SH55 | Added length: 4.3 mm
LH65PT-01 Type: Protector set | Connector: Without connector | Fits: LH65 | Added length: 5.5 mm
LH65PTC-01 Type: Protector set | Connector: With connector | Fits: LH65 | Added length: 5.5 mm
LH65WS-01 Type: Double seal set | Connector: Without connector | Fits: LH65 | Added length: 4.9 mm
LH65WSC-01 Type: Double seal set | Connector: With connector | Fits: LH65 | Added length: 4.9 mm
