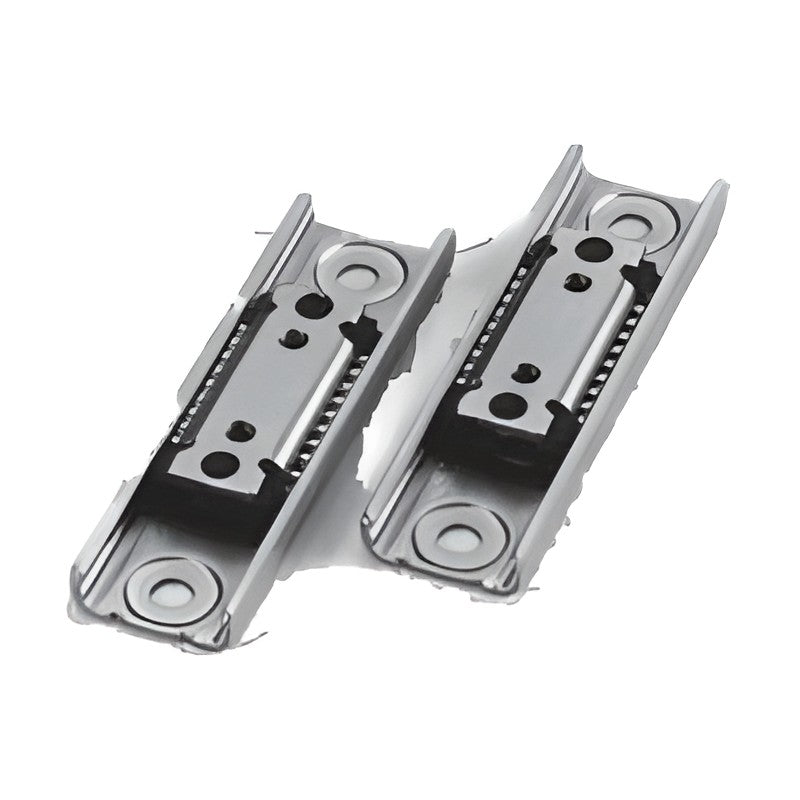

NSK LL Series Ultra-thin Linear Guides (LCD/semiconductor)

NSK LL Series is an ultra-thin miniature linear guide in stainless steel for very small mechanisms.

Key features

Ultra-thin, side-mounted miniature guide
Stainless steel (material code K)
Normal accuracy grade PN
No ball retainer and no seal
Five standard rail lengths

Specifications

Series	LL
Ball slide shape	PL
Material	Stainless steel (K)
Accuracy	Normal grade PN
Standard rail lengths	40, 60, 75, 90, 120 mm
Reference number example	LL150060PLK1-**PN0
Source	NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A335-A338

LL15PL

Linear GuidesNSK

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK LL Series Ultra-thin Linear Guides (LCD/semiconductor)

Brand NSK·Linear Guides

Available part numbers (1)

LL15PL

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
