NSK LM Solid Needle Roller Bearings with Inner Ring (d 6-45 mm)

NSK LM Solid Needle Roller Bearings with Inner Ring (d 6-45 mm)

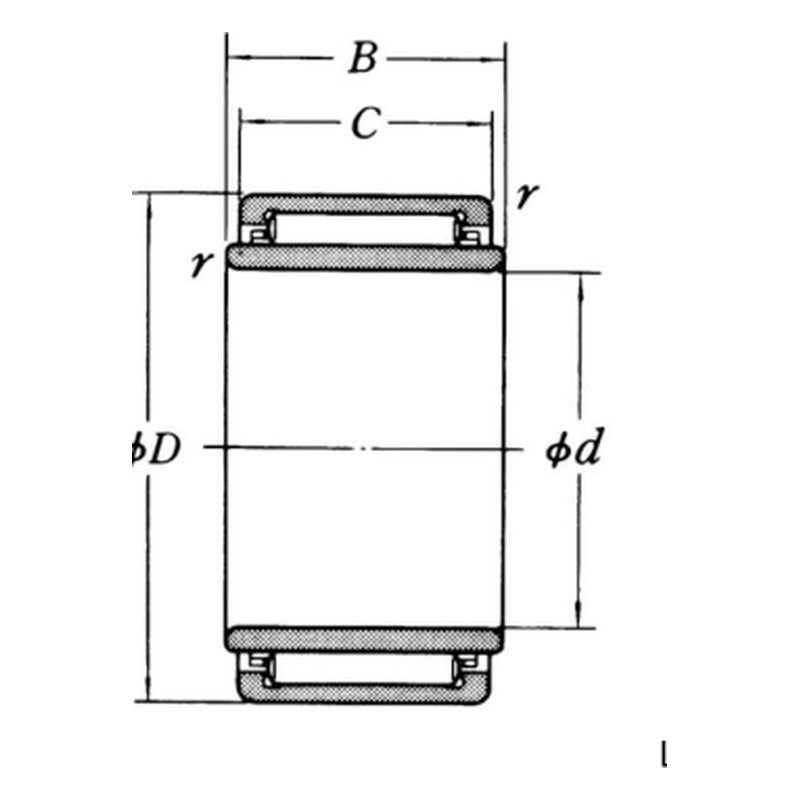

NSK LM solid needle roller bearings with machined outer ring and inner ring, bore diameters 6 to 45 mm.

Key features

  • Machined outer ring and separate inner ring
  • No shaft hardening required
  • Inner ring slightly wider than outer ring to allow axial shaft displacement
  • High radial load capacity in a small envelope

Specifications

Product Solid needle roller bearing with inner ring
Bore d 6-45 mm
Outer ring Machined, with ribs
Inner ring Included
Without inner ring RLM series
Source NSK Rolling Bearings Catalogue (Part 3), p. 260-265
LM 91612-1 d: 6 mm | D: 16 mm | B: 12 mm | Fw: 9 mm | Cr: 6.15 kN | Grease speed: 24000 rpm
LM 1212 d: 8 mm | D: 17 mm | B: 12.2 mm | Fw: 12 mm | Cr: 6.15 kN | Grease speed: 18000 rpm
LM 121912 d: 8 mm | D: 19 mm | B: 12.2 mm | Fw: 12 mm | Cr: 7.3 kN | Grease speed: 18000 rpm
LM 1416 d: 10 mm | D: 22 mm | B: 16.2 mm | Fw: 14 mm | Cr: 12.1 kN | Grease speed: 15000 rpm
LM 1420 d: 10 mm | D: 22 mm | B: 20.2 mm | Fw: 14 mm | Cr: 15.5 kN | Grease speed: 15000 rpm
LM 1515 d: 10 mm | D: 20 mm | B: 15.2 mm | Fw: 15 mm | Cr: 8.1 kN | Grease speed: 14000 rpm
LM 1520 d: 10 mm | D: 20 mm | B: 20.2 mm | Fw: 15 mm | Cr: 11.1 kN | Grease speed: 14000 rpm
LM 152215 d: 10 mm | D: 22 mm | B: 15.2 mm | Fw: 15 mm | Cr: 9.9 kN | Grease speed: 14000 rpm
LM 1616 d: 12 mm | D: 24 mm | B: 16.2 mm | Fw: 16 mm | Cr: 12.9 kN | Grease speed: 13000 rpm
LM 1620 d: 12 mm | D: 24 mm | B: 20.2 mm | Fw: 16 mm | Cr: 16.5 kN | Grease speed: 13000 rpm
LM 1710 d: 12 mm | D: 22 mm | B: 10.2 mm | Fw: 17 mm | Cr: 5.85 kN | Grease speed: 13000 rpm
LM 172425 d: 12 mm | D: 24 mm | B: 25.2 mm | Fw: 17 mm | Cr: 18.2 kN | Grease speed: 13000 rpm
LM 1815 d: 15 mm | D: 25 mm | B: 15.2 mm | Fw: 18 mm | Cr: 11.5 kN | Grease speed: 12000 rpm
LM 1820 d: 15 mm | D: 25 mm | B: 20.2 mm | Fw: 18 mm | Cr: 15.8 kN | Grease speed: 12000 rpm
LM 2010 d: 15 mm | D: 27 mm | B: 10.2 mm | Fw: 20 mm | Cr: 7.95 kN | Grease speed: 11000 rpm
LM 2015 d: 15 mm | D: 27 mm | B: 15.2 mm | Fw: 20 mm | Cr: 11.9 kN | Grease speed: 11000 rpm
LM 2020 d: 15 mm | D: 27 mm | B: 20.2 mm | Fw: 20 mm | Cr: 16.4 kN | Grease speed: 11000 rpm
LM 2025 d: 15 mm | D: 27 mm | B: 25.2 mm | Fw: 20 mm | Cr: 19.8 kN | Grease speed: 11000 rpm
LM 2220 d: 17 mm | D: 29 mm | B: 20.2 mm | Fw: 22 mm | Cr: 17.7 kN | Grease speed: 10000 rpm
LM 2225 d: 17 mm | D: 29 mm | B: 25.2 mm | Fw: 22 mm | Cr: 21.3 kN | Grease speed: 10000 rpm
LM 223020 d: 17 mm | D: 30 mm | B: 20.2 mm | Fw: 22 mm | Cr: 20 kN | Grease speed: 10000 rpm
LM 2512 d: 20 mm | D: 32 mm | B: 12.2 mm | Fw: 25 mm | Cr: 10.3 kN | Grease speed: 8500 rpm
LM 2520 d: 20 mm | D: 32 mm | B: 20.2 mm | Fw: 25 mm | Cr: 18.8 kN | Grease speed: 8500 rpm
LM 2525 d: 20 mm | D: 32 mm | B: 25.2 mm | Fw: 25 mm | Cr: 22.7 kN | Grease speed: 8500 rpm
LM 2820 d: 22 mm | D: 35 mm | B: 20.2 mm | Fw: 28 mm | Cr: 19.9 kN | Grease speed: 7500 rpm
LM 2825 d: 22 mm | D: 35 mm | B: 25.2 mm | Fw: 28 mm | Cr: 23.9 kN | Grease speed: 7500 rpm
LM 283730 d: 22 mm | D: 37 mm | B: 30.2 mm | Fw: 28 mm | Cr: 34 kN | Grease speed: 7500 rpm
LM 3025 d: 25 mm | D: 37 mm | B: 25.2 mm | Fw: 30 mm | Cr: 24.5 kN | Grease speed: 7100 rpm
LM 304020 d: 25 mm | D: 40 mm | B: 20.2 mm | Fw: 30 mm | Cr: 25 kN | Grease speed: 7100 rpm
LM 304030 d: 25 mm | D: 40 mm | B: 30.2 mm | Fw: 30 mm | Cr: 35 kN | Grease speed: 7100 rpm
LM 3220 d: 28 mm | D: 42 mm | B: 20.2 mm | Fw: 32 mm | Cr: 25.8 kN | Grease speed: 6700 rpm
LM 3230 d: 28 mm | D: 42 mm | B: 30.2 mm | Fw: 32 mm | Cr: 36.5 kN | Grease speed: 6700 rpm
LM 3520 d: 30 mm | D: 42 mm | B: 20.2 mm | Fw: 35 mm | Cr: 22.3 kN | Grease speed: 6300 rpm
LM 3530 d: 30 mm | D: 42 mm | B: 30.2 mm | Fw: 35 mm | Cr: 31 kN | Grease speed: 6300 rpm
LM 354520 d: 30 mm | D: 45 mm | B: 20.2 mm | Fw: 35 mm | Cr: 27.5 kN | Grease speed: 6300 rpm
LM 354525 d: 30 mm | D: 45 mm | B: 25.2 mm | Fw: 35 mm | Cr: 33 kN | Grease speed: 6300 rpm
LM 354530 d: 30 mm | D: 45 mm | B: 30.2 mm | Fw: 35 mm | Cr: 38.5 kN | Grease speed: 6300 rpm
LM 3720 d: 32 mm | D: 47 mm | B: 20.3 mm | Fw: 37 mm | Cr: 28.2 kN | Grease speed: 6000 rpm
LM 3730 d: 32 mm | D: 47 mm | B: 30.3 mm | Fw: 37 mm | Cr: 39.5 kN | Grease speed: 6000 rpm
LM 3820 d: 32 mm | D: 48 mm | B: 20.3 mm | Fw: 38 mm | Cr: 29 kN | Grease speed: 5600 rpm
LM 3830 d: 32 mm | D: 48 mm | B: 30.3 mm | Fw: 38 mm | Cr: 41 kN | Grease speed: 5600 rpm
LM 4020 d: 35 mm | D: 50 mm | B: 20.3 mm | Fw: 40 mm | Cr: 29.7 kN | Grease speed: 5300 rpm
LM 4030 d: 35 mm | D: 50 mm | B: 30.3 mm | Fw: 40 mm | Cr: 42 kN | Grease speed: 5300 rpm
LM 4520 d: 40 mm | D: 55 mm | B: 20.3 mm | Fw: 45 mm | Cr: 31 kN | Grease speed: 4800 rpm
LM 4530 d: 40 mm | D: 55 mm | B: 30.3 mm | Fw: 45 mm | Cr: 43.5 kN | Grease speed: 4800 rpm
LM 506220 d: 42 mm | D: 62 mm | B: 20.3 mm | Fw: 50 mm | Cr: 35.5 kN | Grease speed: 4300 rpm
LM 506225 d: 42 mm | D: 62 mm | B: 25.3 mm | Fw: 50 mm | Cr: 43 kN | Grease speed: 4300 rpm
LM 5530 d: 45 mm | D: 65 mm | B: 30.3 mm | Fw: 55 mm | Cr: 49 kN | Grease speed: 4000 rpm
LM 556720 d: 45 mm | D: 67 mm | B: 20.3 mm | Fw: 55 mm | Cr: 38 kN | Grease speed: 4000 rpm
