NSK LS Series Linear Guides (general industrial use)

NSK LS Series Linear Guides (general industrial use)

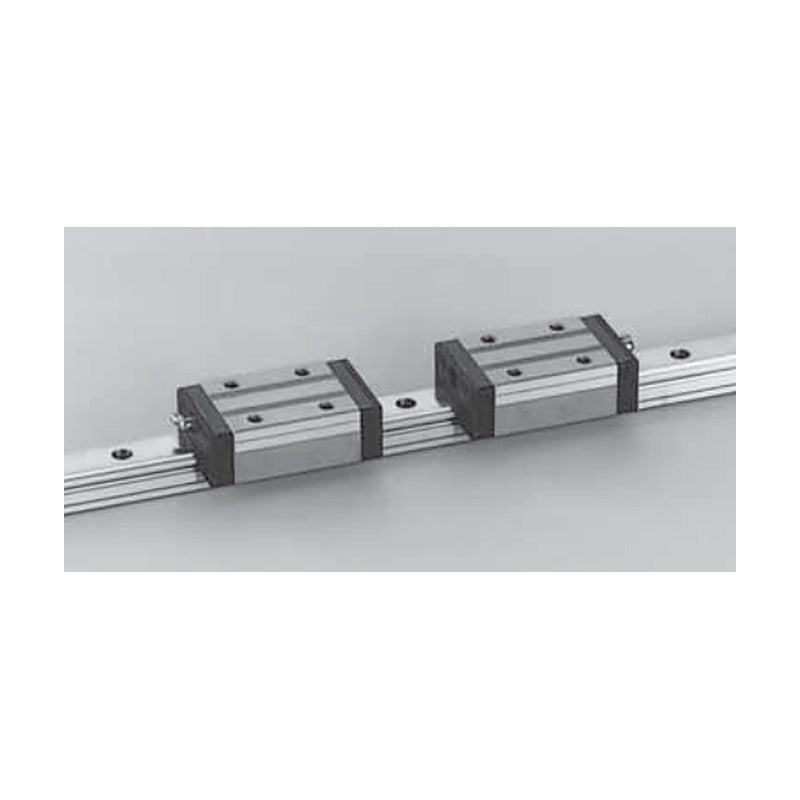

NSK LS Series compact, low-profile linear guides offer smooth motion and self-aligning capability for general industrial machines. Sizes 15 to 35.

Key features

  • Low assembled height for compact machine designs
  • Self-aligning capability absorbs mounting errors
  • Medium-load and high-load ball slide lengths
  • Random-matching rails and ball slides
  • Double seal, protector, bellows and NSK K1 options

Specifications

Series LS
Application general industrial use
Sizes 15, 20, 25, 30, 35
Slide shape codes AL, CL, EL, EM, FL, JL, JM, KL
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A185-A206
LS15JL Rail width W1: 15 mm | Height H: 24 mm | Width W: 52 mm | Length L: 40.4 mm | C: 5.4 kN | C0: 9.1 kN
LS15JM Rail width W1: 15 mm | Height H: 24 mm | Width W: 52 mm | Length L: 40.4 mm | C: 5.4 kN | C0: 9.1 kN
LS20CL Rail width W1: 20 mm | Height H: 28 mm | Width W: 42 mm | Length L: 47.2 mm | C: 7.9 kN | C0: 13.4 kN
LS20JL Rail width W1: 20 mm | Height H: 28 mm | Width W: 59 mm | Length L: 47.2 mm | C: 7.9 kN | C0: 13.4 kN
LS20JM Rail width W1: 20 mm | Height H: 28 mm | Width W: 59 mm | Length L: 47.2 mm | C: 7.9 kN | C0: 13.4 kN
LS25JL Rail width W1: 23 mm | Height H: 33 mm | Width W: 73 mm | Length L: 59.6 mm | C: 12.7 kN | C0: 20.8 kN
LS25JM Rail width W1: 23 mm | Height H: 33 mm | Width W: 73 mm | Length L: 59.6 mm | C: 12.7 kN | C0: 20.8 kN
LS30JL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 67.4 mm | C: 18.7 kN | C0: 29.6 kN
LS30JM Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 67.4 mm | C: 18.7 kN | C0: 29.6 kN
LS35JL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 77 mm | C: 26 kN | C0: 40 kN
LS35JM Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 77 mm | C: 26 kN | C0: 40 kN
Linear GuidesNSK
