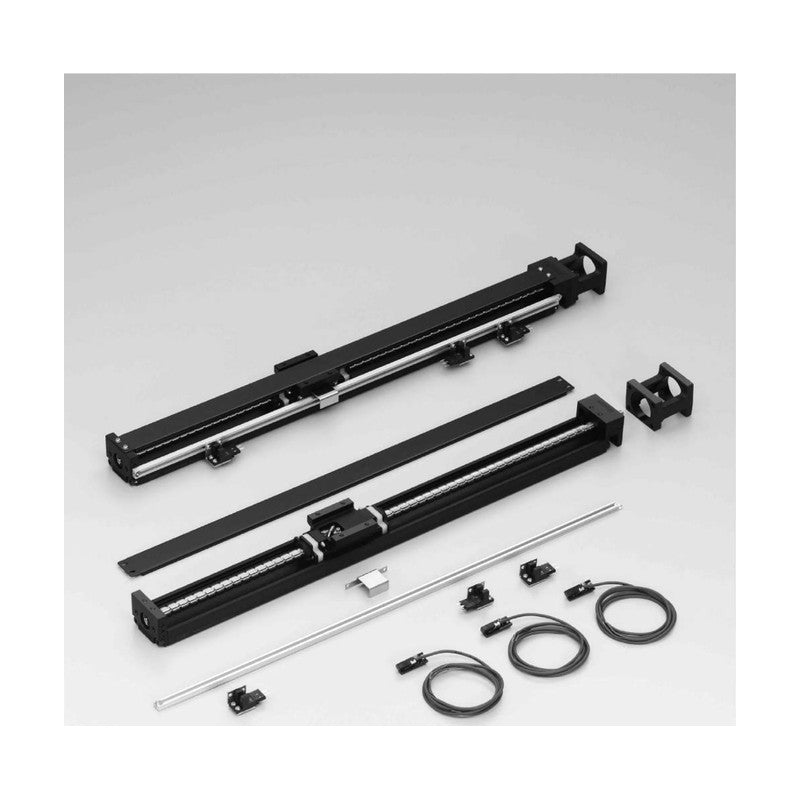

NSK Monocarrier MCM08 Single-Axis Linear Actuators (Light weight)

NSK Monocarrier MCM08 Single-Axis Linear Actuators (Light weight)

NSK Monocarrier MCM08 is a compact single-axis linear actuator in the MCM Series (light weight type), combining a ball screw, linear guide and support bearings in one body.

Key features

  • All-in-one unit integrating ball screw, linear guide and support bearings
  • Bottom and side datum planes for accurate installation
  • Low-temperature chrome plating on body and slider for rust prevention
  • NSK K1 lubrication unit for long-term maintenance-free operation
  • Single and double slider versions; ball screw leads 5, 10, 20, 30 mm

Specifications

Series MCM Series (Light weight type)
Nominal size (rail width) 80 mm
Stroke 50-800 mm
Ball screw lead 5, 10, 20, 30 mm
Accuracy grade High (H)
Slider Single, Double
Source NSK Monocarrier catalogue, p. C37-C40
MCM08040H30K00 Stroke: 400 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08050H30K00 Stroke: 500 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08060H30K00 Stroke: 600 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08070H30K00 Stroke: 700 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08080H30K00 Stroke: 800 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
Linear ActuatorsNSK
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK Monocarrier MCM08 Single-Axis Linear Actuators (Light weight)

Brand NSK·Linear Actuators

Available part numbers (5)

MCM08040H30K00, MCM08050H30K00, MCM08060H30K00, MCM08070H30K00, MCM08080H30K00

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MCM08040H30K00Stroke: 400 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08050H30K00Stroke: 500 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08060H30K00Stroke: 600 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08070H30K00Stroke: 700 mm | Lead: 30 mm | Grade: High (H) | Slider: Single
MCM08080H30K00Stroke: 800 mm | Lead: 30 mm | Grade: High (H) | Slider: Single

Need a different model, or a part not listed here? Send us your parts list →
