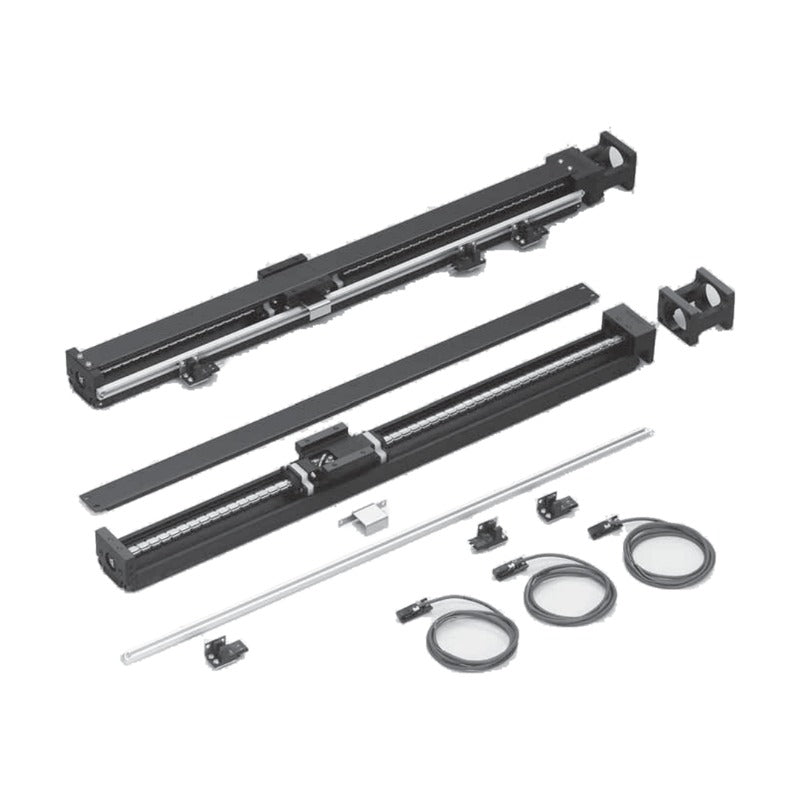

NSK Monocarrier Sensor Units and Sensor Rails (MC-SR, MC-SRL)

NSK Monocarrier Sensor Units and Sensor Rails (MC-SR, MC-SRL)

Optional sensor units (proximity switches or photo sensors) and sensor rails for NSK MCM and MCH Monocarriers, used for origin and overtravel detection.

Key features

  • Proximity switch sets in a-contact, b-contact or mixed configuration
  • Photo sensor set option
  • Sensor rails matched to Monocarrier body length
  • Sensor rail not included in sensor unit; order separately
  • For MCM02 to MCM10 and MCH series

Specifications

Sensor codes -10/-11/-12 proximity, -13 photo
Brand NSK
Product type Bearing Accessories
Listed models 113
Dimension units mm
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. C21-C22, C37-C40, C71-C72
MC-SR02-00 Part: Sensor unit | For: MCM02 | Sensors: variant 00
MC-SR02-01 Part: Sensor unit | For: MCM02 | Sensors: variant 01
MC-SR02-02 Part: Sensor unit | For: MCM02 | Sensors: variant 02
MC-SR03-10 Part: Sensor unit | For: MCM03 | Sensors: Proximity sw. b-contact x3
MC-SR03-11 Part: Sensor unit | For: MCM03 | Sensors: Proximity sw. a-contact x3
MC-SR03-12 Part: Sensor unit | For: MCM03 | Sensors: Prox. 1 a + 2 b-contact
MC-SR03-13 Part: Sensor unit | For: MCM03 | Sensors: Photo sensor x3
MC-SR05-10 Part: Sensor unit | For: MCM05 | Sensors: Proximity sw. b-contact x3
MC-SR05-11 Part: Sensor unit | For: MCM05 | Sensors: Proximity sw. a-contact x3
MC-SR05-12 Part: Sensor unit | For: MCM05 | Sensors: Prox. 1 a + 2 b-contact
MC-SR05-13 Part: Sensor unit | For: MCM05 | Sensors: Photo sensor x3
MC-SR06-10 Part: Sensor unit | For: MCM06 | Sensors: Proximity sw. b-contact x3
MC-SR06-11 Part: Sensor unit | For: MCM06 | Sensors: Proximity sw. a-contact x3
MC-SR06-12 Part: Sensor unit | For: MCM06 | Sensors: Prox. 1 a + 2 b-contact
MC-SR06-13 Part: Sensor unit | For: MCM06 | Sensors: Photo sensor x3
MC-SR08-10 Part: Sensor unit | For: MCM08 | Sensors: Proximity sw. b-contact x3
MC-SR08-11 Part: Sensor unit | For: MCM08 | Sensors: Proximity sw. a-contact x3
MC-SR08-12 Part: Sensor unit | For: MCM08 | Sensors: Prox. 1 a + 2 b-contact
MC-SR08-13 Part: Sensor unit | For: MCM08 | Sensors: Photo sensor x3
MC-SR10-10 Part: Sensor unit | For: MCM10 | Sensors: Proximity sw. b-contact x3
MC-SR10-11 Part: Sensor unit | For: MCM10 | Sensors: Proximity sw. a-contact x3
MC-SR10-12 Part: Sensor unit | For: MCM10 | Sensors: Prox. 1 a + 2 b-contact
MC-SR10-13 Part: Sensor unit | For: MCM10 | Sensors: Photo sensor x3
MC-SRH06-10 Part: Sensor unit | For: MCH06 | Sensors: Proximity sw. b-contact x3
MC-SRH06-11 Part: Sensor unit | For: MCH06 | Sensors: Proximity sw. a-contact x3
MC-SRH06-12 Part: Sensor unit | For: MCH06 | Sensors: Prox. 1 a + 2 b-contact
MC-SRH06-13 Part: Sensor unit | For: MCH06 | Sensors: Photo sensor x3
MC-SRH09-10 Part: Sensor unit | For: MCH09 | Sensors: Proximity sw. b-contact x3
MC-SRH09-11 Part: Sensor unit | For: MCH09 | Sensors: Proximity sw. a-contact x3
MC-SRH09-12 Part: Sensor unit | For: MCH09 | Sensors: Prox. 1 a + 2 b-contact
MC-SRH09-13 Part: Sensor unit | For: MCH09 | Sensors: Photo sensor x3
MC-SRH10-10 Part: Sensor unit | For: MCH10 | Sensors: Proximity sw. b-contact x3
MC-SRH10-11 Part: Sensor unit | For: MCH10 | Sensors: Proximity sw. a-contact x3
MC-SRH10-12 Part: Sensor unit | For: MCH10 | Sensors: Prox. 1 a + 2 b-contact
MC-SRH10-13 Part: Sensor unit | For: MCH10 | Sensors: Photo sensor x3
MC-SRL-0150 Part: Sensor rail | For: MCH series | Body length: 150 mm
MC-SRL-0200 Part: Sensor rail | For: MCH series | Body length: 200 mm
MC-SRL-0240 Part: Sensor rail | For: MCH series | Body length: 240 mm
MC-SRL-0280 Part: Sensor rail | For: MCH series | Body length: 280 mm
MC-SRL-0300 Part: Sensor rail | For: MCH series | Body length: 300 mm
MC-SRL-0340 Part: Sensor rail | For: MCH series | Body length: 340 mm
MC-SRL-0380 Part: Sensor rail | For: MCH series | Body length: 380 mm
MC-SRL-0400 Part: Sensor rail | For: MCH series | Body length: 400 mm
MC-SRL-0440 Part: Sensor rail | For: MCH series | Body length: 440 mm
MC-SRL-0480 Part: Sensor rail | For: MCH series | Body length: 480 mm
MC-SRL-0500 Part: Sensor rail | For: MCH series | Body length: 500 mm
MC-SRL-0540 Part: Sensor rail | For: MCH series | Body length: 540 mm
MC-SRL-0580 Part: Sensor rail | For: MCH series | Body length: 580 mm
MC-SRL-0600 Part: Sensor rail | For: MCH series | Body length: 600 mm
MC-SRL-0640 Part: Sensor rail | For: MCH series | Body length: 640 mm
MC-SRL-0680 Part: Sensor rail | For: MCH series | Body length: 680 mm
MC-SRL-0740 Part: Sensor rail | For: MCH series | Body length: 740 mm
MC-SRL-0780 Part: Sensor rail | For: MCH series | Body length: 780 mm
MC-SRL-0840 Part: Sensor rail | For: MCH series | Body length: 840 mm
MC-SRL-0880 Part: Sensor rail | For: MCH series | Body length: 880 mm
MC-SRL-0940 Part: Sensor rail | For: MCH series | Body length: 940 mm
MC-SRL-0980 Part: Sensor rail | For: MCH series | Body length: 980 mm
MC-SRL-1080 Part: Sensor rail | For: MCH series | Body length: 1080 mm
MC-SRL-1180 Part: Sensor rail | For: MCH series | Body length: 1180 mm
MC-SRL-1280 Part: Sensor rail | For: MCH series | Body length: 1280 mm
MC-SRL-1380 Part: Sensor rail | For: MCH series | Body length: 1380 mm
MC-SRL1-0280 Part: Sensor rail | For: MCM10 | Body length: 280 mm
MC-SRL1-0330 Part: Sensor rail | For: MCM10 | Body length: 330 mm
MC-SRL1-0380 Part: Sensor rail | For: MCM10 | Body length: 380 mm
MC-SRL1-0430 Part: Sensor rail | For: MCM10 | Body length: 430 mm
MC-SRL1-0480 Part: Sensor rail | For: MCM10 | Body length: 480 mm
MC-SRL1-0580 Part: Sensor rail | For: MCM10 | Body length: 580 mm
MC-SRL1-0680 Part: Sensor rail | For: MCM10 | Body length: 680 mm
MC-SRL1-0780 Part: Sensor rail | For: MCM10 | Body length: 780 mm
MC-SRL1-0880 Part: Sensor rail | For: MCM10 | Body length: 880 mm
MC-SRL1-0980 Part: Sensor rail | For: MCM10 | Body length: 980 mm
MC-SRL1-1080 Part: Sensor rail | For: MCM10 | Body length: 1080 mm
MC-SRL1-1180 Part: Sensor rail | For: MCM10 | Body length: 1180 mm
MC-SRL2-0100 Part: Sensor rail | For: MCM02 | Body length: 100 mm
MC-SRL2-0150 Part: Sensor rail | For: MCM02 | Body length: 150 mm
MC-SRL2-0200 Part: Sensor rail | For: MCM02 | Body length: 200 mm
MC-SRL3-0115 Part: Sensor rail | For: MCM03 | Body length: 115 mm
MC-SRL3-0140 Part: Sensor rail | For: MCM03 | Body length: 140 mm
MC-SRL3-0190 Part: Sensor rail | For: MCM03 | Body length: 190 mm
MC-SRL3-0240 Part: Sensor rail | For: MCM03 | Body length: 240 mm
MC-SRL3-0290 Part: Sensor rail | For: MCM03 | Body length: 290 mm
MC-SRL3-0340 Part: Sensor rail | For: MCM03 | Body length: 340 mm
MC-SRL5-0180 Part: Sensor rail | For: MCM05 | Body length: 180 mm
MC-SRL5-0230 Part: Sensor rail | For: MCM05 | Body length: 230 mm
MC-SRL5-0280 Part: Sensor rail | For: MCM05 | Body length: 280 mm
MC-SRL5-0330 Part: Sensor rail | For: MCM05 | Body length: 330 mm
MC-SRL5-0380 Part: Sensor rail | For: MCM05 | Body length: 380 mm
MC-SRL5-0430 Part: Sensor rail | For: MCM05 | Body length: 430 mm
MC-SRL5-0530 Part: Sensor rail | For: MCM05 | Body length: 530 mm
MC-SRL5-0630 Part: Sensor rail | For: MCM05 | Body length: 630 mm
MC-SRL5-0730 Part: Sensor rail | For: MCM05 | Body length: 730 mm
MC-SRL6-0190 Part: Sensor rail | For: MCM06 | Body length: 190 mm
MC-SRL6-0240 Part: Sensor rail | For: MCM06 | Body length: 240 mm
MC-SRL6-0290 Part: Sensor rail | For: MCM06 | Body length: 290 mm
MC-SRL6-0340 Part: Sensor rail | For: MCM06 | Body length: 340 mm
MC-SRL6-0390 Part: Sensor rail | For: MCM06 | Body length: 390 mm
MC-SRL6-0440 Part: Sensor rail | For: MCM06 | Body length: 440 mm
MC-SRL6-0540 Part: Sensor rail | For: MCM06 | Body length: 540 mm
MC-SRL6-0640 Part: Sensor rail | For: MCM06 | Body length: 640 mm
MC-SRL6-0740 Part: Sensor rail | For: MCM06 | Body length: 740 mm
MC-SRL6-0840 Part: Sensor rail | For: MCM06 | Body length: 840 mm
MC-SRL6-0940 Part: Sensor rail | For: MCM06 | Body length: 940 mm
MC-SRL8-0220 Part: Sensor rail | For: MCM08 | Body length: 220 mm
MC-SRL8-0270 Part: Sensor rail | For: MCM08 | Body length: 270 mm
MC-SRL8-0320 Part: Sensor rail | For: MCM08 | Body length: 320 mm
MC-SRL8-0370 Part: Sensor rail | For: MCM08 | Body length: 370 mm
MC-SRL8-0420 Part: Sensor rail | For: MCM08 | Body length: 420 mm
MC-SRL8-0470 Part: Sensor rail | For: MCM08 | Body length: 470 mm
MC-SRL8-0570 Part: Sensor rail | For: MCM08 | Body length: 570 mm
MC-SRL8-0670 Part: Sensor rail | For: MCM08 | Body length: 670 mm
MC-SRL8-0770 Part: Sensor rail | For: MCM08 | Body length: 770 mm
MC-SRL8-0870 Part: Sensor rail | For: MCM08 | Body length: 870 mm
MC-SRL8-0970 Part: Sensor rail | For: MCM08 | Body length: 970 mm
