NSK MS Type Miniature Ball Screws, Blank Shaft End

NSK MS Type Miniature Ball Screws, Blank Shaft End

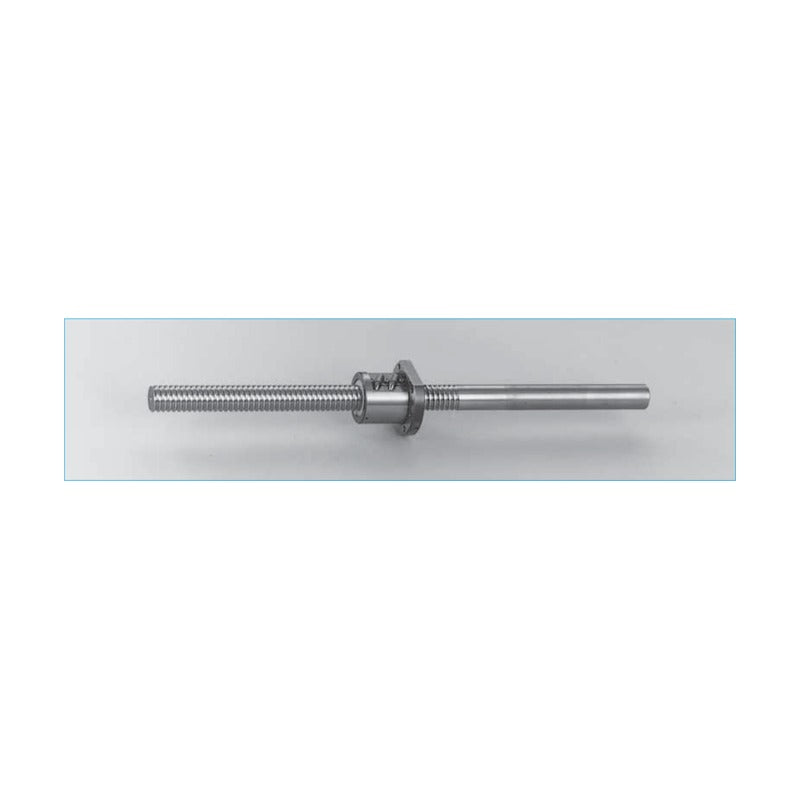

NSK MS type standard ball screws are miniature fine-lead ball screws with blank shaft ends for customer machining.

Key features

  • Miniature shaft diameters 4 to 16 mm
  • Deflector-type MSFD nut
  • Blank shaft ends (no case hardening at ends)
  • Accuracy grade C3
  • Precise clearance axial play

Specifications

Type MS (blank shaft end)
Nut model MSFD
Brand NSK
Product type Ball Screws
Listed models 20
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B383-B392
W0400MS-1Y-C3T1 Shaft x lead: 4 x 1 mm | Max stroke: 68 mm | Accuracy: C3 | Axial play: T | Ca: 0.315 kN | C0a: 0.37 kN
W0601MS-1Y-C3T1 Shaft x lead: 6 x 1 mm | Max stroke: 110 mm | Accuracy: C3 | Axial play: T | Ca: 0.575 kN | C0a: 0.925 kN
W0801MS-1Y-C3T1 Shaft x lead: 8 x 1 mm | Max stroke: 94 mm | Accuracy: C3 | Axial play: T | Ca: 0.67 kN | C0a: 1.29 kN
W0802MS-1Y-C3T1 Shaft x lead: 8 x 1 mm | Max stroke: 174 mm | Accuracy: C3 | Axial play: T | Ca: 0.67 kN | C0a: 1.29 kN
W0801MS-2Y-C3T1.5 Shaft x lead: 8 x 1.5 mm | Max stroke: 88 mm | Accuracy: C3 | Axial play: T | Ca: 1.08 kN | C0a: 1.98 kN
W0802MS-2Y-C3T1.5 Shaft x lead: 8 x 1.5 mm | Max stroke: 168 mm | Accuracy: C3 | Axial play: T | Ca: 1.08 kN | C0a: 1.98 kN
W0801MS-3Y-C3T2 Shaft x lead: 8 x 2 mm | Max stroke: 84 mm | Accuracy: C3 | Axial play: T | Ca: 1.32 kN | C0a: 2.21 kN
W0802MS-3Y-C3T2 Shaft x lead: 8 x 2 mm | Max stroke: 164 mm | Accuracy: C3 | Axial play: T | Ca: 1.32 kN | C0a: 2.21 kN
W1001MS-1Y-C3T2 Shaft x lead: 10 x 2 mm | Max stroke: 122 mm | Accuracy: C3 | Axial play: T | Ca: 1.49 kN | C0a: 2.85 kN
W1002MS-1Y-C3T2 Shaft x lead: 10 x 2 mm | Max stroke: 222 mm | Accuracy: C3 | Axial play: T | Ca: 1.49 kN | C0a: 2.85 kN
W1001MS-2Y-C3T2.5 Shaft x lead: 10 x 2.5 mm | Max stroke: 118 mm | Accuracy: C3 | Axial play: T | Ca: 2.13 kN | C0a: 3.64 kN
W1002MS-2Y-C3T2.5 Shaft x lead: 10 x 2.5 mm | Max stroke: 218 mm | Accuracy: C3 | Axial play: T | Ca: 2.13 kN | C0a: 3.64 kN
W1202MS-1Y-C3T2 Shaft x lead: 12 x 2 mm | Max stroke: 182 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1203MS-1Y-C3T2 Shaft x lead: 12 x 2 mm | Max stroke: 282 mm | Accuracy: C3 | Axial play: T | Ca: 1.66 kN | C0a: 3.62 kN
W1202MS-2Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Max stroke: 178 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1203MS-2Y-C3T2.5 Shaft x lead: 12 x 2.5 mm | Max stroke: 278 mm | Accuracy: C3 | Axial play: T | Ca: 2.36 kN | C0a: 4.54 kN
W1602MS-1Y-C3T2 Shaft x lead: 16 x 2 mm | Max stroke: 210 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1604MS-1Y-C3T2 Shaft x lead: 16 x 2 mm | Max stroke: 360 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1602MS-2Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Max stroke: 206 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
W1604MS-2Y-C3T2.5 Shaft x lead: 16 x 2.5 mm | Max stroke: 356 mm | Accuracy: C3 | Axial play: T | Ca: 3.51 kN | C0a: 8.45 kN
Ball ScrewsNSK
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK MS Type Miniature Ball Screws, Blank Shaft End

Brand NSK·Ball Screws

Available part numbers (20)

W0400MS-1Y-C3T1, W0601MS-1Y-C3T1, W0801MS-1Y-C3T1, W0802MS-1Y-C3T1, W0801MS-2Y-C3T1.5, W0802MS-2Y-C3T1.5, W0801MS-3Y-C3T2, W0802MS-3Y-C3T2, W1001MS-1Y-C3T2, W1002MS-1Y-C3T2 + 10 more — see full table ↓
