• NSK N10 Single-Row Precision Cylindrical Roller Bearings (KR)
1 1

NSK N10 Single-Row Precision Cylindrical Roller Bearings (KR)

NSK N10 Single-Row Precision Cylindrical Roller Bearings (KR)

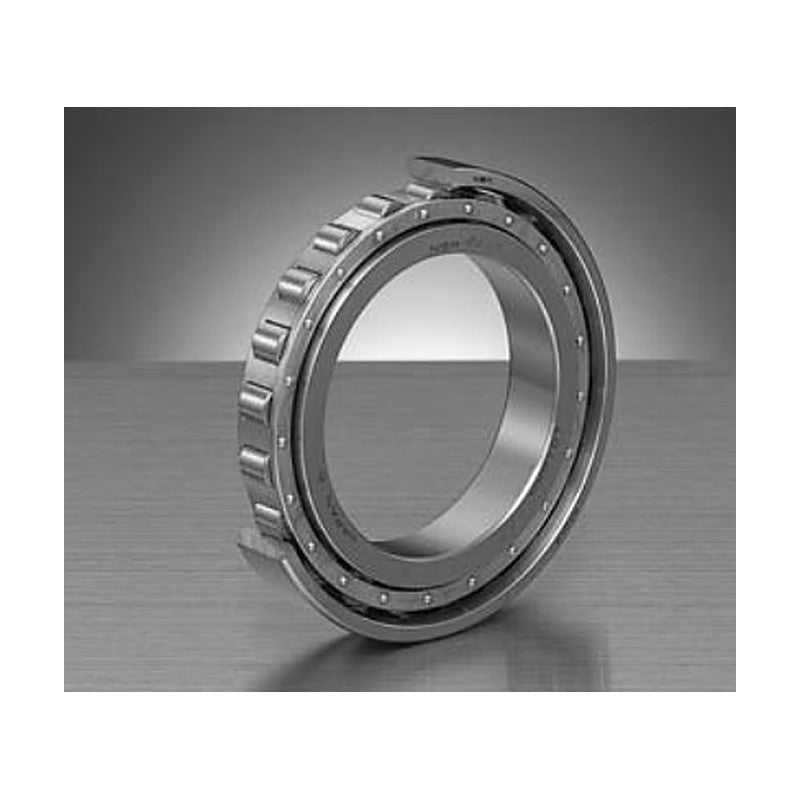

NSK N10 series standard single-row precision cylindrical roller bearings with 1/12 tapered bore and brass cage, bore 30 to 140 mm.

Key features

  • Single-row cylindrical roller bearing for spindle rear support
  • Tapered bore (KR, 1/12) for clearance adjustment
  • Brass machined cage (MR)
  • High radial load capacity and rigidity
  • Precision class P4 / P2

Specifications

Series N10
Bore Tapered 1/12 (KR)
Bore range 30 - 140 mm
Cage MR brass
Speed basis Grease lubrication
Source NSK Super Precision Bearings, p. 94
N1006MR1KR d: 30 mm | D: 55 mm | B: 13 mm | Cr: 19.7 kN | C0r: 19.6 kN | Speed (grease): 19,000 min-1
N1007MRKR d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Speed (grease): 17,000 min-1
N1008MRKR d: 40 mm | D: 68 mm | B: 15 mm | Cr: 27.3 kN | C0r: 29.0 kN | Speed (grease): 15,000 min-1
N1009MRKR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 32.5 kN | C0r: 35.5 kN | Speed (grease): 14,000 min-1
N1010MRKR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 32.0 kN | C0r: 36.0 kN | Speed (grease): 13,000 min-1
N1011BMR1KR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 12,000 min-1
N1012BMR1KR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 40.0 kN | C0r: 48.5 kN | Speed (grease): 11,000 min-1
N1013BMR1KR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 41.0 kN | C0r: 51.0 kN | Speed (grease): 10,000 min-1
N1014BMR1KR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 50.0 kN | C0r: 63.0 kN | Speed (grease): 9,000 min-1
N1015MRKR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 60.0 kN | C0r: 74.5 kN | Speed (grease): 8,500 min-1
N1016BMR1KR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 63.5 kN | C0r: 82.0 kN | Speed (grease): 7,900 min-1
N1017BMR1KR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 7,500 min-1
N1018MRKR d: 90 mm | D: 140 mm | B: 24 mm | Cr: 88.0 kN | C0r: 114 kN | Speed (grease): 7,000 min-1
N1019BMR1KR d: 95 mm | D: 145 mm | B: 24 mm | Cr: 83.0 kN | C0r: 114 kN | Speed (grease): 6,700 min-1
N1020MRKR d: 100 mm | D: 150 mm | B: 24 mm | Cr: 93.0 kN | C0r: 126 kN | Speed (grease): 6,400 min-1
N1021MRKR d: 105 mm | D: 160 mm | B: 26 mm | Cr: 109 kN | C0r: 149 kN | Speed (grease): 6,100 min-1
N1022BMR1KR d: 110 mm | D: 170 mm | B: 28 mm | Cr: 126 kN | C0r: 173 kN | Speed (grease): 5,800 min-1
N1024MRKR d: 120 mm | D: 180 mm | B: 28 mm | Cr: 139 kN | C0r: 191 kN | Speed (grease): 5,400 min-1
N1026MRKR d: 130 mm | D: 200 mm | B: 33 mm | Cr: 172 kN | C0r: 238 kN | Speed (grease): 4,900 min-1
N1028BMR1KR d: 140 mm | D: 210 mm | B: 33 mm | Cr: 164 kN | C0r: 240 kN | Speed (grease): 4,600 min-1
Cylindrical Roller BearingsNSK
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK N10 Single-Row Precision Cylindrical Roller Bearings (KR)

Brand NSK·Cylindrical Roller Bearings

Available part numbers (20)

N1006MR1KR, N1007MRKR, N1008MRKR, N1009MRKR, N1010MRKR, N1011BMR1KR, N1012BMR1KR, N1013BMR1KR, N1014BMR1KR, N1015MRKR + 10 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N1006MR1KRd: 30 mm | D: 55 mm | B: 13 mm | Cr: 19.7 kN | C0r: 19.6 kN | Speed (grease): 19,000 min-1
N1007MRKRd: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Speed (grease): 17,000 min-1
N1008MRKRd: 40 mm | D: 68 mm | B: 15 mm | Cr: 27.3 kN | C0r: 29.0 kN | Speed (grease): 15,000 min-1
N1009MRKRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 32.5 kN | C0r: 35.5 kN | Speed (grease): 14,000 min-1
N1010MRKRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 32.0 kN | C0r: 36.0 kN | Speed (grease): 13,000 min-1
N1011BMR1KRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.5 kN | C0r: 44.0 kN | Speed (grease): 12,000 min-1
N1012BMR1KRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 40.0 kN | C0r: 48.5 kN | Speed (grease): 11,000 min-1
N1013BMR1KRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 41.0 kN | C0r: 51.0 kN | Speed (grease): 10,000 min-1
N1014BMR1KRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 50.0 kN | C0r: 63.0 kN | Speed (grease): 9,000 min-1
N1015MRKRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 60.0 kN | C0r: 74.5 kN | Speed (grease): 8,500 min-1
N1016BMR1KRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 63.5 kN | C0r: 82.0 kN | Speed (grease): 7,900 min-1
N1017BMR1KRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 65.0 kN | C0r: 86.0 kN | Speed (grease): 7,500 min-1
N1018MRKRd: 90 mm | D: 140 mm | B: 24 mm | Cr: 88.0 kN | C0r: 114 kN | Speed (grease): 7,000 min-1
N1019BMR1KRd: 95 mm | D: 145 mm | B: 24 mm | Cr: 83.0 kN | C0r: 114 kN | Speed (grease): 6,700 min-1
N1020MRKRd: 100 mm | D: 150 mm | B: 24 mm | Cr: 93.0 kN | C0r: 126 kN | Speed (grease): 6,400 min-1
N1021MRKRd: 105 mm | D: 160 mm | B: 26 mm | Cr: 109 kN | C0r: 149 kN | Speed (grease): 6,100 min-1
N1022BMR1KRd: 110 mm | D: 170 mm | B: 28 mm | Cr: 126 kN | C0r: 173 kN | Speed (grease): 5,800 min-1
N1024MRKRd: 120 mm | D: 180 mm | B: 28 mm | Cr: 139 kN | C0r: 191 kN | Speed (grease): 5,400 min-1
N1026MRKRd: 130 mm | D: 200 mm | B: 33 mm | Cr: 172 kN | C0r: 238 kN | Speed (grease): 4,900 min-1
N1028BMR1KRd: 140 mm | D: 210 mm | B: 33 mm | Cr: 164 kN | C0r: 240 kN | Speed (grease): 4,600 min-1
