NSK PE Series Miniature Wide Linear Guides (LCD/semiconductor)

NSK PE Series Miniature Wide Linear Guides (LCD/semiconductor)

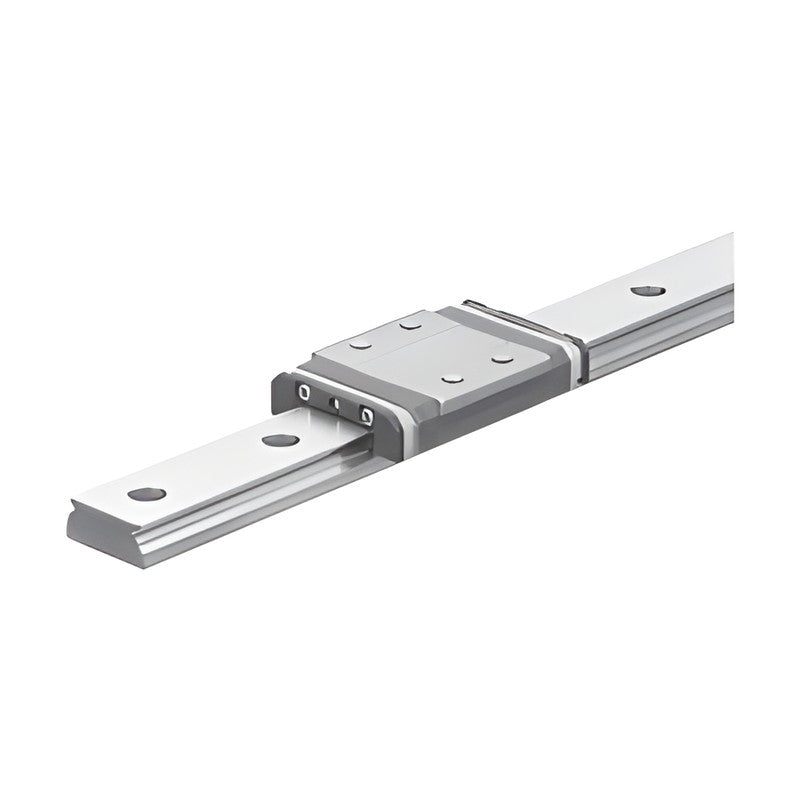

NSK PE Series miniature wide-rail linear guides provide high moment rigidity in a compact stainless-steel package. Sizes 05 to 15.

Key features

  • Wide miniature rail for high moment rigidity
  • Stainless steel construction
  • Ball retainer prevents balls falling out
  • Low dust generation for clean environments
  • NSK K1 lubrication unit available

Specifications

Series PE
Application LCD and semiconductor equipment
Sizes 05, 07, 09, 12, 15
Slide shape codes AR, BR, TR, UR
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A299-A308
PE05AR Rail width W1: 10 mm | Height H: 6.5 mm | Width W: 17 mm | Length L: 24.1 mm | C: 0.69 kN | C0: 1.16 kN
PE07TR Rail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 31.1 mm | C: 1.58 kN | C0: 2.35 kN
PE09TR Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39.8 mm | C: 3 kN | C0: 4.5 kN
PE09UR Rail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 51.2 mm | C: 4 kN | C0: 6.7 kN
PE12AR Rail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 45 mm | C: 4.35 kN | C0: 6.35 kN
PE12BR Rail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 60 mm | C: 5.8 kN | C0: 9.55 kN
PE15AR Rail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 56.6 mm | C: 7.6 kN | C0: 10.4 kN
PE15BR Rail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 76 mm | C: 10.3 kN | C0: 16 kN
Linear GuidesNSK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK PE Series Miniature Wide Linear Guides (LCD/semiconductor)

Brand NSK·Linear Guides

Available part numbers (8)

PE05AR, PE07TR, PE09TR, PE09UR, PE12AR, PE12BR, PE15AR, PE15BR

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PE05ARRail width W1: 10 mm | Height H: 6.5 mm | Width W: 17 mm | Length L: 24.1 mm | C: 0.69 kN | C0: 1.16 kN
PE07TRRail width W1: 14 mm | Height H: 9 mm | Width W: 25 mm | Length L: 31.1 mm | C: 1.58 kN | C0: 2.35 kN
PE09TRRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 39.8 mm | C: 3 kN | C0: 4.5 kN
PE09URRail width W1: 18 mm | Height H: 12 mm | Width W: 30 mm | Length L: 51.2 mm | C: 4 kN | C0: 6.7 kN
PE12ARRail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 45 mm | C: 4.35 kN | C0: 6.35 kN
PE12BRRail width W1: 24 mm | Height H: 14 mm | Width W: 40 mm | Length L: 60 mm | C: 5.8 kN | C0: 9.55 kN
PE15ARRail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 56.6 mm | C: 7.6 kN | C0: 10.4 kN
PE15BRRail width W1: 42 mm | Height H: 16 mm | Width W: 60 mm | Length L: 76 mm | C: 10.3 kN | C0: 16 kN
