NSK PU Series Miniature Linear Guides (LCD/semiconductor)

NSK PU Series Miniature Linear Guides (LCD/semiconductor)

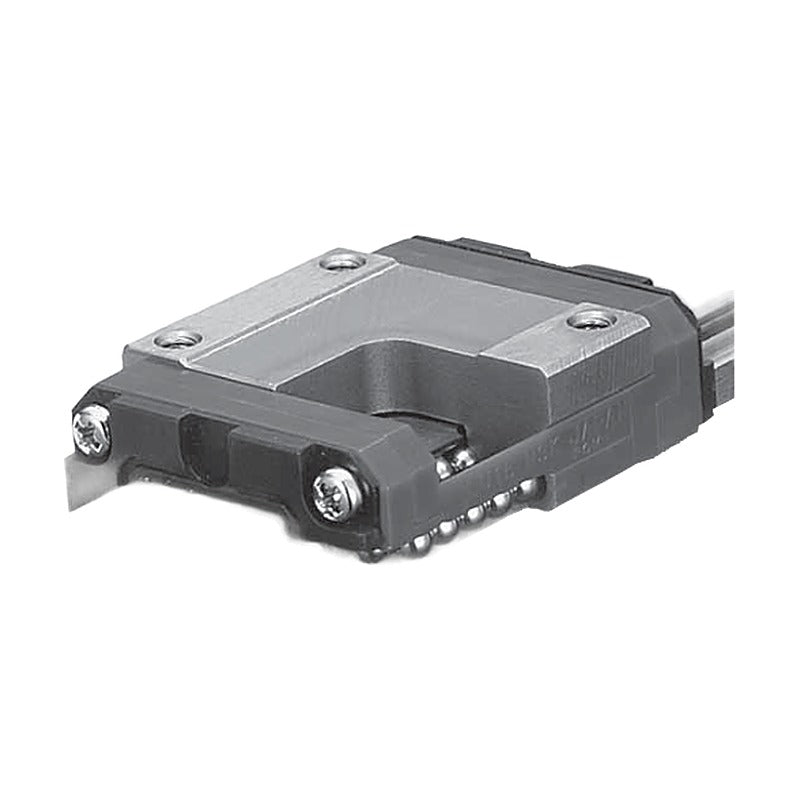

NSK PU Series miniature linear guides are compact stainless-steel guides with ball retainers for LCD, semiconductor and other precision equipment. Sizes 05 to 15.

Key features

  • Miniature linear guide in stainless steel
  • Ball retainer prevents balls falling out
  • Low-dust, quiet operation for clean environments
  • NSK grease PS2 standard; NSK K1 optional
  • Random-matching type available

Specifications

Series PU
Application LCD and semiconductor equipment
Sizes 05, 07, 09, 12, 15
Slide shape codes AL, AR, BL, TR, UR
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A289-A298
PU05TR Rail width W1: 5 mm | Height H: 6 mm | Width W: 12 mm | Length L: 19.4 mm | C: 0.52 kN | C0: 0.775 kN
PU07AR Rail width W1: 7 mm | Height H: 8 mm | Width W: 17 mm | Length L: 23.4 mm | C: 1.09 kN | C0: 1.37 kN
PU09UR Rail width W1: 9 mm | Height H: 10 mm | Width W: 20 mm | Length L: 41 mm | C: 2.1 kN | C0: 3.5 kN
PU12UR Rail width W1: 12 mm | Height H: 13 mm | Width W: 27 mm | Length L: 48.7 mm | C: 4 kN | C0: 5.7 kN
PU15BL Rail width W1: 15 mm | Height H: 16 mm | Width W: 32 mm | Length L: 61 mm | C: 8.1 kN | C0: 11.3 kN
