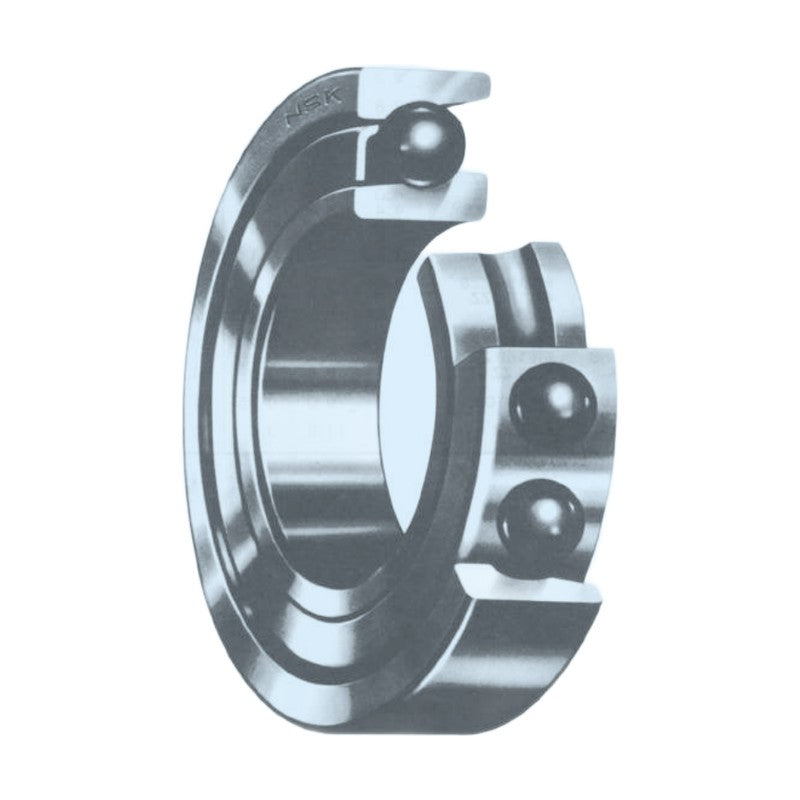

NSK QJ Four-Point Contact Ball Bearings (QJ2, QJ3, QJ10)

NSK QJ Four-Point Contact Ball Bearings (QJ2, QJ3, QJ10)

NSK QJ series four-point contact ball bearings, bore 30-200 mm, with a split inner ring that allows axial loads in both directions in a single bearing.

Key features

  • Two-piece inner ring gives four-point ball contact
  • Carries axial loads in both directions within one bearing
  • Space-saving alternative to paired angular contact bearings
  • Ratings given as axial dynamic Ca and static C0a

Specifications

Bearing type Four-point contact ball bearing
Series QJ2, QJ3, QJ10
Bore range 30-200 mm
Load ratings Axial dynamic Ca / static C0a
Speed basis Grease lubrication limit
Source NSK Rolling Bearings Catalogue (Korean ed.), p. B68-B71
QJ206 d: 30 mm | D: 62 mm | B: 16 mm | Ca: 31 kN | C0a: 45 kN | Grease speed: 8500 rpm
QJ306 d: 30 mm | D: 72 mm | B: 19 mm | Ca: 46 kN | C0a: 63 kN | Grease speed: 8000 rpm
QJ207 d: 35 mm | D: 72 mm | B: 17 mm | Ca: 41 kN | C0a: 61.5 kN | Grease speed: 7500 rpm
QJ307 d: 35 mm | D: 80 mm | B: 21 mm | Ca: 65 kN | C0a: 80 kN | Grease speed: 7700 rpm
QJ208 d: 40 mm | D: 80 mm | B: 18 mm | Ca: 49 kN | C0a: 77.5 kN | Grease speed: 6700 rpm
QJ308 d: 40 mm | D: 90 mm | B: 23 mm | Ca: 67 kN | C0a: 100 kN | Grease speed: 6300 rpm
QJ209 d: 45 mm | D: 85 mm | B: 19 mm | Ca: 55 kN | C0a: 88.5 kN | Grease speed: 6300 rpm
QJ309 d: 45 mm | D: 100 mm | B: 25 mm | Ca: 87.5 kN | C0a: 133 kN | Grease speed: 6600 rpm
QJ210 d: 50 mm | D: 90 mm | B: 20 mm | Ca: 57 kN | C0a: 97 kN | Grease speed: 5600 rpm
QJ310 d: 50 mm | D: 110 mm | B: 27 mm | Ca: 102 kN | C0a: 159 kN | Grease speed: 5000 rpm
QJ211 d: 55 mm | D: 100 mm | B: 21 mm | Ca: 71 kN | C0a: 122 kN | Grease speed: 5300 rpm
QJ311 d: 55 mm | D: 120 mm | B: 29 mm | Ca: 118 kN | C0a: 187 kN | Grease speed: 4500 rpm
QJ212 d: 60 mm | D: 110 mm | B: 22 mm | Ca: 85.5 kN | C0a: 150 kN | Grease speed: 4800 rpm
QJ312 d: 60 mm | D: 130 mm | B: 31 mm | Ca: 136 kN | C0a: 217 kN | Grease speed: 4300 rpm
QJ213 d: 65 mm | D: 120 mm | B: 23 mm | Ca: 97.5 kN | C0a: 179 kN | Grease speed: 4300 rpm
QJ313 d: 65 mm | D: 140 mm | B: 33 mm | Ca: 153 kN | C0a: 250 kN | Grease speed: 3800 rpm
QJ214 d: 70 mm | D: 125 mm | B: 24 mm | Ca: 106 kN | C0a: 197 kN | Grease speed: 4000 rpm
QJ314 d: 70 mm | D: 150 mm | B: 35 mm | Ca: 172 kN | C0a: 285 kN | Grease speed: 3600 rpm
QJ215 d: 75 mm | D: 130 mm | B: 25 mm | Ca: 110 kN | C0a: 212 kN | Grease speed: 3800 rpm
QJ315 d: 75 mm | D: 160 mm | B: 37 mm | Ca: 187 kN | C0a: 320 kN | Grease speed: 3400 rpm
QJ1016 d: 80 mm | D: 125 mm | B: 22 mm | Ca: 77 kN | C0a: 167 kN | Grease speed: 3600 rpm
QJ216 d: 80 mm | D: 140 mm | B: 26 mm | Ca: 124 kN | C0a: 236 kN | Grease speed: 3600 rpm
QJ316 d: 80 mm | D: 170 mm | B: 39 mm | Ca: 202 kN | C0a: 360 kN | Grease speed: 3200 rpm
QJ1017 d: 85 mm | D: 130 mm | B: 22 mm | Ca: 79 kN | C0a: 176 kN | Grease speed: 3800 rpm
QJ217 d: 85 mm | D: 150 mm | B: 28 mm | Ca: 143 kN | C0a: 276 kN | Grease speed: 3400 rpm
QJ317 d: 85 mm | D: 180 mm | B: 41 mm | Ca: 218 kN | C0a: 405 kN | Grease speed: 3000 rpm
QJ1018 d: 90 mm | D: 140 mm | B: 24 mm | Ca: 94 kN | C0a: 208 kN | Grease speed: 3400 rpm
QJ218 d: 90 mm | D: 160 mm | B: 30 mm | Ca: 164 kN | C0a: 320 kN | Grease speed: 3200 rpm
QJ318 d: 90 mm | D: 190 mm | B: 43 mm | Ca: 235 kN | C0a: 450 kN | Grease speed: 2800 rpm
QJ1019 d: 95 mm | D: 145 mm | B: 24 mm | Ca: 96.5 kN | C0a: 220 kN | Grease speed: 3400 rpm
QJ219 d: 95 mm | D: 170 mm | B: 32 mm | Ca: 177 kN | C0a: 340 kN | Grease speed: 3000 rpm
QJ319 d: 95 mm | D: 200 mm | B: 45 mm | Ca: 251 kN | C0a: 495 kN | Grease speed: 2600 rpm
QJ1020 d: 100 mm | D: 150 mm | B: 24 mm | Ca: 98.5 kN | C0a: 237 kN | Grease speed: 3200 rpm
QJ220 d: 100 mm | D: 180 mm | B: 34 mm | Ca: 199 kN | C0a: 390 kN | Grease speed: 2800 rpm
QJ320 d: 100 mm | D: 215 mm | B: 47 mm | Ca: 300 kN | C0a: 640 kN | Grease speed: 2400 rpm
QJ1021 d: 105 mm | D: 160 mm | B: 26 mm | Ca: 115 kN | C0a: 269 kN | Grease speed: 3000 rpm
QJ221 d: 105 mm | D: 190 mm | B: 36 mm | Ca: 217 kN | C0a: 435 kN | Grease speed: 2600 rpm
QJ321 d: 105 mm | D: 225 mm | B: 49 mm | Ca: 305 kN | C0a: 640 kN | Grease speed: 2400 rpm
QJ1022 d: 110 mm | D: 170 mm | B: 28 mm | Ca: 139 kN | C0a: 315 kN | Grease speed: 2800 rpm
QJ222 d: 110 mm | D: 200 mm | B: 38 mm | Ca: 235 kN | C0a: 490 kN | Grease speed: 2600 rpm
QJ322 d: 110 mm | D: 240 mm | B: 50 mm | Ca: 320 kN | C0a: 710 kN | Grease speed: 2200 rpm
QJ1024 d: 120 mm | D: 180 mm | B: 28 mm | Ca: 147 kN | C0a: 350 kN | Grease speed: 2600 rpm
QJ224 d: 120 mm | D: 215 mm | B: 40 mm | Ca: 265 kN | C0a: 585 kN | Grease speed: 2400 rpm
QJ324 d: 120 mm | D: 260 mm | B: 55 mm | Ca: 360 kN | C0a: 835 kN | Grease speed: 2000 rpm
QJ1026 d: 130 mm | D: 200 mm | B: 33 mm | Ca: 169 kN | C0a: 415 kN | Grease speed: 2400 rpm
QJ226 d: 130 mm | D: 230 mm | B: 40 mm | Ca: 274 kN | C0a: 635 kN | Grease speed: 2200 rpm
QJ326 d: 130 mm | D: 260 mm | B: 58 mm | Ca: 400 kN | C0a: 970 kN | Grease speed: 1900 rpm
QJ1028 d: 140 mm | D: 210 mm | B: 33 mm | Ca: 172 kN | C0a: 435 kN | Grease speed: 2200 rpm
QJ228 d: 140 mm | D: 250 mm | B: 42 mm | Ca: 315 kN | C0a: 775 kN | Grease speed: 2000 rpm
QJ328 d: 140 mm | D: 300 mm | B: 62 mm | Ca: 440 kN | C0a: 1110 kN | Grease speed: 1700 rpm
QJ1030 d: 150 mm | D: 225 mm | B: 35 mm | Ca: 197 kN | C0a: 505 kN | Grease speed: 2000 rpm
QJ230 d: 150 mm | D: 270 mm | B: 45 mm | Ca: 360 kN | C0a: 925 kN | Grease speed: 1800 rpm
QJ330 d: 150 mm | D: 320 mm | B: 65 mm | Ca: 460 kN | C0a: 1230 kN | Grease speed: 1600 rpm
QJ1032 d: 160 mm | D: 240 mm | B: 38 mm | Ca: 224 kN | C0a: 580 kN | Grease speed: 1300 rpm
QJ232 d: 160 mm | D: 290 mm | B: 48 mm | Ca: 380 kN | C0a: 1010 kN | Grease speed: 1700 rpm
QJ332 d: 160 mm | D: 340 mm | B: 68 mm | Ca: 505 kN | C0a: 1400 kN | Grease speed: 1500 rpm
QJ1034 d: 170 mm | D: 260 mm | B: 42 mm | Ca: 268 kN | C0a: 705 kN | Grease speed: 1800 rpm
QJ234 d: 170 mm | D: 310 mm | B: 52 mm | Ca: 425 kN | C0a: 1180 kN | Grease speed: 1600 rpm
QJ334 d: 170 mm | D: 360 mm | B: 72 mm | Ca: 565 kN | C0a: 1610 kN | Grease speed: 1400 rpm
QJ1036 d: 180 mm | D: 280 mm | B: 46 mm | Ca: 299 kN | C0a: 830 kN | Grease speed: 1700 rpm
QJ236 d: 180 mm | D: 320 mm | B: 52 mm | Ca: 440 kN | C0a: 1270 kN | Grease speed: 1500 rpm
QJ336 d: 180 mm | D: 380 mm | B: 75 mm | Ca: 595 kN | C0a: 1770 kN | Grease speed: 1300 rpm
QJ1038 d: 190 mm | D: 290 mm | B: 46 mm | Ca: 325 kN | C0a: 925 kN | Grease speed: 1600 rpm
QJ238 d: 190 mm | D: 340 mm | B: 55 mm | Ca: 455 kN | C0a: 1360 kN | Grease speed: 1400 rpm
QJ338 d: 190 mm | D: 400 mm | B: 78 mm | Ca: 655 kN | C0a: 1980 kN | Grease speed: 1300 rpm
QJ1040 d: 200 mm | D: 310 mm | B: 51 mm | Ca: 345 kN | C0a: 1020 kN | Grease speed: 1500 rpm
QJ240 d: 200 mm | D: 360 mm | B: 58 mm | Ca: 490 kN | C0a: 1480 kN | Grease speed: 1300 rpm
QJ340 d: 200 mm | D: 420 mm | B: 80 mm | Ca: 690 kN | C0a: 2180 kN | Grease speed: 1200 rpm
Angular Contact Ball BearingsNSK
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK QJ Four-Point Contact Ball Bearings (QJ2, QJ3, QJ10)

Brand NSK·Angular Contact Ball Bearings

Available part numbers (68)

QJ206, QJ306, QJ207, QJ307, QJ208, QJ308, QJ209, QJ309, QJ210, QJ310 + 58 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QJ206d: 30 mm | D: 62 mm | B: 16 mm | Ca: 31 kN | C0a: 45 kN | Grease speed: 8500 rpm
QJ306d: 30 mm | D: 72 mm | B: 19 mm | Ca: 46 kN | C0a: 63 kN | Grease speed: 8000 rpm
QJ207d: 35 mm | D: 72 mm | B: 17 mm | Ca: 41 kN | C0a: 61.5 kN | Grease speed: 7500 rpm
QJ307d: 35 mm | D: 80 mm | B: 21 mm | Ca: 65 kN | C0a: 80 kN | Grease speed: 7700 rpm
QJ208d: 40 mm | D: 80 mm | B: 18 mm | Ca: 49 kN | C0a: 77.5 kN | Grease speed: 6700 rpm
QJ308d: 40 mm | D: 90 mm | B: 23 mm | Ca: 67 kN | C0a: 100 kN | Grease speed: 6300 rpm
QJ209d: 45 mm | D: 85 mm | B: 19 mm | Ca: 55 kN | C0a: 88.5 kN | Grease speed: 6300 rpm
QJ309d: 45 mm | D: 100 mm | B: 25 mm | Ca: 87.5 kN | C0a: 133 kN | Grease speed: 6600 rpm
QJ210d: 50 mm | D: 90 mm | B: 20 mm | Ca: 57 kN | C0a: 97 kN | Grease speed: 5600 rpm
QJ310d: 50 mm | D: 110 mm | B: 27 mm | Ca: 102 kN | C0a: 159 kN | Grease speed: 5000 rpm
QJ211d: 55 mm | D: 100 mm | B: 21 mm | Ca: 71 kN | C0a: 122 kN | Grease speed: 5300 rpm
QJ311d: 55 mm | D: 120 mm | B: 29 mm | Ca: 118 kN | C0a: 187 kN | Grease speed: 4500 rpm
QJ212d: 60 mm | D: 110 mm | B: 22 mm | Ca: 85.5 kN | C0a: 150 kN | Grease speed: 4800 rpm
QJ312d: 60 mm | D: 130 mm | B: 31 mm | Ca: 136 kN | C0a: 217 kN | Grease speed: 4300 rpm
QJ213d: 65 mm | D: 120 mm | B: 23 mm | Ca: 97.5 kN | C0a: 179 kN | Grease speed: 4300 rpm
QJ313d: 65 mm | D: 140 mm | B: 33 mm | Ca: 153 kN | C0a: 250 kN | Grease speed: 3800 rpm
QJ214d: 70 mm | D: 125 mm | B: 24 mm | Ca: 106 kN | C0a: 197 kN | Grease speed: 4000 rpm
QJ314d: 70 mm | D: 150 mm | B: 35 mm | Ca: 172 kN | C0a: 285 kN | Grease speed: 3600 rpm
QJ215d: 75 mm | D: 130 mm | B: 25 mm | Ca: 110 kN | C0a: 212 kN | Grease speed: 3800 rpm
QJ315d: 75 mm | D: 160 mm | B: 37 mm | Ca: 187 kN | C0a: 320 kN | Grease speed: 3400 rpm
QJ1016d: 80 mm | D: 125 mm | B: 22 mm | Ca: 77 kN | C0a: 167 kN | Grease speed: 3600 rpm
QJ216d: 80 mm | D: 140 mm | B: 26 mm | Ca: 124 kN | C0a: 236 kN | Grease speed: 3600 rpm
QJ316d: 80 mm | D: 170 mm | B: 39 mm | Ca: 202 kN | C0a: 360 kN | Grease speed: 3200 rpm
QJ1017d: 85 mm | D: 130 mm | B: 22 mm | Ca: 79 kN | C0a: 176 kN | Grease speed: 3800 rpm
QJ217d: 85 mm | D: 150 mm | B: 28 mm | Ca: 143 kN | C0a: 276 kN | Grease speed: 3400 rpm
QJ317d: 85 mm | D: 180 mm | B: 41 mm | Ca: 218 kN | C0a: 405 kN | Grease speed: 3000 rpm
QJ1018d: 90 mm | D: 140 mm | B: 24 mm | Ca: 94 kN | C0a: 208 kN | Grease speed: 3400 rpm
QJ218d: 90 mm | D: 160 mm | B: 30 mm | Ca: 164 kN | C0a: 320 kN | Grease speed: 3200 rpm
QJ318d: 90 mm | D: 190 mm | B: 43 mm | Ca: 235 kN | C0a: 450 kN | Grease speed: 2800 rpm
QJ1019d: 95 mm | D: 145 mm | B: 24 mm | Ca: 96.5 kN | C0a: 220 kN | Grease speed: 3400 rpm
QJ219d: 95 mm | D: 170 mm | B: 32 mm | Ca: 177 kN | C0a: 340 kN | Grease speed: 3000 rpm
QJ319d: 95 mm | D: 200 mm | B: 45 mm | Ca: 251 kN | C0a: 495 kN | Grease speed: 2600 rpm
QJ1020d: 100 mm | D: 150 mm | B: 24 mm | Ca: 98.5 kN | C0a: 237 kN | Grease speed: 3200 rpm
QJ220d: 100 mm | D: 180 mm | B: 34 mm | Ca: 199 kN | C0a: 390 kN | Grease speed: 2800 rpm
QJ320d: 100 mm | D: 215 mm | B: 47 mm | Ca: 300 kN | C0a: 640 kN | Grease speed: 2400 rpm
QJ1021d: 105 mm | D: 160 mm | B: 26 mm | Ca: 115 kN | C0a: 269 kN | Grease speed: 3000 rpm
QJ221d: 105 mm | D: 190 mm | B: 36 mm | Ca: 217 kN | C0a: 435 kN | Grease speed: 2600 rpm
QJ321d: 105 mm | D: 225 mm | B: 49 mm | Ca: 305 kN | C0a: 640 kN | Grease speed: 2400 rpm
QJ1022d: 110 mm | D: 170 mm | B: 28 mm | Ca: 139 kN | C0a: 315 kN | Grease speed: 2800 rpm
QJ222d: 110 mm | D: 200 mm | B: 38 mm | Ca: 235 kN | C0a: 490 kN | Grease speed: 2600 rpm
QJ322d: 110 mm | D: 240 mm | B: 50 mm | Ca: 320 kN | C0a: 710 kN | Grease speed: 2200 rpm
QJ1024d: 120 mm | D: 180 mm | B: 28 mm | Ca: 147 kN | C0a: 350 kN | Grease speed: 2600 rpm
QJ224d: 120 mm | D: 215 mm | B: 40 mm | Ca: 265 kN | C0a: 585 kN | Grease speed: 2400 rpm
QJ324d: 120 mm | D: 260 mm | B: 55 mm | Ca: 360 kN | C0a: 835 kN | Grease speed: 2000 rpm
QJ1026d: 130 mm | D: 200 mm | B: 33 mm | Ca: 169 kN | C0a: 415 kN | Grease speed: 2400 rpm
QJ226d: 130 mm | D: 230 mm | B: 40 mm | Ca: 274 kN | C0a: 635 kN | Grease speed: 2200 rpm
QJ326d: 130 mm | D: 260 mm | B: 58 mm | Ca: 400 kN | C0a: 970 kN | Grease speed: 1900 rpm
QJ1028d: 140 mm | D: 210 mm | B: 33 mm | Ca: 172 kN | C0a: 435 kN | Grease speed: 2200 rpm
QJ228d: 140 mm | D: 250 mm | B: 42 mm | Ca: 315 kN | C0a: 775 kN | Grease speed: 2000 rpm
QJ328d: 140 mm | D: 300 mm | B: 62 mm | Ca: 440 kN | C0a: 1110 kN | Grease speed: 1700 rpm
QJ1030d: 150 mm | D: 225 mm | B: 35 mm | Ca: 197 kN | C0a: 505 kN | Grease speed: 2000 rpm
QJ230d: 150 mm | D: 270 mm | B: 45 mm | Ca: 360 kN | C0a: 925 kN | Grease speed: 1800 rpm
QJ330d: 150 mm | D: 320 mm | B: 65 mm | Ca: 460 kN | C0a: 1230 kN | Grease speed: 1600 rpm
QJ1032d: 160 mm | D: 240 mm | B: 38 mm | Ca: 224 kN | C0a: 580 kN | Grease speed: 1300 rpm
QJ232d: 160 mm | D: 290 mm | B: 48 mm | Ca: 380 kN | C0a: 1010 kN | Grease speed: 1700 rpm
QJ332d: 160 mm | D: 340 mm | B: 68 mm | Ca: 505 kN | C0a: 1400 kN | Grease speed: 1500 rpm
QJ1034d: 170 mm | D: 260 mm | B: 42 mm | Ca: 268 kN | C0a: 705 kN | Grease speed: 1800 rpm
QJ234d: 170 mm | D: 310 mm | B: 52 mm | Ca: 425 kN | C0a: 1180 kN | Grease speed: 1600 rpm
QJ334d: 170 mm | D: 360 mm | B: 72 mm | Ca: 565 kN | C0a: 1610 kN | Grease speed: 1400 rpm
QJ1036d: 180 mm | D: 280 mm | B: 46 mm | Ca: 299 kN | C0a: 830 kN | Grease speed: 1700 rpm
QJ236d: 180 mm | D: 320 mm | B: 52 mm | Ca: 440 kN | C0a: 1270 kN | Grease speed: 1500 rpm
QJ336d: 180 mm | D: 380 mm | B: 75 mm | Ca: 595 kN | C0a: 1770 kN | Grease speed: 1300 rpm
QJ1038d: 190 mm | D: 290 mm | B: 46 mm | Ca: 325 kN | C0a: 925 kN | Grease speed: 1600 rpm
QJ238d: 190 mm | D: 340 mm | B: 55 mm | Ca: 455 kN | C0a: 1360 kN | Grease speed: 1400 rpm
QJ338d: 190 mm | D: 400 mm | B: 78 mm | Ca: 655 kN | C0a: 1980 kN | Grease speed: 1300 rpm
QJ1040d: 200 mm | D: 310 mm | B: 51 mm | Ca: 345 kN | C0a: 1020 kN | Grease speed: 1500 rpm
QJ240d: 200 mm | D: 360 mm | B: 58 mm | Ca: 490 kN | C0a: 1480 kN | Grease speed: 1300 rpm
QJ340d: 200 mm | D: 420 mm | B: 80 mm | Ca: 690 kN | C0a: 2180 kN | Grease speed: 1200 rpm

Need a different model, or a part not listed here? Send us your parts list →
