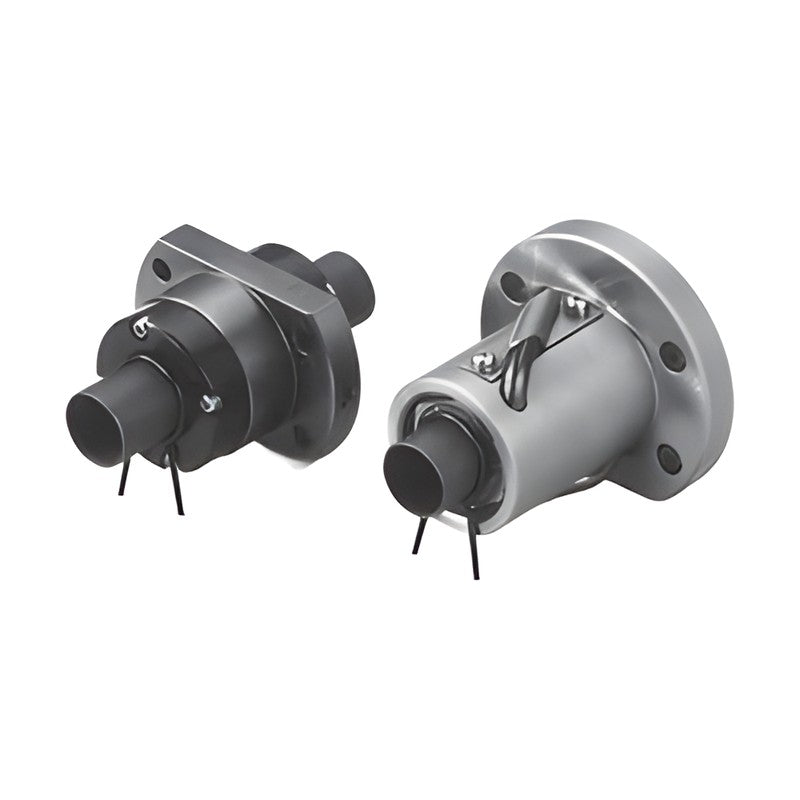

NSK R Series Ball Screw Nuts for Transfer Equipment (RN types)

NSK R Series Ball Screw Nuts for Transfer Equipment (RN types)

NSK R series rolled ball screw nut assemblies for transfer equipment in flanged tube (RNFTL), embedded tube (RNFBL), V-thread (RNCT), end cap (RNFCL) and square (RNSTL) types.

Key features

  • Rolled screw shafts, economical for transfer equipment
  • Return tube, embedded tube and end cap recirculation
  • Flanged, V-thread and square nut shapes
  • Fine to ultra high helix leads
  • Nut and screw shaft shipped separately for some types

Specifications

Series R series
Nut types RNFTL, RNFBL, RNCT, RNFCL, RNSTL
Brand NSK
Product type Ball Screws
Listed models 159
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B193-B208
RNFTL 1003A3.5 Shaft dia d: 10 mm | Lead l: 3 mm | Ca: 3.78 kN | C0a: 6.73 kN | Nut model: RNFTL
RNFTL 1006A2.5S Shaft dia d: 10 mm | Lead l: 6 mm | Ca: 2.83 kN | C0a: 4.81 kN | Nut model: RNFTL
RNFTL 1208A2.5S Shaft dia d: 12 mm | Lead l: 8 mm | Ca: 3.73 kN | C0a: 6.56 kN | Nut model: RNFTL
RNFTL 1404A3.5S Shaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNFTL
RNFTL 1405A2.5S Shaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNFTL
RNFTL 1610A2.5 Shaft dia d: 16 mm | Lead l: 10 mm | Ca: 5.66 kN | C0a: 11.5 kN | Nut model: RNFTL
RNFTL 1610A2.5S Shaft dia d: 16 mm | Lead l: 10 mm | Ca: 5.66 kN | C0a: 11.5 kN | Nut model: RNFTL
RNFTL 1808A3.5 Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNFTL
RNFTL 1808A3.5S Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNFTL
RNFTL 2005A2.5 Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNFTL
RNFTL 2005A2.5S Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNFTL
RNFTL 2010A2.5 Shaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNFTL
RNFTL 2010A2.5S Shaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNFTL
RNFTL 2505A5 Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNFTL
RNFTL 2505A5S Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNFTL
RNFTL 2510A2.5 Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 17.5 kN | C0a: 35.2 kN | Nut model: RNFTL
RNFTL 2510A2.5S Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 17.5 kN | C0a: 35.2 kN | Nut model: RNFTL
RNFTL 2510A5 Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNFTL
RNFTL 2510A5S Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNFTL
RNFTL 2806A2.5 Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNFTL
RNFTL 2806A2.5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNFTL
RNFTL 2806A5 Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNFTL
RNFTL 2806A5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNFTL
RNFTL 3210A5 Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNFTL
RNFTL 3210A5S Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNFTL
RNFTL 3610A2.5 Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNFTL
RNFTL 3610A2.5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNFTL
RNFTL 3610A5 Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNFTL
RNFTL 3610A5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNFTL
RNFTL 4010A7 Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNFTL
RNFTL 4010A7S Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNFTL
RNFTL 4512A5 Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNFTL
RNFTL 4512A5S Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNFTL
RNFTL 5010A7 Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNFTL
RNFTL 5010A7S Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNFTL
RNFTL 5016A5 Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNFTL
RNFTL 5016A5S Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNFTL
RNFTL 1212A3 Shaft dia d: 12 mm | Lead l: 12 mm | Ca: 3.36 kN | C0a: 6.27 kN | Nut model: RNFTL
RNFTL 1616A3 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 4.88 kN | C0a: 9.65 kN | Nut model: RNFTL
RNFTL 1616A3S Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 4.88 kN | C0a: 9.65 kN | Nut model: RNFTL
RNFTL 2020A3 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.01 kN | C0a: 15.4 kN | Nut model: RNFTL
RNFTL 2020A3S Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.01 kN | C0a: 15.4 kN | Nut model: RNFTL
RNFTL 2525A3 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 10.5 kN | C0a: 24.1 kN | Nut model: RNFTL
RNFTL 2525A3S Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 10.5 kN | C0a: 24.1 kN | Nut model: RNFTL
RNFTL 3232A3 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 15.3 kN | C0a: 37.1 kN | Nut model: RNFTL
RNFTL 3232A3S Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 15.3 kN | C0a: 37.1 kN | Nut model: RNFTL
RNFTL 4040A3 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 24.4 kN | C0a: 61.6 kN | Nut model: RNFTL
RNFTL 4040A3S Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 24.4 kN | C0a: 61.6 kN | Nut model: RNFTL
RNFBL 1006A2.5S Shaft dia d: 10 mm | Lead l: 6 mm | Ca: 2.83 kN | C0a: 4.81 kN | Nut model: RNFBL
RNFBL 1208A2.5S Shaft dia d: 12 mm | Lead l: 8 mm | Ca: 3.73 kN | C0a: 6.56 kN | Nut model: RNFBL
RNFBL 1404A3.5S Shaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNFBL
RNFBL 1405A2.5S Shaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNFBL
RNFBL 1808A3.5S Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNFBL
RNFBL 2005A2.5S Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNFBL
RNFBL 2010A2.5S Shaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNFBL
RNFBL 2505A2.5S Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 7.07 kN | C0a: 18.2 kN | Nut model: RNFBL
RNFBL 2505A5S Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNFBL
RNFBL 2510A2.5S Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 17.5 kN | C0a: 35.2 kN | Nut model: RNFBL
RNFBL 2510A5S Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNFBL
RNFBL 2806A2.5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNFBL
RNFBL 2806A5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNFBL
RNFBL 3210A2.5S Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 19.7 kN | C0a: 46.1 kN | Nut model: RNFBL
RNFBL 3210A5S Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNFBL
RNFBL 3610A2.5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNFBL
RNFBL 3610A5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNFBL
RNFBL 4010A5S Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 40.1 kN | C0a: 116 kN | Nut model: RNFBL
RNCT 1003A3.5 Shaft dia d: 10 mm | Lead l: 3 mm | Ca: 3.78 kN | C0a: 6.73 kN | Nut model: RNCT
RNCT 1404A3.5S Shaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNCT
RNCT 1405A2.5S Shaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNCT
RNCT 1808A3.5 Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNCT
RNCT 1808A3.5S Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNCT
RNCT 2005A2.5 Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNCT
RNCT 2005A2.5S Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNCT
RNCT 2505A5 Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNCT
RNCT 2505A5S Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNCT
RNCT 2510A5 Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNCT
RNCT 2510A5S Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNCT
RNCT 2806A5 Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNCT
RNCT 2806A5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNCT
RNCT 3210A5 Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNCT
RNCT 3210A5S Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNCT
RNCT 3610A5 Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNCT
RNCT 3610A5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNCT
RNCT 4010A7 Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNCT
RNCT 4010A7S Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNCT
RNCT 4512A5 Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNCT
RNCT 4512A5S Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNCT
RNCT 5010A7 Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNCT
RNCT 5010A7S Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNCT
RNCT 5016A5 Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNCT
RNCT 5016A5S Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNCT
RNFCL 1212A3 Shaft dia d: 12 mm | Lead l: 12 mm | Ca: 3.74 kN | C0a: 6.64 kN | Nut model: RNFCL
RNFCL 1212A6 Shaft dia d: 12 mm | Lead l: 12 mm | Ca: 6.78 kN | C0a: 13.3 kN | Nut model: RNFCL
RNFCL 1520A3 Shaft dia d: 15 mm | Lead l: 20 mm | Ca: 6.73 kN | C0a: 12.3 kN | Nut model: RNFCL
RNFCL 1520A3S Shaft dia d: 15 mm | Lead l: 20 mm | Ca: 6.73 kN | C0a: 12.3 kN | Nut model: RNFCL
RNFCL 1616A3 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1616A3S Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1616A6 Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 1616A6S Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 2020A3 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2020A3S Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2020A6 Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2020A6S Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2525A3 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2525A3S Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2525A6 Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 2525A6S Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 3232A3 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3232A3S Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3232A6 Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 3232A6S Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 4040A3 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4040A3S Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4040A6 Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNFCL 4040A6S Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNFCL 5050A3 Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 40.6 kN | C0a: 106 kN | Nut model: RNFCL
RNFCL 5050A3S Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 40.6 kN | C0a: 106 kN | Nut model: RNFCL
RNFCL 5050A6 Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 73.7 kN | C0a: 212 kN | Nut model: RNFCL
RNFCL 5050A6S Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 73.7 kN | C0a: 212 kN | Nut model: RNFCL
RNFCL 1632A2 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 4.6 kN | C0a: 8.46 kN | Nut model: RNFCL
RNFCL 1632A2S Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 4.6 kN | C0a: 8.46 kN | Nut model: RNFCL
RNFCL 1632A3 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1632A3S Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1632A6 Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 1632A6S Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 2040A2 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 6.61 kN | C0a: 13.6 kN | Nut model: RNFCL
RNFCL 2040A2S Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 6.61 kN | C0a: 13.6 kN | Nut model: RNFCL
RNFCL 2040A3 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2040A3S Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2040A6 Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2040A6S Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2550A2 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 9.87 kN | C0a: 21.2 kN | Nut model: RNFCL
RNFCL 2550A2S Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 9.87 kN | C0a: 21.2 kN | Nut model: RNFCL
RNFCL 2550A3 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2550A3S Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2550A6 Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 2550A6S Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 3264A3 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3264A3S Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3264A6 Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 3264A6S Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 4080A3 Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4080A3S Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4080A6 Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNFCL 4080A6S Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNSTL 1404A3.5S Shaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNSTL
RNSTL 1405A2.5S Shaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNSTL
RNSTL 1808A3.5S Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNSTL
RNSTL 2005A2.5S Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNSTL
RNSTL 2010A2.5S Shaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNSTL
RNSTL 2505A2.5S Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 7.07 kN | C0a: 18.2 kN | Nut model: RNSTL
RNSTL 2510A5S Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNSTL
RNSTL 2806A2.5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNSTL
RNSTL 2806A5S Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNSTL
RNSTL 3210A2.5S Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 19.7 kN | C0a: 46.1 kN | Nut model: RNSTL
RNSTL 3210A5S Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNSTL
RNSTL 3610A2.5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNSTL
RNSTL 3610A5S Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNSTL
RNSTL 4512A5S Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNSTL
Ball ScrewsNSK
159 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK R Series Ball Screw Nuts for Transfer Equipment (RN types)

Brand NSK·Ball Screws

Available part numbers (159)

RNFTL 1003A3.5, RNFTL 1006A2.5S, RNFTL 1208A2.5S, RNFTL 1404A3.5S, RNFTL 1405A2.5S, RNFTL 1610A2.5, RNFTL 1610A2.5S, RNFTL 1808A3.5, RNFTL 1808A3.5S, RNFTL 2005A2.5 + 149 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RNFTL 1003A3.5Shaft dia d: 10 mm | Lead l: 3 mm | Ca: 3.78 kN | C0a: 6.73 kN | Nut model: RNFTL
RNFTL 1006A2.5SShaft dia d: 10 mm | Lead l: 6 mm | Ca: 2.83 kN | C0a: 4.81 kN | Nut model: RNFTL
RNFTL 1208A2.5SShaft dia d: 12 mm | Lead l: 8 mm | Ca: 3.73 kN | C0a: 6.56 kN | Nut model: RNFTL
RNFTL 1404A3.5SShaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNFTL
RNFTL 1405A2.5SShaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNFTL
RNFTL 1610A2.5Shaft dia d: 16 mm | Lead l: 10 mm | Ca: 5.66 kN | C0a: 11.5 kN | Nut model: RNFTL
RNFTL 1610A2.5SShaft dia d: 16 mm | Lead l: 10 mm | Ca: 5.66 kN | C0a: 11.5 kN | Nut model: RNFTL
RNFTL 1808A3.5Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNFTL
RNFTL 1808A3.5SShaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNFTL
RNFTL 2005A2.5Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNFTL
RNFTL 2005A2.5SShaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNFTL
RNFTL 2010A2.5Shaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNFTL
RNFTL 2010A2.5SShaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNFTL
RNFTL 2505A5Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNFTL
RNFTL 2505A5SShaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNFTL
RNFTL 2510A2.5Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 17.5 kN | C0a: 35.2 kN | Nut model: RNFTL
RNFTL 2510A2.5SShaft dia d: 25 mm | Lead l: 10 mm | Ca: 17.5 kN | C0a: 35.2 kN | Nut model: RNFTL
RNFTL 2510A5Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNFTL
RNFTL 2510A5SShaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNFTL
RNFTL 2806A2.5Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNFTL
RNFTL 2806A2.5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNFTL
RNFTL 2806A5Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNFTL
RNFTL 2806A5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNFTL
RNFTL 3210A5Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNFTL
RNFTL 3210A5SShaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNFTL
RNFTL 3610A2.5Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNFTL
RNFTL 3610A2.5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNFTL
RNFTL 3610A5Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNFTL
RNFTL 3610A5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNFTL
RNFTL 4010A7Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNFTL
RNFTL 4010A7SShaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNFTL
RNFTL 4512A5Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNFTL
RNFTL 4512A5SShaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNFTL
RNFTL 5010A7Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNFTL
RNFTL 5010A7SShaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNFTL
RNFTL 5016A5Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNFTL
RNFTL 5016A5SShaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNFTL
RNFTL 1212A3Shaft dia d: 12 mm | Lead l: 12 mm | Ca: 3.36 kN | C0a: 6.27 kN | Nut model: RNFTL
RNFTL 1616A3Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 4.88 kN | C0a: 9.65 kN | Nut model: RNFTL
RNFTL 1616A3SShaft dia d: 16 mm | Lead l: 16 mm | Ca: 4.88 kN | C0a: 9.65 kN | Nut model: RNFTL
RNFTL 2020A3Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.01 kN | C0a: 15.4 kN | Nut model: RNFTL
RNFTL 2020A3SShaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.01 kN | C0a: 15.4 kN | Nut model: RNFTL
RNFTL 2525A3Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 10.5 kN | C0a: 24.1 kN | Nut model: RNFTL
RNFTL 2525A3SShaft dia d: 25 mm | Lead l: 25 mm | Ca: 10.5 kN | C0a: 24.1 kN | Nut model: RNFTL
RNFTL 3232A3Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 15.3 kN | C0a: 37.1 kN | Nut model: RNFTL
RNFTL 3232A3SShaft dia d: 32 mm | Lead l: 32 mm | Ca: 15.3 kN | C0a: 37.1 kN | Nut model: RNFTL
RNFTL 4040A3Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 24.4 kN | C0a: 61.6 kN | Nut model: RNFTL
RNFTL 4040A3SShaft dia d: 40 mm | Lead l: 40 mm | Ca: 24.4 kN | C0a: 61.6 kN | Nut model: RNFTL
RNFBL 1006A2.5SShaft dia d: 10 mm | Lead l: 6 mm | Ca: 2.83 kN | C0a: 4.81 kN | Nut model: RNFBL
RNFBL 1208A2.5SShaft dia d: 12 mm | Lead l: 8 mm | Ca: 3.73 kN | C0a: 6.56 kN | Nut model: RNFBL
RNFBL 1404A3.5SShaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNFBL
RNFBL 1405A2.5SShaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNFBL
RNFBL 1808A3.5SShaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNFBL
RNFBL 2005A2.5SShaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNFBL
RNFBL 2010A2.5SShaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNFBL
RNFBL 2505A2.5SShaft dia d: 25 mm | Lead l: 5 mm | Ca: 7.07 kN | C0a: 18.2 kN | Nut model: RNFBL
RNFBL 2505A5SShaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNFBL
RNFBL 2510A2.5SShaft dia d: 25 mm | Lead l: 10 mm | Ca: 17.5 kN | C0a: 35.2 kN | Nut model: RNFBL
RNFBL 2510A5SShaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNFBL
RNFBL 2806A2.5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNFBL
RNFBL 2806A5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNFBL
RNFBL 3210A2.5SShaft dia d: 32 mm | Lead l: 10 mm | Ca: 19.7 kN | C0a: 46.1 kN | Nut model: RNFBL
RNFBL 3210A5SShaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNFBL
RNFBL 3610A2.5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNFBL
RNFBL 3610A5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNFBL
RNFBL 4010A5SShaft dia d: 40 mm | Lead l: 10 mm | Ca: 40.1 kN | C0a: 116 kN | Nut model: RNFBL
RNCT 1003A3.5Shaft dia d: 10 mm | Lead l: 3 mm | Ca: 3.78 kN | C0a: 6.73 kN | Nut model: RNCT
RNCT 1404A3.5SShaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNCT
RNCT 1405A2.5SShaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNCT
RNCT 1808A3.5Shaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNCT
RNCT 1808A3.5SShaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNCT
RNCT 2005A2.5Shaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNCT
RNCT 2005A2.5SShaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNCT
RNCT 2505A5Shaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNCT
RNCT 2505A5SShaft dia d: 25 mm | Lead l: 5 mm | Ca: 12.8 kN | C0a: 36.3 kN | Nut model: RNCT
RNCT 2510A5Shaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNCT
RNCT 2510A5SShaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNCT
RNCT 2806A5Shaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNCT
RNCT 2806A5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNCT
RNCT 3210A5Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNCT
RNCT 3210A5SShaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNCT
RNCT 3610A5Shaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNCT
RNCT 3610A5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNCT
RNCT 4010A7Shaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNCT
RNCT 4010A7SShaft dia d: 40 mm | Lead l: 10 mm | Ca: 53.5 kN | C0a: 164 kN | Nut model: RNCT
RNCT 4512A5Shaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNCT
RNCT 4512A5SShaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNCT
RNCT 5010A7Shaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNCT
RNCT 5010A7SShaft dia d: 50 mm | Lead l: 10 mm | Ca: 59.5 kN | C0a: 205 kN | Nut model: RNCT
RNCT 5016A5Shaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNCT
RNCT 5016A5SShaft dia d: 50 mm | Lead l: 16 mm | Ca: 99.9 kN | C0a: 293 kN | Nut model: RNCT
RNFCL 1212A3Shaft dia d: 12 mm | Lead l: 12 mm | Ca: 3.74 kN | C0a: 6.64 kN | Nut model: RNFCL
RNFCL 1212A6Shaft dia d: 12 mm | Lead l: 12 mm | Ca: 6.78 kN | C0a: 13.3 kN | Nut model: RNFCL
RNFCL 1520A3Shaft dia d: 15 mm | Lead l: 20 mm | Ca: 6.73 kN | C0a: 12.3 kN | Nut model: RNFCL
RNFCL 1520A3SShaft dia d: 15 mm | Lead l: 20 mm | Ca: 6.73 kN | C0a: 12.3 kN | Nut model: RNFCL
RNFCL 1616A3Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1616A3SShaft dia d: 16 mm | Lead l: 16 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1616A6Shaft dia d: 16 mm | Lead l: 16 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 1616A6SShaft dia d: 16 mm | Lead l: 16 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 2020A3Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2020A3SShaft dia d: 20 mm | Lead l: 20 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2020A6Shaft dia d: 20 mm | Lead l: 20 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2020A6SShaft dia d: 20 mm | Lead l: 20 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2525A3Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2525A3SShaft dia d: 25 mm | Lead l: 25 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2525A6Shaft dia d: 25 mm | Lead l: 25 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 2525A6SShaft dia d: 25 mm | Lead l: 25 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 3232A3Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3232A3SShaft dia d: 32 mm | Lead l: 32 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3232A6Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 3232A6SShaft dia d: 32 mm | Lead l: 32 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 4040A3Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4040A3SShaft dia d: 40 mm | Lead l: 40 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4040A6Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNFCL 4040A6SShaft dia d: 40 mm | Lead l: 40 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNFCL 5050A3Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 40.6 kN | C0a: 106 kN | Nut model: RNFCL
RNFCL 5050A3SShaft dia d: 50 mm | Lead l: 50 mm | Ca: 40.6 kN | C0a: 106 kN | Nut model: RNFCL
RNFCL 5050A6Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 73.7 kN | C0a: 212 kN | Nut model: RNFCL
RNFCL 5050A6SShaft dia d: 50 mm | Lead l: 50 mm | Ca: 73.7 kN | C0a: 212 kN | Nut model: RNFCL
RNFCL 1632A2Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 4.6 kN | C0a: 8.46 kN | Nut model: RNFCL
RNFCL 1632A2SShaft dia d: 16 mm | Lead l: 32 mm | Ca: 4.6 kN | C0a: 8.46 kN | Nut model: RNFCL
RNFCL 1632A3Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1632A3SShaft dia d: 16 mm | Lead l: 32 mm | Ca: 5.43 kN | C0a: 10.4 kN | Nut model: RNFCL
RNFCL 1632A6Shaft dia d: 16 mm | Lead l: 32 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 1632A6SShaft dia d: 16 mm | Lead l: 32 mm | Ca: 9.86 kN | C0a: 20.8 kN | Nut model: RNFCL
RNFCL 2040A2Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 6.61 kN | C0a: 13.6 kN | Nut model: RNFCL
RNFCL 2040A2SShaft dia d: 20 mm | Lead l: 40 mm | Ca: 6.61 kN | C0a: 13.6 kN | Nut model: RNFCL
RNFCL 2040A3Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2040A3SShaft dia d: 20 mm | Lead l: 40 mm | Ca: 7.81 kN | C0a: 16.5 kN | Nut model: RNFCL
RNFCL 2040A6Shaft dia d: 20 mm | Lead l: 40 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2040A6SShaft dia d: 20 mm | Lead l: 40 mm | Ca: 14.2 kN | C0a: 33 kN | Nut model: RNFCL
RNFCL 2550A2Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 9.87 kN | C0a: 21.2 kN | Nut model: RNFCL
RNFCL 2550A2SShaft dia d: 25 mm | Lead l: 50 mm | Ca: 9.87 kN | C0a: 21.2 kN | Nut model: RNFCL
RNFCL 2550A3Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2550A3SShaft dia d: 25 mm | Lead l: 50 mm | Ca: 11.7 kN | C0a: 25.8 kN | Nut model: RNFCL
RNFCL 2550A6Shaft dia d: 25 mm | Lead l: 50 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 2550A6SShaft dia d: 25 mm | Lead l: 50 mm | Ca: 21.2 kN | C0a: 51.5 kN | Nut model: RNFCL
RNFCL 3264A3Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3264A3SShaft dia d: 32 mm | Lead l: 64 mm | Ca: 17.1 kN | C0a: 40.5 kN | Nut model: RNFCL
RNFCL 3264A6Shaft dia d: 32 mm | Lead l: 64 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 3264A6SShaft dia d: 32 mm | Lead l: 64 mm | Ca: 31 kN | C0a: 81 kN | Nut model: RNFCL
RNFCL 4080A3Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4080A3SShaft dia d: 40 mm | Lead l: 80 mm | Ca: 27.2 kN | C0a: 67.9 kN | Nut model: RNFCL
RNFCL 4080A6Shaft dia d: 40 mm | Lead l: 80 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNFCL 4080A6SShaft dia d: 40 mm | Lead l: 80 mm | Ca: 49.3 kN | C0a: 136 kN | Nut model: RNFCL
RNSTL 1404A3.5SShaft dia d: 14 mm | Lead l: 4 mm | Ca: 5.37 kN | C0a: 10.8 kN | Nut model: RNSTL
RNSTL 1405A2.5SShaft dia d: 14 mm | Lead l: 5 mm | Ca: 5.26 kN | C0a: 9.72 kN | Nut model: RNSTL
RNSTL 1808A3.5SShaft dia d: 18 mm | Lead l: 8 mm | Ca: 13.2 kN | C0a: 25.8 kN | Nut model: RNSTL
RNSTL 2005A2.5SShaft dia d: 20 mm | Lead l: 5 mm | Ca: 6.36 kN | C0a: 14.2 kN | Nut model: RNSTL
RNSTL 2010A2.5SShaft dia d: 20 mm | Lead l: 10 mm | Ca: 10.9 kN | C0a: 21.8 kN | Nut model: RNSTL
RNSTL 2505A2.5SShaft dia d: 25 mm | Lead l: 5 mm | Ca: 7.07 kN | C0a: 18.2 kN | Nut model: RNSTL
RNSTL 2510A5SShaft dia d: 25 mm | Lead l: 10 mm | Ca: 31.8 kN | C0a: 70.3 kN | Nut model: RNSTL
RNSTL 2806A2.5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 7.43 kN | C0a: 20.3 kN | Nut model: RNSTL
RNSTL 2806A5SShaft dia d: 28 mm | Lead l: 6 mm | Ca: 13.5 kN | C0a: 40.6 kN | Nut model: RNSTL
RNSTL 3210A2.5SShaft dia d: 32 mm | Lead l: 10 mm | Ca: 19.7 kN | C0a: 46.1 kN | Nut model: RNSTL
RNSTL 3210A5SShaft dia d: 32 mm | Lead l: 10 mm | Ca: 35.7 kN | C0a: 92.2 kN | Nut model: RNSTL
RNSTL 3610A2.5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 21 kN | C0a: 51 kN | Nut model: RNSTL
RNSTL 3610A5SShaft dia d: 36 mm | Lead l: 10 mm | Ca: 38.1 kN | C0a: 102 kN | Nut model: RNSTL
RNSTL 4512A5SShaft dia d: 45 mm | Lead l: 12 mm | Ca: 49.6 kN | C0a: 147 kN | Nut model: RNSTL

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
