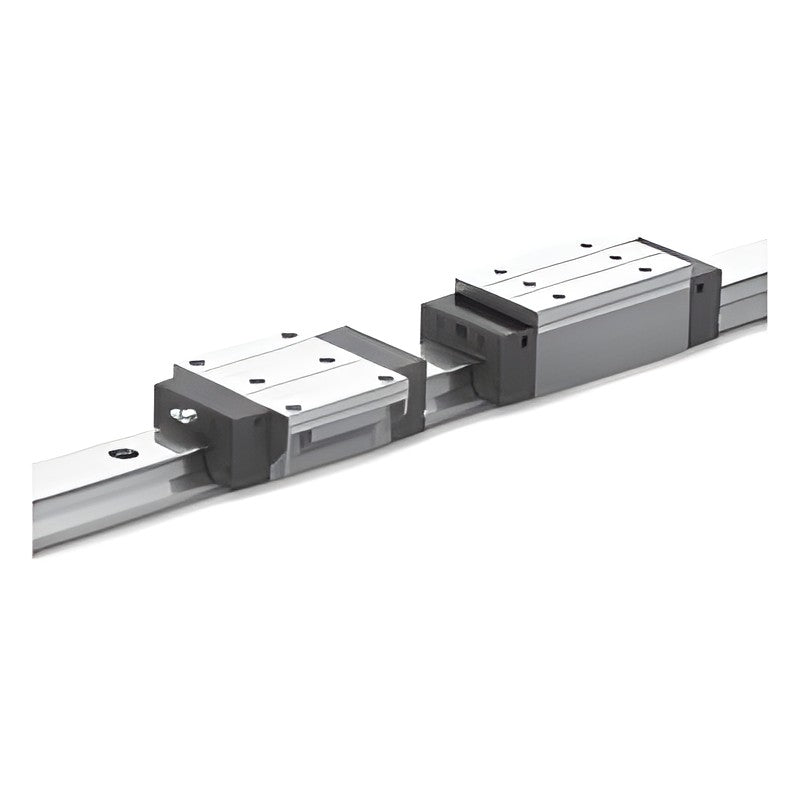

NSK RA Series roller guides use rollers instead of balls to deliver very high rigidity and load capacity for machine tools. Sizes 15 to 65 with high-load and super-high-load roller slides.

Key features

  • Roller rolling elements for very high rigidity and load capacity
  • Designed for machining centres and other machine tools
  • Load ratings in compliance with ISO 14728 (100 km basis)
  • Flanged and square roller slides, high-load and super-high-load types
  • Rail cover, double seal, protector and NSK K1 available

Specifications

Series RA
Application machine tools
Sizes 15, 20, 25, 30, 35, 45, 55, 65
Slide shape codes AL, AN, BL, BN, EM, GM
Load rating basis C at 100 km (ISO 14728)
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A251-A268
RA15AN Rail width W1: 15 mm | Height H: 28 mm | Width W: 34 mm | Length L: 70 mm | C: 10.3 kN | C0: 27.5 kN
RA15BN Rail width W1: 15 mm | Height H: 28 mm | Width W: 34 mm | Length L: 85.4 mm | C: 13 kN | C0: 37 kN
RA15AL Rail width W1: 15 mm | Height H: 24 mm | Width W: 34 mm | Length L: 70 mm | C: 10.3 kN | C0: 27.5 kN
RA15BL Rail width W1: 15 mm | Height H: 24 mm | Width W: 34 mm | Length L: 85.4 mm | C: 13 kN | C0: 37 kN
RA15EM Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 70 mm | C: 10.3 kN | C0: 27.5 kN
RA15GM Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 85.4 mm | C: 13 kN | C0: 37 kN
RA20AN Rail width W1: 20 mm | Height H: 30 mm | Width W: 44 mm | Length L: 86.5 mm | C: 19.2 kN | C0: 52.5 kN
RA20BN Rail width W1: 20 mm | Height H: 30 mm | Width W: 44 mm | Length L: 106.3 mm | C: 24 kN | C0: 70 kN
RA20EM Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 86.5 mm | C: 19.2 kN | C0: 52.5 kN
RA20GM Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 106.3 mm | C: 24 kN | C0: 70 kN
RA25AN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 97.5 mm | C: 29.2 kN | C0: 72.7 kN
RA25BN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 115.5 mm | C: 35.4 kN | C0: 92.9 kN
RA25AL Rail width W1: 23 mm | Height H: 36 mm | Width W: 48 mm | Length L: 97.5 mm | C: 29.2 kN | C0: 72.7 kN
RA25BL Rail width W1: 23 mm | Height H: 36 mm | Width W: 48 mm | Length L: 115.5 mm | C: 35.4 kN | C0: 92.9 kN
RA25EM Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 97.5 mm | C: 29.2 kN | C0: 72.7 kN
RA25GM Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 115.5 mm | C: 35.4 kN | C0: 92.9 kN
RA30AN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 110.8 mm | C: 38.9 kN | C0: 93.5 kN
RA30BN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 135.4 mm | C: 47.6 kN | C0: 121 kN
RA30AL Rail width W1: 28 mm | Height H: 42 mm | Width W: 60 mm | Length L: 110.8 mm | C: 38.9 kN | C0: 93.5 kN
RA30BL Rail width W1: 28 mm | Height H: 42 mm | Width W: 60 mm | Length L: 135.4 mm | C: 47.6 kN | C0: 121 kN
RA30EM Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 110.8 mm | C: 38.9 kN | C0: 93.5 kN
RA30GM Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 135.4 mm | C: 47.6 kN | C0: 121 kN
RA35AN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 123.8 mm | C: 53.3 kN | C0: 129 kN
RA35BN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 152 mm | C: 67.4 kN | C0: 175 kN
RA35AL Rail width W1: 34 mm | Height H: 48 mm | Width W: 70 mm | Length L: 123.8 mm | C: 53.3 kN | C0: 129 kN
RA35BL Rail width W1: 34 mm | Height H: 48 mm | Width W: 70 mm | Length L: 152 mm | C: 67.4 kN | C0: 175 kN
RA35EM Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 123.8 mm | C: 53.3 kN | C0: 129 kN
RA35GM Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 152 mm | C: 67.4 kN | C0: 175 kN
RA45AN Rail width W1: 45 mm | Height H: 70 mm | Width W: 86 mm | Length L: 154 mm | C: 92.8 kN | C0: 229 kN
RA45BN Rail width W1: 45 mm | Height H: 70 mm | Width W: 86 mm | Length L: 190 mm | C: 116 kN | C0: 305 kN
RA45AL Rail width W1: 45 mm | Height H: 60 mm | Width W: 86 mm | Length L: 154 mm | C: 92.8 kN | C0: 229 kN
RA45BL Rail width W1: 45 mm | Height H: 60 mm | Width W: 86 mm | Length L: 190 mm | C: 116 kN | C0: 305 kN
RA45EM Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 154 mm | C: 92.8 kN | C0: 229 kN
RA45GM Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 190 mm | C: 116 kN | C0: 305 kN
RA55AN Rail width W1: 53 mm | Height H: 80 mm | Width W: 100 mm | Length L: 184 mm | C: 129 kN | C0: 330 kN
RA55BN Rail width W1: 53 mm | Height H: 80 mm | Width W: 100 mm | Length L: 234 mm | C: 168 kN | C0: 462 kN
RA55AL Rail width W1: 53 mm | Height H: 70 mm | Width W: 100 mm | Length L: 184 mm | C: 129 kN | C0: 330 kN
RA55BL Rail width W1: 53 mm | Height H: 70 mm | Width W: 100 mm | Length L: 234 mm | C: 168 kN | C0: 462 kN
RA55EM Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 184 mm | C: 129 kN | C0: 330 kN
RA55GM Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 234 mm | C: 168 kN | C0: 462 kN
RA65AN Rail width W1: 63 mm | Height H: 90 mm | Width W: 126 mm | Length L: 228.4 mm | C: 210 kN | C0: 504 kN
RA65BN Rail width W1: 63 mm | Height H: 90 mm | Width W: 126 mm | Length L: 302.5 mm | C: 288 kN | C0: 756 kN
RA65EM Rail width W1: 63 mm | Height H: 90 mm | Width W: 170 mm | Length L: 228.4 mm | C: 210 kN | C0: 504 kN
RA65GM Rail width W1: 63 mm | Height H: 90 mm | Width W: 170 mm | Length L: 302.5 mm | C: 288 kN | C0: 756 kN
