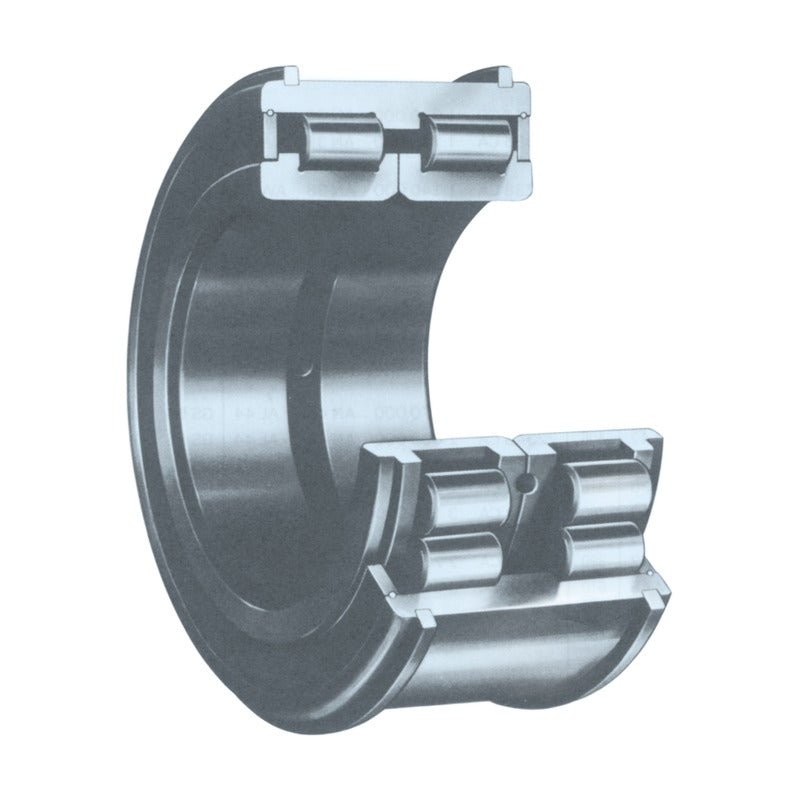

NSK RS-48 / RS-49 / RSF Sheave Cylindrical Roller Bearings

NSK RS-48 / RS-49 / RSF Sheave Cylindrical Roller Bearings

NSK double-row full complement cylindrical roller bearings for crane and hoist sheaves, fixed-side (RS-48, RS-49) and free-side (RSF-48, RSF-49) types, bore diameters 50 to 480 mm.

Key features

  • Double-row full complement design for high radial loads at low speeds
  • Fixed-side (RS) and free-side (RSF) versions
  • E4 suffix: lubrication groove and holes in the outer ring
  • Designed for rope sheaves of cranes and hoists

Specifications

Product Sheave cylindrical roller bearing
Rows Double row, full complement
Bore d 50-480 mm
Series RS-48, RS-49, RSF-48, RSF-49
Suffix E4 Outer ring lubrication groove and holes
Source NSK Rolling Bearings Catalogue (Part 3), p. 324-327
RS-4910E4 d: 50 mm | D: 72 mm | B: 22 mm | Cr: 48 kN | C0r: 75.5 kN
RSF-4910E4 d: 50 mm | D: 72 mm | B: 22 mm | Cr: 48 kN | C0r: 75.5 kN
RS-4912E4 d: 60 mm | D: 85 mm | B: 25 mm | Cr: 68.5 kN | C0r: 118 kN
RSF-4912E4 d: 60 mm | D: 85 mm | B: 25 mm | Cr: 68.5 kN | C0r: 118 kN
RS-4913E4 d: 65 mm | D: 90 mm | B: 25 mm | Cr: 70.5 kN | C0r: 125 kN
RSF-4913E4 d: 65 mm | D: 90 mm | B: 25 mm | Cr: 70.5 kN | C0r: 125 kN
RS-4914E4 d: 70 mm | D: 100 mm | B: 30 mm | Cr: 102 kN | C0r: 168 kN
RSF-4914E4 d: 70 mm | D: 100 mm | B: 30 mm | Cr: 102 kN | C0r: 168 kN
RS-4916E4 d: 80 mm | D: 110 mm | B: 30 mm | Cr: 109 kN | C0r: 191 kN
RSF-4916E4 d: 80 mm | D: 110 mm | B: 30 mm | Cr: 109 kN | C0r: 191 kN
RS-4918E4 d: 90 mm | D: 125 mm | B: 35 mm | Cr: 147 kN | C0r: 268 kN
RSF-4918E4 d: 90 mm | D: 125 mm | B: 35 mm | Cr: 147 kN | C0r: 268 kN
RS-4820E4 d: 100 mm | D: 125 mm | B: 25 mm | Cr: 87.5 kN | C0r: 189 kN
RSF-4820E4 d: 100 mm | D: 125 mm | B: 25 mm | Cr: 87.5 kN | C0r: 189 kN
RS-4920E4 d: 100 mm | D: 140 mm | B: 40 mm | Cr: 194 kN | C0r: 400 kN
RSF-4920E4 d: 100 mm | D: 140 mm | B: 40 mm | Cr: 194 kN | C0r: 400 kN
RS-4821E4 d: 105 mm | D: 130 mm | B: 25 mm | Cr: 89 kN | C0r: 196 kN
RSF-4821E4 d: 105 mm | D: 130 mm | B: 25 mm | Cr: 89 kN | C0r: 196 kN
RS-4921E4 d: 105 mm | D: 145 mm | B: 40 mm | Cr: 199 kN | C0r: 420 kN
RSF-4921E4 d: 105 mm | D: 145 mm | B: 40 mm | Cr: 199 kN | C0r: 420 kN
RS-4822E4 d: 110 mm | D: 140 mm | B: 30 mm | Cr: 114 kN | C0r: 260 kN
RSF-4822E4 d: 110 mm | D: 140 mm | B: 30 mm | Cr: 114 kN | C0r: 260 kN
RS-4922E4 d: 110 mm | D: 150 mm | B: 40 mm | Cr: 202 kN | C0r: 430 kN
RSF-4922E4 d: 110 mm | D: 150 mm | B: 40 mm | Cr: 202 kN | C0r: 430 kN
RS-4824E4 d: 120 mm | D: 150 mm | B: 30 mm | Cr: 119 kN | C0r: 283 kN
RSF-4824E4 d: 120 mm | D: 150 mm | B: 30 mm | Cr: 119 kN | C0r: 283 kN
RS-4924E4 d: 120 mm | D: 165 mm | B: 45 mm | Cr: 226 kN | C0r: 480 kN
RSF-4924E4 d: 120 mm | D: 165 mm | B: 45 mm | Cr: 226 kN | C0r: 480 kN
RS-4826E4 d: 130 mm | D: 165 mm | B: 35 mm | Cr: 162 kN | C0r: 390 kN
RSF-4826E4 d: 130 mm | D: 165 mm | B: 35 mm | Cr: 162 kN | C0r: 390 kN
RS-4926E4 d: 130 mm | D: 180 mm | B: 50 mm | Cr: 262 kN | C0r: 555 kN
RSF-4926E4 d: 130 mm | D: 180 mm | B: 50 mm | Cr: 262 kN | C0r: 555 kN
RS-4828E4 d: 140 mm | D: 175 mm | B: 35 mm | Cr: 167 kN | C0r: 415 kN
RSF-4828E4 d: 140 mm | D: 175 mm | B: 35 mm | Cr: 167 kN | C0r: 415 kN
RS-4928E4 d: 140 mm | D: 190 mm | B: 50 mm | Cr: 272 kN | C0r: 595 kN
RSF-4928E4 d: 140 mm | D: 190 mm | B: 50 mm | Cr: 272 kN | C0r: 595 kN
RS-4830E4 d: 150 mm | D: 190 mm | B: 40 mm | Cr: 235 kN | C0r: 575 kN
RSF-4830E4 d: 150 mm | D: 190 mm | B: 40 mm | Cr: 235 kN | C0r: 575 kN
RS-4930E4 d: 150 mm | D: 210 mm | B: 60 mm | Cr: 390 kN | C0r: 865 kN
RSF-4930E4 d: 150 mm | D: 210 mm | B: 60 mm | Cr: 390 kN | C0r: 865 kN
RS-4832E4 d: 160 mm | D: 200 mm | B: 40 mm | Cr: 243 kN | C0r: 615 kN
RSF-4832E4 d: 160 mm | D: 200 mm | B: 40 mm | Cr: 243 kN | C0r: 615 kN
RS-4932E4 d: 160 mm | D: 220 mm | B: 60 mm | Cr: 410 kN | C0r: 930 kN
RSF-4932E4 d: 160 mm | D: 220 mm | B: 60 mm | Cr: 410 kN | C0r: 930 kN
RS-4834E4 d: 170 mm | D: 215 mm | B: 45 mm | Cr: 265 kN | C0r: 650 kN
RSF-4834E4 d: 170 mm | D: 215 mm | B: 45 mm | Cr: 265 kN | C0r: 650 kN
RS-4934E4 d: 170 mm | D: 230 mm | B: 60 mm | Cr: 415 kN | C0r: 975 kN
RSF-4934E4 d: 170 mm | D: 230 mm | B: 60 mm | Cr: 415 kN | C0r: 975 kN
RS-4836E4 d: 180 mm | D: 225 mm | B: 45 mm | Cr: 272 kN | C0r: 685 kN
RSF-4836E4 d: 180 mm | D: 225 mm | B: 45 mm | Cr: 272 kN | C0r: 685 kN
RS-4936E4 d: 180 mm | D: 250 mm | B: 69 mm | Cr: 495 kN | C0r: 1130 kN
RSF-4936E4 d: 180 mm | D: 250 mm | B: 69 mm | Cr: 495 kN | C0r: 1130 kN
RS-4838E4 d: 190 mm | D: 240 mm | B: 50 mm | Cr: 315 kN | C0r: 785 kN
RSF-4838E4 d: 190 mm | D: 240 mm | B: 50 mm | Cr: 315 kN | C0r: 785 kN
RS-4938E4 d: 190 mm | D: 260 mm | B: 69 mm | Cr: 510 kN | C0r: 1180 kN
RSF-4938E4 d: 190 mm | D: 260 mm | B: 69 mm | Cr: 510 kN | C0r: 1180 kN
RS-4840E4 d: 200 mm | D: 250 mm | B: 50 mm | Cr: 320 kN | C0r: 825 kN
RSF-4840E4 d: 200 mm | D: 250 mm | B: 50 mm | Cr: 320 kN | C0r: 825 kN
RS-4940E4 d: 200 mm | D: 280 mm | B: 80 mm | Cr: 665 kN | C0r: 1500 kN
RSF-4940E4 d: 200 mm | D: 280 mm | B: 80 mm | Cr: 665 kN | C0r: 1500 kN
RS-4844E4 d: 220 mm | D: 270 mm | B: 50 mm | Cr: 340 kN | C0r: 905 kN
RSF-4844E4 d: 220 mm | D: 270 mm | B: 50 mm | Cr: 340 kN | C0r: 905 kN
RS-4944E4 d: 220 mm | D: 300 mm | B: 80 mm | Cr: 695 kN | C0r: 1620 kN
RSF-4944E4 d: 220 mm | D: 300 mm | B: 80 mm | Cr: 695 kN | C0r: 1620 kN
RS-4848E4 d: 240 mm | D: 300 mm | B: 60 mm | Cr: 495 kN | C0r: 1340 kN
RSF-4848E4 d: 240 mm | D: 300 mm | B: 60 mm | Cr: 495 kN | C0r: 1340 kN
RS-4948E4 d: 240 mm | D: 320 mm | B: 80 mm | Cr: 725 kN | C0r: 1770 kN
RSF-4948E4 d: 240 mm | D: 320 mm | B: 80 mm | Cr: 725 kN | C0r: 1770 kN
RS-4852E4 d: 260 mm | D: 320 mm | B: 60 mm | Cr: 515 kN | C0r: 1450 kN
RSF-4852E4 d: 260 mm | D: 320 mm | B: 60 mm | Cr: 515 kN | C0r: 1450 kN
RS-4952E4 d: 260 mm | D: 360 mm | B: 100 mm | Cr: 1050 kN | C0r: 2530 kN
RSF-4952E4 d: 260 mm | D: 360 mm | B: 100 mm | Cr: 1050 kN | C0r: 2530 kN
RS-4856E4 d: 280 mm | D: 350 mm | B: 69 mm | Cr: 610 kN | C0r: 1690 kN
RSF-4856E4 d: 280 mm | D: 350 mm | B: 69 mm | Cr: 610 kN | C0r: 1690 kN
RS-4956E4 d: 280 mm | D: 380 mm | B: 100 mm | Cr: 1090 kN | C0r: 2720 kN
RSF-4956E4 d: 280 mm | D: 380 mm | B: 100 mm | Cr: 1090 kN | C0r: 2720 kN
RS-4860E4 d: 300 mm | D: 380 mm | B: 80 mm | Cr: 805 kN | C0r: 2160 kN
RSF-4860E4 d: 300 mm | D: 380 mm | B: 80 mm | Cr: 805 kN | C0r: 2160 kN
RS-4960E4 d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1460 kN | C0r: 3400 kN
RSF-4960E4 d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1460 kN | C0r: 3400 kN
RS-4864E4 d: 320 mm | D: 400 mm | B: 80 mm | Cr: 835 kN | C0r: 2310 kN
RSF-4864E4 d: 320 mm | D: 400 mm | B: 80 mm | Cr: 835 kN | C0r: 2310 kN
RS-4964E4 d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1500 kN | C0r: 3600 kN
RSF-4964E4 d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1500 kN | C0r: 3600 kN
RS-4868E4 d: 340 mm | D: 420 mm | B: 80 mm | Cr: 855 kN | C0r: 2430 kN
RSF-4868E4 d: 340 mm | D: 420 mm | B: 80 mm | Cr: 855 kN | C0r: 2430 kN
RS-4968E4 d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1560 kN | C0r: 3900 kN
RSF-4968E4 d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1560 kN | C0r: 3900 kN
RS-4872E4 d: 360 mm | D: 440 mm | B: 80 mm | Cr: 885 kN | C0r: 2580 kN
RSF-4872E4 d: 360 mm | D: 440 mm | B: 80 mm | Cr: 885 kN | C0r: 2580 kN
RS-4972E4 d: 360 mm | D: 480 mm | B: 118 mm | Cr: 1600 kN | C0r: 4050 kN
RSF-4972E4 d: 360 mm | D: 480 mm | B: 118 mm | Cr: 1600 kN | C0r: 4050 kN
RS-4876E4 d: 380 mm | D: 480 mm | B: 100 mm | Cr: 1260 kN | C0r: 3600 kN
RSF-4876E4 d: 380 mm | D: 480 mm | B: 100 mm | Cr: 1260 kN | C0r: 3600 kN
RS-4976E4 d: 380 mm | D: 520 mm | B: 140 mm | Cr: 2040 kN | C0r: 5200 kN
RSF-4976E4 d: 380 mm | D: 520 mm | B: 140 mm | Cr: 2040 kN | C0r: 5200 kN
RS-4880E4 d: 400 mm | D: 500 mm | B: 100 mm | Cr: 1290 kN | C0r: 3750 kN
RSF-4880E4 d: 400 mm | D: 500 mm | B: 100 mm | Cr: 1290 kN | C0r: 3750 kN
RS-4980E4 d: 400 mm | D: 540 mm | B: 140 mm | Cr: 2100 kN | C0r: 5450 kN
RSF-4980E4 d: 400 mm | D: 540 mm | B: 140 mm | Cr: 2100 kN | C0r: 5450 kN
RS-4884E4 d: 420 mm | D: 520 mm | B: 100 mm | Cr: 1320 kN | C0r: 3950 kN
RSF-4884E4 d: 420 mm | D: 520 mm | B: 100 mm | Cr: 1320 kN | C0r: 3950 kN
RS-4984E4 d: 420 mm | D: 560 mm | B: 140 mm | Cr: 2150 kN | C0r: 5700 kN
RSF-4984E4 d: 420 mm | D: 560 mm | B: 140 mm | Cr: 2150 kN | C0r: 5700 kN
RS-4888E4 d: 440 mm | D: 540 mm | B: 100 mm | Cr: 1350 kN | C0r: 4150 kN
RSF-4888E4 d: 440 mm | D: 540 mm | B: 100 mm | Cr: 1350 kN | C0r: 4150 kN
RS-4988E4 d: 440 mm | D: 600 mm | B: 160 mm | Cr: 2840 kN | C0r: 7350 kN
RSF-4988E4 d: 440 mm | D: 600 mm | B: 160 mm | Cr: 2840 kN | C0r: 7350 kN
RS-4892E4 d: 460 mm | D: 580 mm | B: 118 mm | Cr: 1730 kN | C0r: 5150 kN
RSF-4892E4 d: 460 mm | D: 580 mm | B: 118 mm | Cr: 1730 kN | C0r: 5150 kN
RS-4992E4 d: 460 mm | D: 620 mm | B: 160 mm | Cr: 2870 kN | C0r: 7500 kN
RSF-4992E4 d: 460 mm | D: 620 mm | B: 160 mm | Cr: 2870 kN | C0r: 7500 kN
RS-4896E4 d: 480 mm | D: 600 mm | B: 118 mm | Cr: 1760 kN | C0r: 5300 kN
RSF-4896E4 d: 480 mm | D: 600 mm | B: 118 mm | Cr: 1760 kN | C0r: 5300 kN
RS-4996E4 d: 480 mm | D: 650 mm | B: 170 mm | Cr: 3200 kN | C0r: 8500 kN
RSF-4996E4 d: 480 mm | D: 650 mm | B: 170 mm | Cr: 3200 kN | C0r: 8500 kN
