NSK SD 30 S / SD 31 S / SD 5 / SD 6 Large Plummer Blocks (150-450)

NSK SD 30 S / SD 31 S / SD 5 / SD 6 Large Plummer Blocks (150-450)

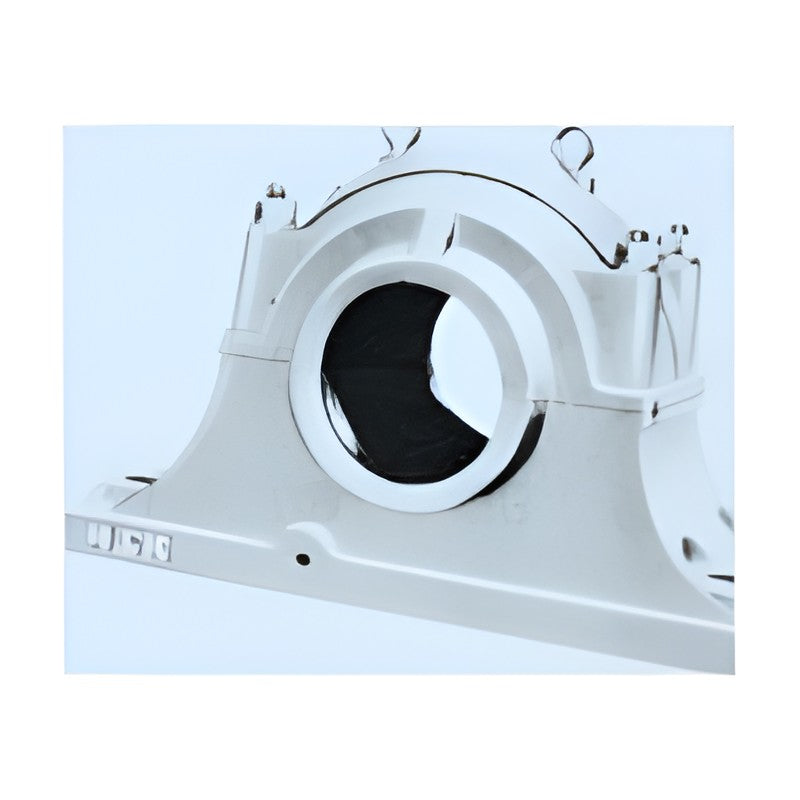

NSK large split plummer block housings SD 30 S, SD 31 S, SD 5 and SD 6 for spherical roller bearings on adapter sleeves, shaft diameters 150 to 450 mm, in free-side and fixed-side versions.

Key features

  • Heavy cast iron split housing with four bolt holes
  • Free-side (S / no suffix) and fixed-side (SG / G) versions
  • For spherical roller bearings on H adapter sleeves
  • Eye bolts on SD housings for handling
  • Grease supply plug PT 1/4, drain plug PT 3/8

Specifications

Product Plummer block housing
Material Cast iron
Bearing Self-aligning ball or spherical roller bearing
Mounting 4 bolt
Shaft d1 150-450 mm
Versions Free side / fixed side
Source NSK Rolling Bearings Catalogue (Part 3), p. 308-311
SD 3034 S Shaft d1: 150 mm | Housing bore D: 260 mm | Centre height H: 160 mm | Length L: 540 mm | Version: Free side
SD 3034 SG Shaft d1: 150 mm | Housing bore D: 260 mm | Centre height H: 160 mm | Length L: 540 mm | Version: Fixed side
SD 3134 S Shaft d1: 150 mm | Housing bore D: 280 mm | Centre height H: 170 mm | Length L: 560 mm | Version: Free side
SD 3134 SG Shaft d1: 150 mm | Housing bore D: 280 mm | Centre height H: 170 mm | Length L: 560 mm | Version: Fixed side
SD 534 Shaft d1: 150 mm | Housing bore D: 310 mm | Centre height H: 180 mm | Length L: 620 mm | Version: Free side
SD 534 G Shaft d1: 150 mm | Housing bore D: 310 mm | Centre height H: 180 mm | Length L: 620 mm | Version: Fixed side
SD 634 Shaft d1: 150 mm | Housing bore D: 360 mm | Centre height H: 210 mm | Length L: 740 mm | Version: Free side
SD 634 G Shaft d1: 150 mm | Housing bore D: 360 mm | Centre height H: 210 mm | Length L: 740 mm | Version: Fixed side
SD 3036 S Shaft d1: 160 mm | Housing bore D: 280 mm | Centre height H: 170 mm | Length L: 560 mm | Version: Free side
SD 3036 SG Shaft d1: 160 mm | Housing bore D: 280 mm | Centre height H: 170 mm | Length L: 560 mm | Version: Fixed side
SD 3136 S Shaft d1: 160 mm | Housing bore D: 300 mm | Centre height H: 180 mm | Length L: 630 mm | Version: Free side
SD 3136 SG Shaft d1: 160 mm | Housing bore D: 300 mm | Centre height H: 180 mm | Length L: 630 mm | Version: Fixed side
SD 536 Shaft d1: 160 mm | Housing bore D: 320 mm | Centre height H: 190 mm | Length L: 650 mm | Version: Free side
SD 536 G Shaft d1: 160 mm | Housing bore D: 320 mm | Centre height H: 190 mm | Length L: 650 mm | Version: Fixed side
SD 636 Shaft d1: 160 mm | Housing bore D: 380 mm | Centre height H: 225 mm | Length L: 780 mm | Version: Free side
SD 636 G Shaft d1: 160 mm | Housing bore D: 380 mm | Centre height H: 225 mm | Length L: 780 mm | Version: Fixed side
SD 3038 S Shaft d1: 170 mm | Housing bore D: 290 mm | Centre height H: 170 mm | Length L: 560 mm | Version: Free side
SD 3038 SG Shaft d1: 170 mm | Housing bore D: 290 mm | Centre height H: 170 mm | Length L: 560 mm | Version: Fixed side
SD 3138 S Shaft d1: 170 mm | Housing bore D: 320 mm | Centre height H: 190 mm | Length L: 680 mm | Version: Free side
SD 3138 SG Shaft d1: 170 mm | Housing bore D: 320 mm | Centre height H: 190 mm | Length L: 680 mm | Version: Fixed side
SD 538 Shaft d1: 170 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 700 mm | Version: Free side
SD 538 G Shaft d1: 170 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 700 mm | Version: Fixed side
SD 638 Shaft d1: 170 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Free side
SD 638 G Shaft d1: 170 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Fixed side
SD 3040 S Shaft d1: 180 mm | Housing bore D: 310 mm | Centre height H: 180 mm | Length L: 620 mm | Version: Free side
SD 3040 SG Shaft d1: 180 mm | Housing bore D: 310 mm | Centre height H: 180 mm | Length L: 620 mm | Version: Fixed side
SD 3140 S Shaft d1: 180 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 700 mm | Version: Free side
SD 3140 SG Shaft d1: 180 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 700 mm | Version: Fixed side
SD 540 Shaft d1: 180 mm | Housing bore D: 360 mm | Centre height H: 210 mm | Length L: 740 mm | Version: Free side
SD 540 G Shaft d1: 180 mm | Housing bore D: 360 mm | Centre height H: 210 mm | Length L: 740 mm | Version: Fixed side
SD 640 Shaft d1: 180 mm | Housing bore D: 420 mm | Centre height H: 250 mm | Length L: 860 mm | Version: Free side
SD 640 G Shaft d1: 180 mm | Housing bore D: 420 mm | Centre height H: 250 mm | Length L: 860 mm | Version: Fixed side
SD 3044 S Shaft d1: 200 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 700 mm | Version: Free side
SD 3044 SG Shaft d1: 200 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 700 mm | Version: Fixed side
SD 3144 S Shaft d1: 200 mm | Housing bore D: 370 mm | Centre height H: 225 mm | Length L: 780 mm | Version: Free side
SD 3144 SG Shaft d1: 200 mm | Housing bore D: 370 mm | Centre height H: 225 mm | Length L: 780 mm | Version: Fixed side
SD 544 Shaft d1: 200 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Free side
SD 544 G Shaft d1: 200 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Fixed side
SD 644 Shaft d1: 200 mm | Housing bore D: 460 mm | Centre height H: 280 mm | Length L: 920 mm | Version: Free side
SD 644 G Shaft d1: 200 mm | Housing bore D: 460 mm | Centre height H: 280 mm | Length L: 920 mm | Version: Fixed side
SD 3048 S Shaft d1: 220 mm | Housing bore D: 360 mm | Centre height H: 210 mm | Length L: 740 mm | Version: Free side
SD 3048 SG Shaft d1: 220 mm | Housing bore D: 360 mm | Centre height H: 210 mm | Length L: 740 mm | Version: Fixed side
SD 3148 S Shaft d1: 220 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Free side
SD 3148 SG Shaft d1: 220 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Fixed side
SD 548 Shaft d1: 220 mm | Housing bore D: 440 mm | Centre height H: 260 mm | Length L: 880 mm | Version: Free side
SD 548 G Shaft d1: 220 mm | Housing bore D: 440 mm | Centre height H: 260 mm | Length L: 880 mm | Version: Fixed side
SD 648 Shaft d1: 220 mm | Housing bore D: 500 mm | Centre height H: 300 mm | Length L: 990 mm | Version: Free side
SD 648 G Shaft d1: 220 mm | Housing bore D: 500 mm | Centre height H: 300 mm | Length L: 990 mm | Version: Fixed side
SD 3052 S Shaft d1: 240 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Free side
SD 3052 SG Shaft d1: 240 mm | Housing bore D: 400 mm | Centre height H: 240 mm | Length L: 820 mm | Version: Fixed side
SD 3152 S Shaft d1: 240 mm | Housing bore D: 440 mm | Centre height H: 260 mm | Length L: 880 mm | Version: Free side
SD 3152 SG Shaft d1: 240 mm | Housing bore D: 440 mm | Centre height H: 260 mm | Length L: 880 mm | Version: Fixed side
SD 552 Shaft d1: 240 mm | Housing bore D: 480 mm | Centre height H: 280 mm | Length L: 940 mm | Version: Free side
SD 552 G Shaft d1: 240 mm | Housing bore D: 480 mm | Centre height H: 280 mm | Length L: 940 mm | Version: Fixed side
SD 652 Shaft d1: 240 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Free side
SD 652 G Shaft d1: 240 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Fixed side
SD 3056 S Shaft d1: 260 mm | Housing bore D: 420 mm | Centre height H: 250 mm | Length L: 860 mm | Version: Free side
SD 3056 SG Shaft d1: 260 mm | Housing bore D: 420 mm | Centre height H: 250 mm | Length L: 860 mm | Version: Fixed side
SD 3156 S Shaft d1: 260 mm | Housing bore D: 460 mm | Centre height H: 280 mm | Length L: 920 mm | Version: Free side
SD 3156 SG Shaft d1: 260 mm | Housing bore D: 460 mm | Centre height H: 280 mm | Length L: 920 mm | Version: Fixed side
SD 556 Shaft d1: 260 mm | Housing bore D: 500 mm | Centre height H: 300 mm | Length L: 990 mm | Version: Free side
SD 556 G Shaft d1: 260 mm | Housing bore D: 500 mm | Centre height H: 300 mm | Length L: 990 mm | Version: Fixed side
SD 656 Shaft d1: 260 mm | Housing bore D: 580 mm | Centre height H: 355 mm | Length L: 1110 mm | Version: Free side
SD 656 G Shaft d1: 260 mm | Housing bore D: 580 mm | Centre height H: 355 mm | Length L: 1110 mm | Version: Fixed side
SD 3060 S Shaft d1: 280 mm | Housing bore D: 460 mm | Centre height H: 280 mm | Length L: 920 mm | Version: Free side
SD 3060 SG Shaft d1: 280 mm | Housing bore D: 460 mm | Centre height H: 280 mm | Length L: 920 mm | Version: Fixed side
SD 3160 S Shaft d1: 280 mm | Housing bore D: 500 mm | Centre height H: 300 mm | Length L: 990 mm | Version: Free side
SD 3160 SG Shaft d1: 280 mm | Housing bore D: 500 mm | Centre height H: 300 mm | Length L: 990 mm | Version: Fixed side
SD 560 Shaft d1: 280 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Free side
SD 560 G Shaft d1: 280 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Fixed side
SD 3064 S Shaft d1: 300 mm | Housing bore D: 480 mm | Centre height H: 280 mm | Length L: 940 mm | Version: Free side
SD 3064 SG Shaft d1: 300 mm | Housing bore D: 480 mm | Centre height H: 280 mm | Length L: 940 mm | Version: Fixed side
SD 3164 S Shaft d1: 300 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Free side
SD 3164 SG Shaft d1: 300 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Fixed side
SD 564 Shaft d1: 300 mm | Housing bore D: 580 mm | Centre height H: 355 mm | Length L: 1110 mm | Version: Free side
SD 564 G Shaft d1: 300 mm | Housing bore D: 580 mm | Centre height H: 355 mm | Length L: 1110 mm | Version: Fixed side
SD 3068 S Shaft d1: 320 mm | Housing bore D: 520 mm | Centre height H: 310 mm | Length L: 1020 mm | Version: Free side
SD 3068 SG Shaft d1: 320 mm | Housing bore D: 520 mm | Centre height H: 310 mm | Length L: 1020 mm | Version: Fixed side
SD 3168 S Shaft d1: 320 mm | Housing bore D: 580 mm | Centre height H: 355 mm | Length L: 1110 mm | Version: Free side
SD 3168 SG Shaft d1: 320 mm | Housing bore D: 580 mm | Centre height H: 355 mm | Length L: 1110 mm | Version: Fixed side
SD 3072 S Shaft d1: 340 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Free side
SD 3072 SG Shaft d1: 340 mm | Housing bore D: 540 mm | Centre height H: 325 mm | Length L: 1060 mm | Version: Fixed side
SD 3172 S Shaft d1: 340 mm | Housing bore D: 600 mm | Centre height H: 365 mm | Length L: 1140 mm | Version: Free side
SD 3172 SG Shaft d1: 340 mm | Housing bore D: 600 mm | Centre height H: 365 mm | Length L: 1140 mm | Version: Fixed side
SD 3076 S Shaft d1: 360 mm | Housing bore D: 560 mm | Centre height H: 340 mm | Length L: 1080 mm | Version: Free side
SD 3076 SG Shaft d1: 360 mm | Housing bore D: 560 mm | Centre height H: 340 mm | Length L: 1080 mm | Version: Fixed side
SD 3176 S Shaft d1: 360 mm | Housing bore D: 620 mm | Centre height H: 375 mm | Length L: 1160 mm | Version: Free side
SD 3176 SG Shaft d1: 360 mm | Housing bore D: 620 mm | Centre height H: 375 mm | Length L: 1160 mm | Version: Fixed side
SD 3080 S Shaft d1: 380 mm | Housing bore D: 600 mm | Centre height H: 365 mm | Length L: 1140 mm | Version: Free side
SD 3080 SG Shaft d1: 380 mm | Housing bore D: 600 mm | Centre height H: 365 mm | Length L: 1140 mm | Version: Fixed side
SD 3180 S Shaft d1: 380 mm | Housing bore D: 650 mm | Centre height H: 390 mm | Length L: 1220 mm | Version: Free side
SD 3180 SG Shaft d1: 380 mm | Housing bore D: 650 mm | Centre height H: 390 mm | Length L: 1220 mm | Version: Fixed side
SD 3084 S Shaft d1: 400 mm | Housing bore D: 620 mm | Centre height H: 375 mm | Length L: 1160 mm | Version: Free side
SD 3084 SG Shaft d1: 400 mm | Housing bore D: 620 mm | Centre height H: 375 mm | Length L: 1160 mm | Version: Fixed side
SD 3184 S Shaft d1: 400 mm | Housing bore D: 700 mm | Centre height H: 420 mm | Length L: 1250 mm | Version: Free side
SD 3184 SG Shaft d1: 400 mm | Housing bore D: 700 mm | Centre height H: 420 mm | Length L: 1250 mm | Version: Fixed side
SD 3088 S Shaft d1: 410 mm | Housing bore D: 650 mm | Centre height H: 390 mm | Length L: 1220 mm | Version: Free side
SD 3088 SG Shaft d1: 410 mm | Housing bore D: 650 mm | Centre height H: 390 mm | Length L: 1220 mm | Version: Fixed side
SD 3092 S Shaft d1: 430 mm | Housing bore D: 680 mm | Centre height H: 405 mm | Length L: 1220 mm | Version: Free side
SD 3092 SG Shaft d1: 430 mm | Housing bore D: 680 mm | Centre height H: 405 mm | Length L: 1220 mm | Version: Fixed side
SD 3096 S Shaft d1: 450 mm | Housing bore D: 700 mm | Centre height H: 415 mm | Length L: 1280 mm | Version: Free side
SD 3096 SG Shaft d1: 450 mm | Housing bore D: 700 mm | Centre height H: 415 mm | Length L: 1280 mm | Version: Fixed side
