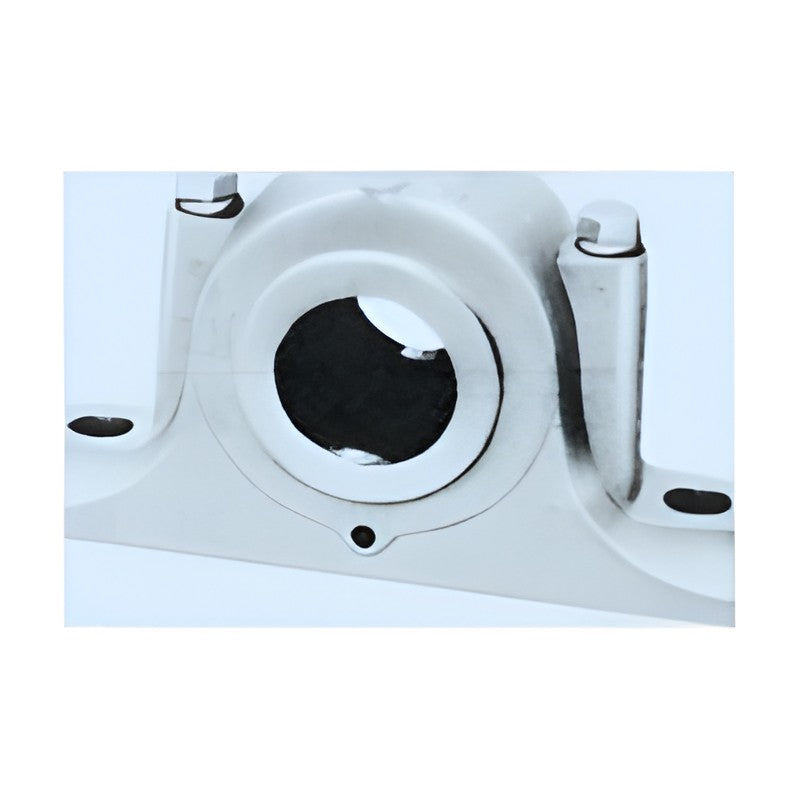

NSK SN 2 C / SN 3 C Plummer Block Housings (Shaft 25-160 mm)

NSK SN 2 C / SN 3 C Plummer Block Housings (Shaft 25-160 mm)

NSK SN 2 C and SN 3 C split plummer block housings with different seal bore diameters on each side, for bearings mounted with nut and washer on stepped shafts, shaft diameters 25 to 160 mm.

Key features

  • Different seal diameters on both sides for stepped shafts
  • For bearings secured with AN lock nut and AW washer
  • Split cast iron housing for easy assembly
  • Order as housing + bearing + nut + washer + locating ring

Specifications

Product Plummer block housing
Material Cast iron
Bearing Self-aligning ball or spherical roller bearing
Mounting 2 bolt
Shaft d 25-160 mm
Seals GS oil seals (included with housing)
Source NSK Rolling Bearings Catalogue (Part 3), p. 314-319
SN 205 C Shaft d1: 25 mm | Housing bore D: 52 mm | Centre height H: 40 mm | Length L: 165 mm
SN 305 C Shaft d1: 25 mm | Housing bore D: 62 mm | Centre height H: 50 mm | Length L: 185 mm
SN 206 C Shaft d1: 30 mm | Housing bore D: 62 mm | Centre height H: 50 mm | Length L: 185 mm
SN 306 C Shaft d1: 30 mm | Housing bore D: 72 mm | Centre height H: 50 mm | Length L: 185 mm
SN 207 C Shaft d1: 35 mm | Housing bore D: 72 mm | Centre height H: 50 mm | Length L: 185 mm
SN 307 C Shaft d1: 35 mm | Housing bore D: 80 mm | Centre height H: 60 mm | Length L: 205 mm
SN 208 C Shaft d1: 40 mm | Housing bore D: 80 mm | Centre height H: 60 mm | Length L: 205 mm
SN 308 C Shaft d1: 40 mm | Housing bore D: 90 mm | Centre height H: 60 mm | Length L: 205 mm
SN 209 C Shaft d1: 45 mm | Housing bore D: 85 mm | Centre height H: 60 mm | Length L: 205 mm
SN 309 C Shaft d1: 45 mm | Housing bore D: 100 mm | Centre height H: 70 mm | Length L: 255 mm
SN 210 C Shaft d1: 50 mm | Housing bore D: 90 mm | Centre height H: 60 mm | Length L: 205 mm
SN 310 C Shaft d1: 50 mm | Housing bore D: 110 mm | Centre height H: 70 mm | Length L: 255 mm
SN 211 C Shaft d1: 55 mm | Housing bore D: 100 mm | Centre height H: 70 mm | Length L: 255 mm
SN 311 C Shaft d1: 55 mm | Housing bore D: 120 mm | Centre height H: 80 mm | Length L: 275 mm
SN 212 C Shaft d1: 60 mm | Housing bore D: 110 mm | Centre height H: 70 mm | Length L: 255 mm
SN 312 C Shaft d1: 60 mm | Housing bore D: 130 mm | Centre height H: 80 mm | Length L: 280 mm
SN 213 C Shaft d1: 65 mm | Housing bore D: 120 mm | Centre height H: 80 mm | Length L: 275 mm
SN 313 C Shaft d1: 65 mm | Housing bore D: 140 mm | Centre height H: 95 mm | Length L: 315 mm
SN 214 C Shaft d1: 70 mm | Housing bore D: 125 mm | Centre height H: 80 mm | Length L: 275 mm
SN 314 C Shaft d1: 70 mm | Housing bore D: 150 mm | Centre height H: 95 mm | Length L: 320 mm
SN 215 C Shaft d1: 75 mm | Housing bore D: 130 mm | Centre height H: 80 mm | Length L: 280 mm
SN 315 C Shaft d1: 75 mm | Housing bore D: 160 mm | Centre height H: 100 mm | Length L: 345 mm
SN 216 C Shaft d1: 80 mm | Housing bore D: 140 mm | Centre height H: 95 mm | Length L: 315 mm
SN 316 C Shaft d1: 80 mm | Housing bore D: 170 mm | Centre height H: 112 mm | Length L: 345 mm
SN 217 C Shaft d1: 85 mm | Housing bore D: 150 mm | Centre height H: 95 mm | Length L: 320 mm
SN 317 C Shaft d1: 85 mm | Housing bore D: 180 mm | Centre height H: 112 mm | Length L: 380 mm
SN 218 C Shaft d1: 90 mm | Housing bore D: 160 mm | Centre height H: 100 mm | Length L: 345 mm
SN 318 C Shaft d1: 90 mm | Housing bore D: 190 mm | Centre height H: 112 mm | Length L: 380 mm
SN 219 C Shaft d1: 95 mm | Housing bore D: 170 mm | Centre height H: 112 mm | Length L: 345 mm
SN 319 C Shaft d1: 95 mm | Housing bore D: 200 mm | Centre height H: 125 mm | Length L: 410 mm
SN 220 C Shaft d1: 100 mm | Housing bore D: 180 mm | Centre height H: 112 mm | Length L: 380 mm
SN 320 C Shaft d1: 100 mm | Housing bore D: 215 mm | Centre height H: 140 mm | Length L: 410 mm
SN 222 C Shaft d1: 110 mm | Housing bore D: 200 mm | Centre height H: 125 mm | Length L: 410 mm
SN 322 C Shaft d1: 110 mm | Housing bore D: 240 mm | Centre height H: 150 mm | Length L: 450 mm
SN 224 C Shaft d1: 120 mm | Housing bore D: 215 mm | Centre height H: 140 mm | Length L: 410 mm
SN 324 C Shaft d1: 120 mm | Housing bore D: 260 mm | Centre height H: 160 mm | Length L: 530 mm
SN 226 C Shaft d1: 130 mm | Housing bore D: 230 mm | Centre height H: 150 mm | Length L: 445 mm
SN 326 C Shaft d1: 130 mm | Housing bore D: 280 mm | Centre height H: 170 mm | Length L: 550 mm
SN 228 C Shaft d1: 140 mm | Housing bore D: 250 mm | Centre height H: 150 mm | Length L: 500 mm
SN 328 C Shaft d1: 140 mm | Housing bore D: 300 mm | Centre height H: 180 mm | Length L: 610 mm
SN 230 C Shaft d1: 150 mm | Housing bore D: 270 mm | Centre height H: 160 mm | Length L: 530 mm
SN 330 C Shaft d1: 150 mm | Housing bore D: 320 mm | Centre height H: 190 mm | Length L: 650 mm
SN 232 C Shaft d1: 160 mm | Housing bore D: 290 mm | Centre height H: 170 mm | Length L: 550 mm
SN 332 C Shaft d1: 160 mm | Housing bore D: 340 mm | Centre height H: 200 mm | Length L: 680 mm
